Safety Integrated květen 2014 Siemens AG All Rights Reserved. siemens.com/safety-integrated

Transkript

1 TIA na dosah květen 2014 siemens.com/safety-integrated

2 Program Novinky v, S7 1500F, Safety Advanced STEP 7 Safety V13 25 Safety v pohonech Safety Evaluation Tool Bezpečnostní spouštěč motorů Strana 2

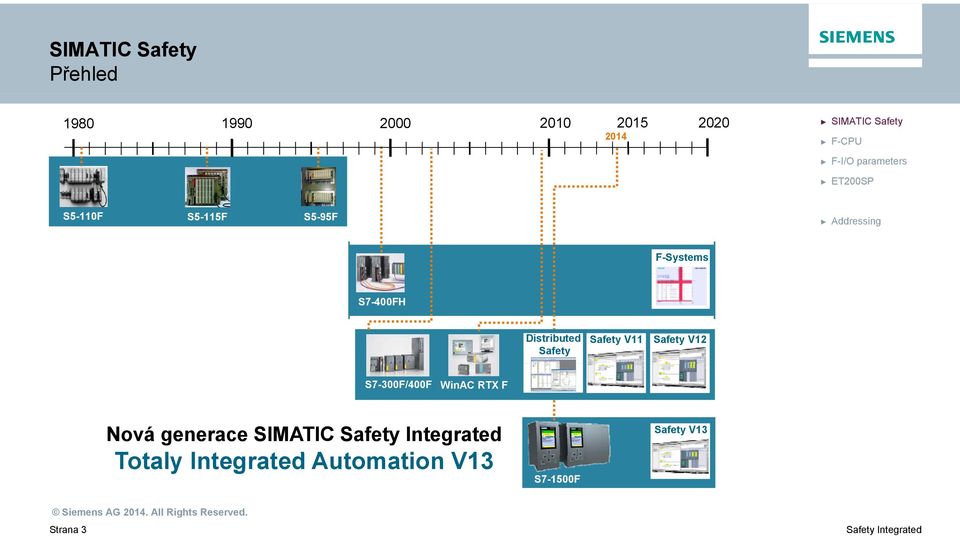

3 SIMATIC Safety Přehled SIMATIC Safety F-CPU F-I/O parameters ET200SP S5-110F S5-115F S5-95F Addressing F-Systems S7-400FH Distributed Safety Safety V11 Safety V12 S7-300F/400F WinAC RTX F Nová generace SIMATIC Totaly Integrated t dautomation ti V13 S7-1500F Safety V13 Strana 3

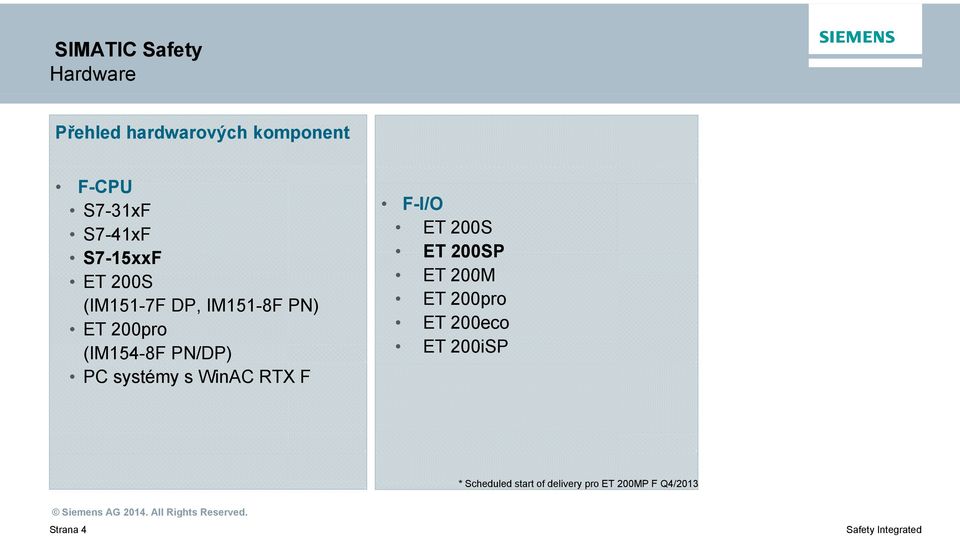

4 SIMATIC Safety Hardware Přehled hardwarových komponent F-CPU S7-31xF S7-41xF S7-15xxF ET 200S (IM151-7F DP, IM151-8F PN) ET 200pro (IM154-8F PN/DP) PC systémy s WinAC RTX F F-I/O ET 200S ET 200SP ET 200M ET 200pro ET 200eco ET 200iSP * Scheduled start of delivery pro ET 200MP F Q4/2013 Strana 4

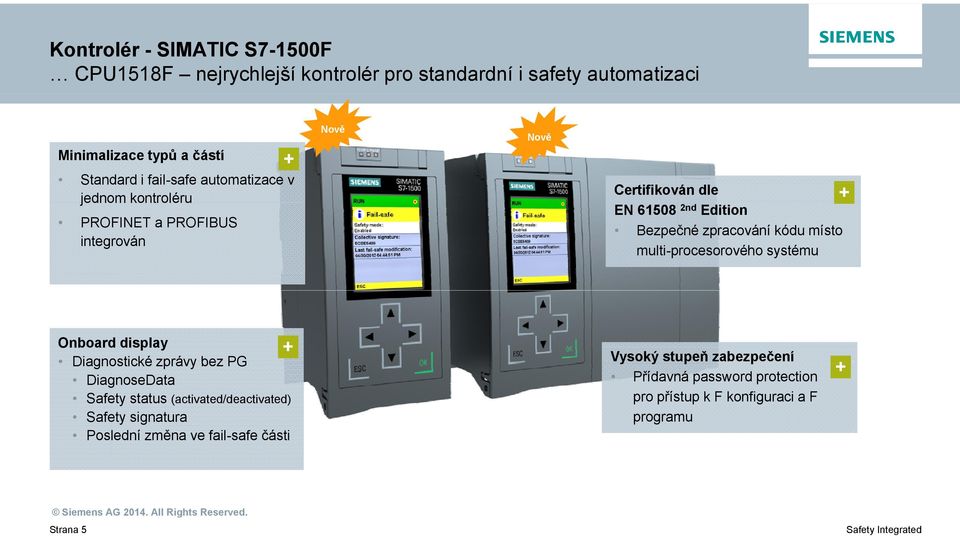

5 Kontrolér - SIMATIC S7-1500F CPU1518F nejrychlejší kontrolér pro standardní i safety automatizaci Minimalizace typů a částí Standard i fail-safe automatizace v jednom kontroléru PROFINET a PROFIBUS integrován + Nově Nově Certifikován dle + EN nd Edition Bezpečné zpracování kódu místo multi-procesorového systému Onboard display + Diagnostické zprávy bez PG DiagnoseData Safety status (activated/deactivated) Safety signatura Poslední změna ve fail-safe části Vysoký stupeň zabezpečení Přídavná password protection pro přístup k F konfiguraci a F programu + Strana 5

6 SIMATIC S SIMATIC S7-1516F-3 PN/DP Nový Hardware - CPU 1516F-3 PN/DP Safety program a standardní aplikace CPU-1516F CPU-1518F Novinka Work memory: 1,5 MB Program, 5 MB Data Výkon: 10ns Bit-Performance 70mm šířka 2 PROFINET a 1 PROFIBUS rozhraní pro oddělení sítí; 2. PROFINET rozhraní se samostatnou IP adresou pro komunikaci s dalšími systémy (X2 bez PROFINET IO funkcionality) Univerzální CPU, vhodné pro aplikace k ochraně osob a strojů pro Safety- a standardní aplikace pohodlná integrace CPU do firemní sítě Strana 6

7 SIMATIC S SIMATIC S7-1518F-4 PN/DP Nový Hardware - CPU 1518F-4 PN/DP Safety program a standardní aplikace CPU-1516F CPU-1518F Novinka Work memory: 4,5 MB Program, 10 MB Data Výkon: 1ns Bit-Performance 175mm šířka 3 PROFINET a 1 PROFIBUS rozhraní pro oddělení sítí; 3. PROFINET rozhraní se samostatnou IP adresou pro komunikaci s dalšími systémy (X2+X3 bez PROFINET IO funkcionality) CPU je vhodné pro aplikace k ochraně osob a strojů stejně jako pro hořákové aplikace Pro aplikace vyžadující vysoký výkon nejrychlejší Siemens PLC Strana 7

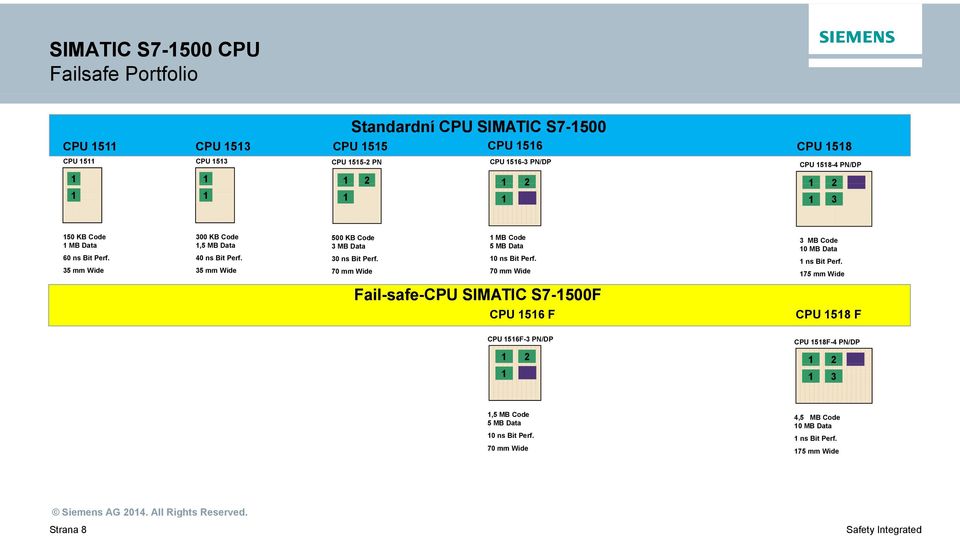

8 SIMATIC S CPU Failsafe Portfolio Standardní CPU SIMATIC S CPU 1511 CPU 1513 CPU 1515 CPU 1516 CPU 1518 CPU 1511 CPU 1513 CPU PN CPU PN/DP CPU PN/DP KB Code 1 MB Data 60 ns Bit Perf. 35 mm Wide 300 KB Code 1,5 MB Data 40 ns Bit Perf. 35 mm Wide 500 KB Code 3 MB Data 30 ns Bit Perf. 70 mm Wide 1 MB Code 5 MB Data 10 ns Bit Perf. 70 mm Wide 3 MB Code 10 MB Data 1 ns Bit Perf. 175 mm Wide 70 mm Wide 175 mm Wide Fail-safe-CPU SIMATIC S7-1500F CPU 1516 F CPU 1518 F CPU 1516F-3 PN/DP CPU 1518F-4 PN/DP ,5 MB Code 5 MB Data 10 ns Bit Perf. 70 mm Wide 4,5 MB Code 10 MB Data 1 ns Bit Perf. 175 mm Wide Strana 8

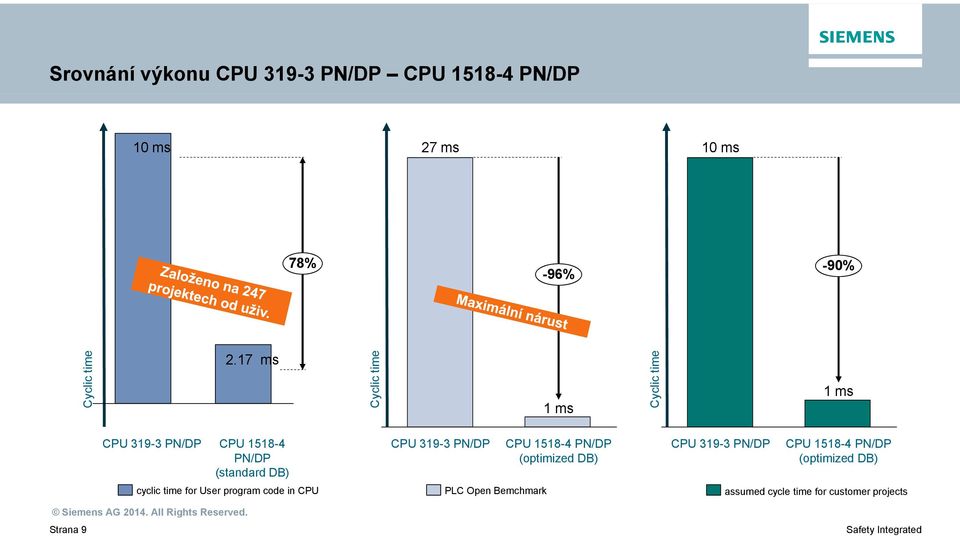

9 Srovnání výkonu CPU PN/DP CPU PN/DP 10 ms 27 ms 10 ms 78% -96% -90% Cyclic tim me 2.17 ms Cyclic tim me 1ms Cyclic tim me 1ms CPU PN/DP CPU PN/DP (standard DB) CPU PN/DP CPU PN/DP (optimized DB) CPU PN/DP CPU PN/DP (optimized DB) cyclic time for User program code in CPU PLC Open Bemchmark assumed cycle time for customer projects Strana 9

10 SIMATIC S CPU Displej X1: X2: Start Status Diagnostika Failsafe Strana 10

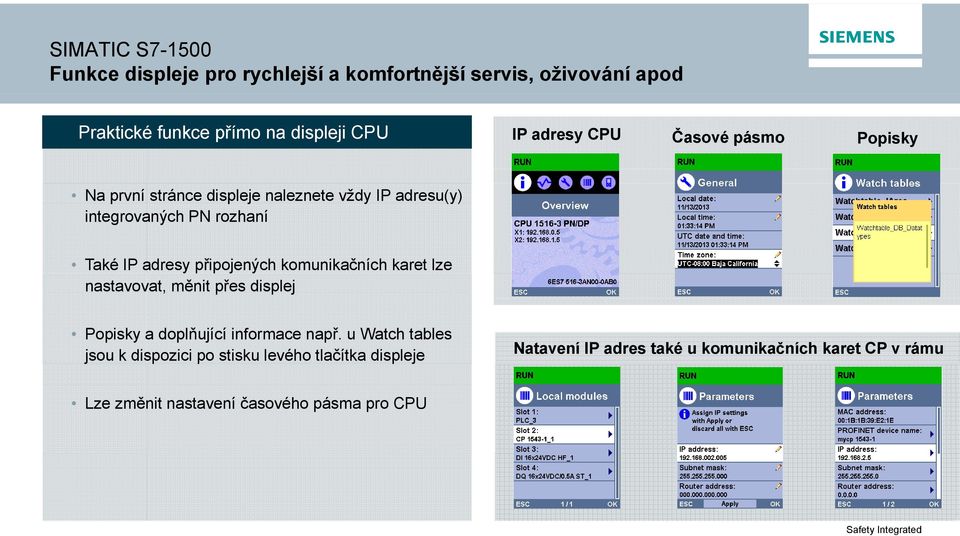

11 SIMATIC S Funkce displeje pro rychlejší a komfortnější servis, oživování apod Praktické funkce přímo na displeji CPU IP adresy CPU Časové pásmo Popisky Na první stránce displeje naleznete vždy IP adresu(y) integrovaných PN rozhaní Také IP adresy připojených komunikačních karet lze nastavovat, měnit přes displej Popisky a doplňující informace např. u Watch tables jsou k dispozici po stisku levého tlačítka displeje Natavení IP adres také u komunikačních karet CP v rámu Lze změnit nastavení časového pásma pro CPU Strana 11

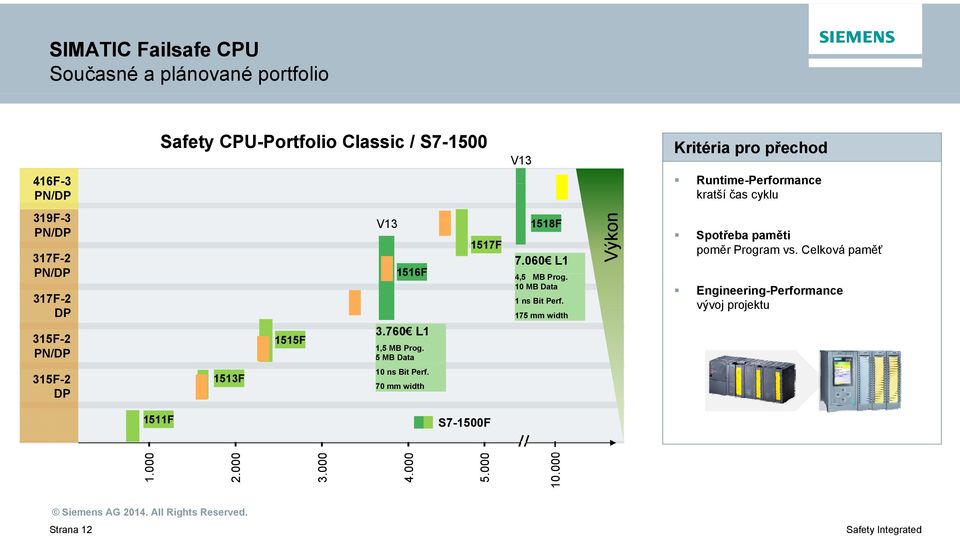

12 SIMATIC Failsafe CPU Současné a plánované portfolio Safety CPU-Portfolio Classic / S V13 Kritéria pro přechod 416F-3 PN/DP Runtime-Performance kratší čas cyklu 319F-3 PN/DP 317F-2 PN/DP 317F-2 DP 315F-2 PN/DP 1515F V F L1 1,5 MB Prog. 5 MB Data 1517F 1518F L1 4,5 MB Prog. 10 MB Data 1 ns Bit Perf. 175 mm width Výkon Spotřeba paměti poměr Program vs. Celková paměť Engineering-Performance vývoj projektu 315F-2 DP 1513F 10 ns Bit Perf. 70 mm width 1511F S7-1500F Strana 12

13 SIMATIC S CPU Failsafe Portfolio výhled CPU 1510SP CPU 1512SP SIMATIC S Standard CPU CPU 1511 CPU 1513 CPU 1515 CPU 1516 CPU 1517 CPU 1518 CPU 1510SP CPU 1511SP CPU 1511 CPU 1513 CPU PN CPU PN/DP CPU PN/DP CPU PN/DP KB Prog. 750 KB Data 72 ns Bit Perf. 200 KB Prog. 1 MB Data 48 ns Bit Perf. 150 KB Prog. 1 MB Data 60 ns Bit Perf. 300 KB Prog. 1,5 MB Data 40 ns Bit Perf. 500 KB Prog. 3 MB Data 30 ns Bit Perf. 1 MB Prog. 5 MB Data 10 ns Bit Perf. 2 MB Prog. 8 MB Data 2 ns Bit Perf. 3 MB Prog. 10 MB Data 1 ns Bit Perf. 85 mm Width 110 mm Width 35 mm Width 35 mm Width 70 mm Width 70 mm Width 175 mm Width 175 mm Width CPU 1510SP F CPU 1512SP F SIMATIC S Failsafe CPU CPU 1511F CPU 1513F CPU 1515F CPU 1516F CPU 1517F CPU 1518 F CPU 1510SP F CPU 1512SP F CPU 1511F CPU 1513F CPU 1515F-2 PN CPU 1516F-3 PN/DP CPU 1517F-3 PN/DP CPU 1518F-4 PN/DP KB Prog. 750 KB Data 72 ns Bit Perf. 85 mm Width 300 KB Prog. 1 MB Data 48 ns Bit Perf. 110 mm Width 225 KB Prog. 1 MB Data 60 ns Bit Perf. 35 mm Width 450 KB Prog. 1,5 MB Data 40 ns Bit Perf. 35 mm Width 750 KB Prog. 3 MB Data 30 ns Bit Perf. 70 mm Width 1,5 MB Prog. 5 MB Data 10 ns Bit Perf. 70 mm Width 3 MB Prog. 8 MB Data 2 ns Bit Perf. 175 mm Width 4,5 MB Prog. 10 MB Data 1 ns Bit Perf. 175 mm Width Strana 13

14 Safety SW - Roadmap siemens.com/safety-integrated

15 Roadmap AS Safety Software TIA Portal a Classic Jan Jan Jan TIA Portal: Safety Advanced STEP 7 Safety Podpora S7-1500F STEP 7 Safety Upd1 Delta-Compile / -Download STEP 7 Safety Advanced V14 F Multiuser podpora trigonometrických funkcí Auto výpočet reakční doby STEP 7 Safety SP1 F-Changelog PLC-SIM F-I/O Support Podpora ET 200MP F-I/O PROFIsafe V2.6 Shared Device Undo v Online Distributed Safety (Classic): S7 F-Configuration Pack S7 F-Configuration Pack V5.5 SP12 Shared Device pro ET200SP F-I/Os Strana 16

16 ET200SP siemens.com/safety-integrated

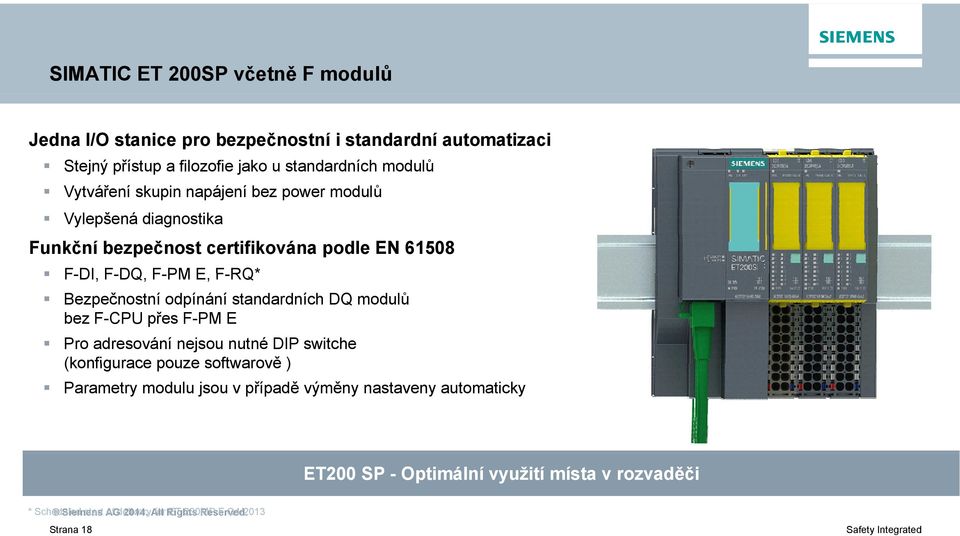

17 SIMATIC ET 200SP včetně F modulů Jedna I/O stanice pro bezpečnostní i standardní automatizaci Stejný přístup a filozofie jako u standardních modulů Vytváření skupin napájení bez power modulů Vylepšená diagnostika Funkční bezpečnost certifikována podle EN F-DI, F-DQ, F-PM E, F-RQ RQ* Bezpečnostní odpínání standardních DQ modulů bez F-CPU přes F-PM E Pro adresování nejsou nutné DIP switche (konfigurace pouze softwarově ) Parametry modulu jsou v případě výměny nastaveny automaticky ET200 SP - Optimální využití místa v rozvaděči * Scheduled Siemens start AG of delivery All for Rights ET 200MP Reserved. F Q4/2013 Strana 18

18 SIMATIC ET 200SP F Portfolio Digitální vstup 4/8 F-DI DC24V ET 200S ET 200SP F 8F-DI DC24V HF -Šířka modulu 15mm Digital outputs Relay Power module 4 F-DO DC24V/ 2A 1 F-RO DC24V/AC230V/5A PM-E F pm DC24V PM-E F pp DC24V 4 F-DQ PM DC24V/ 2A HF -Šířka modulu 15mm 1 F-RQ DC24V/AC V/6A -Šířka modulu 20mm F PM-E ppm DC24V/8A -Šířka modulu 20mm - 2 F-DI DC24V - 1 F-DQ PPM 2A - pp / pm switching, parametrovatelné -přímé odepínání z F-DI na F-DO - Skupinové odepínání F-DQ až SIL3 - Strana 19

19 I/O-Moduly podporované v SINUMERIK 840D sl PROFIBUS with PROFIsafe SINUMERIK 840D sl ET 200S ET 200pro ET 200eco ET 200M DP/AS-i F-Link PROFINET with PROFIsafe ET 200SP F (>= SW-Release 4.5 SP3 02/2014) CU 320 SINUMERIK 840D sl ET 200S ET 200pro ET 200M ET 200SP F (>= SW-Release Strana SP3 02/2014)

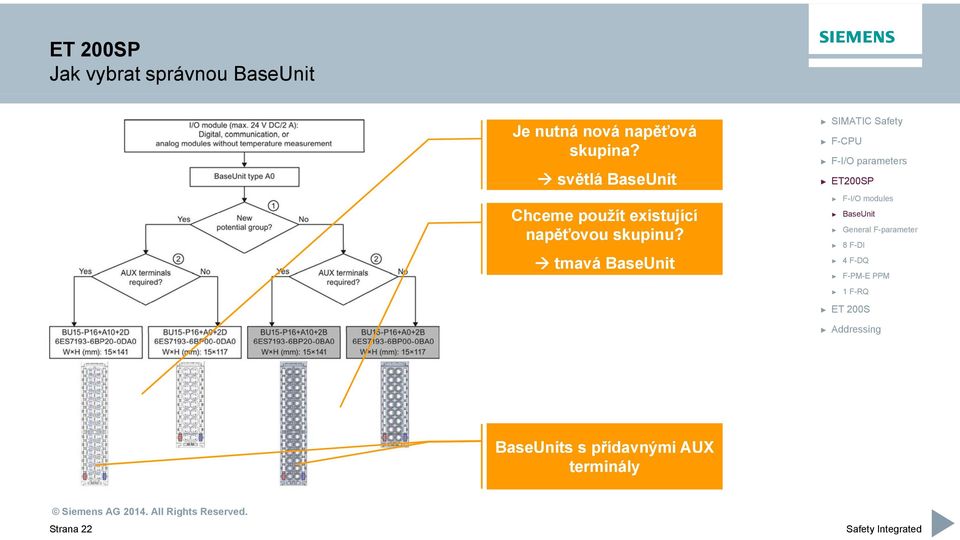

20 ET 200SP Jak vybrat správnou BaseUnit Je nutná nová napěťová skupina? světlá BaseUnit Chceme použít existující napěťovou skupinu? tmavá BaseUnit SIMATIC Safety F-CPU F-I/O parameters ET200SP F-I/O modules BaseUnit General F-parameter 8 F-DI 4 F-DQ F-PM-E EPPM 1 F-RQ ET 200S Addressing BaseUnits s přídavnými AUX terminály Strana 22

21 ET 200SP Výběr správné BaseUnit SIMATIC Safety F-CPU F-I/O parameters Nová napěťová skupina AUX svorky připojeny ET200SP F-I/O modules BaseUnit General F-parameter 8 F-DI 4 F-DQ F-PM-E EPPM 1 F-RQ ET 200S Addressing Strana 23

22 SIMATIC ET 200SP Shrnutí Jednoduché použití Díky Push-In terminálům nejsou nutné nástroje Popisové pásky a rámeček pro oddělení Promyšlené značení a barevné odlišení Návrh stanice v TIA Selection tool Efektivní vývoj v TIA Portálu a Stepu 7 Malé rozměry Integrované napájecí moduly 16 kanálové IO moduly 50% menší než ET 200S 64 modulů v 1m stanici Vysoký výkon Připojení na PROFINET s bus adapter (RJ45, FastConnect) t) 100MBit/s přenosová rychlost na back plane Bezpečný přenos dat Moduly yp pro AS-Interface (incl. F), IO-Link PROFIenergy je v základu integrováno Strana 24

23 Safety v TIA portálu siemens.com/safety-integrated

24 TIA Portal V13 Jednotné prostředí pro všechny SIMATIC kontroléry Engi neering Op ptions STEP 7 Safety Easy Motion Control V13 PID Professional V13 TIA Portal V13 Overview Highlights & New Features STEP 7 Safety ring n Enginee Editio STEP 7 Professional V13 STEP 7 Basic V13 S7-1200, Basic Panels ET 200 CPU, S7-300, S7-400, WinAC S Device Strana 26

25 STEP 7 V13 - TIA Portal + Safety Systemové požadavky Operační systémy Virtualizace Nově Windows 7 64bit Standardní platforma pro S7 Classic Software a TIA Portal Windows 8.1 jsou podporována v TIA Portal V13 Windows XP nejsou podporována VMware vsphere Hypervisor (ESXi) 5.5 VMware Workstation 10 VMware Player 6.0 Microsoft Windows Server 2012 R2 Hyper-V Windows 7 32bit nejsou podporovány Antivirové programy Symantec Endpoint Protection Trend Micro Office Scan Corporate Edition 10.6 McAfee VirusScan Enterprise 8.8 Nově Nově Kaspersky Anti-Virus 2014 Windows Defender (Windows 8.1 and higher) Strana 27

26 STEP 7 Safety Highlights Požadavky STEP 7 Professional V13 Safety Jednotný vývojový systém pro standardní i bezpečnostní aplikace Jedno společné tlačítko pro kompilaci Jedno společné tlačítko pro download Všechny vlastnosti STEP 7 Professional V13 jsou dostupné pro Safety Undo tlačítko Oblast modulů mimo rail Ukládání nekonzistentních bloků Safety programování LAD a FBD Grafické nastavení safe drive technologie New Podporované datové typy: BOOL, INT, DINT, WORD, DWORD*, TIME, UDT** in V13 TIA Portal V13 STEP 7 Safety Highlights Licenses F-System blocks TRUE / FALSE F-UDT Data exchange Safety Administration Comparing Testing Know-How protection Signatures Safety library F-Address Compile & Download Cross-references Safety print-out Programming examples Hands-on *DWORD currently not in S7-1500F / **UDT just with S7-1500F Strana 28

27 STEP 7 Safety až do SIL 3 podle IEC nd Edition F - Engineering + F - CPU + F - I/O Moduly STEP 7 Safety F-LAD, F-FBD, F library S7-1500F, S7-300F/400F, WinAC RTX F ET 200S/ SP/ isp/ M/ MP/ pro/ eco S7-1500F S7-1516F S7-1518F ET 200SP F F-PM-E* 8F-DI* 4F-DQ* F-RQ Strana 29 *already supported in Safety V12

28 STEP 7 Safety Rozšíření Přidaná vylepšení Otevírání projektů, online připojení i download výrazně rychlejší Podpora Failsafe CPU S7-1500F Safety Administrator Editor Oddělení standardního a Safety programu přes F-OB a nezávislé nastavení cyklu a watchdogu Automatické volání F-programu "Main Safety Vylepšný výpis programu S7-1500F UDT pro failsafe datové typy Kontrolní součty funčních celků Efektivní vývoj failsafe programů Strana 30

29 STEP 7 Safety Performance Malé změny v programu, kompilace a download během monitoringu -17% -50% CPU 317F Vylepšení pro S7-300F CPU Delta kompilace v přípravě V12 Dev. Version V13 CPU 1516F Strana 31

30 STEP 7 Safety Výkon 26-54% x 2 Standard part Failsafe part % x ms S7-1500F znatelně rychlejší než S7-300 F-CPU S7-1518F nejrychlejší F-CPU všech dob CPU 317F CPU 1516F CPU 319F CPU 1518F Based on typical 317F customer project Strana 32

31 Safety V13 Souhrn STEP 7 Safety Integrace Safety v TIA Portálu Podpora nových S7-1516F a S7-1518F Vylepšení výkonu oproti Safety V12 léto 2014 CRC do úrovně FB F- Adresy bez DIL-Switchu pro ET200SP F Další vylepšení s Delta-compile S7-1500F Portfolio nejvyšší výkon S7-1516F až 30% výkonnější v porovnání s CPU 317F S7-1518F nejrychlejší dostupné F-CPU 8x rychlejší než CPU 319F Strana 33

32 STEP 7 Safety Highlights Konzistentní žluté značení safety objektů TIA Portal V13 STEP 7 Safety Highlights Licenses F-System blocks TRUE / FALSE F-UDT Data exchange Safety Administration Comparing Testing Know-How protection Signatures Safety library F-Address Compile & Download Cross-references Safety print-out Programming examples Hands-on Strana 34

33 Konfigurace F-CPU S7-1500F S7-300F/400F/WinAC S7-1500F protection SIMATIC Safety F-CPU Standardně nastaveno No protection Každý uživatel může číst a měnit HW konfiguraci i bloky F-I/O parameters ET200SP ET 200S Addressing Heslo pouze pro fail-safe Nově Read only HMI komunikace je možná Kompletní ochrana Strana 35

34 Konfigurace F-CPU S7-1500F S7-300F/400F/WinAC S7-1500F zabezpečení Zvláštní heslo pro každou úroveň přístupu (např. pro různé skupiny uživatelů) SIMATIC Safety F-CPU F-I/O parameters ET200SP ET 200S Addressing New Strana 36

35 STEP 7 Safety Porovnání Safety Programů Porovnání safety programů funguje stejně jako u standardních Tzv. comparison editor může být použit pro offline-online i offline-offline porovnání safety programů Postup je stejný jako u standardních programů. Obsah F-bloků je porovnáván pro zjištění rozdílů v safety programech. Offline-offline porovnání může být použito pro změny v acceptance testu. Symbol Meaning for safety program The offline and online versions of the object are identical. The offline and online versions of the object are different. Object only available offline Object only available online Strana 37 Possible causes All criteria named above match both offline and online. The differences are indicated in the "Details" column. The block is only available offline. The block is only available online. Symbol Meaning for safety program Both offline versions of the object are identical. Both offline versions of the object are different Object available only in safety program 1 Object available only in safety program 2 Possible causes All criteria indicated above are met The differences are indicated in the "Details" column. TIA Portal V13 STEP 7 Safety Highlights Licenses F-System blocks TRUE / FALSE F-UDT Data exchange Safety Administration Comparing Testing Know-How protection Signatures Safety library F-Address Compile & Download Cross-references Safety print-out Programming examples Hands-on

36 STEP 7 Safety Porovnávání Safety programů Porovnání safety programů 1 vyberte Tools > Compare > Offline/online Vyber F blok pro zobratení signatury. 2 Vyberte Compare only F-blocks pro porovnání safety prog. TIA Portal V13 STEP 7 Safety Highlights Licenses F-System blocks TRUE / FALSE F-UDT Data exchange Safety Administration Comparing Testing Know-How protection Signatures Safety library F-Address Compile & Download Cross-references Safety print-out Programming examples Hands-on Strana 38

37 STEP 7 Safety - programování F-suitable PLC data type (F-UDT) S7-1500F S7-300F/400F F uživatelský datový typ PLC datové typy (UDT) jsou datové struktury definované uživatelem a které jdou použití na mnoha místech programu. F-UDT jsou deklarovány stejně jako standardní UDT. In F-UDT s can be used all data types, that can be used in the safety program. Vnoření F-UDT do jiného F-UDT není podporování! F-UDT mohou být použivy v safety programu i v standardním programu Nově u S7-1500F TIA Portal V13 STEP 7 Safety Highlights Licenses F-System blocks TRUE / FALSE F-UDT Data exchange Safety Administration Comparing Testing Know-How protection Signatures Safety library F-Address Compile & Download Cross-references Safety print-out Programming examples Hands-on Strana 39

38 STEP 7 Safety F-suitable PLC data type (F-UDT) S7-1500F S7-300F/400F Přístup s F-UDT na fail-safe I/O Structura tagu v F-suitable PLC data type musí být stejná jako struktura kanálů I/O modulu! Správné F-UDT k přístupu na 8 F-DI je např.: 8 BOOL tagů (hodnota kanálu) nebo 16 BOOL tagů (hodnota + status kanálu) Na deaktivované F-I/O nelze z F-UDT! TIA Portal V13 STEP 7 Safety Highlights Licenses F-System blocks TRUE / FALSE F-UDT Data exchange Safety Administration Comparing Testing Know-How protection Signatures Safety library F-Address Compile & Download Cross-references Safety print-out Programming examples Hands-on Strana 40

39 STEP 7 Safety TRUE / FALSE S7-1500F S7-300F/400F TRUE a FALSE při volání bloků Boolovské konstanty "FALSE" pro 0 a "TRUE" pro 1 jsou nově dostupné u S F-CPU k přiřazení parametru u volání bloků. S7-1500F New in S7-1500F S7-300F/400F TIA Portal V13 STEP 7 Safety Highlights Licenses F-System blocks TRUE / FALSE F-UDT Data exchange Safety Administration Comparing Testing Know-How protection Signatures Safety library F-Address Compile & Download Cross-references Safety print-out Programming examples Hands-on Strana 41

40 STEP 7 Safety Signatury S7-1500F S7-300F/400F Funkční signatury F-bloků Nově v S7-1500F Snadné porovnání změn ve fail-safe programu díky funkční signatuře. Funkční signatura F-bloků se změní pouze pokud se změní logika v F-bloku, číslo ani verze ji neovlivní. Příklad: TIA Portal V13 STEP 7 Safety Highlights Licenses F-System blocks TRUE / FALSE F-UDT Data exchange Safety Administration Comparing Testing Know-How protection Signatures Safety library F-Address Compile & Download Cross-references Safety print-out Programming examples Hands-on Strana 42

41 STEP 7 Safety Signatury Signatury parametrů F-I/O modulů s a bez PROFIsafe adresy Pokud zůstanou stejné parametry a změní se jen PROFIsafe adresy signatura F parametrů se nezmění Píklad před změnou: TIA Portal V13 STEP 7 Safety Highlights Licenses F-System blocks TRUE / FALSE F-UDT Data exchange Safety Administration Comparing Testing Know-How protection Signatures Safety library F-Address Compile & Download Cross-references Safety print-out Programming examples Hands-on Strana 43

42 STEP 7 Safety Safety knihovna S7-1500F S7-300F/400F Ne všechny S7-300F/400F fukce jsou dostupné pro S7-1500F! TIA Portal V13 STEP 7 Safety TWO_H_EN prakticky stejné jako TWO_HAND ale s ENABLE MUT_P fukčně stejné jako MUTING ale s FREE. Funkce FREE může být použita k uvolnění rozsahu mutingu v případě, když chyba nemůže být okamžitě odstraněna. Pro nepřímou adresaci ale S je programována symbolicky Byl použit k otvírání Global-DB pro nepřímý přístup. Highlights Licenses F-System blocks TRUE / FALSE F-UDT Data exchange Safety Administration Comparing Testing Know-How protection Signatures Safety library F-Address Compile & Download Cross-references Safety print-out Programming examples Hands-on Strana 44

43 STEP 7 Safety Přiřazení F-Adresy s FB105 S7-1500F S7-300F/400F FAddressAssignment blok FB105 Přiřazení F-Adresy bez softwaru Cílovou skupinou jsou výrobci strojů Použitelné s STEP7 V5.5 SP3 HF5 nebo TIA Portal V12 SP1 a vyšší Pro S7-300F/400F i S7-1500F Pro DP na PROFIBUSU i PROFINETU Fpro všechny současné i budoucí F-I/O moduly bez DIL přepínačů Ke stažení na SIMATIC Service & Support homepage (Q3-2014) Novinka TIA Portal V13 STEP 7 Safety Highlights Licenses F-System blocks TRUE / FALSE F-UDT Data exchange Safety Administration Comparing Testing Know-How protection Signatures Safety library F-Address Compile & Download Cross-references Safety print-out Programming examples Hands-on Strana 45

44 STEP 7 Safety F-Systemové bloky S7-1500F S7-300F/400F F_RTG1SysInfo DB Nově v S7-1500F Systémový F-DB (nahrazuje F-GLOBDB u S7-1500F Poskytuje informace využitelné v uživatelském programu Přístup přes symbolickou adresaci RTG1SysInfo.XXX TIA Portal V13 STEP 7 Safety Highlights Licenses F-System blocks TRUE / FALSE F-UDT Data exchange Safety Administration Comparing Testing Know-How protection Signatures Safety library F-Address Compile & Download Cross-references Safety print-out Programming examples Hands-on Strana 46

45 TIA Portal V13 Novinky a vylepšení TIA Portal Update Tool Spouštěno z Portal view: Start t Installed t d software Check for updates Kontroluje a informuje o stavu SW v TIA-Portálu Download updatů Pause / Resume stahování Instalace updatů TIA Portal V13 Overview Highlights & New Features STEP 7 Safety Nově vv13 Strana 47

46 Teamengineering jak pracovat v týmu PLC proxy pro HMI práce v týmu pro HMI a PLC inženýry lze uplatnit také v prostředí Classic Team Engineering PLC Proxy for HMI Copy & Merge Online Commissioning of a S Kopie a sloučení č projektů vzájemné sdílení (kopie) projektu a následné sloučení projektů po provedených změnách Online provoz přístup do jednoho PLC s více uživateli současně Strana 48

47 TIA Portal V13 Novinky 2 druhy knihoven TIA Portal V13 Overview Highlights & New Features Project library STEP 7 Safety Samostatná pro každý projekt Přiřazena k projektu (otevřena, Types uložena a uzavřena s projektem) Global library Nezávislá na projektu Pro využití objektů v různých projektech Types Master copies Master copies Common data Project library Global library Strana 49

48 TIA Portal V13 Novinky Vylepšená práce s knihovnami Typy TIA Portal V13 Overview Highlights & New Features STEP 7 Safety Jsou centralizované template Jejich instance jsou implementovány do projektu Instance jsou linkovány s typy centralizované změny Types STEP 7 Safety Master copies Pracují jako schránka uvnitř projektu Master kopie a jejich j kopie nejsou spojeny nejsou měněny centrálně Společná data data obecně např. protokoly Master copies Common data Library Strana 50

49 TIA Portal V13 Highlights & New Features Vlastnosti známé z MS Office pro efektivnější programování TIA Portal V13 Overview Highlights & New Features AutoFill: STEP 7 Safety Např. v PLC tags Např. v data blocks Např. v HMI Strana 51

50 STEP 7 Safety Licence Upgrade licence z Distributed Safety nebo Safety Advanced V11/12 TIA Portal V13 STEP 7 Safety Classic TIA Portal V11/12 Migrace Distributed Safety V5.4 SP5 Distributed Safety (DS) SUS STEP 7 Safety Advanced V11/12 (Combo license for Upgrade from Classic) STEP 7 Safety Advanced (SSA) SUS upgrade persists TIA Portal V13 STEP 7 Safety (Combo license for Upgrade from Classic) STEP 7 Safety Advanced (SSA) SUS Highlights Licenses F-System blocks TRUE / FALSE F-UDT Data exchange Safety Administration Comparing Testing Know-How protection Signatures Safety library F-Address Compile & Download Cross-references Safety print-out Programming examples Hands-on Strana 52

51 STEP 7 Safety Licence Dostupné licence (Industry Mall) Product name STEP 7 Safety Software Download STEP 7 Safety Advanced V11...V12 -> V13 Upgrade Software Download Upgrade S7 Distributed Safety V5.4 SP5 -> V13 Software Download SUS STEP 7 Safety Advanced Software Download SUS STEP 7 Safety Advanced compact ** Article No. 6ES7833-1FA13-0YA5 6ES7833-1FA13-0YH5 6ES7833-1FA13-0YE5 6ES7833-1FA13-0YK5 6ES7833-1FA13-0YF5 6ES7833-1FA13-0YY5 6ES7833-1FC00-0YX2 6ES7833-1FC00-0YY0 0YY0 6ES7833-1FC00-0YM2 **SUS compact means that irrespective of the number of ordered packages only one data carrier and one USB stick will be delivered. TIA Portal V13 STEP 7 Safety Highlights Licenses F-System blocks TRUE / FALSE F-UDT Data exchange Safety Administration Comparing Testing Know-How protection Signatures Safety library F-Address Compile & Download Cross-references Safety print-out Programming examples Hands-on Strana 53

52 Diagnostika Strana 54

53 S7-1500F Webserver pomáhá i pro Safety SIMATIC Safety Nově v S7-1500F F-CPU F-I/O parameters ET200SP ET 200S Addressing Differences in F- Addressing F-Address Profinet device name System diagnostics Strana 55

54 SIMATIC S novinky v TIA Portal V13 Nové jazyky pro zobrazení na webserver a displej Nové prvky pro displej a webserver Nové jazyky pro zobrazení na webserver a displej : Nyní nově: Ruština, Japonština, Turečtina, Portugalština, Korejština Čtení watch tables a force table přímo na displeji CPU Watch table na displeji CPU New Strana 56

55 STEP 7 Safety V13 Diagnostika v S Nově Diagnostika integrována ve firmware S Nejsou nutné další funkční bloky jako u S7-300/400 Diagnostika dostupná i ve STOP PLC Snadná konfigurace alarmů FB49, DB49 DB50, FC49 SIMATIC Safety F-CPU F-I/O parameters ET200SP ET 200S Addressing Differences in F- Addressing F-Address Profinet device name System diagnostics Strana 57

56 STEP 7 Safety V13 Diagnostika v S SIMATIC Safety F-CPU Standardně zapnuto F-I/O parameters ET200SP ET 200S Addressing Nově Differences in F- Addressing F-Address Profinet device name System diagnostics Rychlejší přístup k diagnostice Strana 58

57 STEP 7 Safety V13 Diagnostika S S S7-300/400 Default settings enabled disabled SIMATIC Safety F-CPU F-I/O parameters ET200SP ET 200S Implementace Dostupnost ve Firmware Žádné bloky PLC STOP PLC RUN distributed blocks PLC RUN Addressing Differences in F- Addressing F-Address Profinet device name System diagnostics Vliv na výkon (Generation/Download) Nemá vliv vysoký (generování bloků) Připojení 3rd-Party - HMI Není možný (jiná architektura) Export/Import generovaných hlášení (s STEP 7 Classic ) Strana 59

58 Děkuji za pozornost Vojtěch Kubáň I IA&DT AS Siemensova Praha 13 Tel: vojtech.kuban@siemens.com com siemens.com/safety-integrated Strana 60

59 SIMATIC S FW V1.5 New features of the Display Efficient commissioning using the Display Display with new functions for efficient commissioning and dfast on-site diagnostics: i Reading access to watch and force tables The IP addresses of on-board interfaces are shown in the home screen directly IP addresses of Ethernet communication modules can be set The time zone can be set Support of additional languages: Russian, Japanese, Portuguese, Turkish and Korean User defined logo Watch tables in the Display Set IP addresses of Ethernet modules: Strana 61

60 TIA Portal V13 Multi language support for worldwide use Selectable GUI language: German English French Spanish Italian Chinese simplified In Preparation: Japanese Korean Portuguese Russian Project texts STEP 7 V13: Comments (for blocks, tags, modules, etc.) can be translated and stored in several languages within the project. Using S and S comments are downloaded to the PLC in a selected language together with the project. WinCC V13: Messages and text in screens can be created in several languages HMI & PLC System messages are created automatically in several languages TIA Portal V13 Overview Highlights & New Features STEP 7 Safety Strana 62

61 STEP 7 Safety F-System blocks Safety program always consists User created F-blocks Management in the program blocks folder Call in the Main Safety block System created F-blocks (Coded Processing) Are created when the user program is compiled Management from the system in an own block folder Add to the user created program Fault control measures Safety-related t testst S7-300F/400F S7-1500F TIA Portal V13 STEP 7 Safety Highlights Licenses F-System blocks TRUE / FALSE F-UDT Data exchange Safety Administration Comparing Testing Know-How protection Signatures Safety library F-Address Compile & Download Cross-references Safety print-out Programming examples Hands-on Strana 63

62 STEP 7 Safety F-System blocks S7-1500F S7-300F/400F F_GLOBDB Is a system created F-data block Provides information for Standard program Safety mode of PLC Error while execution of safety program F-signature Time stamp of last program compilation Safety program VKE0: Constant value 0 (FALSE) VKE1: Constant value 1 (TRUE) Access via symbolic addressing F_GLOBDB.XXX TIA Portal V13 STEP 7 Safety Highlights Licenses F-System blocks TRUE / FALSE F-UDT Data exchange Safety Administration Comparing Testing Know-How protection Signatures Safety library F-Address Compile & Download Cross-references Safety print-out Programming examples Hands-on Strana 64

63 STEP 7 Safety F-System blocks S7-1500F S7-300F/400F F_RTG1SysInfo DB New in S7-1500F Is a system created F-data block Provides information that can be used in the standard program Access via symbolic addressing RTG1SysInfo.XXX TIA Portal V13 STEP 7 Safety Highlights Licenses F-System blocks TRUE / FALSE F-UDT Data exchange Safety Administration Comparing Testing Know-How protection Signatures Safety library F-Address Compile & Download Cross-references Safety print-out Programming examples Hands-on Strana 65

64 STEP 7 Safety F-I/O DB F-I/O DB Is automatically yg generated for each F-I/O module (in safety mode) when it is configured in the hardware and network editor. Contains tags that you can/must evaluate or write to in the safety program Is supplied with valid data by the PROFIsafe driver Use of variables in the F-I/O DB In order to evaluate whether substitute or process values are output For reintegration of the F-I/O module after: PROFIsafe communication errors F-I/O module and channel errors For manual passivation depending on specific conditions in the safety program ( group passivation ) TIA Portal V13 STEP 7 Safety Highlights Licenses F-System blocks TRUE / FALSE F-UDT Data exchange Safety Administration Comparing Testing Know-How protection Signatures Safety library F-Address Compile & Download Cross-references Safety print-out Programming examples Hands-on Strana 66

65 STEP 7 Safety TRUE / FALSE S7-1500F S7-300F/400F TRUE and FALSE for block calls The Boolean constants "FALSE" for 0 and "TRUE" for 1 are available for S F-CPUs to assign parameters during block calls. S7-1500F New in S7-1500F S7-300F/400F TIA Portal V13 STEP 7 Safety Highlights Licenses F-System blocks TRUE / FALSE F-UDT Data exchange Safety Administration Comparing Testing Know-How protection Signatures Safety library F-Address Compile & Download Cross-references Safety print-out Programming examples Hands-on Strana 67

66 STEP 7 Safety TRUE / FALSE S7-1500F S7-300F/400F TRUE and FALSE 1 for bit logic operations If you require the Boolean constant 1 for bit logic operations, you can interconnect the corresponding input of the bit logic operation with the "Assignment" instruction. Do not interconnect the box input of the "Assignment" instruction in FBD. If you require the Boolean constant 0 for bit logic operations, you can interconnect the corresponding input of the bit logic operation with the "Assignment" instruction. Negate the output of the "Assignment" instruction. Do not interconnect the box input of the "Assignment" instruction ti in FBD. TIA Portal V13 STEP 7 Safety Highlights Licenses F-System blocks TRUE / FALSE F-UDT Data exchange Safety Administration Comparing Testing Know-How protection Signatures Safety library F-Address Compile & Download Cross-references Safety print-out Programming examples Hands-on Strana 68

67 STEP 7 Safety F-I/O DB S7-1500F S7-300F/400F Value status Additional information for the channel value of a F-I/O module. Supports fail-safe modules ET200SP, ET200S, ET200iSP, ET200pro, ET200M Provides information on the validity of the corresponding channel value: 1: A valid process value is output for the channel. 0: A fail-safe value is output for the channel. The channel value and value status of a F-I/O module can only be accessed from the same F-runtime group. The value status is entered in the process image of the inputs (PII). New in S7-1500F TIA Portal V13 STEP 7 Safety Highlights Licenses F-System blocks TRUE / FALSE F-UDT Data exchange Safety Administration Comparing Testing Know-How protection Signatures Safety library F-Address Compile & Download Cross-references Safety print-out Programming examples Hands-on Strana 69

68 STEP 7 Safety F-I/O DB S7-1500F S7-300F/400F Location of value status bits in the PII for fail-safe digital input modules TIA Portal V13 STEP 7 Safety The value status bits come straight after the channel values in the PII. Example of address in the PII for a F-DI module with 16 channels Highlights Licenses F-System blocks TRUE / FALSE F-UDT Data exchange Safety Administration Comparing Testing Know-How protection Signatures Safety library F-Address Compile & Download Cross-references Safety print-out Programming examples Hands-on Strana 70

69 STEP 7 Safety F-I/O DB S7-1500F S7-300F/400F Location of value status bits in the PII for fail-safe digital output modules The value status bits in the PII are mapped with the same structure as the channel values in the PIQ. Example of address in the PIQ for a F-DQ module with 4 channels Example of address in the PII for a F-DQ module with 4 channels TIA Portal V13 STEP 7 Safety Highlights Licenses F-System blocks TRUE / FALSE F-UDT Data exchange Safety Administration Comparing Testing Know-How protection Signatures Safety library F-Address Compile & Download Cross-references Safety print-out Programming examples Hands-on Strana 71

70 STEP 7 Safety F-I/O DB S7-1500F S7-300F/400F Location of value status bits in the PII for fail-safe digital input/output modules The value status bits in the PII are mapped with the same structure as the channel values in the PII and PIQ. Example of address in the PIQ for a F-DI/DQ module with 2/1 channels Example of address in the PII for a F-DI/DQ module with 2/1 channels TIA Portal V13 STEP 7 Safety Highlights Licenses F-System blocks TRUE / FALSE F-UDT Data exchange Safety Administration Comparing Testing Know-How protection Signatures Safety library F-Address Compile & Download Cross-references Safety print-out Programming examples Hands-on Strana 72

71 STEP 7 Safety F-I/O DB S7-1500F S7-300F/400F Location of value status bits in the PII for fail-safe analog input modules The value status comes straight after the channel values in the PII.. Example of address in the PII for a F-AI module with 8 channels TIA Portal V13 STEP 7 Safety Highlights Licenses F-System blocks TRUE / FALSE F-UDT Data exchange Safety Administration Comparing Testing Know-How protection Signatures Safety library F-Address Compile & Download Cross-references Safety print-out Programming examples Hands-on Strana 73

72 STEP 7 Safety F-I/O DB Differences in evaluation in S7-1500F and S7-300F/400F Tag in the F-I/O DB or value status F-I/O with S7-1500F-CPU F-I/O with S7-300/400F-CPU ACK_NEC QBAD PASS_OUT QBAD_I_xx * QBAD_O_xx * Value status * QBAD_I_xx and QBAD_O_xx indicate the validity of the channel and are therefore equivalent to the inverted value status in S TIA Portal V13 STEP 7 Safety Highlights Licenses F-System blocks TRUE / FALSE F-UDT Data exchange Safety Administration Comparing Testing Know-How protection Signatures Safety library F-Address Compile & Download Cross-references Safety print-out Programming examples Hands-on Strana 74

73 STEP 7 Safety F-I/O DB Differences in evaluation in S and S7-300/400 Scenario Value status (S7-1500F) Q_BAD (S7-300F/400F) Valid values on F-I/O (no fault) Channel failure occurs Channel failure is gone (ACK_REQ) Acknowledgement of the failure (ACK_REI) TIA Portal V13 STEP 7 Safety Highlights Licenses F-System blocks TRUE / FALSE F-UDT Data exchange Safety Administration Comparing Testing Know-How protection Signatures Safety library F-Address Compile & Download Cross-references Safety print-out Programming examples Hands-on Strana 75

74 STEP 7 Safety F-suitable PLC data type (F-UDT) S7-1500F S7-300F/400F F-suitable PLC data type PLC data types (UDT) are data structures you have defined that you can use multiple times in the program. F-UDTs will be declared in the same way as standard UDTs. In F-UDT s can be used all data types, that can be used in the safety program. A nesting of F-UDT s within another F-UDT is not supported! F-suitable PLC data types can be used in the safety program and as well in the standard program. New in S7-1500F TIA Portal V13 STEP 7 Safety Highlights Licenses F-System blocks TRUE / FALSE F-UDT Data exchange Safety Administration Comparing Testing Know-How protection Signatures Safety library F-Address Compile & Download Cross-references Safety print-out Programming examples Hands-on Strana 76

75 STEP 7 Safety F-suitable PLC data type (F-UDT) S7-1500F S7-300F/400F Access with a F-UDT to fail-safe I/Os The structure of the tags in the F-suitable PLC data type must be the same as the channel structure of the I/O module! A confirm F-UDT for accessing to a 8 F-DI would be e.g.: 8 BOOL tags (channel value) or 16 BOOL tags (channel value + value status) Disabled F-I/O channels are not permitted to access from a F-UDT! TIA Portal V13 STEP 7 Safety Highlights Licenses F-System blocks TRUE / FALSE F-UDT Data exchange Safety Administration Comparing Testing Know-How protection Signatures Safety library F-Address Compile & Download Cross-references Safety print-out Programming examples Hands-on Strana 77

76 STEP 7 Safety Data exchange between standard and safety program Allowed in the standard program: Reading access to F-data like Fail-safe data blocks Process image of F-I/O modules For evaluation of actual signal and operation states Writing access to F-data is not permitted! Allowed in the safety program: Reading OR writing access to standard data like Memory bits Process image of standard modules Non-safe data doesn t change its values during the whole execution of the safety program data corruption STOP of the CPU TIA Portal V13 STEP 7 Safety Highlights Licenses F-System blocks TRUE / FALSE F-UDT Data exchange Safety Administration Comparing Testing Know-How protection Signatures Safety library F-Address Compile & Download Cross-references Safety print-out Programming examples Hands-on Strana 78

77 STEP 7 Safety Access Process Image TIA Portal V13 From the standard program From the safety program STEP 7 Safety Highlights Licenses reading writing reading writing F-System blocks TRUE / FALSE F-UDT Data exchange Standard process image Inputs Outputs Safety Administration Comparing Testing Know-How protection Signatures Safety library Fail-safe process image Inputs Outputs F-Address Compile & Download Cross-references Safety print-out Programming examples Hands-on Strana 79

78 STEP 7 Safety Access Data Blocks Standard data block Fail-safe data block From the standard program From the safety program reading writing reading writing TIA Portal V13 STEP 7 Safety Highlights Licenses F-System blocks TRUE / FALSE F-UDT Data exchange Safety Administration Comparing Testing Know-How protection Signatures Safety library F-Address Compile & Download Cross-references Safety print-out Programming examples Hands-on Strana 80

79 STEP 7 Safety S7-1500F S7-300F/400F F-Program architecture S7-300F/400F TIA Portal V13 STEP 7 Safety Highlights Licenses F-System blocks TRUE / FALSE F-UDT Data exchange Safety Administration Comparing Testing Know-How protection Signatures Safety library F-Address Compile & Download Cross-references Safety print-out Programming examples Hands-on Strana 81

80 STEP 7 Safety S7-1500F S7-300F/400F F-Program architecture S7-1500F New in S7-1500F TIA Portal V13 STEP 7 Safety Highlights Licenses F-System blocks TRUE / FALSE F-UDT Data exchange Safety Administration Comparing Testing Know-How protection Signatures Safety library F-Address Compile & Download Cross-references Safety print-out Programming examples Hands-on Strana 82

81 STEP 7 Safety S7-1500F S7-300F/400F Main Safety block S7-300F/400F First F-block that can be programmed by the user Calls all user created and application relevant F-blocks Needs to be assigned to one (Safety Administration) Default setting TIA portal: One including Main Safety block and the call in the OB35 block is created automatically after inserting an F-CPU in the network view CPU goes to STOP, if the time between two calls of a exceeds the max. cycle time! TIA Portal V13 STEP 7 Safety Highlights Licenses F-System blocks TRUE / FALSE F-UDT Data exchange Safety Administration Comparing Testing Know-How protection Signatures Safety library F-Address Compile & Download Cross-references Safety print-out Programming examples Hands-on Strana 83

82 STEP 7 Safety S7-1500F S7-300F/400F Cyclic interrupts S7-300F/400F TIA Portal V13 STEP 7 Safety Highlights Licenses F-System blocks TRUE / FALSE F-UDT Data exchange Safety Administration Comparing Testing Know-How protection Signatures Safety library F-Address Compile & Download Cross-references Safety print-out Programming examples Hands-on Strana 84

83 STEP 7 Safety S7-1500F S7-300F/400F Main Safety block S7-1500F First F-block that can be programmed by the user Calls all user created and application relevant F-blocks Needs to be assigned to one (Safety Administration) Default setting TIA portal: One including Main Safety block and the call in the F-OB is created automatically after inserting an F-CPU in the network view Note No F-runtime group communication possible! Therefore you also cannot define the DB for that. New in S7-1500F TIA Portal V13 STEP 7 Safety Highlights Licenses F-System blocks TRUE / FALSE F-UDT Data exchange Safety Administration Comparing Testing Know-How protection Signatures Safety library F-Address Compile & Download Cross-references Safety print-out Programming examples Hands-on Strana 85

84 STEP 7 Safety Structure of the safety program Always at the beginning, g calls of: F_RCVDP F_RCVS7 After that, calls of: User created F-blocks F-library blocks Fail-safe instructions (bit logic, timer, counter, ) Always at the end, calls of: F_SENDDP F_SENDS7 Main Safety Block FB1 F-User Program F_RCVxx F-FB/ FB/ F-FC F-DB F_SENDxx F-FB/ FB/ F-FC TIA Portal V13 STEP 7 Safety Highlights Licenses F-System blocks TRUE / FALSE F-UDT Data exchange Safety Administration Comparing Testing Know-How protection Signatures Safety library F-Address Compile & Download Cross-references Safety print-out Programming examples Hands-on Strana 86

85 STEP 7 Safety Safety Administration Editor The Safety Administration Editor supports you in the following tasks: Displaying of status of the safety program Displaying of collective F-signature Displaying of status of safety mode Creating and organizing of F-runtime groups Displaying information on the F-blocks Specifying/changing access protection Specifying/changing general settings for the safety program Will be displayed if in the F-PLC properties the safety mode is enabled (Default). TIA Portal V13 STEP 7 Safety Highlights Licenses F-System blocks TRUE / FALSE F-UDT Data exchange Safety Administration Comparing Testing Know-How protection Signatures Safety library F-Address Compile & Download Cross-references Safety print-out Programming examples Hands-on Strana 87

86 STEP 7 Safety Safety Administration Editor Safety Administration Editor - General: Under "General", the status of safety mode, the safety program, and the collective F-signature are displayed to you. Disable safety mode function is not implemented in the S7-1500F PLCs! TIA Portal V13 STEP 7 Safety Highlights Licenses F-System blocks TRUE / FALSE F-UDT Data exchange Safety Administration Comparing Testing Know-How protection Signatures Safety library F-Address Compile & Download Cross-references Safety print-out Programming examples Hands-on Strana 88

87 STEP 7 Safety Safety Administration Editor Safety Administration Editor F-runtime group: A safety yprogram consists of one or two F-runtime groups. Under "F-runtime groups", you determine the blocks and properties of an F-runtime group. TIA Portal V13 STEP 7 Safety Highlights Licenses F-System blocks TRUE / FALSE F-UDT Data exchange Safety Administration Comparing Testing Know-How protection Signatures Safety library F-Address Compile & Download Cross-references Safety print-out Programming examples Hands-on Strana 89

88 STEP 7 Safety Safety Administration Editor Safety Administration Editor Settings: Under "Settings", you set the parameters for the safety program. Note: Safety mode can be disabled is for all PLCs S7-300F/400F/1500F configurable but just useable for S7-300F/400F. For S7-1500F has this setting no influences! TIA Portal V13 STEP 7 Safety Highlights Licenses F-System blocks TRUE / FALSE F-UDT Data exchange Safety Administration Comparing Testing Know-How protection Signatures Safety library F-Address Compile & Download Cross-references Safety print-out Programming examples Hands-on Strana 90

89 STEP 7 Safety Testing safety program S7-1500F S7-300F/400F Changing the safety program data by modifying tags In addition to data in the standard user program, which can always be modified, you can modify the following data of a safety program in deactivated safety mode: Process image of the F-I/O F-DBs (except DB for F-runtime group communication), instance DBs of F-FBs FBs F-I/O DBs Note F-I/O can only be modified in RUN mode of the F-CPU! You can modify a maximum of 5 inputs/outputs from a watch table for S7-300/400 F-CPUs! You can use more than one monitoring table. As a trigger point, you must set "Begin scan cycle" or "End scan cycle", either "permanently" " or "once! TIA Portal V13 STEP 7 Safety Highlights Licenses F-System blocks TRUE / FALSE F-UDT Data exchange Safety Administration Comparing Testing Know-How protection Signatures Safety library F-Address Compile & Download Cross-references Safety print-out Programming examples Hands-on Strana 91

90 STEP 7 Safety Testing safety program S7-1500F S7-300F/400F Additional rules for testing Forcing is not possible for F-I/O. Setting breakpoints in the standard user program will cause the following errors in the safety program: Expiration of F-cycle time monitoring Error during communication with the F-I/O Error during safety-related CPU-CPU communication Internal CPU faults If you nevertheless want to use breakpoints for testing, you must first deactivate safety mode! This will result in the following errors: Error during communication with the F-I/O Error during safety-related CPU-CPU communication TIA Portal V13 STEP 7 Safety Highlights Licenses F-System blocks TRUE / FALSE F-UDT Data exchange Safety Administration Comparing Testing Know-How protection Signatures Safety library F-Address Compile & Download Cross-references Safety print-out Programming examples Hands-on Strana 92

91 STEP 7 Safety Testing safety program S7-1500F S7-300F/400F Testing the safety program with S7-PLCSIM You can monitor and modify tags of your safety program in S7-PLCSIM and perform other write access operations in your safety program. You only have to download your consistent safety program to an S7-PLCSIM. Note To modify tags in S7-PLCSIM, you must deactivate safety mode before! Otherwise, S7-PLCSIM can go to STOP mode. You can use the SENDDP, RCVDP, SENDS7, and RCVS7 instructions together with S7-PLCSIM but please note that the instructions constantly signal "communication errors" when they are run in the simulation CPU. TIA Portal V13 STEP 7 Safety Highlights Licenses F-System blocks TRUE / FALSE F-UDT Data exchange Safety Administration Comparing Testing Know-How protection Signatures Safety library F-Address Compile & Download Cross-references Safety print-out Programming examples Hands-on Strana 93
