1 Vijeo Designer V6.1

2 Novinky VD v.6.1 novinka Podpora nových terminálů Magelis STO Ethernet Podpora nových typů ipc Box & Panel Podpora nových terminálů Magelis GTO Podpora Windows 7 64 bit. verze Online modifikace v Unity Pro Společná databáze pro nastavení příst. práv Změna snímku při změně typu terminálu (menší na větší) Možnost vlastního nahrání self download z FTP serveru Podpora pro Advantys STB prostřednictvím Ethernet IP (Explicitní) Nové integrované kom. ovládače: Emerson ROC Ethernet support Siemens S PLC support Mitsubishi FX3G PLC support Universal model Q CPU Mitsubishi Mitsubishi QnU Ethernet Schneider Electric 2

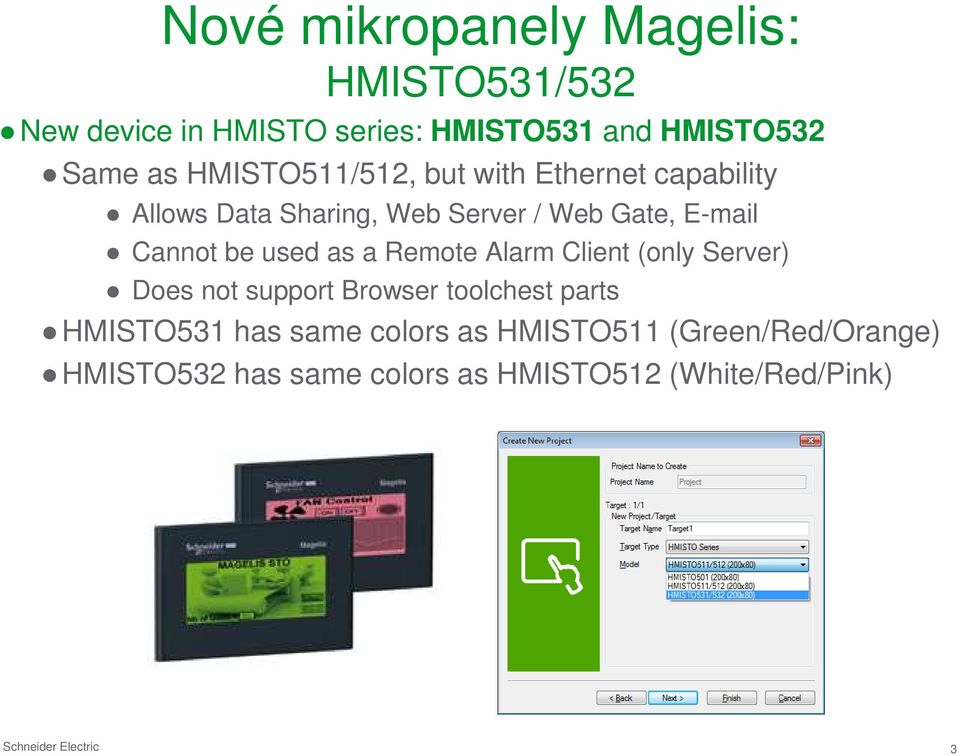

3 Nové mikropanely Magelis: HMISTO531/532 New device in HMISTO series: HMISTO531 and HMISTO532 Same as HMISTO511/512, but with Ethernet capability Allows Data Sharing, Web Server / Web Gate, Cannot be used as a Remote Alarm Client (only Server) Does not support Browser toolchest parts HMISTO531 has same colors as HMISTO511 (Green/Red/Orange) HMISTO532 has same colors as HMISTO512 (White/Red/Pink) Schneider Electric 3

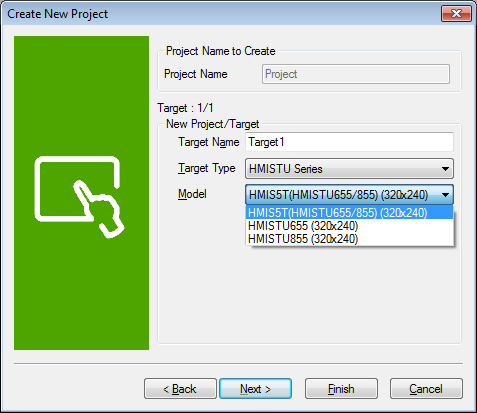

4 Nové mikropanely Magelis: HMIS5T New device in HMISTU series: HMIS5T base unit Same as existing STU655/855 devices, but with more flash memory Same resolution as STU655/855 (320x240) Compatible with existing 655 and 855 detachable screens With HMIS5T, same project is used for 3 5 or 5 7 screens Must power off unit before swapping screens STU655 and STU855 still require their own projects Schneider Electric 4

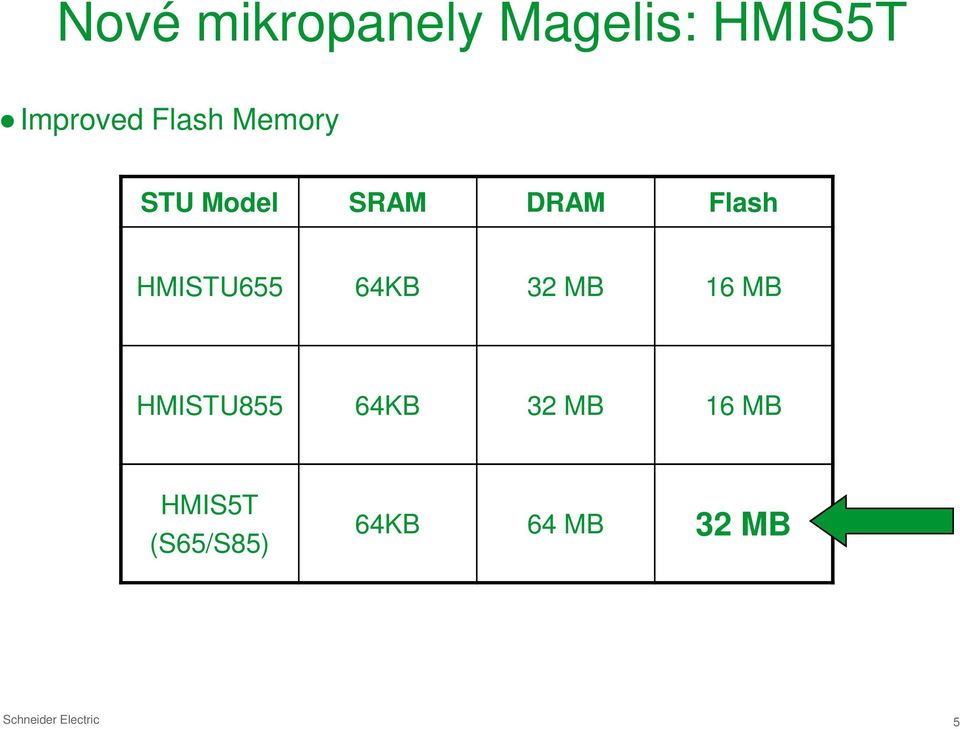

5 Nové mikropanely Magelis: HMIS5T Improved Flash Memory STU Model SRAM DRAM Flash HMISTU655 64KB 32 MB 16 MB HMISTU855 64KB 32 MB 16 MB HMIS5T (S65/S85) 64KB 64 MB 32 MB Schneider Electric 5

6 Nové terminály Magelis GTO Advanced panels Magelis GTO Planned to start to replace the current models Magelis XBTGT Schneider Electric 6

7 Nové ipc Magelis Industrial PCs BOXes and Panels new generation Schneider Electric 7

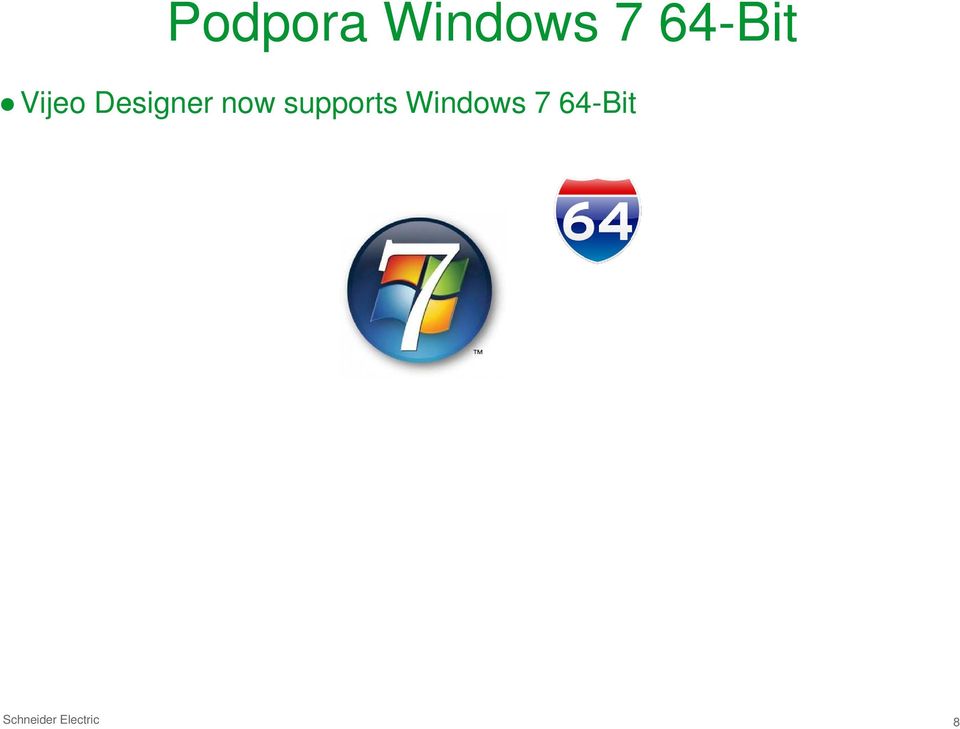

8 Podpora Windows 7 64-Bit Vijeo Designer now supports Windows 7 64-Bit Schneider Electric 8

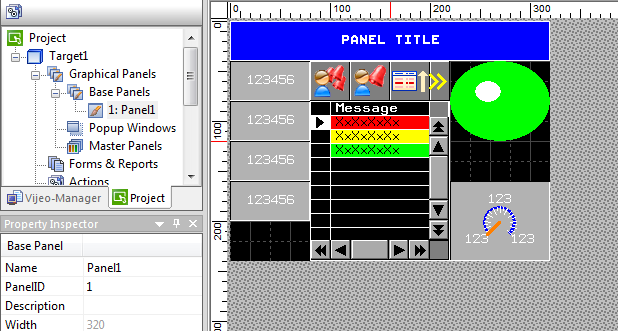

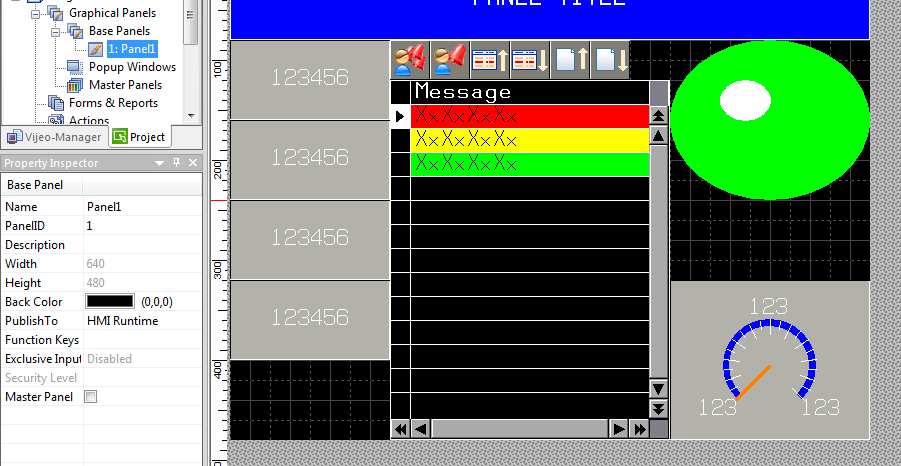

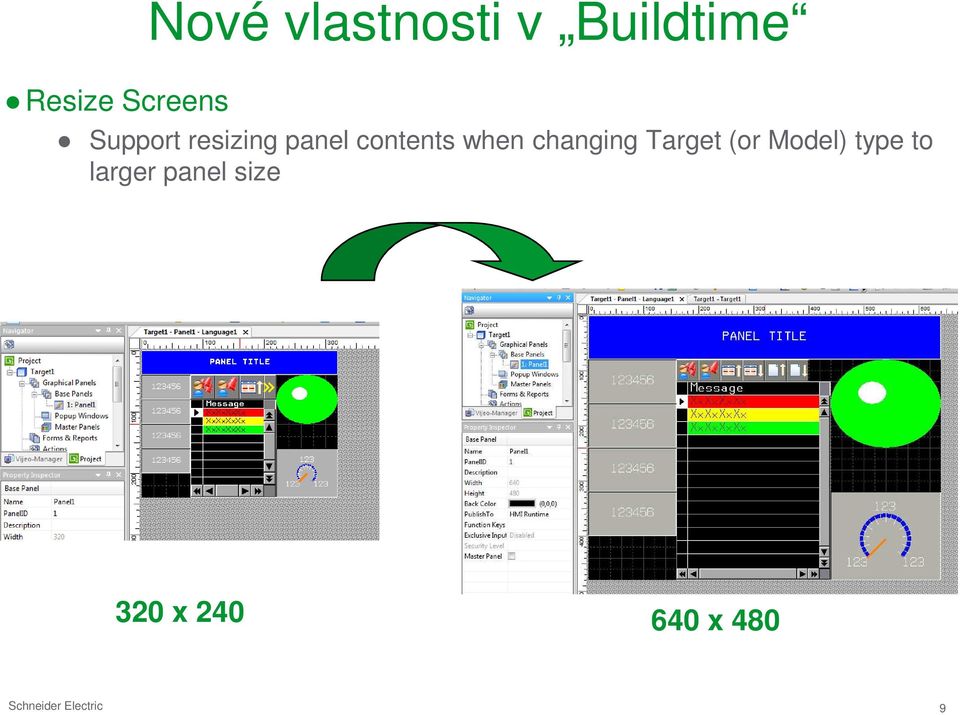

9 Resize Screens Nové vlastnosti v Buildtime Support resizing panel contents when changing Target (or Model) type to larger panel size 320 x x 480 Schneider Electric 9

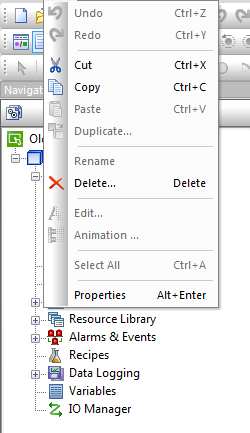

10 Nové vlastnosti v Buildtime Copy / Paste Actions Users can copy and paste actions across different projects Users can copy and paste both Global actions and Panel actions Schneider Electric 10

11 Nové vlastnosti v Buildtime Close All Tabs with one click Available in Window menu, or Right-Click on a tab Schneider Electric 11

12 Nové vlastnosti v Buildtime Alarm Group Settings Window Previously, Alarm Group Settings window was fixed to small size Often required a scrollbar Improved to use more screen space without a scroll bar Previously, this space was unused Now, columns can be expanded Schneider Electric 12

13 Nové vlastnosti v Buildtime Sort Text Resource Columns Can be sorted by Integer Value or by Label Schneider Electric 13

14 Nové vlastnosti v Buildtime RSLogix 5000 V18 symbol files support Schneider Electric 14

15 Vylepšení stávajících vlastností - alarmy Alarm Summary columns to be the same color as the Alarm Message Same as Messages = Disabled Same as Messages = Enabled Schneider Electric 15

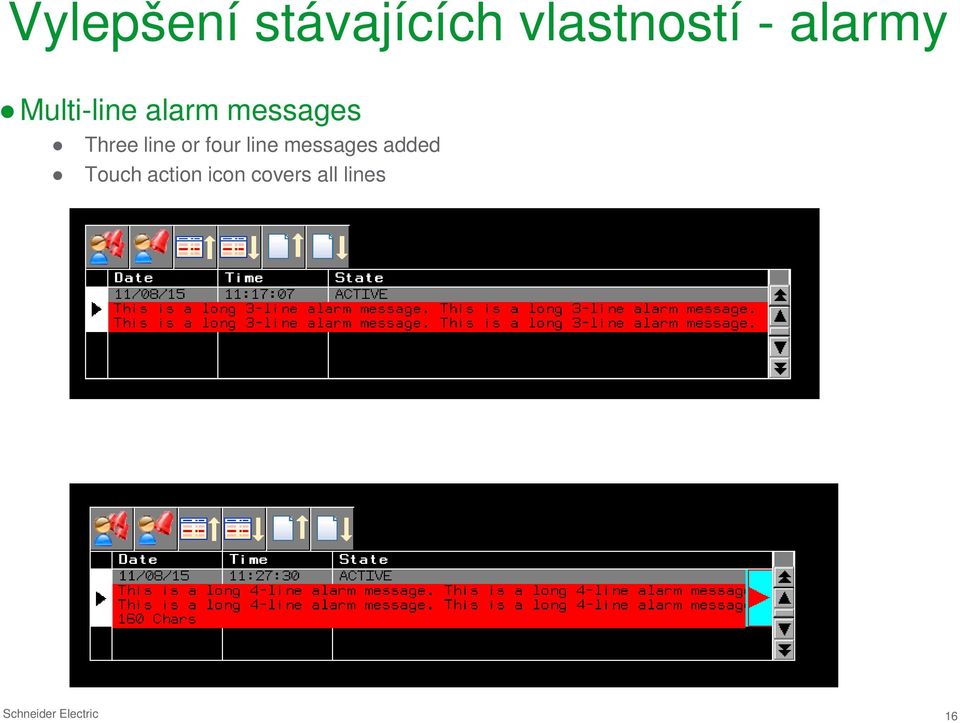

16 Vylepšení stávajících vlastností - alarmy Multi-line alarm messages Three line or four line messages added Touch action icon covers all lines Schneider Electric 16

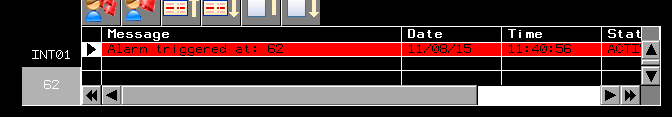

17 Vylepšení stávajících vlastností - alarmy Dynamic content in alarm messages Users can insert timestamps or variable values Vijeo Designer allows dynamic alarm messages to be updated when triggered On Every State and On Active State triggers Schneider Electric 17

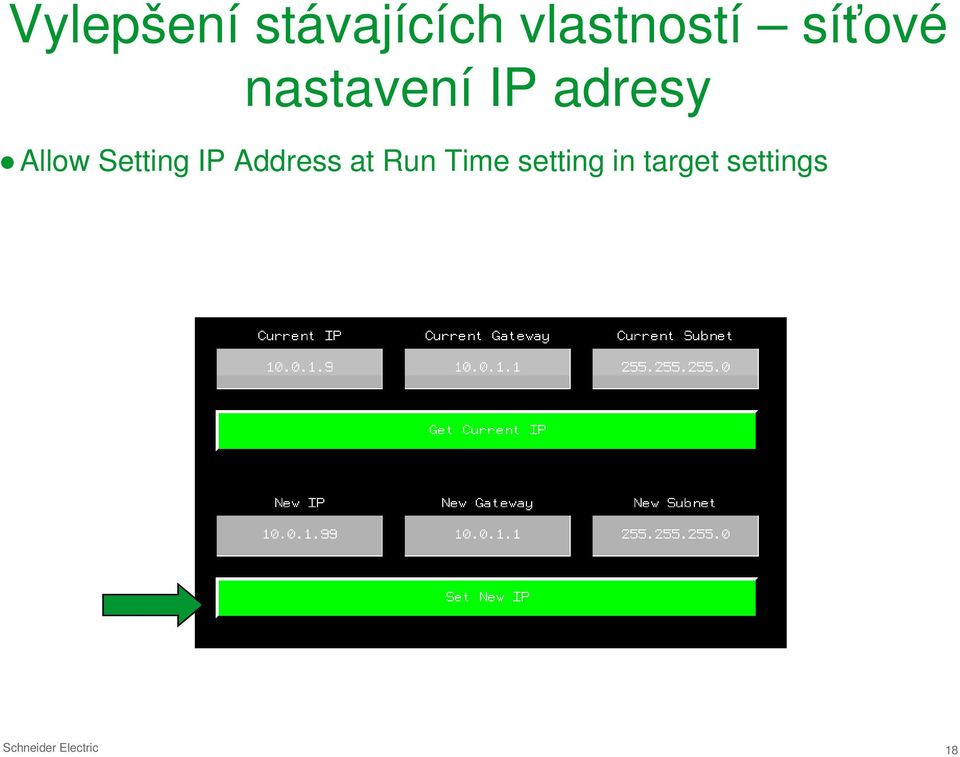

18 Vylepšení stávajících vlastností síťové nastavení IP adresy Allow Setting IP Address at Run Time setting in target settings Schneider Electric 18

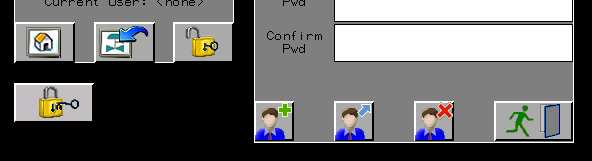

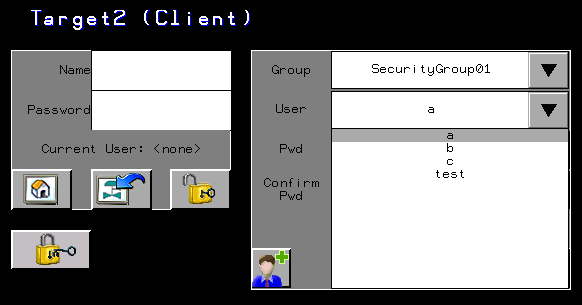

19 Společné nastavení bezpečnostních Common Security Database práv uživatele Allow multiple targets to share security user accounts After downloading to both targets, the server target and the client target share same user database On the server target, create new user test On the client, user test is automatically added Schneider Electric 19

20 Propojení s aplikací Unity In Vijeo-Designer 6.1 New Data dictionary feature in Unity Pro 6.0 New Preload Data Dictionary for online modifications feature in Vijeo Designer Schneider Electric 20

21 Propojení s aplikací Unity In Vijeo-Designer 6.1 Runtime initially connects successfully If the Unity Pro project is re-built, and data dictionary settings are enabled, runtime will automatically use the new addresses When a user modifies the Unity Pro project and performs an Online Change, they will see this window Schneider Electric 21

22 Nahrání do panelu z FTP Serveru (self download) Example: Flowchart of Self Download PC and FTP Server can be same machine PC Create Project with Self Download Operation Modify Project and do Self Download to PC XBTGT Download Project to GT In Runtime: Press Self Download switch Modified project is downloaded to GT FTP Server Use Data Manager to transfer project to FTP server Schneider Electric 22

23 Nahrání do panelu z FTP Serveru (self download) Example: Performing a Self Download on a XBTGT6330 Environment Setup: Apache FTP Server running on PC Configured FTP account User = VJDUser Password = admin In Vijeo Designer, create a new project with Self Download switch Schneider Electric 23

24 Nahrání do panelu z FTP Serveru (self download) Download project to GT6330 In Vijeo Designer, make modifications to the project Changed text to Self Downloaded Project In Vijeo Designer, download the project to a folder using the Self Download setting Schneider Electric 24

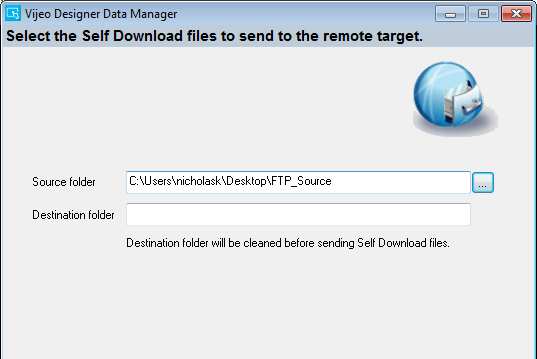

25 Nahrání do panelu z FTP Serveru (self download) Use the Data Manager to transfer the Self Download project to the FTP server Schneider Electric 25

26 Nahrání do panelu z FTP Serveru (self download) On the XBTGT6330, press the Self Download + Install switch Observe Status = 1, meaning In Progress When download is complete, target will reboot with updated project Reboot Schneider Electric 26

27 Nové ovládače: Mitsubishi FX3G CPU Vijeo Designer now supports the Mitsubishi FX3G CPU PLC Available under the existing Melsec-FX (CPU) driver Serial Driver: RS232 and RS422 4-Wire available Schneider Electric 27

28 Nové ovládače: Mitsubishi Q CPU Vijeo Designer now supports Mitsubishi QnU PLCs RS232 connection type Supports Multi CPU connections via Universal Model CPU Accessible with existing Melsec-Q CPU (SIO) Driver in Vijeo Designer Can connect to the following CPUs: Q00UJCPU Q00UCPU Q01UCPU Q02UCPU Q03UDCPU Q04UDHCPU Q06UDHCPU Q10UDHCPU Q13UDHCPU Q20UDHCPU Q26UDHCPU Q03UDECPU Q04UDEHCPU Q06UDEHCPU Q10UDEHCPU Q13UDEHCPU Q20UDEHCPU Q26UDEHCPU Q172HCPU Q172DCPU Q173DCPU Schneider Electric 28

29 Nové ovládače: Mitsubishi QnU Ethernet Vijeo Designer now supports the following drivers: Melsec QnU Ethernet (TCP) Melsec QnU Ethernet (UDP) TCP and UDP connection types Supports Multi CPU connections via Universal Model CPU Can connect to the following CPUs: Q03UDECPU Q04UDEHCPU Q06UDEHCPU Q10UDEHCPU Q13UDEHCPU Q20UDEHCPU Q26UDEHCPU Q03UDCPU Q04UDHCPU Q06UDHCPU Q10UDHCPU Q13UDHCPU Q20UDHCPU Q26UDHCPU Q02CPU Q02HCPU Q06HCPU Q12HCPU Q25HCPU Q172DCPU Q173DCPU Schneider Electric 29

30 Nové ovládače: Siemens S Vijeo Designer now supports Siemens S PLCs 3 models available: 1211C, 1212C, 1214C Consistent with previous 200/300/400 PLCs S has increased address range compared to S7-300/400 Example: BOOL can be addressed from M0.0 --> M Schneider Electric 30

31 Nové ovládače: Emerson ROC Vijeo Designer now supports the ROC Plus protocol CPUs: ROC300, ROCPAC, FB407, RegFlow and more Connections: RS-485/422, RS-232, TCP/IP Not supported on XBTGT1000 targets Unique device addressing (Type, Location, Parameter, or TLP) Schneider Electric 31

32 Nové ovládače: EtherNet/IP Explicitní Vijeo Designer now supports Generic Ethernet/IP Explicit Not only limited to Rockwell devices Supports Advantys STB NIC 2212 module (by Schneider Electric) Functions the same as Rockwell EtherNet/IP Explicit driver Rockwell EtherNet/IP Explicit driver is still included Schneider Electric 32

33 Nové ovládače vylepšení: Zelio Logic Vijeo Designer has dialog table improvements for the Zelio driver Now allows a combination of To PLC and From PLC functions SL IN and SL OUT addresses are automatically mapped To/From PLC functions are not supported Vijeo Designer changes them to From PLC functions. Schneider Electric 33

34 DVD operátorské panely Magelis typové označení: S1160 Obchodně technická dokumentace těchto produktů: Magelis HMI STO, Magelis HMI STU Magelis XBT GTO, GT Magelis XBT GK Magelis XBT GH Magelis HMI GTW ipc Magelis Vijeo Designer Konfigurační nástroje a ceník Ceník panelů Magelis HMI STO, Magelis HMI STU, Magelis GTO Popis tvorby aplikace krok za krokem pro Vijeo Designer (Design Guide) Grafické objekty a příklady architektur pro tvorbu nabídek (MS Office Visio) Objekty pro CAD a Eplan Knihovna objektů řídicích systémů, HMI, SCADA Schneider Electric a příslušenství Prezentace: Přehled produktů Inženýrský software: Vijeo Designer v. 6.1 inženýrské prostředí pro operátorské panely Magelis a ipc, plně funkční pro Magelis HMI STO, Magelis HMI STU IDS nadstavbový software pro zpracování a prezentaci dat Inteligent Data Services SESU Schneider Electric Software Update, automatický nástroj aktualizace softwaru Schneider Electric 34

35 Naše nabídka služeb Zákaznické centrum obchodní, logistické a technické dotazy Servisní služby pohotovostní servisní služba 7/24 Aplikační podpora a dodávky na klíč pro konkrétní průmyslový proces, stroj a budovu Školicí středisko aplikační a technická školení Elektronická podpora softwarová nástroje a internetové stránky Schneider Electric 35

36 Další informace Zákaznické centrum Schneider Electric Schneider Electric 36
