3 EKHVWQ00AAV EKHHS00AAV EKHHS60AAV CONTENTS Page. Definitions..... Meaning of warnings and symbols..... Meaning of used terms.... General Safety precautions.... Introduction..... General information..... Scope of this manual..... Model identification Accessories Accessories supplied with the domestic hot water heat pump module EKHVWQ Accessories supplied with the domestic hot water tank module EKHHS Overview Overview of the domestic hot water heat pump module Overview of the domestic hot water tank module Switchbox main components Functional diagram Installation of the unit Selecting an installation location Field piping Inspecting and handling the unit Installing the indoor unit Piping connection work Water piping work... 0 Water quality... 0 Checking the water circuit... 0 Connecting the water circuit... Connect the pressure relief valve (field supply) and drain... Connect the drain pan Precautions when connecting field piping and regarding insulation Charging water Method for adding water Electrical wiring work Precautions on electrical wiring work Internal wiring - Parts table System overview of field wiring... Connection of the indoor unit power supply and communication cable(s)... Installation of the remote controller... 4 Connection to a benefit kwh rate power supply Start-up and configuration Pre-operation checks Field settings... 7 Different domestic hot water tank operation modes... 7 Procedure... 8 Detailed description... 9 Field settings table.... Final check and test run..... Final check..... Test run... Displaying actual temperatures and actual water flow... Procedure for domestic water heating.... Maintenance and service..... Maintenance activities Checks Descaling Troubleshooting General guidelines Opening the unit General symptoms Error codes Important information regarding the refrigerant used Disposal requirements Unit specifications Technical specifications EKHVWQ00AAV Electrical specifications EKHVWQ00AAV Specifications EKHHS00+60AAV... 7 READ THESE INSTRUCTIONS CAREFULLY BEFORE INSTALLATION. KEEP THIS MANUAL IN A HANDY PLACE FOR FUTURE REFERENCE. IMPROPER INSTALLATION OR ATTACHMENT OF EQUIPMENT OR ACCESSORIES COULD RESULT IN ELECTRIC SHOCK, SHORT-CIRCUIT, LEAKS, FIRE OR OTHER DAMAGE TO THE EQUIPMENT. BE SURE ONLY TO USE ACCESSORIES MADE BY DAIKIN WHICH ARE SPECIFICALLY DESIGNED FOR USE WITH THE EQUIPMENT AND HAVE THEM INSTALLED BY A PROFESSIONAL. ALL ACTIVITIES DESCRIBED IN THIS MANUAL SHALL BE CARRIED OUT BY A LICENSED TECHNICIAN. BE SURE TO WEAR ADEQUATE PERSONEL PROTEC- TION EQUIPMENT (PROTECTION GLOVES, SAFETY GLASSES,...) WHEN PERFORMING INSTALLATION, MAINTENANCE OR SERVICE TO THE UNIT. IF UNSURE OF INSTALLATION PROCEDURES OR USE, ALWAYS CONTACT YOUR DAIKIN DEALER FOR ADVICE AND. THE UNIT DESCRIBED IN THIS MANUAL IS DESIGNED FOR INDOOR INSTALLATION ONLY AND FOR AMBIENT TEMPERATURES RANGING C~5 C. The English text is the original instruction. Other languages are translations of the original instructions.

4 . DEFINITIONS.. Meaning of warnings and symbols Warnings in this manual are classified according to their severity and probability of occurrence. DANGER Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury. WARNING Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury. CAUTION Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury. It may also be used to alert against unsafe practices. NOTICE Indicates situations that may result in equipment or property-damage accidents only. This symbol identifies useful tips or additional information. Some types of danger are represented by special symbols: Electric current. Danger of burning and scalding... Meaning of used terms : Instruction manual specified for a certain product or application, explaining how to install, configure and maintain it. Operation manual: Instruction manual specified for a certain product or application, explaining how to operate it. Maintenance instructions: Instruction manual specified for a certain product or application, which explains (if relevant) how to install, configure, operate and/or maintain the product or application. Dealer: Sales distributor for products as per the subject of this manual. Installer: Technical skilled person who is qualified to install products as per the subject of this manual. User: Person who is owner of the product and/or operates the product. Service company: Qualified company which can perform or coordinate the required service to the unit. Applicable legislation: All international, European, national and local directives, laws, regulations and/or codes which are relevant and applicable for a certain product or domain. Accessories: Equipment which is delivered with the unit and which needs to be installed according to instructions in the documentation. Optional equipment: Equipment which can optionally be combined to the products as per the subject of this manual. Field supply: Equipment which needs to be installed according to instructions in this manual, but which are not supplied by Daikin.. GENERAL SAFETY PRECAUTIONS The precautions listed here are divided into the following four types. They all cover very important topics, so be sure to follow them carefully. DANGER: ELECTRICAL SHOCK Switch off all power supply before removing the switchbox service panel or before making any connections or touching electrical parts. Do not touch any switch with wet fingers. Touching a switch with wet fingers can cause electrical shock. Before touching electrical parts, turn off all applicable power supply. To avoid electric shock, be sure to disconnect the power supply minute or more before servicing the electrical parts. Even after minute, always measure the voltage at the terminals of main circuit capacitors or electrical parts and, before touching, be sure that those voltages are 50 V DC or less. When service panels are removed, live parts can easily be touched by accident. Never leave the unit unattended during installation or servicing when the service panel is removed. DANGER: DO NOT TOUCH PIPING AND INTERNAL PARTS Do not touch the refrigerant piping, water piping or internal parts during and immediately after operation. The piping and internal parts may be hot or cold depending on the working condition of the unit. Your hand may suffer burns or frostbite if you touch the piping or internal parts. To avoid injury, give the piping and internal parts time to return to normal temperature or, if you must touch them, be sure to wear protective gloves. WARNING Never directly touch any accidental leaking refrigerant. This could result in severe wounds caused by frostbite. Do not touch the refrigerant pipes during and immediately after operation as the refrigerant pipes may be hot or cold, depending on the condition of the refrigerant flowing through the refrigerant piping, compressor, and other refrigerant cycle parts. Your hands may suffer burns or frostbite if you touch the refrigerant pipes. To avoid injury, give the pipes time to return to normal temperature or, if you must touch them, be sure to wear proper gloves. CAUTION Do not rinse the unit. This may cause electric shocks or fire.

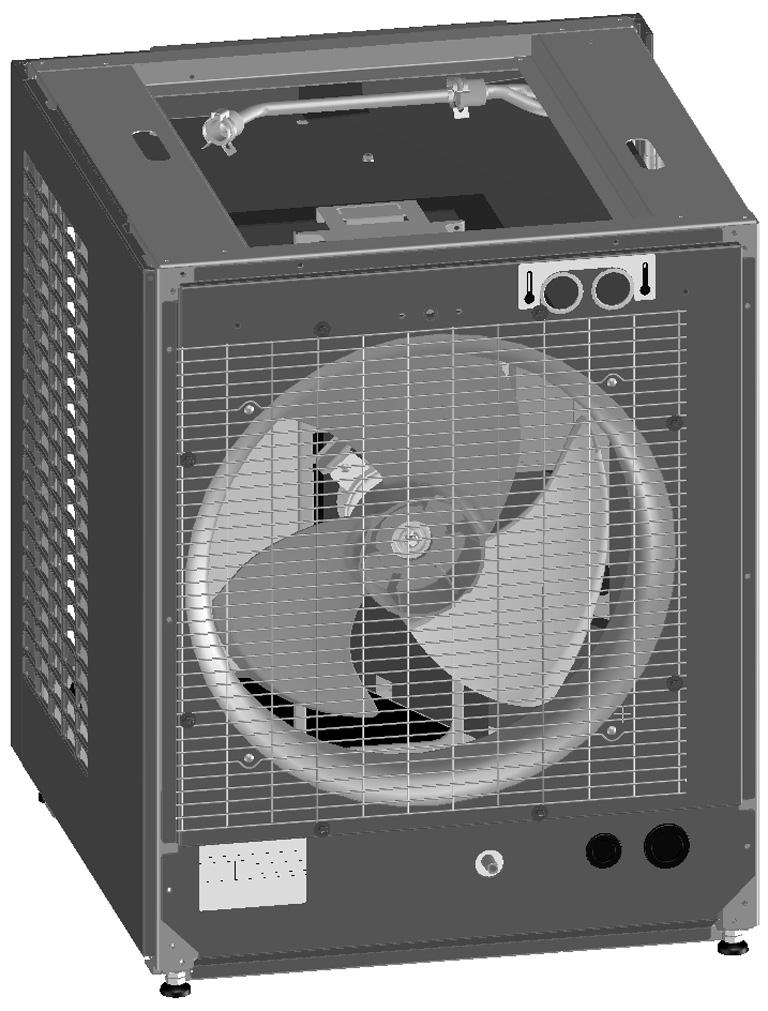

5 . INTRODUCTION 4. ACCESSORIES.. General information Thank you for purchasing this unit. The module EKHVWQ00AAV is the heat pump part of the domestic hot water heat pump, the modules EKHHS00AAV and EKHHS60AAV are the domestic hot water tank parts of the domestic hot water heat pump. The domestic hot water tanks are available in two different water capacities : 00 and 60 litre. The unit is designed for floor standing indoor installation. CAUTION An EKHVWQ00AAV module can only be connected to an EKHHS00AAV or an EKHHS60AAV module. Floormounting kit EKFMHHSAA The domestic hot water tank module EKHHS is intended to be installed on top of the heat pump module EKHVW. In case this is not possible the domestic hot water tank module can be installed next to the heat pump module EKHVW in combination with a field installed option EKFMHHSAA. 4.. Accessories supplied with the domestic hot water heat pump module EKHVWQ Operation manual Wiring diagram 4 Unpacking instruction sheet 5 Sound bottom plate 6 Remote controller 7 Multilingual fluorinated greenhouse gases label.. Scope of this manual This installation manual describes the procedures for handling, installing and connecting all modules of the domestic hot water heat pump. 4.. Accessories supplied with the domestic hot water tank module EKHHS Operation of the domestic hot water heat pump is described in the domestic hot water heat pump operation manual... Model identification EK HVWQ 00 AA V N~, 0 V, 50 Hz Series Heating capacity module European kit Piping fixation clamps Domestic hot water tank module fixation parts EK HHS 00 AA V N~, 0 V, 50 Hz Series Domestic hot water tank capacity Domestic hot water tank module European kit

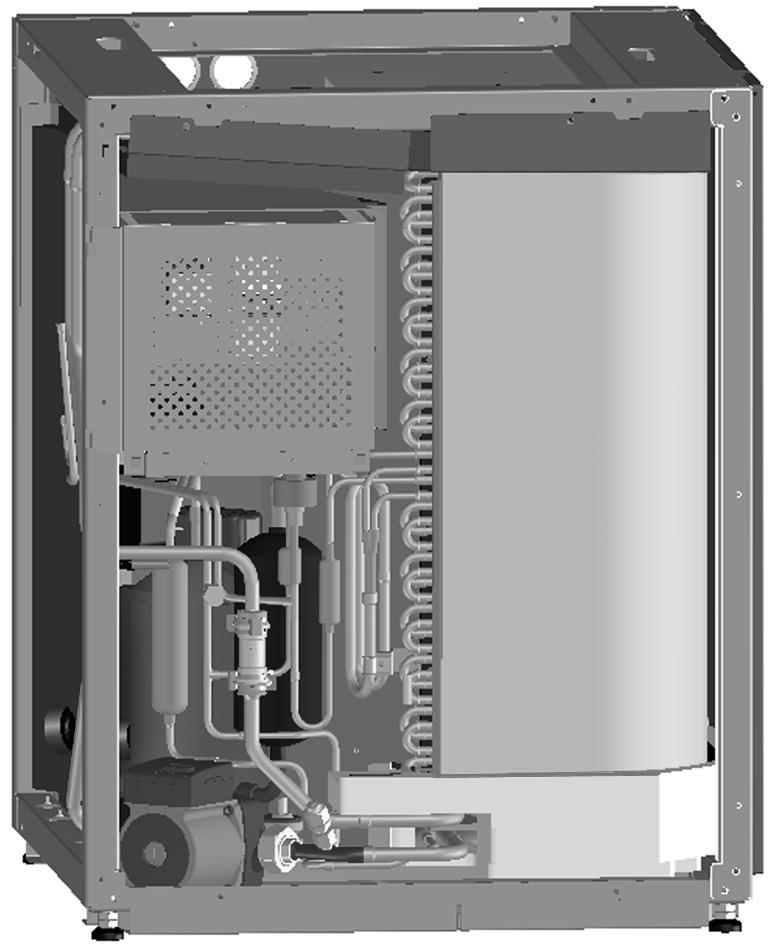

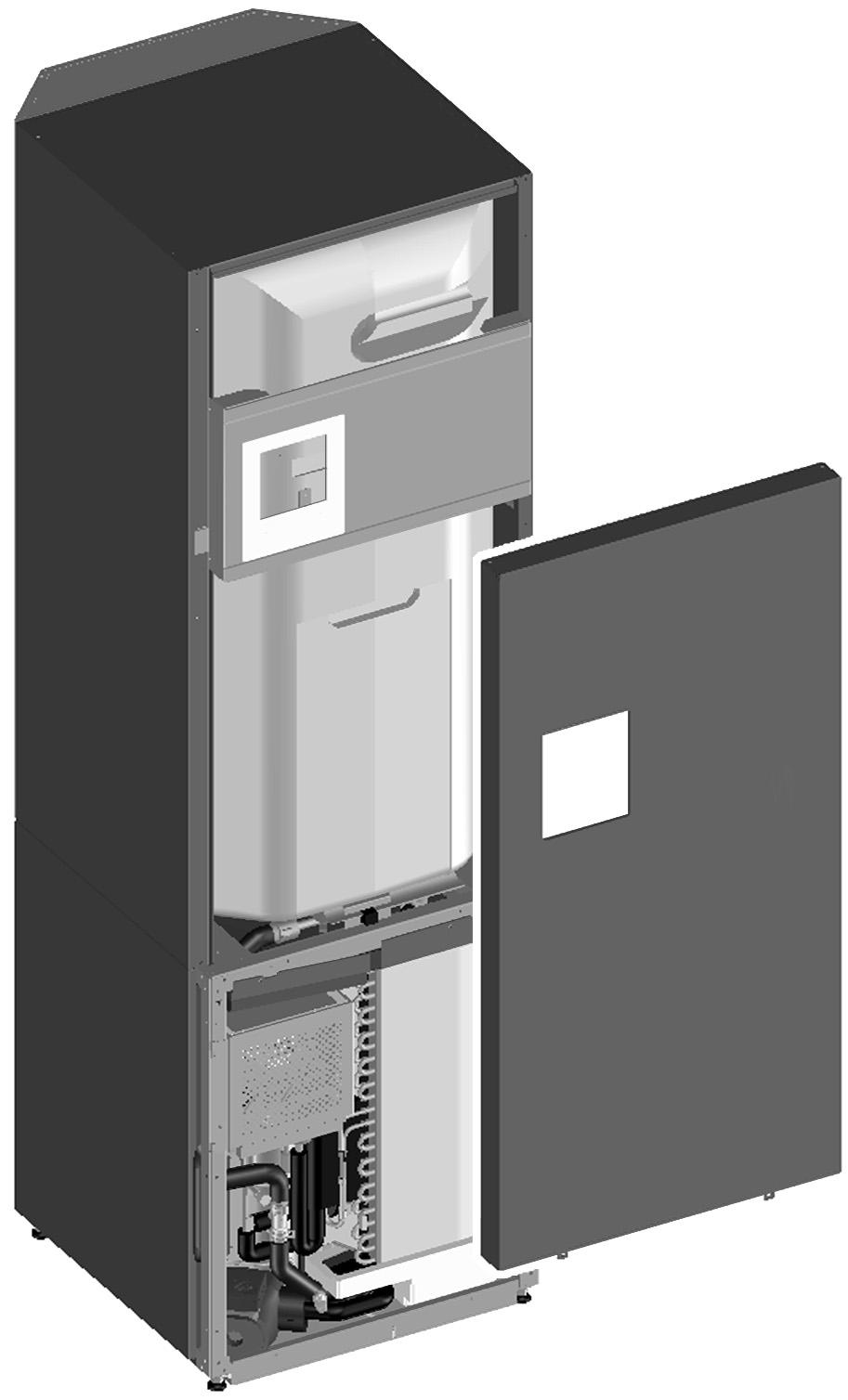

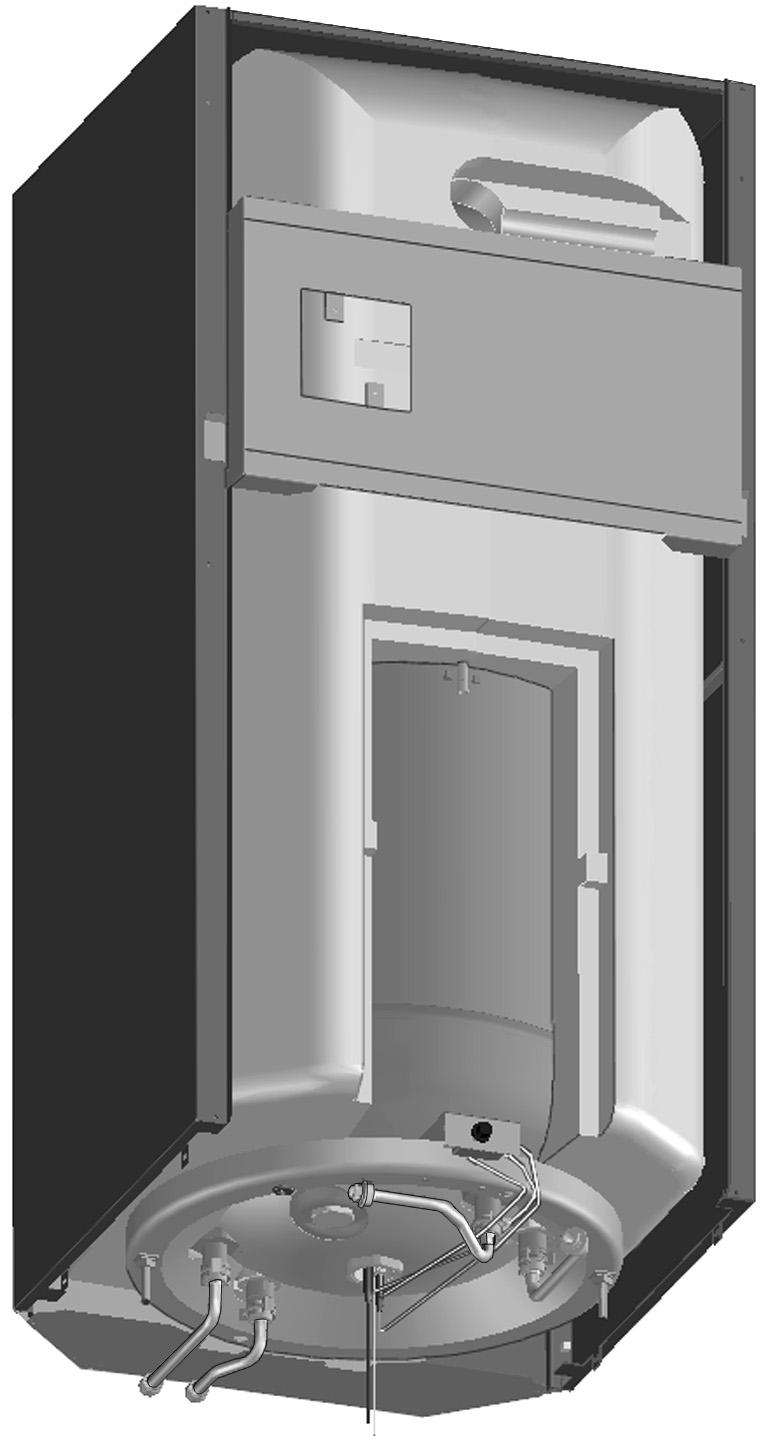

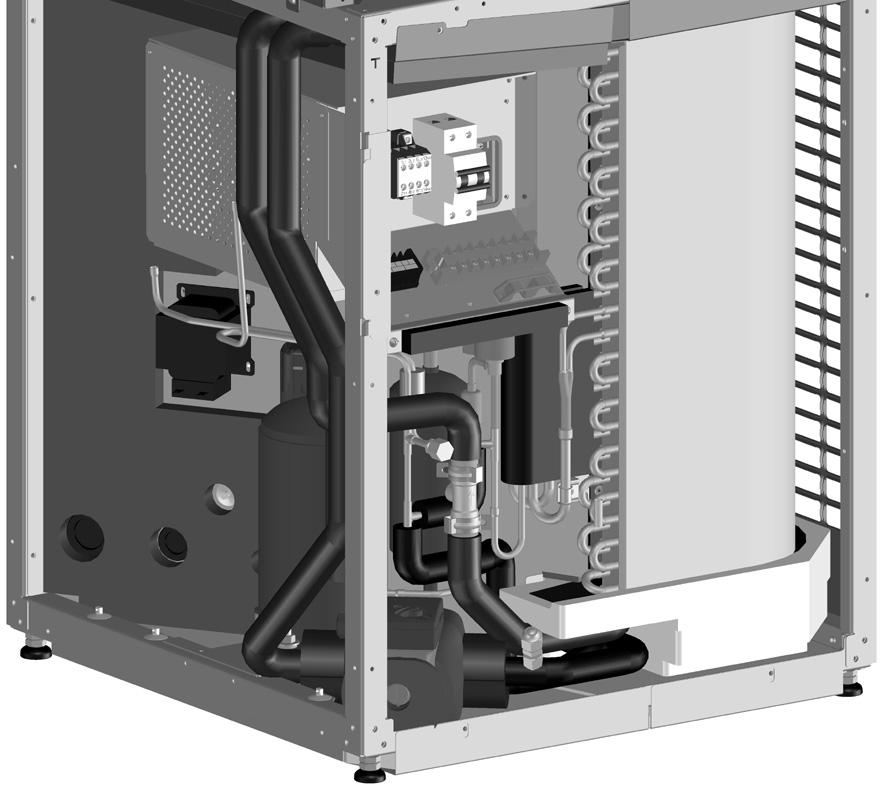

6 5. OVERVIEW 5.. Overview of the domestic hot water tank module 5.. Overview of the domestic hot water heat pump module Temperature sensor (thermistor) Temperature sensors determine the water and refrigerant temperature at various points in the circuit. Switch box The switch box contains the main electronic and electrical parts of the indoor unit. Condensor 4 Evaporator 5 Fan motor and propeller 6 Pump The pump circulates the water in the water circuit. 7 Compressor 8 Accumulator 9 Electronic expansion valve 0 Service port water circuit Casing Flow sensor Drain pan socket 4 Water inlet connection from domestic hot water tank 5 Water outlet connection to domestic hot water tank 6 Sound bottom plate 7 Service port R40A Hot water out connection T-piece (field supply) Pressure relief valve connection (field supply) 4 Pressure relief valve ( field supply) 5 Thermistor socket 6 Flow inlet connection from the heat pump module 7 Return outlet connection to the heat pump module 8 Cold water in connection 9 Thermistor 0 Anode Casing Thermal protector The thermal protector is activated when the temperature becomes too high. Booster heater 4 Thermal fuse CAUTION This domestic hot water tank module can only be used with an EKHVWQ indoor module. 4

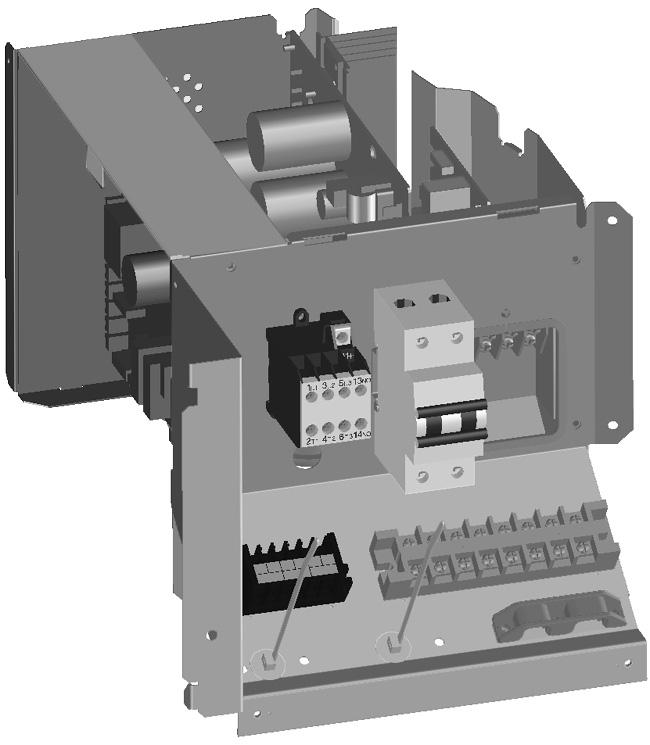

7 5.. Switchbox main components 5.4. Functional diagram Main PCB The main PCB (Printed Circuit Board) controls the functioning of the unit. Filter PCB Inverter PCB 4 Terminal block XM Main terminal block which allows easy connection of field wiring for power supply. 5 Terminal block XM Field wiring terminal block for low voltage connections. 6 Strain relief for cables 7 Fuse for booster heater power supply 8 Booster heater contactor The electrical connection diagram can be found on the inside of the switch box cover t > Heat pump module (EKHVWQ*) Heat pump module, refrigerant side Heat pump module, water side 4 Domestic hot water tank (EKHHS*00, EKHHS*60) 5 Field istallation (According to local and national regulations) 6 Air heat exhanger (evaporator) 7 Water heat exchanger (condensor) 8 Filter 9 Expansion valve (YE) 0 Fan with fan motor (MF) Compressor (MC) Accumulator Service port 5/6" 4 Flow sensor (SNF) 5 Pump (MP) 6 Expansion vessel 7 Pressure relief valve 8 Pressure reducing valve 9 Non returning valve 0 Shut off valve Drain valve Quick coupling connection Screw connection G /" MBSP 4 Thermistor ambient temperature (RT) 5 Thermistor evaporator temperature (RT) 6 Thermistor discharge temperature (RT) 7 Thermistor heat exchanger temperature (R4T) 8 Thermistor leaving water temperature (R5T) 9 Thermistor entering water temperature (R6T) 0 Thermistor domestic hot water tank (R7T)

8 6. INSTALLATION OF THE UNIT 6.. Selecting an installation location The unit is to be placed in an indoor location that meets the following requirements: General WARNING Make sure to provide for adequate measures in order to prevent that the indoor unit should be used as a shelter by small animals. Small animals making contact with electrical parts can cause malfunctions, smoke or fire. Please instruct the customer to keep the area around the unit clean. Installation shall be done by a licensed technician, the choice of materials and installations shall comply with local and national regulations. The equipment is not intended for use in a potentially explosive environment. There is no danger of fire due to leakage of inflammable gas. If the sound is measured under actual installation conditions, the measured value will be higher than the sound pressure level mentioned in the "Unit specifications" on page 7 due to environmental noise and sound reflections. Choose the installation location carefully and do not install in a sound sensitive environment (e.g. living room, bedroom,...). Be sure that sufficient precautions are taken, in accordance with relevant local and national regulations, in case of refrigerant leakage. Location requirements The installation location is frost-free and indoors. Take care that in the event of a water leak, water can not cause any damage to the installation space and surroundings. The foundation must be strong enough to support the weight of both models. The floor is flat to prevent vibrations and noise generation and to have sufficient stability especially when the optional domestic hot water tank is mounted on top of the unit. Volume of installation location During operation the heat pump module increases the domestic water temperature by using the indoor stored heat. Typical installation location for this product is a garage, cellar, technical room, etc. To have an optimum unit operation and to prevent a too big temperature drop in the installation location, take the following requirements for the installation location into account: Minimum volume of the installation room The heatpump operation stops whenever the indoor ambient temperature becomes lower than C (this can be adapted by field setting [7-04]). After that, the electric heater in the domestic hot water tank module will continue to heat up the domestic hot water. This is a unit safety that prevents the installation room to cool down further (preventing that e.g. water piping in the installation room gets damaged) and guarantees a sufficient comfort level in the form of sufficient amount of domestic hot water. To prevent this safety to occur frequently and to assure the use of the electric heater as little as possible, the room size must have a minimum volume (see figure below). All depends on the outdoor temperature, the temperature setpoint of the adjacent heated room and the insulation properties of the walls. The volumes in the figure are valid for an outdoor temperature of 0 C and a temperature setpoint of the adjacent heated room of 6 C. With this room volume, the heatpump can heat up 60 liters domestic hot water from 0 C to 60 C. Garage included in house One wall and ceiling of garage are in contact with heated area Minimum required 60 m volume Square footprint 5 m Height.5 m Garage included in house Two walls and ceiling of garage are in contact with heated area Minimum required 50 m volume Square footprint 0 m Height.5 m When the installation room size does not match the minimum requirement volume or if the walls between the installation room and adjacent heated room have better insulation properties than a single brick wall, additional heat sources must be considered. Examples of heat sources: - if installed in a basement the ground surrounding the basement will heat up the installation room temperature - if installed in a garage, the heat of the cars engine - natural ventilation via e.g. doors leading to the adjacent heated rooms - ventilation connection to a heated room - other: washing machine, dryer 6

9 Humidity of the adjacent heated rooms The room where the unit is installed will cool down. Depending on the relative humidity temperature in the adjacent room and the insulation property of the common walls, condensation could occur on the wall. Installing near a wall or obstacle When the unit is installed as mentioned in the figure below, the performance and operation of the unit will be optimum. C 50 B 50 A B A B E.g. kitchen E.g. garage A 400 A 400 If the relative humidity in the adjacent heated room is often higher than 60% (e.g. bathroom) during the heating season (when outdoor ambient temperature is lower than 5 C) condensation could occur on the common walls. Relative humidity levels of a living room normally do not exceed this 60%. If this should be the case consider to limit the cool down of the installation room by considering additional heat sources (see above remarks). Air blowing out Depending on the operating conditions and the installation condition, the cold air blown out at the back of the unit can cause condensation or heat losses to surroundings. In this case consider to locally insulate the wall on the unit side, or install the heat pump module with the cold air blow out to an (e.g.) outside wall. A B C D A B C D E.g. kitchen E.g. garage Insulation Cold air blow out from heat pump module A B C C 50 A 400 B 500 Space required for switch box removal Space required for air intake Space required for air blow out to the left Where a wall or other obstacle is not according to the figure mentioned in "Installing near a wall or obstacle", follow the installation guidelines below. If the unit cannot be installed according to the figure mentioned in "Installing near a wall or obstacle", consider to use flexible piping between the unit and the customer water circuit. This could facilitate possible service jobs where access to one of the sides is required. Example: when water piping is situated in the blow out zone of the unit depending on operating conditions and the water temperature inside the piping this piping can condens. In this case consider to insulate the water piping. Depending on the operating conditions and the installation condition the cold air blown out at the back of the unit can cause heatlosses and even freezing up temperatures to e.g. non insulated water piping located in this cold area! In this case consider to insulate the water piping. Required space around the unit The space around the unit is adequate for servicing B 50 C 50 A 400 A 400 A B C Space required for switch box removal Left installation Right installation 7

10 Preferred installation locations Garage or cellar with a heat producing source (for example a washing machine or drier, a freezer, a hot boiler for space heating or an other heat emitting source). Cellar that will release heat from the floor. Room with good insulation towards outside. Room that needs to be dehumified. Do nots Do not install the unit in places often used as workplace. In case of construction works (e.g. grinding works) where a lot of dust is created, the unit must be shut down and covered. Do not install the unit in places with high humidity (e.g. bathroom) (maximum humidity (RH)=85%). Do not install the unit where there is a mist of mineral oil, oil spray or vapour for example a kitchen. Plastic parts may deteriorate and cause them to fall out or water to leak. Do not install the unit where corrosive gas, such as sulphurous acid gas is produced. Corrosion of copper pipes or soldered parts may cause the refrigerant to leak. Do not install the unit where flammable gases may leak, where carbon fiber or ignitable dust is suspended in the air or where volatile flammables, such as thinner or gasoline are handled. Such gases may cause of fire. Do not install the unit where acidic or alkaline vapour is present. Do not install the unit in places where water leaking from the unit can cause damage to the location (e.g. in case of a blocked drain pipe). Do not install the unit near a bedroom and the like, so that the operation noise will cause no trouble. Do not place any objects or equipment on top of the unit (top plate). Do not climb, sit or stand on top of the unit. Do no install in a room without any means of heating inside that is not connected to an other room with a heating source (for example a garden house). 6.. Field piping Provisions at the cold water inlet of the domestic hot water tank - To avoid back siphonage it is advised to install a non return valve on the cold water inlet in accordance with local and national regulations. - It is advised to install a pressure reducing valve on the cold water inlet in accordance with local and national regulations. - Provide a connection for a pressure relief valve on the cold water inlet. - Install an expansion vessel on the cold water inlet in accordance with local and national regulations. - Install a drain device on the cold water connection on the domestic hot water tank. WARNING Do not install any valves between the domestic hot water tank module and the pressure relief valve/expansion vessel. It is advised to provide a shut off valve before and after the unit. This will facilitate maintenance on the domestic hot water circuit. It is recommended to install a shut off valve on the cold water inlet. Close this shut off valve during periods of abscense to avoid damage to the surroundings in case water should leak. During operation and depending on operation conditions the heat pump module collects condens water in the drain pan at the bottom of the unit. Make sure to provide a proper drain connection to this drain pan. It is advised to avoid long runs of piping between the unit and the hot water end point (shower, bath,...) and to avoid dead ends. In accordance with local and national regulations it may be necessary to install thermostatic mixing valves. The installation must be in accordance with local and national regulations and may require additional hygienic installation measures. If required by relevant local and national regulations, connect a recirculation pump in between the hot water end point and the cold water in connection of the domestic hot water tank. 6.. Inspecting and handling the unit At delivery, the unit must be checked and any damage must be reported immediately to the carrier claims agent. Bring both models as close as possible to its final installation position in its original package in order to prevent damage during transport. Unpack the models completely according to the instructions mentioned on the unpacking instructions sheet. Check if all accessories (see "Accessories" on page ) are enclosed. 8

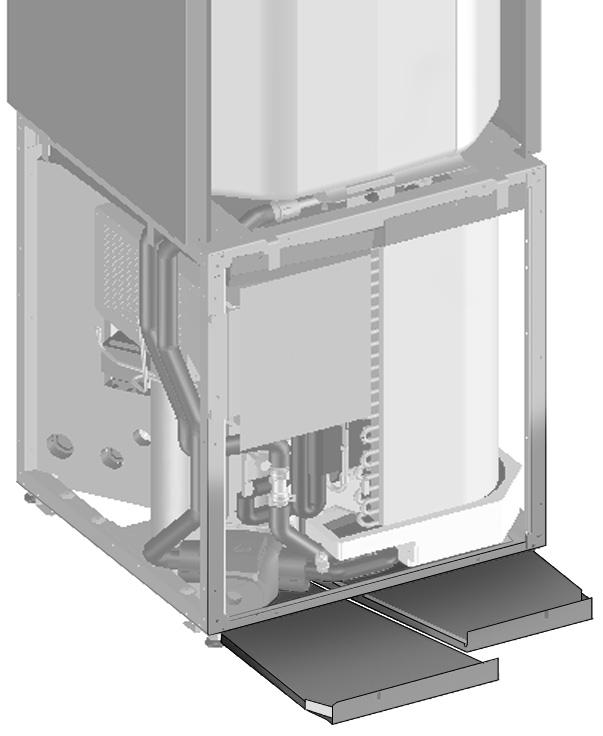

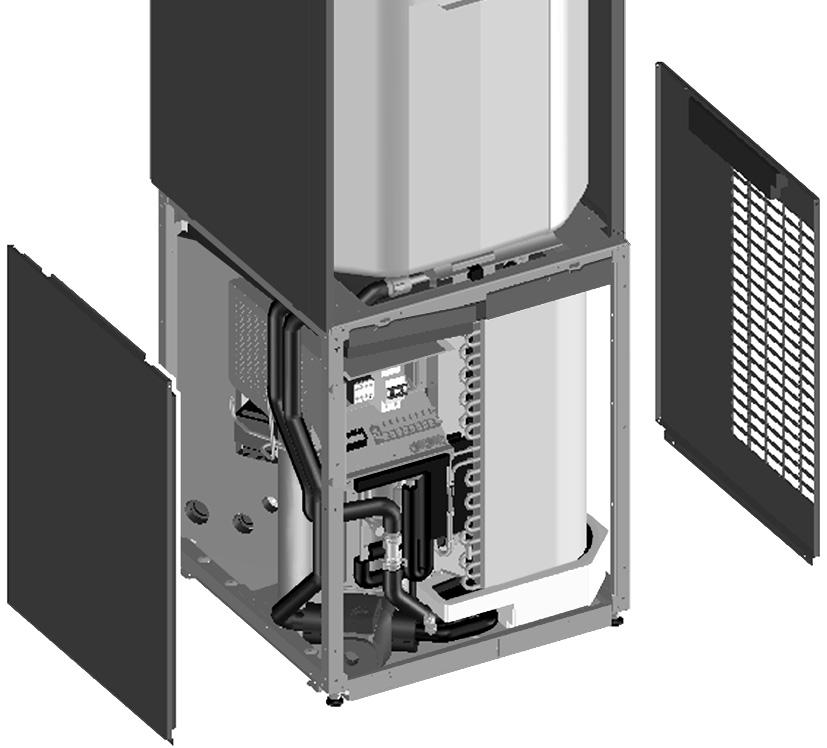

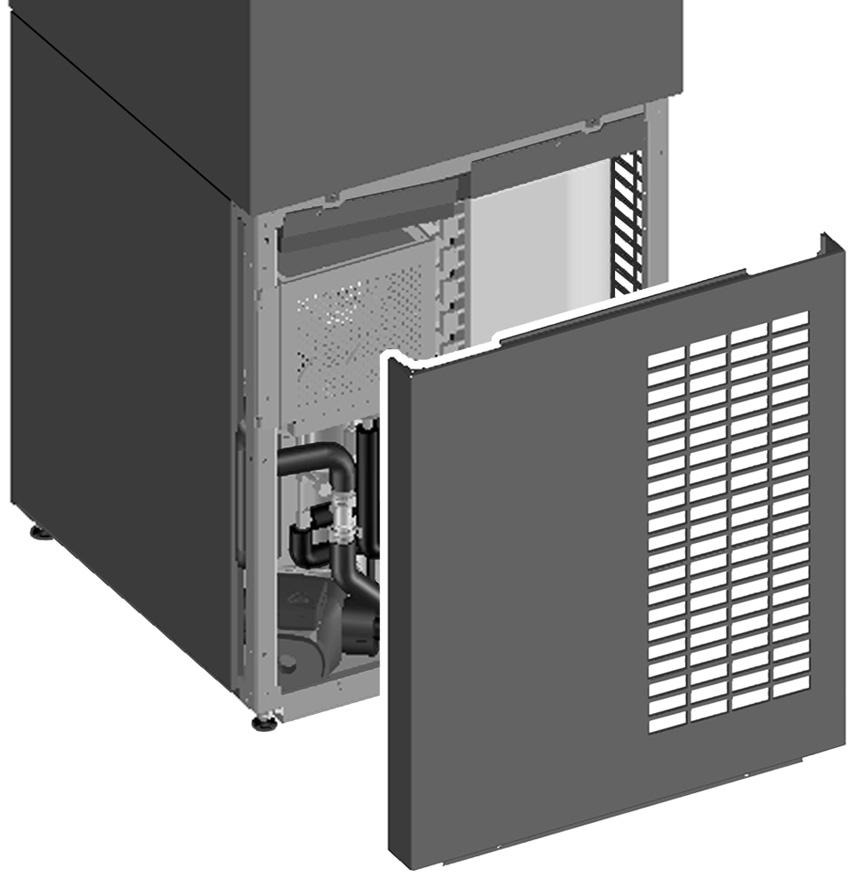

11 6.4. Installing the indoor unit Unpack the EKHVWQ according to unpacking instruction sheet. Place the heat pump module in the appropriate installation location as close as possible to the installation location. Level the heat pump module to a stable position using the levelling feet. The maximum allowed deviation from a horizontal position is. Align the side panels of the heat pump module with the domestic hot water tank module side panels. Unpack the EKHHS according to the unpacking instructions delivered with the unit. Perform the electrical wiring work as described in the chapter "Electrical wiring work" on page. Connect the system to the water circuit as described in the chapter "Piping connection work" on page 0. Fill the system with water as described in the chapter "Charging water" on page. To make the casing completely sealed, plug the knockout holes with putty or insulation materials (to be prepared on-site). Perform the pre-operation checks as described in the chapter "Start-up and configuration" on page 6. Close the unit Put the sound bottom plates at the bottom of the unit. 4 Fix the front panel to the domestic hot water tank module. Close the decoration panels. x x x 9

12 5 Fix the front panel of the heat pump module. 7. PIPING CONNECTION WORK 7.. Water piping work Water quality x Before continuing the installation of the unit, check the following points Domestic hot water quality must be according to EU directive 98/8 EC. Specifically take care that: - Chloride content maximum 50 mg/l - Sulphate content maximum 50 mg/l - Combination of both maximum 00 mg/l The unit must not be used with water from a private supply. In known hard water regions, precautions should be taken to prevent lime scale formation in hot water. For safety reasons, it is not allowed to add any kind of glycol to the water circuit. To avoid stagnation of water, it is important that the storage capacity of the domestic hot water tank meets the daily consumption of domestic hot water. In cases where during longer periods of time there is no consumption of hot water, the equipment must be flushed with fresh water before usage. The disinfection function provided on the equipment is specified in the operation manual of the unit. Checking the water circuit The units are equipped with a water inlet and water outlet for connection to a water circuit. This circuit must be provided by a licensed technician and must comply with all relevant European and national regulations. Before continuing the installation of the unit, check the following points: The maximum allowed unit water pressure is 0 bar. The maximum water temperature at the unit outlet is 75 C. Take care that the components installed in the field piping can withstand this water temperature. DANGER The maximum water temperature to the unit must be limited to 55 C. Drain taps must be provided at all low points of the system to permit complete drainage of the circuit during maintenance. One drain valve in the indoor unit is provided to drain the water from the indoor unit water system. Only perform this draining when all the water of the domestic hot water tank is already drained. Take care that the components installed in the field piping can withstand the water pressure and temperature. Always use materials which are compatible with the water used in the domestic water circuit. In the unit water circuit copper, stainless steel and brass is used. WARNING Never use Zn coated parts in the water circuit. Excessive corrosion of these parts may occur as copper piping is used in the unitís internal water circuit. 0

13 Connect the domestic hot water tank module to the heat pump module Refer to the unpacking instruction sheet. If the domestic hot water tank module is put next to the unit, installing of the EKFMHMSAA kit is necessary. Refer to the manual of that kit. Make sure to check if the speed setting of the pump is set in position III if the domestic hot water tank module is mounted on top of the heat pump module. Connecting the water circuit Water connections must be made. The location of the water inlet connection and the water outlet connection on the unit is shown in the chapter 5.. "Overview of the domestic hot water tank module" on page 4. WARNING Be careful not to deform the unit piping by using excessive force when connecting the piping. Deformation of the piping can cause the unit to malfunction. Use two wrenches as shown in the figure. Connect the drain pan During operation and depending on operation conditions the heat pump module collects condens water in the drain pan at the bottom of the unit. Make sure to provide a proper drain connection to this drain pan. CAUTION: Requirements to drain piping The drain piping must be positioned away from any electrical components. The drainpipe must terminate in a safe, visible position without forming any risk to persons in the vicinity. All drain pipe work must be installed in a continuously downward direction and in a frost-free environment. It must be left open to the atmosphere. 7.. Precautions when connecting field piping and regarding insulation The complete water circuit, inclusive all piping, must be insulated to reduce loss of heat. If the indoor ambient temperature is higher than 0 C and the humidity is higher than RH 80% then the thickness of the insulation materials should be at least 0 mm in order to avoid condensation on the surface of the insulation. If air, moisture or dust gets in the water circuit, problems may occur. Therefore, always take into account the following when connecting the water circuit: Use clean pipes only. Hold the pipe end downwards when removing burrs. Cover the pipe end when inserting it through a wall so that no dust and dirt enter. Use a good thread sealant for the sealing of the connections. When using non-brass metallic piping, make sure to insulate both materials from each other to prevent galvanic corrosion. Because brass is a soft material, use appropriate tooling for connecting the water circuit. Inappropriate tooling will cause damage to the pipes. Connect the pressure relief valve (field supply) and drain In accordance with relevant local and national regulations, a field supplied pressure relief valve with an opening pressure of maximum 0 bar must be connected to the pressure relief valve connection. Make sure to provide a proper drain for the field supplied pressure relief valve to avoid any water coming into contact with electrical parts. 8. CHARGING WATER 8.. Method for adding water Connect the water supply to the unit Open each hot water tap in turn to expel air from the system pipe work Open the field installed hot water shut off valve 4 Open the field installed cold water supply valve 5 Close all hot water taps after all air is expelled 6 Check for leaks 7 Manually operate the field supplied pressure relief valve to ensure free water flow CAUTION Immediately after installation, the domestic hot water tank must be flushed with fresh water. This procedure must be repeated at least once a day for the first 5 consecutive days after installation. CAUTION: Requirements to discharges Discharge piping, drain valves, etc. must be positioned away from any electrical components. All discharge pipe work must be installed in a continuously downward direction and in a frost-free environment. It must be left open to the atmosphere. DANGER of burning and scalding The discharge pipe must terminate in a safe, visible position without forming any risk to persons in the vicinity.

14 9. ELECTRICAL WIRING WORK 9.. Precautions on electrical wiring work WARNING A main switch or other means for disconnection, having a contact separation in all poles, must be incorporated in the fixed wiring in accordance with relevant local and national regulations. Switch off the power supply before making any connections. Use only copper wires. All field wiring and components must be installed by a licensed electrician and must comply with relevant European and national regulations. Be sure to install the required fuses as mentioned on the electrical wiring diagram. The field wiring must be carried out in accordance with the wiring diagram supplied with the unit and the instructions given below. Never squeeze bundled cables and make sure that it does not come in contact with the piping and sharp edges. Make sure no external pressure is applied to the terminal connections. Be sure to use a dedicated power supply. Never use a power supply shared by another appliance. Be sure to establish an earth. Do not earth the unit to a utility pipe, surge absorber, or telephone earth. Incomplete earth may cause electrical shock. Be sure to install an earth leakage protector in accordance with relevant local and national regulations. Failure to do so may cause electrical shock. When installing the earth leakage protector make sure that it is compatible with the inverter (resistant to high frequency electrical noise) to avoid unnecessary opening of the earth leakage protector. As this unit is equipped with an inverter, installing a phase advancing capacitor not only will deteriorate power factor improvement effect, but also may cause capacitor abnormal heating accident due to highfrequency waves. Therefore, never install a phase advancing capacitor. Be sure that after installation work all the rubber bushings are put back in place to protect the wires from touching sharp edges. 9.. Internal wiring - Parts table Refer to the internal wiring diagram supplied with the unit. The abbreviations used are listed below. Switch box components list AP... Main PCB AP... User interface PCB AP... Filter PCB A4P... Inverter PCB C6~C9... Capacitor (A4P) DS,DS... DIP switch (AP) EH... Electric heater element FB... Fuse FT... Thermal fuse FU,FU... Fuse (T,.5 A, 50 V) (A*P) FU... Fuse (0 A, 50 V) (AP) HAP... PCB LED (AP) K... Changeover contact (AP) KE... Electronic expansion valve KM... Contactor backup heater K*R... PCB relay (AP) MC... Compressor MF... Fan motor MP... Pump QDI... Earth leakage protector (field supply) QL... Compressor overheat protector QL... Thermal protector RL... Reactor RT... Ambient temperature sensor RT... Evaporator temperature sensor RT... Discharge temperature sensor R4T... Condensing temperature sensor R5T... Leaving water temperature sensor R6T... Entering water temperature sensor R7T... Domestic hot water tank temperature sensor SL... Flow sensor SS... Benefit kwh power rate signal (field supply) TR... Diode bridge (A4P) TR,TR... Power module (A4P) VC~V7C... Ferrite core XM~XM... Terminal strp XY~X7Y... Connector ZF... Noise filter (a) (b) CAUTION: For V models only Equipment complying with EN/IEC (a) This equipment complies with EN/IEC (b) provided that the system impedance Z sys is less than or equal to Z max at the interface point between the user's supply and the public system. It is the responsibility of the installer or user of the equipment to ensure, by consultation with the distribution network operator if necessary, that the equipment is connected only to a supply with a system impedance Z sys less than or equal to Z max. Z max =0.4 Ω. European/International Technical Standard setting the limits for harmonic currents produced by equipment connected to public low-voltage systems with input current >6 A and 75 A per phase. European/International Technical Standard setting the limits for voltage changes, voltage fluctuations and flicker in public low-voltage supply systems for equipment with rated current 75 A.

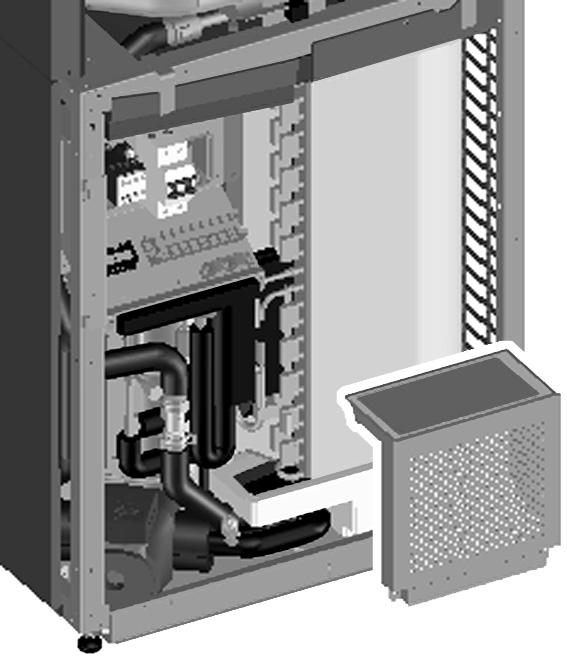

15 9.. System overview of field wiring Field wiring on the unit side is to be made on the terminal block inside the switch box. To gain access to the terminal blocks, remove the switch box service panel. Refer to the unit switch box cover for instructions how to remove this panel and gain access to the inside of the switch box. Procedure Open the unit as described in "Opening the unit" on page 5. Open the switch box cover as shown in the figure. The electrical connection diagram can be found on the inside of the switchbox cover Install the power supply cable and communication cable at least meter away from televisions or radios to prevent image interference or noise. Depending on the radio waves, a distance of meter may not be sufficient to eliminate the noise. Connection of the indoor unit power supply and communication cable(s) Cable requirements Required Item Description number of conductors Maximum running current HV Power supply +GND Refer to the nameplate LV Remote controller (P/P) LV Domestic hot water tank thermistor 4 LV Benefit kwh rate power supply signal Minimum cable section 0.75 mm This device and connection cable are delivered with the domestic hot water tank module Minimum cable section 0.75 mm 5 HV Booster heater +GND Minimum cable section 0.75 mm 6 HV Booster heater safeties Minimum cable section 0.75 mm HV = High voltage LV = Low voltage x Using the appropriate cable, connect the power supply and communication cable(s) to the appropriate terminals as shown on the wiring diagram and according to the figure below. XM XM L N CAUTION Select all cables and wire sizes in accordance with relevant local and national regulations. DANGER After finishing the electric work, confirm that each electric part and terminal inside the electric parts box is connected securely. XM t R7T *KHHS(00/60)AAV A B C D E AP SS PP User Interface XM 4 FT QL EH *KHHS(00/60)AAV 4 PE QDI L N L N ~50 Hz 0-40 VAC power supply A B C D E LV HV NOTICE When wiring, route the cable bundles that are outside the unit away from each other by at least 5 mm in order to avoid receiving electric noise (external noise).

16 4 Fix the cables with cable ties to the cable tie mountings to ensure strain relief and to make sure that it does not come in contact with the piping and sharp edges. Never squeeze bundled cables. Note: only relevant field wiring is shown in the figure. Wire the remote controller. XM 4 x P P Unit Rear part of the digital controller Front part of the digital controller There is no polarity, so the wires can be switched. CAUTION When wiring, run the wiring away from the power supply wiring in order to avoid receiving electric noise (external noise). Peel the shield for the part that has to pass through the inside of the digital controller case ( l ). 5 Close the switch box cover following the instructions described in "Opening the unit" on page 5 in reverse order. Installation of the remote controller The unit is equipped with a remote controller offering user-friendly way to set up, use and maintain the unit. Before operating the remote controller, follow this installation procedure. 4 Reattach the upper part of the remote controller. DANGER Be careful not to pinch the wiring when attaching. First begin fitting from the clips at the bottom. The wiring for connection is not included. NOTICE The remote controller, delivered in a kit, has to be mounted indoors on the domestic hot water tank module. Remove the front part of the remote controller. Insert a slotted screwdriver into the slots () in the rear part of the remote controller, and remove the front part of the remote controller. Fasten the remote controller as shown in the figure. x NOTICE Be careful not to distort the shape of the lower part of the remote controller by over tightening the mounting screws. 4

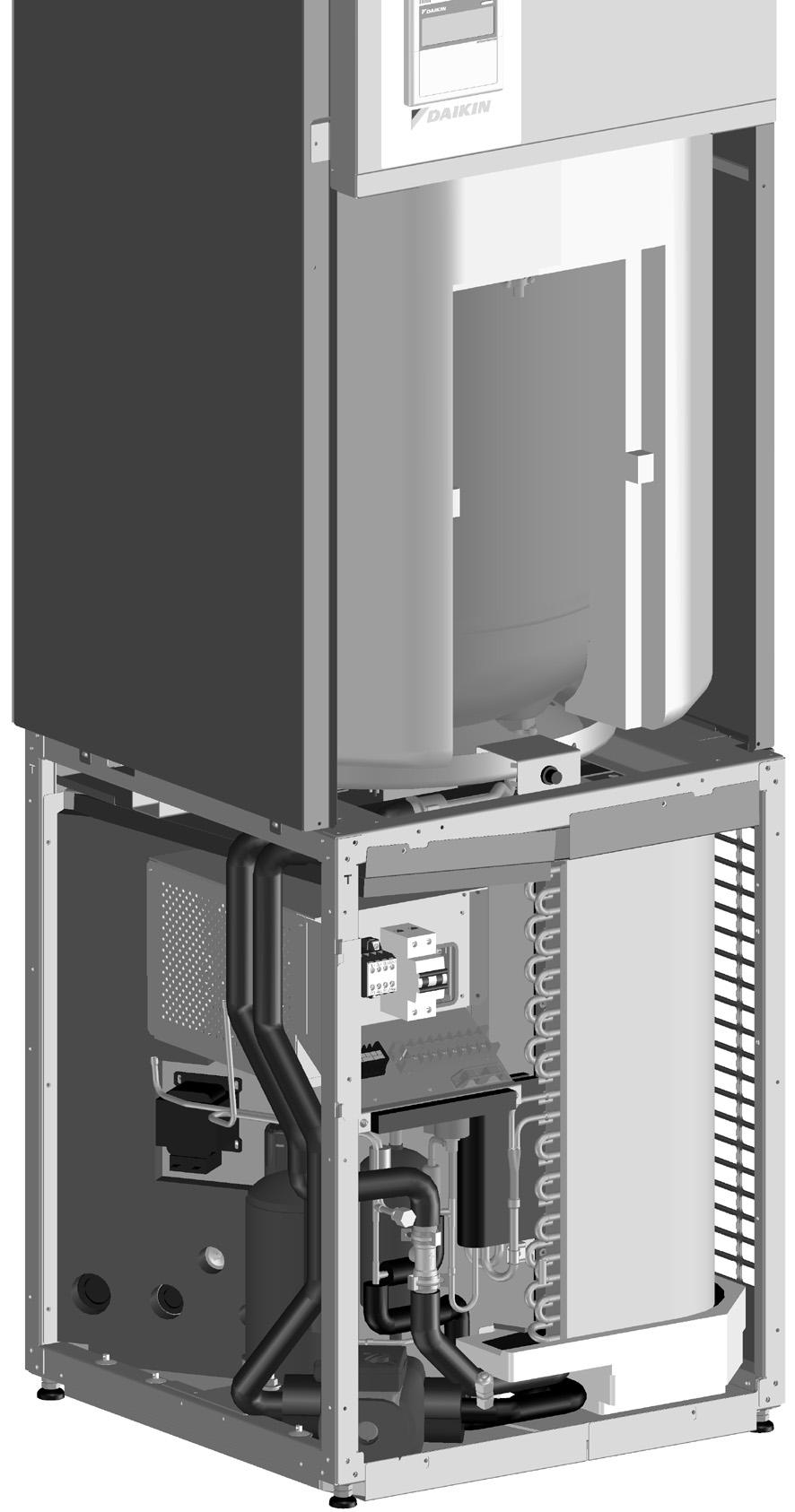

17 Connection of the domestic hot water tank module to the heat pump module Booster heater and safety (A) Tank thermistor (B) Remote controller (C) C B Connection to a benefit kwh rate power supply Electricity companies throughout the world work hard to provide reliable electric service at competitive prices and are often authorized to bill clients at benefit rates. E.g. time-of-use rates, seasonal rates, Wärmepumpentarif in Germany and Austria,... This equipment allows for connection to such benefit rate power supply delivery systems. Consult with the electricity company acting as provider at the site where this equipment is to be installed to know whether it is appropriate to connect the equipment in one of the benefit kwh rate power supply delivery systems available, if any. When the equipment is connected to such benefit kwh rate power supply, the electricity company is allowed to: interrupt power supply to the equipment for certain periods of time; demand that the equipment only consumes a limited amount of electricity during certain periods of time. The indoor unit is designed to receive an input signal by which the unit switches into forced off mode. At that moment, the unit compressor and the heater will not operate. WARNING For a benefit kwh rate power supply like illustrated below as type During the period that the benefit kwh rate is active and power supply is continuous, then stand-by power consumption of the inverter PCB is possible. A C B A x CAUTION For a benefit kwh rate power supply like illustrated below as types or If during benefit kwh rate power supply the power supply is shut. This power supply interruption should not be longer than hours, otherwise the real time clock of the controller will be reset. During power supply interruption, the controller display will be blank. 5

18 Possible types of benefit kwh rate power supply Possible connections and requirements to connect the equipment to such power supply are illustrated in the figure below: [D-0]= L L L N N N SS SS SS 4 4 [D-0]= L L L N N N SS SS SS 4 4 When connecting the equipment to a benefit kwh rate power supply, change field setting [D-0]. If the benefit kwh rate power supply is of the type that power supply is not interrupted, the unit will be forced to off. When the benefit kwh rate signal is sent, the centralised control indicator e will appear to indicate that the benefit kwh rate is active. 0. START-UP AND CONFIGURATION The unit should be configured by the installer to match the installation environment (outdoor climate, installed options, etc.) and user expertise. CAUTION It is important that all information in this chapter is read sequentially by the installer and that the system is configured as applicable. 4 4 When a power failure occurred and the power returns to the unit, the system will automatically restore it's settings and restart XM AP X40A Benefit kwh rate power supply box Receiver controlling the signal of the electricity company Power supply to unit 4 Voltage free contact to indoor unit When the unit is connected to a benefit kwh rate power supply, the voltage free contact of the receiver controlling the benefit kwh rate signal of the electricity company must be connected to clamps 5 and 6 of XM (as illustrated in the figure above). When parameter [D-0]= at the moment that the benefit kwh rate signal is sent by the electricity company, that contact will open and the unit will go in forced off mode (). When parameter [D-0]= at the moment that the benefit kwh rate signal is sent by the electricity company, that contact will close and the unit will go in forced off mode (). Type This type of benefit kwh rate power supply is not interrupted. Type This type of benefit kwh rate power supply is interrupted after elapse of time. Type This type of benefit kwh rate power supply is interrupted immediately. 0.. Pre-operation checks DANGER Switch off the power supply before making any connections. After the installation of the unit, check the following: Field wiring Make sure that the field wiring has been carried out according to the instructions described in the chapter "Electrical wiring work" on page, according to the wiring diagrams and according to European and national regulations. Fuses and protection devices Check that the fuses and other locally installed protection devices are of the size and type specified in the chapter "Technical specifications EKHVWQ00AAV" on page 7. Make sure that neither a fuse nor a protection device has been bypassed. Earth wiring Make sure that the earth wires have been connected properly and that the earth terminals are tightened. 4 Internal wiring Visually check the switch box and the inside of the unit on loose connections or damaged electrical components. 5 Installation Check that the unit is properly installed, to avoid abnormal noises and vibrations when starting up the unit. 6 Damaged equipment Check the inside of the unit on damaged components or squeezed pipes. () When the signal is released again, the voltage free contact will close and the unit will restart operation. It is therefore important to leave the auto restart function enabled. Refer to "[] Miscellaneous" on page 9. () When the signal is released again, the voltage free contact will open and the unit will restart operation. It is therefore important to leave the auto restart function enabled. Refer to "[] Miscellaneous" on page 9. 6

19 7 Refrigerant leak Check the inside of the unit on refrigerant leakage. If there is a refrigerant leak, call your local dealer. Do not touch any refrigerant which has leaked out of refrigerant piping connections. This may result in frostbite. 8 Water leak Check the inside of the unit on water leakage. In case there is a water leakage close the water inlet and water outlet shut-off valves and call your local dealer. 9 Power supply voltage Check the power supply voltage on the local supply panel. The voltage must correspond to the voltage on the identification label of the unit. Once all checks are fulfilled, the unit must be closed, only then can the unit be powered up. When the power supply to the indoor unit is turned on, "88" is displayed on the remote controller during its initialization, which might take up to 0 seconds. During this process the remote controller can not be operated. 0.. Field settings The unit should be configured by the installer to match the user demand. Thereto, a number of so called field settings are available. These field settings are accessible and programmable through the user interface on the unit. Each field setting is assigned a -digit number or code, for example [-0], which is indicated on the user interface display. The first digit [] indicates the 'first code' or field setting group. The second and third digit [0] together indicate the 'second code'. A list of all field settings and default values is given in the "Field settings table" on page. In this list we provided for columns to register the date and value of altered field settings at variance with the default value. A detailed description of each field setting is given under "Detailed description" on page 9. NOTICE Field setting [] depends on the relevant local and national regulations. Before changing these settings, the new values shall be confirmed by the installer and/or shall be according to the local and national regulations. Different domestic hot water tank operation modes To understand the field setting possibilities explained in the following chapters, understand that different domestic hot water tank operation modes are possible. Powerfull operation If the P button is pressed, the heat pump module heats up the domestic hot water tank as fast as possible to a predefined setpoint. This means that the inverter compressor frequency will be higher then in normal operation mode and that sound level and power consumption can be higher. This mode might be usefull when exceptional high hot water consumption depletes all the available domestic hot water and hot water is required. Depending on settings, simultaneous heat pump operation and booster heater operation can occur. The unit increases the domestic hot water temperature by using the indoor stored heat. The powerful mode might not function properly when the room ambient temperature is too low. Disinfection operation This mode will disinfect the domestic hot water tank by periodically heating the domestic water to a high temperature. This can be required for e.g. legionella prevention. This mode is enabled by default. Refer to the chapter "Detailed description" on page 9 for a detailed description how to set one or more field settings. - [0-0] Set point: Disinfection water temperature to be reached (see figure "[] Disinfection operation" on page 9). - [-00] Operation interval: day of the week at which the domestic water should be heated. - [-0] Status: defines whether the disinfection function is turned ON () or OFF (0). - [-0] Start time: time at which the disinfection operation is started. - [-04] Duration: time period defining how long the disinfection set point temperature should be maintained. Even when the unit is in OFF mode, disinfection operation can work (depending on field setting [-0]). Reheat operation This mode will prevent the domestic hot water from cooling down lower than a certain temperature. When enabled the unit will heat up the domestic hot water tank when the reheat minimum value is reached. This heating will continue until the reheat maximum temperature is reached. This means that the unit can heat up continuously and e.g. not limited to night time operation. This reheat operation is only valid when schedule timer operation is enabled and not active. Automatic operation This operation mode contains a learning function to predict the daily hot water consumption. It will calculate and predict the optimum tank temperature setpoint based on the user tapping history. Enabling this operation mode will keep the tank temperature as low as possible but to a temperature which guarantees a high comfort level. The advantage of a low tank temperature setpoint are : - Reduced heatlosses - Better unit performance, the lower the tank temperature the better the heat up coefficient of performance (COP). - Lower electric power consumption Refer to the operation manual for a detailed description. 7

20 Domestic water heating modes T A B C D E F G H J A B C D Normal or automatic domestic hot water tank operation (if activated) Reheat operation (if activated) Disinfection operation (if activated) Powerful operation Field settings E Disinfection operation temperature F Normal or automatic domestic hot water tank temperature G Powerful temperature set point H Reheat maximum water temperature J Reheat minimum water temperature t Time T Domestic hot water tank temperature Procedure To change one or more field settings, proceed as follows. t To change field settings [] to [F] (to be performed only by the installer) Press the z button for a minimum of 5 seconds to enter FIELD SET MODE. Press the z button for a minimum of 0 seconds to enter FIELD SET MODE. The $ icon () will be displayed. The current selected field setting code is indicated ; (), with the set value displayed to the right - (). Press the wi button to select the appropriate field setting first code. 4 Press the wj button to select the appropriate field setting second code. 5 Press the pfi button and pfj button to change the set value of the select field setting. 6 Save the new value by pressing the pr button. 7 Repeat step through 4 to change other field settings as required. 8 When finished, press the z button to exit FIELD SET MODE. Changes made to a specific field setting are only stored when the pr button is pressed. Navigating to a new field setting code or pressing the z button will discard the change made. The field settings are grouped by their field setting first code. For example field settings [0-00], [0-0], [0-0] and [0-0] are defined as group "0". Before shipping, the set values have been set as shown under "Field settings table" on page. When exiting FIELD SET MODE, "88" may be displayed on the remote controller LCD while the unit initializes itself. NOTICE When running through the field settings you may notice that there are some more field settings as there are mentioned in the "Field settings table" on page. These field settings are not applicable and may not be changed! To change field settings [0] and [] (to be performed by the installer and the customer) Press the z button for a minimum of 5 seconds to enter FIELD SET MODE. The $ icon () will be displayed. The current selected field setting code is indicated ; (), with the set value displayed to the right - (). Press the wi button to select the appropriate field setting first code. WARNING It is the installers responsibility to make sure no unwanted situations can occur (e.g. too high water temperatures towards hot water taps, etc.). It is the installers responsibility to make sure the water circuit is well balanced (e.g. when a domestic hot water request occurs, there will be sufficient flow towards hot water taps) Press the wj button to select the appropriate field setting second code. 4 Press the pfi button and pfj button to change the set value of the select field setting. 5 Save the new value by pressing the pr button. 6 Repeat step through 4 to change other field settings as required. 7 When finished, press the z button to exit FIELD SET MODE. 8

21 Detailed description [0] Different operation modes [0-00] Powerfull operation mode temperature set point [0-0] Disinfection operation mode tempeature set point [0-0] Temperature setpoint: reheat minimum temperature [0-0] Temperature setpoint: reheat maximum temperature [0-04] Reheat function enabled/disabled: defines whether the reheat operation is turned ON() or OFF(0) [] Automatic domestic hot water tank temperature set point calculation [-00] Renewal time for set point calculation The automatic temperature set point calculation is done on a daily basis. The algorithm calculates for each day of the week an optimum domestic hot water tank temperature set point. To calculate this temperature setpoint, the learning function monitors per 4 hours the domestic water heating demand and based on this demand calculates the optimum set point for that specific day of the week. This field setting contains the starting time for the 4 hours monitoring period. This field setting must be set preferably after the main heating up of the domestic water of the day has finished. For example: If in schedule timer operation mode the schedule timer was set from h until 6 h, the renewal time should be set at 6 h. [-0] Minimum automatic temperature set point If required the minimum temperature set point for the automatic set point calculation can be adjusted. If, for example, considerable heatlosses are expected on the field piping between the hot water tap and the domestic hot water heat pump, this temperature set point can be usefull. [-0] Maximum automatic temperature set point The maximum temperature that the automatic set point can reach. However, if this value is set on a temperature higher than 60 C, that maximum temperature will only be reached when field setting [-0] is set to (ON). If the setting of [-0] is 0, the maximum temperature will be 60 C (only heating up by heat pump) ignoring higher set temperatures. [] Disinfection operation The disinfection function disinfects the domestic hot water tank by periodically heating the domestic hot water to a specific temperature. NOTICE The disinfection function field settings must be configured by the installer according to local and national regulations. [-00] Operation interval: day of the week at which the domestic water should be heated. [-0] Status: defines whether the disinfection function is turned ON() or OFF(0) [-0] Start time: time at which the disinfection operation is started. [-0] Status: defines whether the disinfection function is turned ON() or OFF(0) during standby operation. If for example, during holiday the customer puts the unit in stand-by mode by pressing the Y button but still wants the disinfection mode to be active, the setting of [-0] must be ON(). [-04] Interval: time period defining how long the disinfection temperature set point should be maintained. [] Miscellaneous [-00] Auto restart When power returns after a power supply failure, the auto restart function reapplies the user interface settings at the time of the power supply failure. It is therefore recommended to leave the auto restart function enabled. If auto restart is disabled after a power supply failure, the system will restart in OFF-mode. Press the v button to start heating up the water again. Note that with the function disabled the schedule timer will not be activated when power returns to the unit after a power supply failure. Press the pr button to enable the schedule timer again. If the benefit kwh rate power supply is of the type that power supply is interrupted, then always allow the auto restart function. [-0] User permission level The remote controller can be programmed to make certain buttons and functions unavailable for the user. There are permission levels defined. The following table shows which functions are accessable with permission level and with permission level. Domestic water heating operation ON/OFF Permission level level Operable Operable Powerful operation Operable Not available Setting the domestic hot water Operable Operable temperature Quiet mode ON/OFF Operable Not available Auto adaptive set point operation Operable Not available ON/OFF Setting the clock Not available Not available Programming the schedule timer Not available Not available Schedule timer operation ON/OFF Operable Not available Field settings Not available Not available Error code display Not available Not available Displaying actual temperatures and Not available Not available water flow Changing unit of temperature Operable Operable ( C/ F) Changing user permession level Operable Operable By default no level is defined so all buttons and functions are operable. The actual permission level is determined by field setting. For permission level, set field setting [-0] to, for permission level, set field setting [-0] to. Once the field setting is set, the chosen permission level is not yet active. Enabling the selected permission level is done by simultaneously pressing buttons pi and pj immediately followed by simultaneously pressing buttons s and P, and keeping all 4 buttons pressed for at least 5 seconds. Note that no indication on the remote controller is given. After the procedure the blocked buttons will not be available anymore. Deactivating the selected permission level is done on the same way. 9

22 [-0] Status: defines whether temperatures above 60 C can be selected () or not (0). The maximum domestic hot water tank temperature by heat pump operation is limited to 60 C. A higher temperature set point is only possible by electric booster heater operation. When this field setting is not activated, the booster heater will still work if the ambient temperature drops below the value set in [7-04]. This is the backup mode of the domestic hot water heat pump. [-0] Status: defines whether the heat up can continue () or not (0) when the requested temperature set point is not reached during the programmed schedule timer operation. The p icon is blinking in case the heat up can not continue ([-0]=0). In case the reheat function is enabled, the p icon will stop blinking when the reheat operation has finished. [4] Miscellaneous [4-0] Simultanuous operation of booster heater and heatpump [4-0]=0 Simultanuous operation of the electric booster heater and heat pump is not allowed. [4-0]= Simultanuous operation of the booster heater and heat pump is only allowed during quiet mode. During quiet operation the heat pump operation sound is reduced by reducing the compressor frequency. This influences the heating capacity and increases the heat up cycle time. If required the electric booster heater can assist to heat up the domestic hot water tank to shorten the heat up cycle time. [4-0]= Simultanuous operation of the booster heater and heat pump is only allowed during powerful operation mode. The powerful operation mode is considered as an exceptional operation mode. If required during powerful operation the electric booster heater can assist to heat up the domestic hot water tank. [4-0]= Allows the simultanuous operation of electric booster heater and heat pump during quiet and powerful operation. [6] Miscellaneous [6-00] and [6-0]: The 'DT (temperature difference) for heat pump domestic water heating mode' field settings determine the temperatures at which heating of the domestic hot water by the heat pump will be started (i.e., the heat pump ON temperature) and stopped (i.e., the heat pump OFF temperature). When the domestic hot water temperature drops below the heat pump ON temperature (T HP ON ), heating of the domestic hot water by the heat pump will be started. As soon as the domestic hot water temperature reaches the heat pump OFF temperature (T HP OFF ) or the user set point temperature (T U ), heating of the domestic hot water by the heat pump will be stopped. The heat pump OFF temperature, and the heat pump ON temperature, and its relation with field settings [6-00] and [6-0] are explained in the illustration below. [6-00] Start: temperature difference determining the heat pump ON temperature (T HP ON ). See illustration. [6-0] Stop: temperature difference determining the heat pump OFF temperature (T HP OFF ). See illustration. T U <60 C T( C) T U T HP MAX T HP OFF T HP ON T HP MAX T U = 45 C [6-0] = 0 C [6-00] = 5 C T U = T HP OFF [6-00] T HP ON User set point temperature (as set on the user interface) Maximum domestic hot water tank temperature at sensor in domestic hot water tank by heat pump operation Heat pump OFF temperature Heat pump ON temperature [6-0] Booster heater economical timer: determines when the booster heater can start after the heat pump has started operating. This setting is only meaningfull when the simultanuous operation of the booster heater and heat pump is allowed ([4-0] is not set to 0). [6-0] Powerful mode priority: determines the priority when quiet operation mode and powerful operation mode are active at the same moment. [6-0] priority Powerful setting 0 OFF Normal Quiet level Quiet mode setting OFF Level Level Level Quiet level ON Powerful Normal Quiet level OFF Normal Quiet level Quiet level Quiet level Quiet level Quiet level ON Powerful Powerful Powerful Powerful If [6-0] is set to, powerful operation mode has priority over quiet operation mode. [6-04] Quiet mode level: defines the level of noise reduction. There are levels of noise reduction during operation in quiet mode, where level is the most quiet mode. 0

23 [7] Miscellaneous [7-0] DT for booster heater When the domestic water is heated and the domestic hot water set point temperature (as set by the user) has been reached, the booster heater will stop until the domestic hot water temperature drops a few degrees below the set point temperature, i.e. the booster heater ON temperature. The booster heater will start heating up the domestic water again. These degrees are specified by the domestic hot water step length field setting. Correct setting prevents the booster heater from repeatedly turning on and off (i.e. chattering) to maintain the domestic hot water set point temperature. [7-0] Domestic hot water step length: temperature difference below the domestic hot water set point temperature before the booster heater is turned on again. T DHW [7-0] T U 70 T BH ON 68 T HP MAX 60 T HP ON HP BH Booster heater HP Heat pump T BH ON Booster heater ON temperature (T U [7-0]) T HP MAX Maximum domestic hot water tank temperature at sensor in domestic hot water tank by heat pump operation T DHW Domestic hot water temperature T U User set point temperature (as set on the user interface) t Time WARNING If the high water temperature can be a potential risk for human injuries, a mixing valve (field supply) shall be installed at the hot water outlet connection of the domestic hot water tank. This mixing valve shall secure that the hot water temperature at the hot water tap never rise above a set maximum value. This maximum allowable hot water temperature shall be selected according to local and national regulations. [7-0] Not applicable [7-04] T-ambient adaption: this field setting allows to adapt the minimum allowed temperature in the installation room for heat pump operation. WARNING It is very important that this value is not set to a temperature that can cause damage to the installation room! It must be set in a way so that condensation does not occur on the cold walls of the adjacent heated room. WARNING If the value of [7-04] is set lower than C, the correct unit operation can not be guaranteed and damage to the unit can occur. BH T U = 70 C [7-0] = C t [8] Automatic set point calculation [8-00] Set point (weekdays): starting temperature for automatic set point calculation during weekdays. [8-0] Set point (week-end): starting temperature for automatic set point calculation during week-end. NOTICE Because the domestic hot water demand is not known from the start and to avoid comfort problems this should be set to the customer estimated consumption set point. [8-0] Initial city water temperature To be able to start calculation of the automatic set point, [8-0] should be set to the current city water temperature when the unit is started. The outdoor temperature will influence the city water temperature, making it colder during winter time and warmer during summer time. [8-0] Reset demand: when this field setting is set to and power is reset, the automatic set point calculation is reset and calculation will start all over again. This setting is used when there is a permanent change in the user domestic hot water consumption pattern. When power is reset, initialisation is executed and this field setting will automatically be set to 0. [8-04] Domestic hot water tank volume: depending on which domestic hot water tank is used with the heat pump, the correct volume must be set: [8-04]=0 when the tank volume is 60 litres (EKHHS60) [8-04]= when the tank volume is 00 litres (EKHHS00) NOTICE If the setting of [8-04] is not set correctly, customers might have a hot water shortage when using the auto adaptive set point. So it is important to set this correctly! [D] Benefit kwh rate power supply Benefit kwh rate power supply [D-0] Unit connection to benefit kwh rate power supply: Defines whether or not the unit is connected to a benefit kwh rate power supply. If [D-0]=0, the unit is connected to a normal power supply (default value). If [D-0]= or, the unit is connected to a benefit kwh rate power supply. In this case the wiring requires specific installation like explained in "Connection to a benefit kwh rate power supply" on page 5. When parameter [D-0]= at the moment that the benefit kwh rate signal is sent by the electricity company, that contact will open and the unit will go in forced off mode (). When parameter [D-0]= at the moment that the benefit kwh rate signal is sent by the electricity company, that contact will close and the unit will go in forced off mode (). [E] Unit information readout [E-00] Readout of the software version (example: ) [E-0] Readout of the EEPROM version (example: ) [E-0] Readout of the unit model identification (example: ) () When the signal is released again, the voltage free contact will close and the unit will restart operation. It is therefore important to leave the auto restart function enabled. Refer to "[-00] Auto restart" on page 9. () When the signal is released again, the voltage free contact will open and the unit will restart operation. It is therefore important to leave the auto restart function enabled. Refer to "[-00] Auto restart" on page 9.

24 Field settings table First code Second code Setting name 0 Different operation modes Installer setting at variance with default value Date Value Date Value Default value Range Step Unit 00 Powerfull operation mode temperature set point 40 5~50 C 0 Disinfection operation mode tempeature set point 60 55~75 C 0 Temperature setpoint: reheat minimum temperature 0 Temperature setpoint: reheat maximum temperature 04 Status: defines whether the reheat operation is turned ON() or OFF(0) Automatic domestic hot water tank temperature set point calculation 40 5~75 C 45 5~75 C 0 (OFF) 0/ 00 Renewal time for set point calculation 6:00 0:00~:0 0:0 hour 0 Mnimum automatic temperature set point 4 5~75 C 0 Maximum automatic temperature set point 60 5~75 C Disinfection operation 00 Operation interval Mon~Sun Fri All 0 Status (ON) 0/ 0 Start time :00 0:00~:00 :00 hour 0 Status 0 (OFF) 0/ 04 Interval 5~60 minute Miscellaneous 00 Auto restart (ON) 0/ 0 User permission level / 0 Status 0 (OFF) 0/ 0 Status 0 (OFF) 0/ 4 Miscellaneous 0 Simultanuous operation of booster heater and heatpump 0 0/// 04 Not applicable. Do not change the default value. 6 Miscellaneous 00 Start 0 ~0 C 0 Stop 0 0~0 C 0 Booster heater economical timer 0 0~95 5 minute 0 Powerful mode priority (ON) 0/ 04 Quiet mode level // 7 Miscellaneous 0 Domestic hot water step length ~40 C 0 Not applicable. Do not change the default value. 0 Not applicable. Do not change the default value T-ambient 5~+0 C 8 Automatic setpoint calculation 00 Set point (weekdays) 45 5~75 C 0 Set point (week-end) 50 5~75 C 0 Initial city water temperature 5 0~0 C 0 Reset demand 0 (OFF) 0/ 04 Domestic hot water tank volume 0 (60 l) 0/) D Benefit kwh rate power supply/local shift value weather dependent 0 Benefit kwh rate power supply 0 0// E Unit information readout 00 Readout of the software version Read only 0 Readout of the EEPROM version Read only 0 Readout of the unit model identification Read only

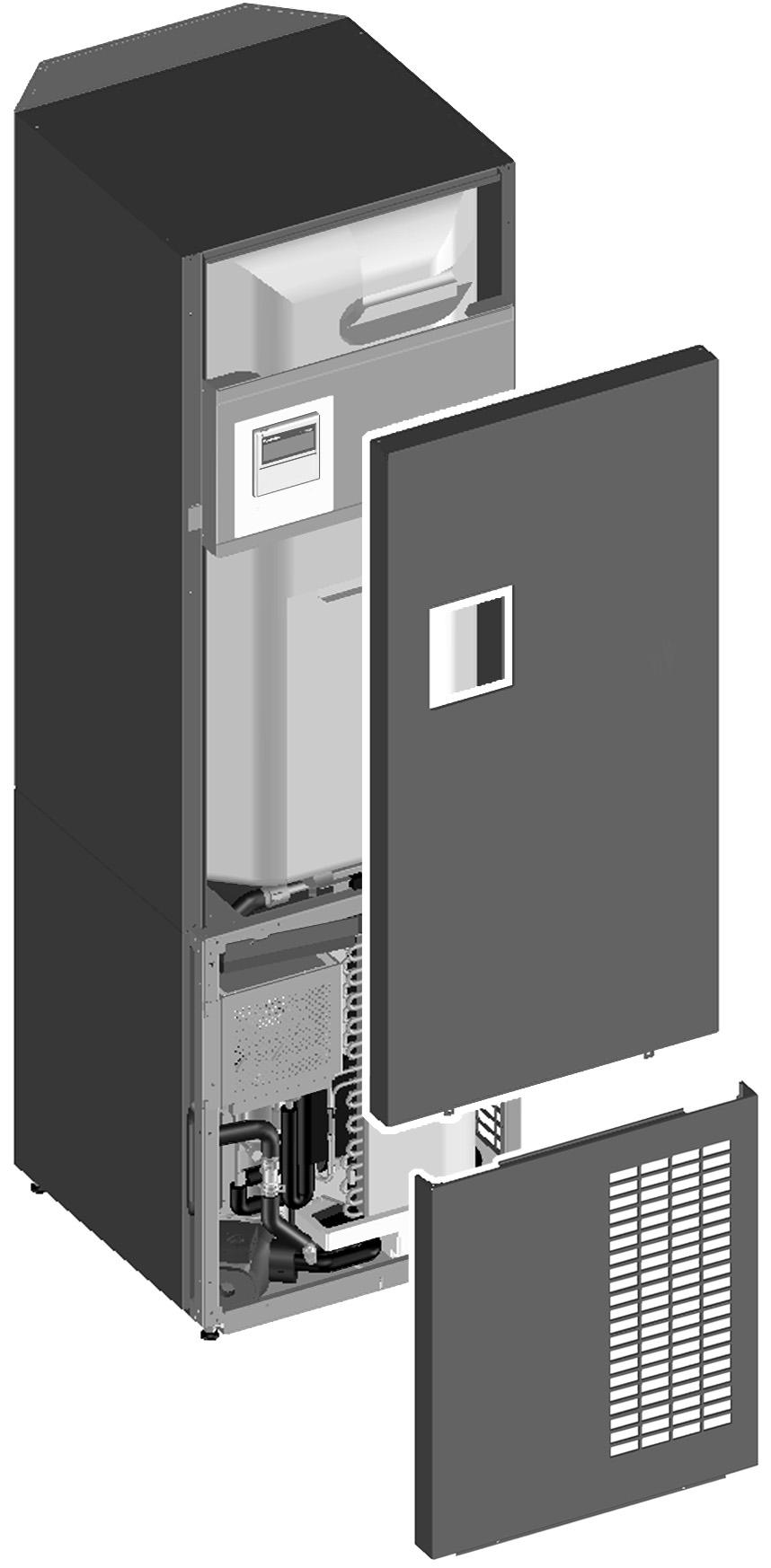

25 . FINAL CHECK AND TEST RUN.. Final check Before switching on the unit, read the following: When the complete installation and all necessary settings have been carried out, be sure that all panels of the unit are closed. Is this not the case, inserting your hand through the remaining openings can cause serious injury due to electrical and hot parts inside the unit. The service panel of the switch box may only be opened by a licensed electrician for maintenance purposes... Test run The installer is obliged to verify correct operation of the unit after installation. Therefore a test run must be performed according to the procedures described below. At any time it is possible to check correct unit operation.. MAINTENANCE AND SERVICE In order to ensure optimal availability of the unit, a number of checks and inspections on the unit and the field wiring have to be carried out at regular intervals. DANGER Each inspection has to be carried out by your local Daikin technician and not by the user. Do not touch water pipes immediately after operation as the pipes may be hot. Your hand may suffer burns. To avoid injury, give the piping time to return to normal temperature or be sure to wear proper gloves. To execute the maintenance activities as mentioned below, it is required to remove the front decoration panel of the heat pump module. During the first start up of the unit (the first 48 hours of compressor running), it might happen that the noise level of the unit is higher than mentioned in the technical specifications. This is not an abnormal event. Displaying actual temperatures and actual water flow Push the ba button for 5 seconds. The b icon and the outgoing water temperature from the heat pump are displayed. The icon l is flashing. Use the pi and pj buttons to display: The ambient temperature (u icon is flashing). Indication code 00. The temperature of the incoming water to the heat pump. Indication code 00. The temperature of the outgoing water from the heat pump. Indication code 00. The actual domestic hot water tank temperature (w icon is flashing). Indication code 004. The actual water flow in the water circuit (é icon is flashing). Indication code 005. x (to take away the front decoration panel, remove the bottom screws.) Push the ba button again to leave this mode. If no button is pressed, the remote controller leaves the display mode after 0 seconds. Procedure for domestic water heating Check the domestic hot water tank temperature through the remote controller read-out mode. See "Displaying actual temperatures and actual water flow" on page. Push the Y. Set the water temperature water to a high set point. Make sure the schedule timer icon p is not displayed. The w icon will appear. 4 Keep the unit operating for 0 minutes and check the domestic hot water tank temperature through the remote controller again. 5 The operation will stop if the tank storage temperature has been reached.

26 it is required to remove the front decoration panel of the domestic hot water tank module,.. Checks The described checks must be executed at least once a year by qualified personnel. Field supplied pressure relief valve Check for correct operation of the pressure relief valve. Check that the connected discharge piping still complies to requirements stated in the chapter "Connect the pressure relief valve (field supply) and drain" on page. If a field supplied pressure reducing valve is installed Depending on local water conditions, annual inspection of the valve may be necessary If a field supplied expansion relief valve or expansion vessel is installed Depending on local water conditions, annual inspection of the valve or expansion vessel may be necessary. 4 Indoor unit switchbox First remove the front decoration panel of the heat pump module and then the front panel of the tank module. x (to take away the front decoration panel, remove the bottom screws and then unhitch the panel.).. Maintenance activities DANGER: ELECTRIC SHOCK Before carrying out any maintenance or repair activity, always switch off the circuit breaker on the supply panel, remove the fuses or open the protection devices of the unit. Do not touch live parts for 0 minutes after the power supply is turned off because of high voltage risk. Please note that some sections of the electric component box are hot. Make sure you do not touch a conductive section. Do not rinse the unit. This may cause electric shocks or fire. NOTICE: Play it safe! Touch a metal part by hand (such as the stop valve) in order to eliminate static electricity and to protect the PCB before performing service. x x Carry out a thorough visual inspection of the switch box and look for obvious defects such as loose connections or defective wiring. 4
