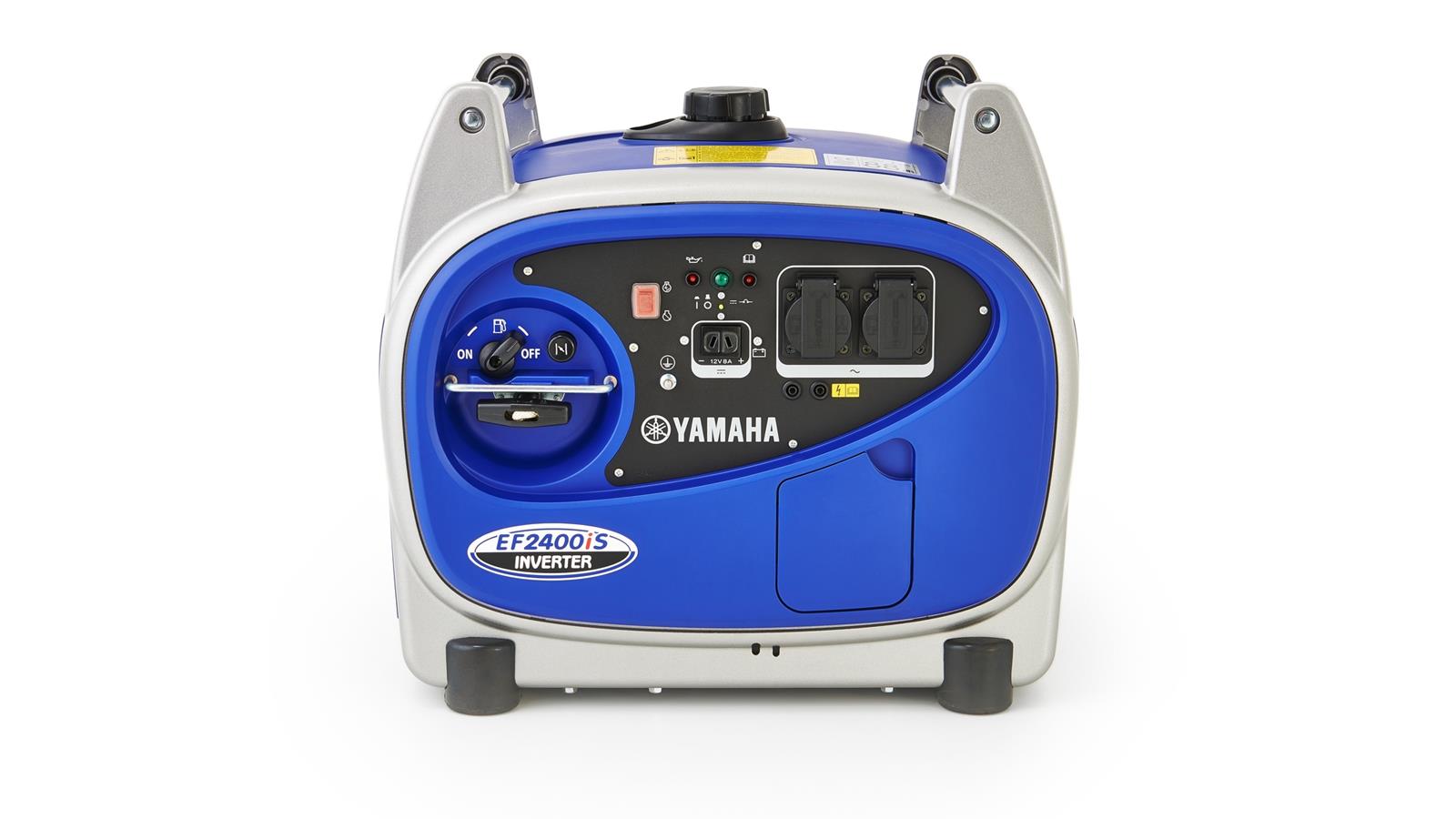

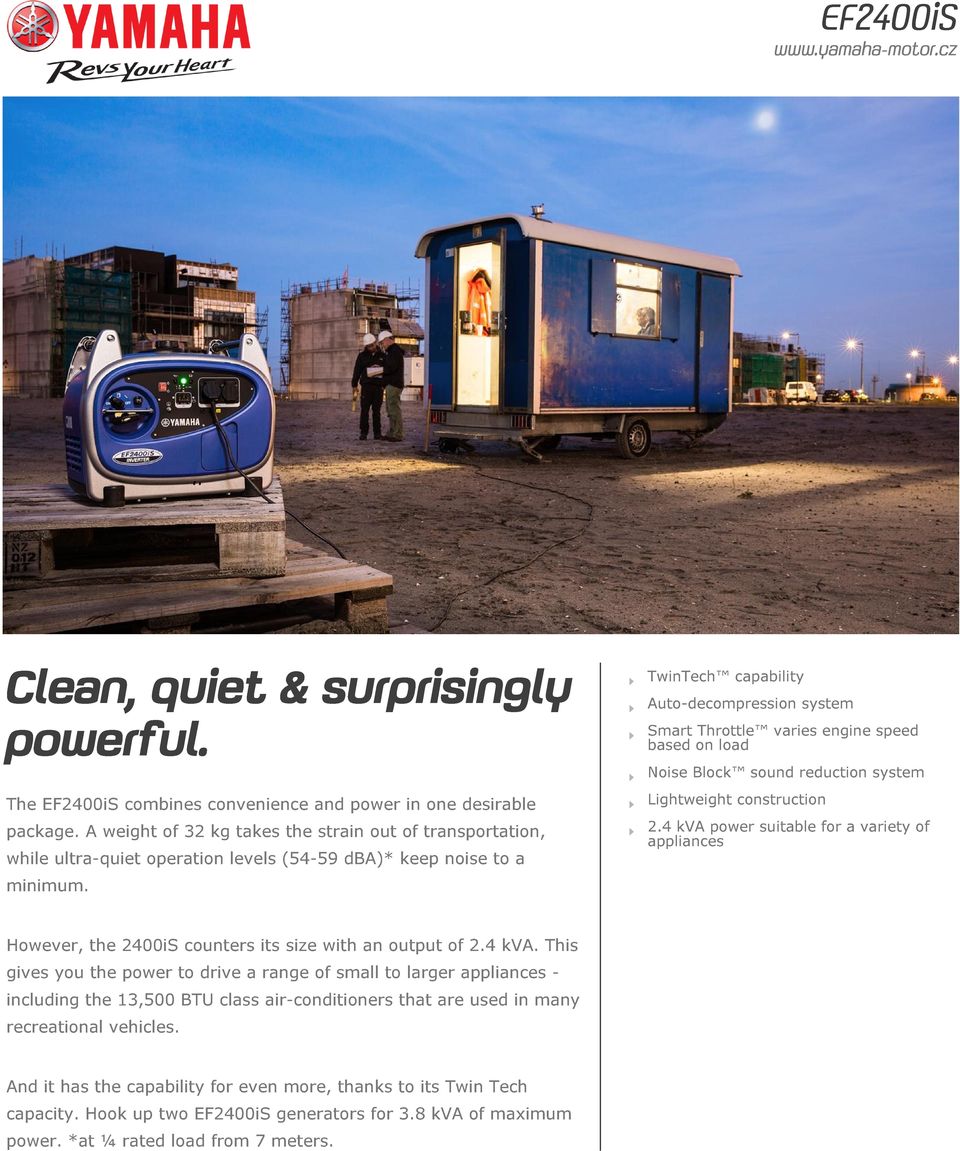

1 Clean, quiet & surprisingly powerful. The EF2400iS combines convenience and power in one desirable package. A weight of 32 kg takes the strain out of transportation, while ultra-quiet operation levels (54-59 dba)* keep noise to a minimum. TwinTech capability Auto-decompression system Smart Throttle varies engine speed based on load Noise Block sound reduction system Lightweight construction 2.4 kva power suitable for a variety of appliances However, the 2400iS counters its size with an output of 2.4 kva. This gives you the power to drive a range of small to larger appliances - including the 13,500 BTU class air-conditioners that are used in many recreational vehicles. And it has the capability for even more, thanks to its Twin Tech capacity. Hook up two EF2400iS generators for 3.8 kva of maximum power. *at ¼ rated load from 7 meters.

TwinTech capability Auto-decompression system Smart Throttle varies engine speed based on load Noise Block sound reduction system Lightweight construction 2.

Tomorrow s Power Today Yamaha generators are full of state-of-the-art technology that not only guarantees high-level performance, but also makes them outstanding in operation, economy and durability.

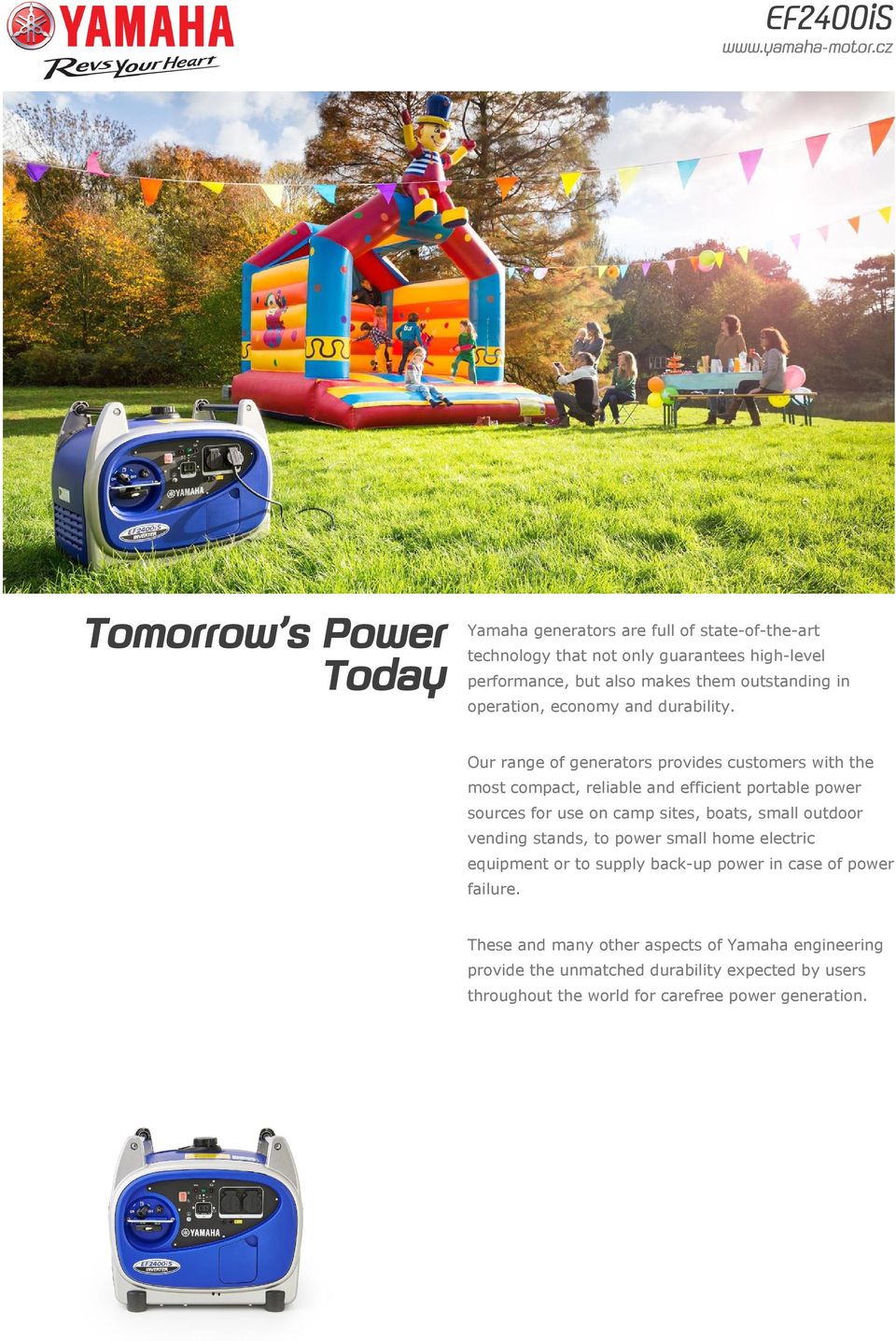

2 Tomorrow s Power Today Yamaha generators are full of state-of-the-art technology that not only guarantees high-level performance, but also makes them outstanding in operation, economy and durability. Our range of generators provides customers with the most compact, reliable and efficient portable power sources for use on camp sites, boats, small outdoor vending stands, to power small home electric equipment or to supply back-up power in case of power failure. These and many other aspects of Yamaha engineering provide the unmatched durability expected by users throughout the world for carefree power generation.

Our range of generators provides customers with the most compact, reliable and efficient portable power sources for use on camp sites, boats, small

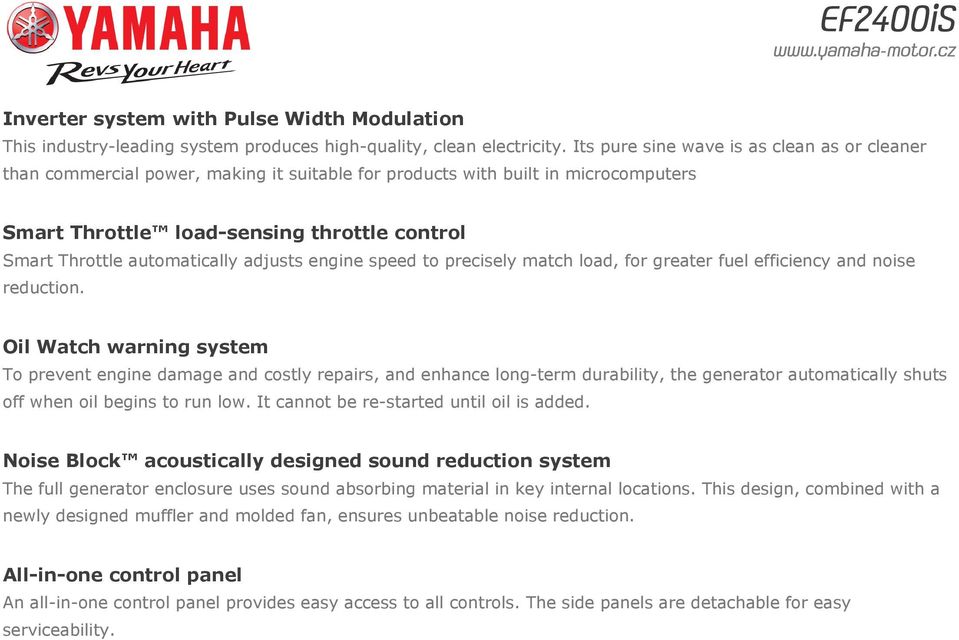

3 Inverter system with Pulse Width Modulation This industry-leading system produces high-quality, clean electricity. Its pure sine wave is as clean as or cleaner than commercial power, making it suitable for products with built in microcomputers Smart Throttle load-sensing throttle control Smart Throttle automatically adjusts engine speed to precisely match load, for greater fuel efficiency and noise reduction. Oil Watch warning system To prevent engine damage and costly repairs, and enhance long-term durability, the generator automatically shuts off when oil begins to run low. It cannot be re-started until oil is added. Noise Block acoustically designed sound reduction system The full generator enclosure uses sound absorbing material in key internal locations. This design, combined with a newly designed muffler and molded fan, ensures unbeatable noise reduction. All-in-one control panel An all-in-one control panel provides easy access to all controls. The side panels are detachable for easy serviceability.

automatically adjusts engine speed to precisely match load, for greater fuel efficiency and noise reduction.

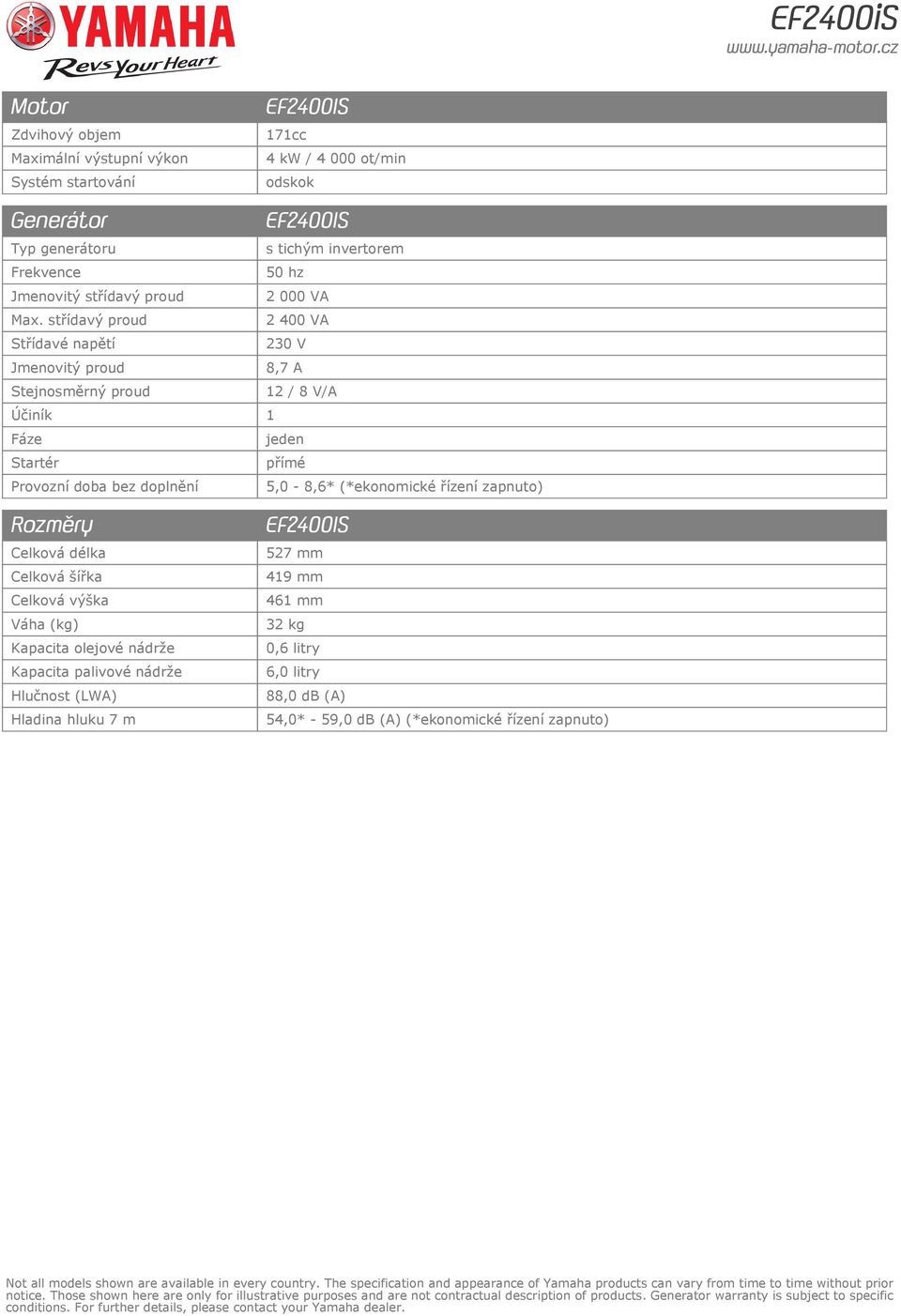

4 Motor Zdvihový objem Maximální výstupní výkon Systém startování 171cc 4 kw / ot/min odskok Generátor Typ generátoru s tichým invertorem Frekvence 50 hz Jmenovitý střídavý proud VA Max. střídavý proud VA Střídavé napětí 230 V Jmenovitý proud 8,7 A Stejnosměrný proud 12 / 8 V/A Účiník 1 Fáze jeden Startér přímé Provozní doba bez doplnění 5,0-8,6* (*ekonomické řízení zapnuto) Rozměry Celková délka Celková šířka Celková výška Váha (kg) Kapacita olejové nádrže Kapacita palivové nádrže Hlučnost (LWA) Hladina hluku 7 m 527 mm 419 mm 461 mm 32 kg 0,6 litry 6,0 litry 88,0 db (A) 54,0* - 59,0 db (A) (*ekonomické řízení zapnuto) Not all models shown are available in every country. The specification and appearance of Yamaha products can vary from time to time without prior notice. Those shown here are only for illustrative purposes and are not contractual description of products. Generator warranty is subject to specific conditions. For further details, please contact your Yamaha dealer.

Rozměry Celková délka Celková šířka Celková výška Váha (kg) Kapacita olejové nádrže Kapacita palivové nádrže Hlučnost (LWA) Hladina hluku 7 m 527 mm 419 mm 461 mm 32 kg 0,6 litry 6,0 litry 88,0 db

On selected generator models optional accessory kits to assist manoeuvrability and parallel operation cables for simultaneous multiple generator use are available.

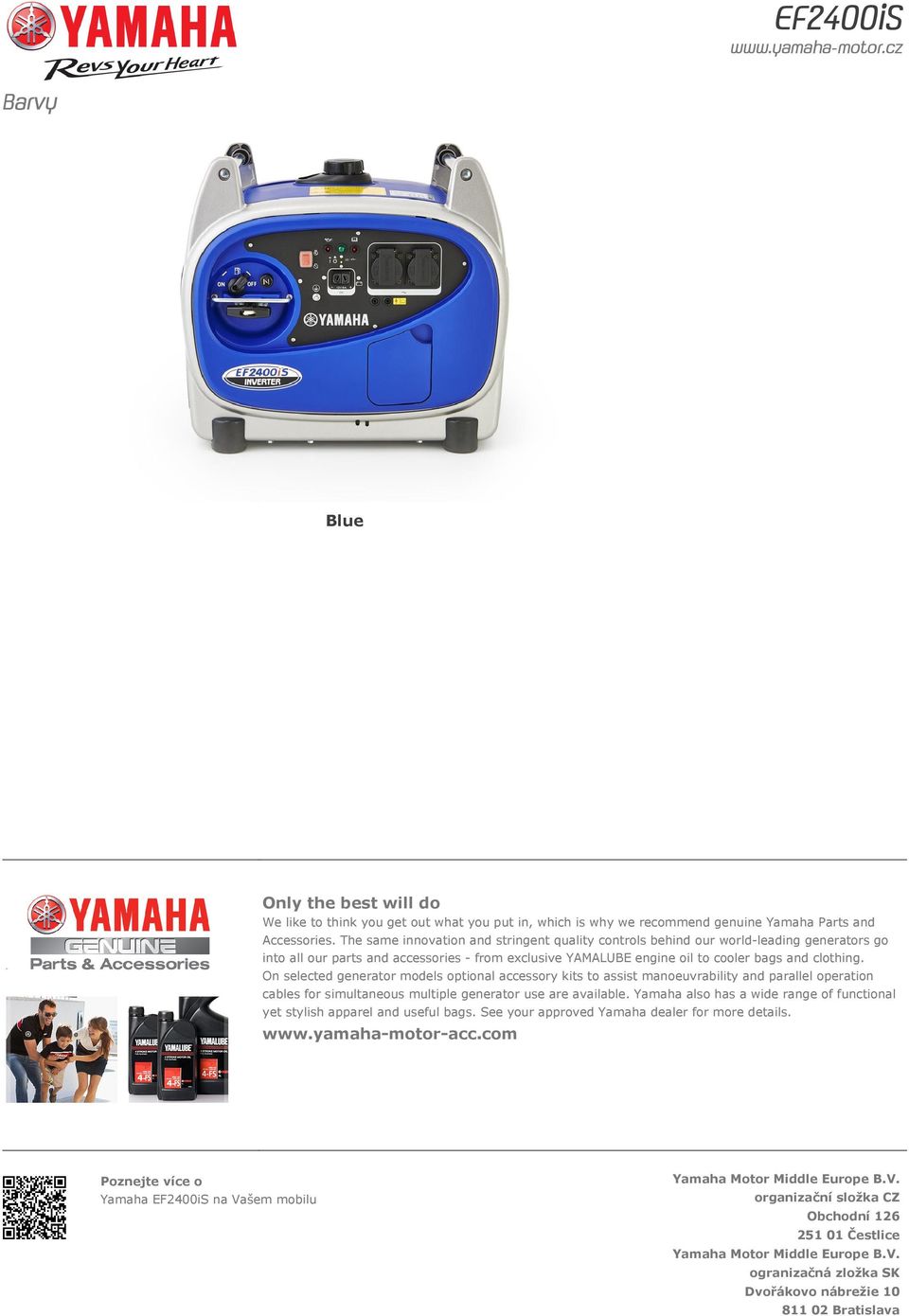

5 Barvy Blue Only the best will do We like to think you get out what you put in, which is why we recommend genuine Yamaha Parts and Accessories. The same innovation and stringent quality controls behind our world-leading generators go into all our parts and accessories - from exclusive YAMALUBE engine oil to cooler bags and clothing. On selected generator models optional accessory kits to assist manoeuvrability and parallel operation cables for simultaneous multiple generator use are available. Yamaha also has a wide range of functional yet stylish apparel and useful bags. See your approved Yamaha dealer for more details. Poznejte více o Yamaha EF2400iS na Vašem mobilu Yamaha Motor Middle Europe B.V. organizační složka CZ Obchodní Čestlice Yamaha Motor Middle Europe B.V. ogranizačná zložka SK Dvořákovo nábrežie Bratislava
