1 Brush vjj 1

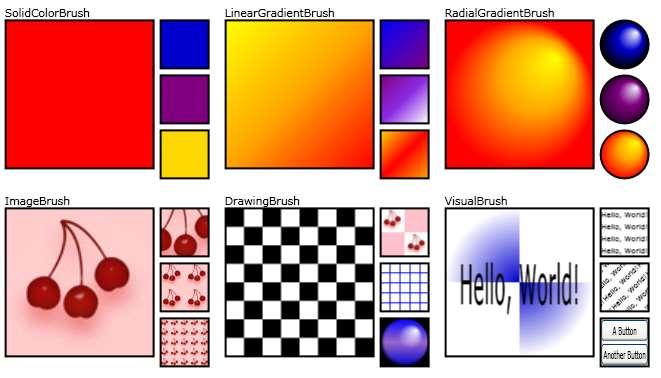

2 vjj 3 Brush SolidColorBrush, LinearGradientBrush RadialGradientBrush ImageBrush DrawingBrush VisualBrush

3 vjj 4 SolidColorBursh GradientBrush Color Brush LinearGradientBrush RadialGradientBrush

4 vjj 5 Color <Rectangle Width="100" Height="30" Fill="Blue" /> <Rectangle Width="100" Height="30" > <Rectangle.Fill> <SolidColorBrush Color="Blue" /> <SolidColorBrush Color="#00F" /> <SolidColorBrush Color="#F00F" /> <SolidColorBrush Color="#0000FF" /> <SolidColorBrush Color="#FF0000FF" /> <SolidColorBrush> <SolidColorBrush.Color> <Color ScA="1.0" ScR="0.0" ScG="0.0" ScB="1.0" /> <Color A="255" R="0" G="0" B="255" /> </SolidColorBrush.Color> </SolidColorBrush> </Rectangle.Fill> </Rectangle>

15.11.2018 vjj 6 LinearGradientBrush <LinearGradientBrush StartPoint="0,0" EndPoint="1,0"> <LinearGradientBrush.

5 vjj 6 LinearGradientBrush <LinearGradientBrush StartPoint="0,0" EndPoint="1,0"> <LinearGradientBrush.GradientStops> <GradientStop Color="Yellow" Offset="0" /> <GradientStop Color="Red" Offset="0.25" /> <GradientStop Color="Blue" Offset="0.75" /> <GradientStop Color="LimeGreen" Offset="1" /> </LinearGradientBrush.GradientStops> </LinearGradientBrush>

vjj 15.11.2018 7 LinearGradientBrush StartPoint="0.

6 vjj LinearGradientBrush StartPoint="0.25,0.5" EndPoint="0.75,0.5" StartPoint="0.5,0" EndPoint="0.5,1" StartPoint="0,0" EndPoint="1,1" SpreadMethod="Pad" SpreadMethod="Reflect" SpreadMethod="Repeat"

7 vjj 8 RadialGradientBrush <RadialGradientBrush GradientOrigin="0.5,0.5" Center="0.5,0.5" RadiusX="0.5" RadiusY="0.5"> <RadialGradientBrush.GradientStops> <GradientStop Color="Yellow" Offset="0" /> <GradientStop Color="Red" Offset="0.25" /> <GradientStop Color="Blue" Offset="0.75" /> <GradientStop Color="LimeGreen" Offset="1" /> </RadialGradientBrush.GradientStops> </RadialGradientBrush>

8 vjj 9 RadialGradientBrush Center="0.5,0.5" RadiusX="0.5" RadiusY="0.5" GradientOrigin="0.5,0.5" Center="0.5,0.5" RadiusX="0.5" RadiusY="0.5" GradientOrigin="0.75,0.25" Center="0.1,0.1" RadiusX="0.5" RadiusY="0.5" GradientOrigin="0.5,0.5"

9 vjj 10 SpreadMethod="Pad" RadialGradientBrush SpreadMethod="Reflect" SpreadMethod="Repeat"

10 vjj 11 Tile Brush ImageBrush DrawingBrush VisualBrush

15.11.2018 vjj 12 ImageBrush <Ellipse Width="100" Height="100"> <Ellipse.

11 vjj 12 ImageBrush <Ellipse Width="100" Height="100"> <Ellipse.Background> <ImageBrush ImageSource="image.jpg" /> </Ellipse.Background> </Ellipse>

12 vjj 13 Stretch Fill default celá dlaždice vyplněna celým obrázkem stretching - deformace Uniform celý nedeformovaný obrázek uvnitř dlaždice uniform stretching volné okraje UniformToFill celá dlaždice vyplněna nedeformovaným obrázkem ořezávání (cropping) None bez úprav výřez nebo volné okraje

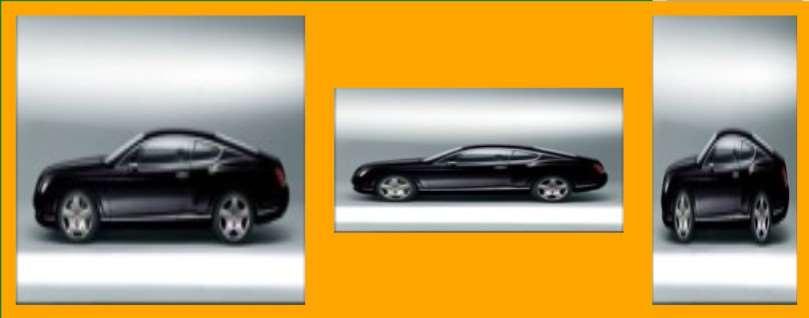

13 vjj 14 default Stretch behavior - Fill <Rectangle Width="200" Height="200"> <Rectangle.Fill> <ImageBrush ImageSource="c:\image.jpg" Stretch="Fill" /> </Rectangle.Fill> </Rectangle>

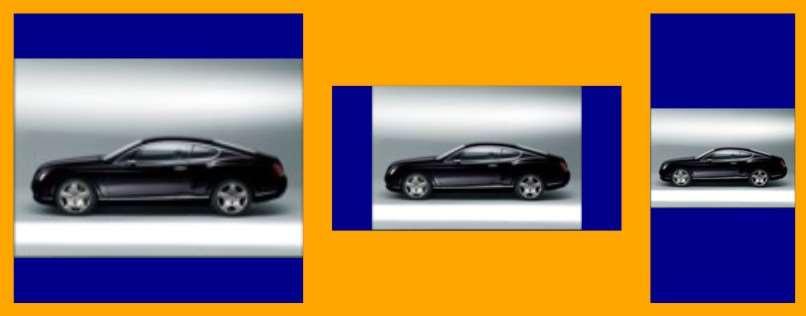

14 vjj 15 Stretch behavior Uniform <Border Width="200" Height="200" Background="DarkBlue" > <Rectangle Width="200" Height="200" > <Rectangle.Fill> <ImageBrush ImageSource="c:\image.jpg" Stretch="Uniform" /> </Rectangle.Fill> </Rectangle> </Border>

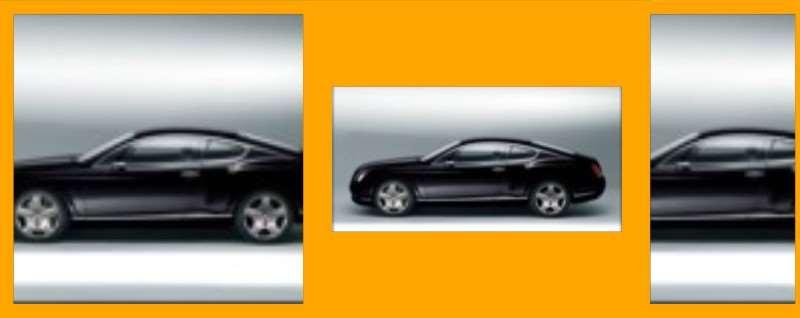

15 vjj 16 Stretch behavior UniformToFill <Rectangle Width="200" Height="100" Margin="10"> <Rectangle.Fill> <ImageBrush ImageSource="c:\image.jpg" Stretch="UniformToFill" /> </Rectangle.Fill> </Rectangle>

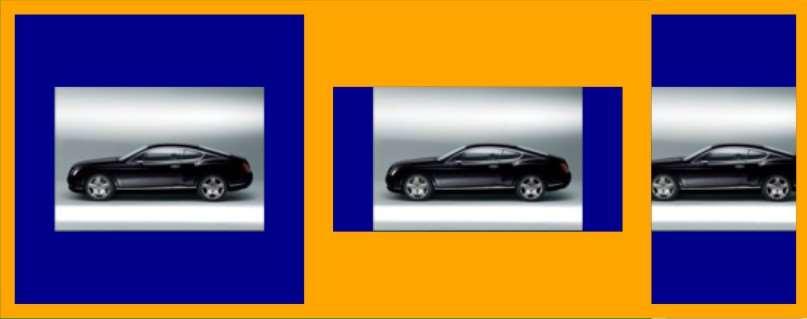

16 vjj 17 Stretch behavior None <Rectangle Width="200" Height="100" Margin="10"> <Rectangle.Fill> <ImageBrush ImageSource="c:\image.jpg" Stretch="None" /> </Rectangle.Fill> </Rectangle>

17 vjj 18 DrawingBrush Vybarvuje pomocí objektů odvozených od Drawing GeometryDrawing ImageDrawing GlyphRunDrawing VideoDrawing DrawingGroup

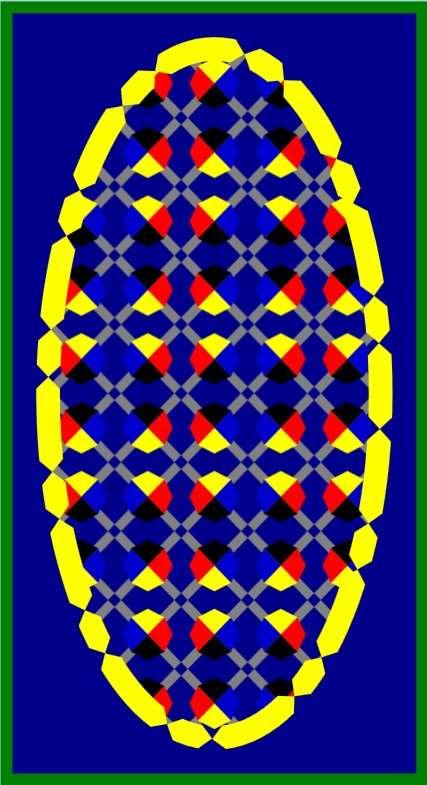

18 vjj 19 sample (xii) <Ellipse Height="200" Width="400" Stroke="Yellow" StrokeThickness="10" StrokeDashArray=" " StrokeDashCap="Triangle"> <Ellipse.Fill> <DrawingBrush TileMode="Tile" Viewport="0,0,0.4,0.5"> <DrawingBrush.Drawing> <DrawingGroup> <DrawingGroup.Children> <GeometryDrawing Brush="Gray" Geometry="M0,0.1 L0.1,0 1,0.9, 0.9,1Z" /> <GeometryDrawing Brush="Gray" Geometry="M0.9,0 L1, ,1 0,0.9Z" /> <GeometryDrawing Brush="#FFFF00" Geometry="M0.25,0.25 L0.5, , ,0.5Z" /> <GeometryDrawing Brush="Black" Geometry="M0.25,0.75 L0.5, , ,0.5Z" /> <GeometryDrawing Brush="#FF0000" Geometry="M0.25,0.75 L0.125, , ,0.5Z" /> <GeometryDrawing Brush="MediumBlue" Geometry="M0.75,0.25 L0.875, , ,0.5Z" /> </DrawingGroup.Children> </DrawingGroup> </DrawingBrush.Drawing> </DrawingBrush> </Ellipse.Fill> </Ellipse>

19 sample (xii) vjj 20

20 vjj 21 VisualBrush Lze s ním dělat opravdu cokoliv Vybarvuje pomocí objektů typu Visual Button ViewPort3D

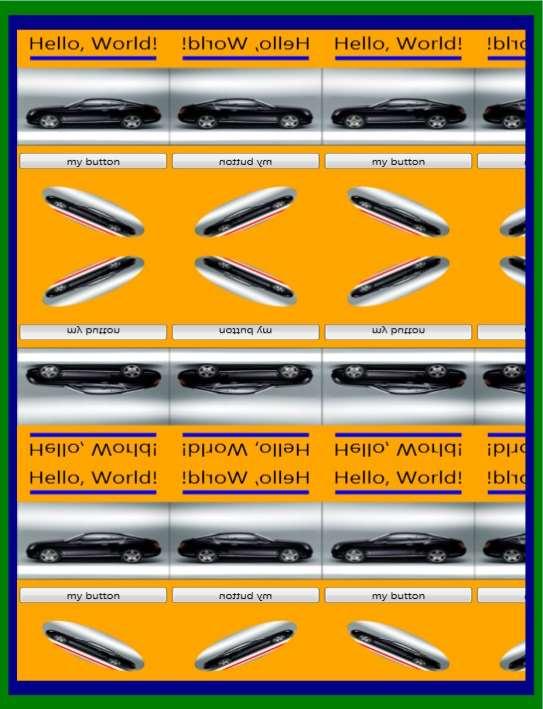

21 vjj 22 VisualBrush <Canvas Width="400" Height="600" Background="DarkBlue" > <Button Width="400" Height="600" > <Button.Background> <VisualBrush TileMode="FlipX" Viewport="0,0,0.3,0.3"> <VisualBrush.Visual> <StackPanel Background="Orange"> <TextBlock <Rectangle <Image <Button <Ellipse </StackPanel> </VisualBrush.Visual> </VisualBrush> </Button.Background> </Button> </Border>

22 sample (xiii) vjj 23

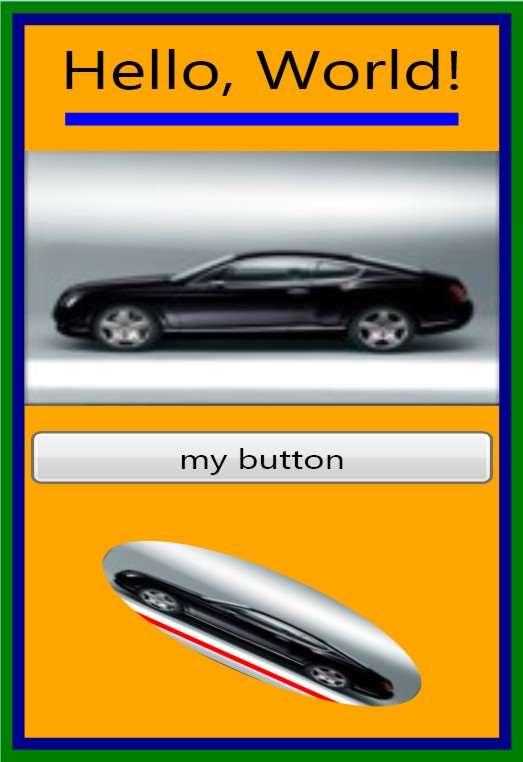

23 sample (xiii) <Button> <Canvas Background="LightGray" Margin="10" Width="420" Height="620" > <Canvas.Resources> <Style TargetType="{x:Type Button}"> <Setter Property="FontSize" Value="72" /> <Setter Property="FontWeight" Value="Bold" /> </Style> </Canvas.Resources> <Button Width="400" Height="600" Margin="10" Foreground="Green"> <Button.Background> <VisualBrush >  <VisualBrush.Visual> <StackPanel Background="Orange"> <StackPanel.Resources> <Style TargetType="{x:Type Button}"> <Setter Property="FontSize" Value="12" /> <Setter Property="FontWeight" Value="Normal" /> </Style> <Style TargetType="{x:Type TextBlock}"> <Setter Property="FontWeight" Value="Normal" /> </Style> </StackPanel.Resources> <TextBlock TextAlignment="Center" FontSize="16pt" Margin="2"> Hello, World! </TextBlock> <Rectangle Width="100" Height="5" Fill="Blue" Margin="2" /> <Image Source="C:\Users\vjj\Pictures\Bentley.jpg" Width="100" Height="50" /> <Ellipse Height="40" Width="110" > <Ellipse.Fill> <VisualBrush> <VisualBrush.Visual> <Grid> <Grid.Background> <ImageBrush ImageSource="C:\Users\vjj\Pictures\Bentley.jpg" /> </Grid.Background> <TextBlock Foreground="Red">. </TextBlock> </Grid> </VisualBrush.Visual> vjj 24

24 vjj 25 Tile TileMode - způsob opakování otisků štětce None Tile FlipX FlipY FlipXY Vieport velikost dlaždice - část oblasti vyplněná jedním otiskem štětce ViewportUnits Relative - default Absolute

25 vjj 28
