1 Rev.A-CZ Safety & Operation Manual Návod k obsluze a bezpečnostní příručka Super LF 1880 Fairway Mower with ROPS Seka ka Super LF 1880 s konstrukcí ROPS Kubota D1105-E3B, 2WD Kubota D1105-E3B, 4WD Kubota D1105-T-E3B, 4WD WARNING If incorrectly used, this machine can cause severe injury. Those who use and maintain this machine should be trained in its proper use, warned of its dangers and should read the entire manual before attempting to set up, operate, adjust or service the machine VAROVÁNÍ Při nesprávném použití tohoto stroje může dojít k vážným úrazům. Pracovníci obsluhy a údržby tohoto stroje by měli být vyškoleni v jeho řádném používání a upozorněni na jeho různá nebezpečí. Předtím, než se stroj pokusí zprovoznit, obsluhovat, seřizovat nebo provádět jeho servis, by si měli přečíst celou příručku. When Performance Matters. GB CZ Czech

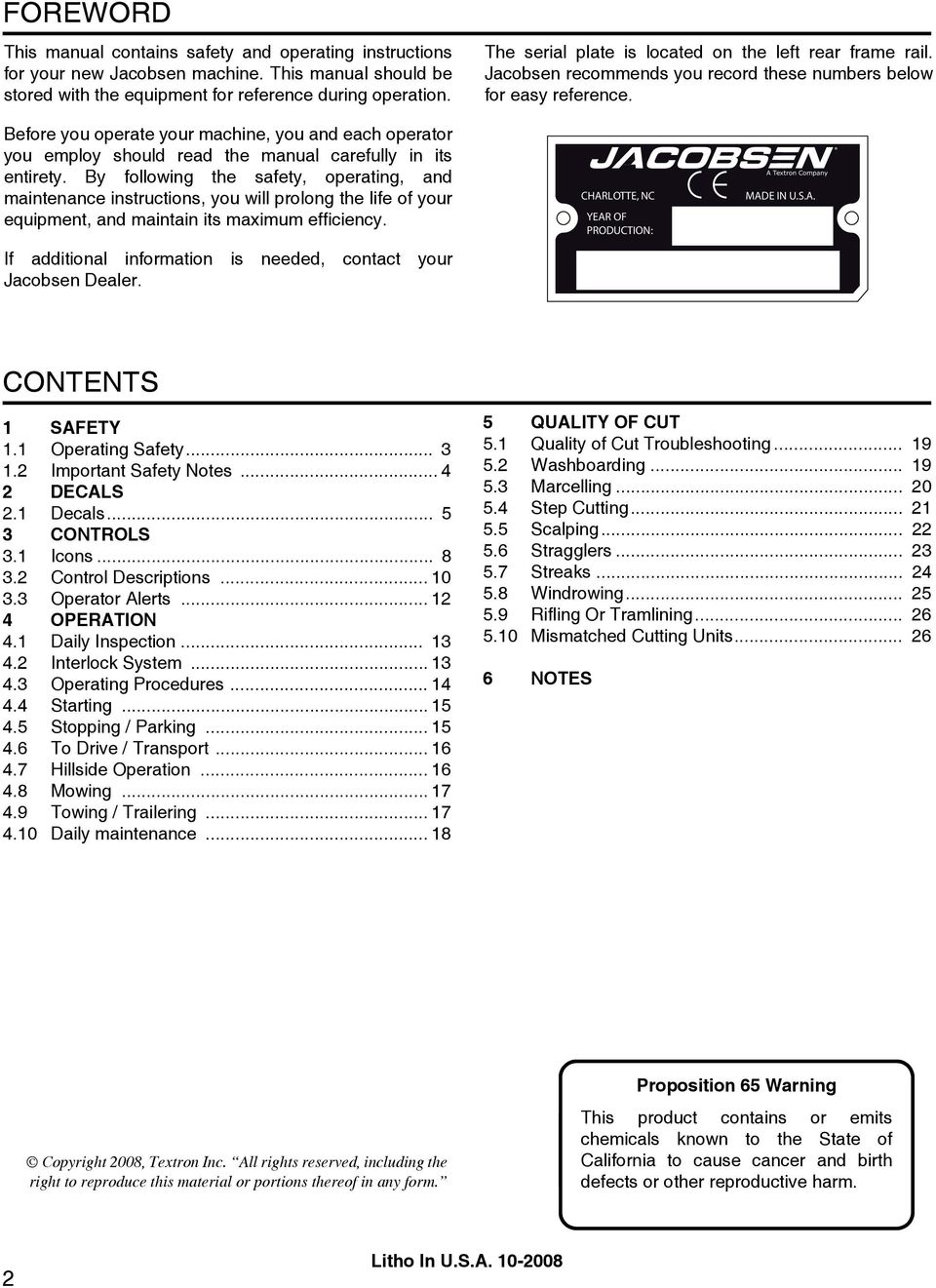

2 FOREWORD This manual contains safety and operating instructions for your new Jacobsen machine. This manual should be stored with the equipment for reference during operation. The serial plate is located on the left rear frame rail. Jacobsen recommends you record these numbers below for easy reference. Before you operate your machine, you and each operator you employ should read the manual carefully in its entirety. By following the safety, operating, and maintenance instructions, you will prolong the life of your equipment, and maintain its maximum efficiency. If additional information is needed, contact your Jacobsen Dealer. CHARLOTTE, NC YEAR OF PRODUCTION: A Textron Company MADE IN U.S.A. CONTENTS CONTENTS 1 SAFETY 1.1 Operating Safety Important Safety Notes DECALS 2.1 Decals CONTROLS 3.1 Icons Control Descriptions Operator Alerts OPERATION 4.1 Daily Inspection Interlock System Operating Procedures Starting Stopping / Parking To Drive / Transport Hillside Operation Mowing Towing / Trailering Daily maintenance QUALITY OF CUT 5.1 Quality of Cut Troubleshooting Washboarding Marcelling Step Cutting Scalping Stragglers Streaks Windrowing Rifling Or Tramlining Mismatched Cutting Units NOTES Copyright 2008, Textron Inc. All rights reserved, including the right to reproduce this material or portions thereof in any form. Proposition 65 Warning This product contains or emits chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. 2 Litho In U.S.A

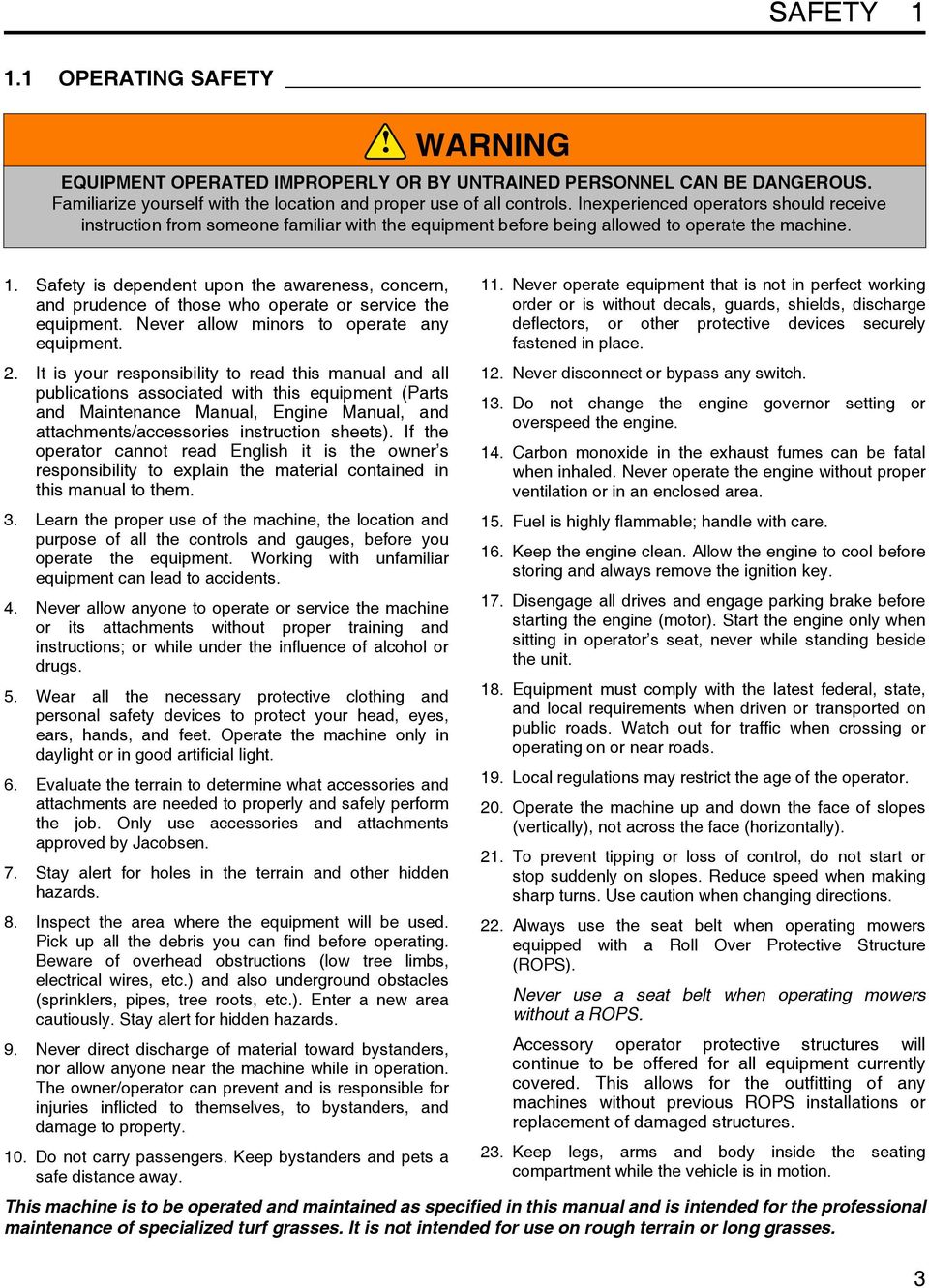

3 SAFETY 1 1 SAFETY 1.1 OPERATING SAFETY WARNING EQUIPMENT OPERATED IMPROPERLY OR BY UNTRAINED PERSONNEL CAN BE DANGEROUS. Familiarize yourself with the location and proper use of all controls. Inexperienced operators should receive instruction from someone familiar with the equipment before being allowed to operate the machine. 1. Safety is dependent upon the awareness, concern, and prudence of those who operate or service the equipment. Never allow minors to operate any equipment. 2. It is your responsibility to read this manual and all publications associated with this equipment (Parts and Maintenance Manual, Engine Manual, and attachments/accessories instruction sheets). If the operator cannot read English it is the owner s responsibility to explain the material contained in this manual to them. 3. Learn the proper use of the machine, the location and purpose of all the controls and gauges, before you operate the equipment. Working with unfamiliar equipment can lead to accidents. 4. Never allow anyone to operate or service the machine or its attachments without proper training and instructions; or while under the influence of alcohol or drugs. 5. Wear all the necessary protective clothing and personal safety devices to protect your head, eyes, ears, hands, and feet. Operate the machine only in daylight or in good artificial light. 6. Evaluate the terrain to determine what accessories and attachments are needed to properly and safely perform the job. Only use accessories and attachments approved by Jacobsen. 7. Stay alert for holes in the terrain and other hidden hazards. 8. Inspect the area where the equipment will be used. Pick up all the debris you can find before operating. Beware of overhead obstructions (low tree limbs, electrical wires, etc.) and also underground obstacles (sprinklers, pipes, tree roots, etc.). Enter a new area cautiously. Stay alert for hidden hazards. 9. Never direct discharge of material toward bystanders, nor allow anyone near the machine while in operation. The owner/operator can prevent and is responsible for injuries inflicted to themselves, to bystanders, and damage to property. 10. Do not carry passengers. Keep bystanders and pets a safe distance away. 11. Never operate equipment that is not in perfect working order or is without decals, guards, shields, discharge deflectors, or other protective devices securely fastened in place. 12. Never disconnect or bypass any switch. 13. Do not change the engine governor setting or overspeed the engine. 14. Carbon monoxide in the exhaust fumes can be fatal when inhaled. Never operate the engine without proper ventilation or in an enclosed area. 15. Fuel is highly flammable; handle with care. 16. Keep the engine clean. Allow the engine to cool before storing and always remove the ignition key. 17. Disengage all drives and engage parking brake before starting the engine (motor). Start the engine only when sitting in operator s seat, never while standing beside the unit. 18. Equipment must comply with the latest federal, state, and local requirements when driven or transported on public roads. Watch out for traffic when crossing or operating on or near roads. 19. Local regulations may restrict the age of the operator. 20. Operate the machine up and down the face of slopes (vertically), not across the face (horizontally). 21. To prevent tipping or loss of control, do not start or stop suddenly on slopes. Reduce speed when making sharp turns. Use caution when changing directions. 22. Always use the seat belt when operating mowers equipped with a Roll Over Protective Structure (ROPS). Never use a seat belt when operating mowers without a ROPS. Accessory operator protective structures will continue to be offered for all equipment currently covered. This allows for the outfitting of any machines without previous ROPS installations or replacement of damaged structures. 23. Keep legs, arms and body inside the seating compartment while the vehicle is in motion. This machine is to be operated and maintained as specified in this manual and is intended for the professional maintenance of specialized turf grasses. It is not intended for use on rough terrain or long grasses. 3

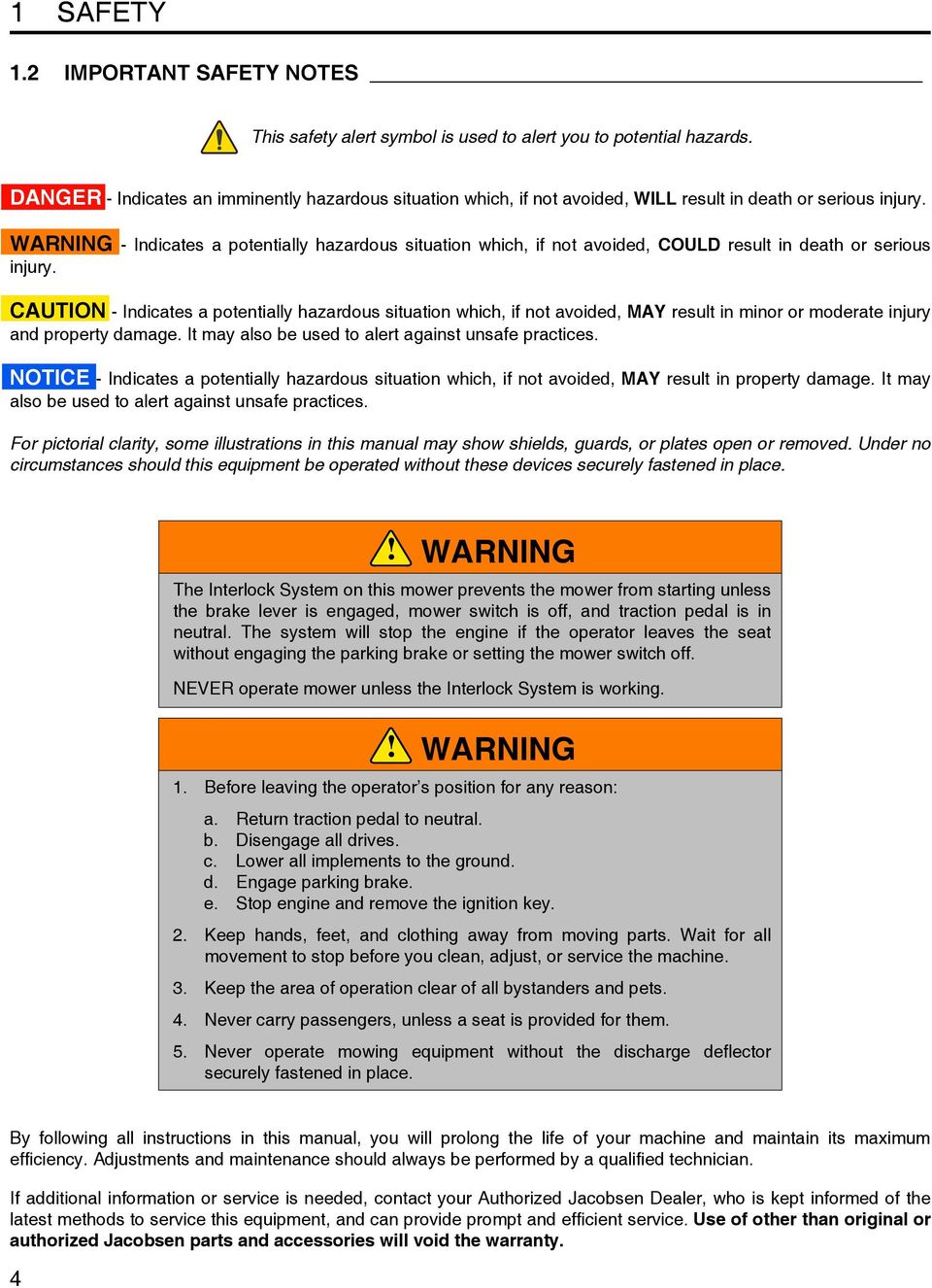

4 1 SAFETY 1.2 IMPORTANT SAFETY NOTES This safety alert symbol is used to alert you to potential hazards. DANGER - Indicates an imminently hazardous situation which, if not avoided, WILL result in death or serious injury. WARNING - Indicates a potentially hazardous situation which, if not avoided, COULD result in death or serious injury. CAUTION - Indicates a potentially hazardous situation which, if not avoided, MAY result in minor or moderate injury and property damage. It may also be used to alert against unsafe practices. NOTICE - Indicates a potentially hazardous situation which, if not avoided, MAY result in property damage. It may also be used to alert against unsafe practices. For pictorial clarity, some illustrations in this manual may show shields, guards, or plates open or removed. Under no circumstances should this equipment be operated without these devices securely fastened in place. WARNING The Interlock System on this mower prevents the mower from starting unless the brake lever is engaged, mower switch is off, and traction pedal is in neutral. The system will stop the engine if the operator leaves the seat without engaging the parking brake or setting the mower switch off. NEVER operate mower unless the Interlock System is working. WARNING 1. Before leaving the operator s position for any reason: a. Return traction pedal to neutral. b. Disengage all drives. c. Lower all implements to the ground. d. Engage parking brake. e. Stop engine and remove the ignition key. 2. Keep hands, feet, and clothing away from moving parts. Wait for all movement to stop before you clean, adjust, or service the machine. 3. Keep the area of operation clear of all bystanders and pets. 4. Never carry passengers, unless a seat is provided for them. 5. Never operate mowing equipment without the discharge deflector securely fastened in place. By following all instructions in this manual, you will prolong the life of your machine and maintain its maximum efficiency. Adjustments and maintenance should always be performed by a qualified technician. If additional information or service is needed, contact your Authorized Jacobsen Dealer, who is kept informed of the latest methods to service this equipment, and can provide prompt and efficient service. Use of other than original or authorized Jacobsen parts and accessories will void the warranty. 4

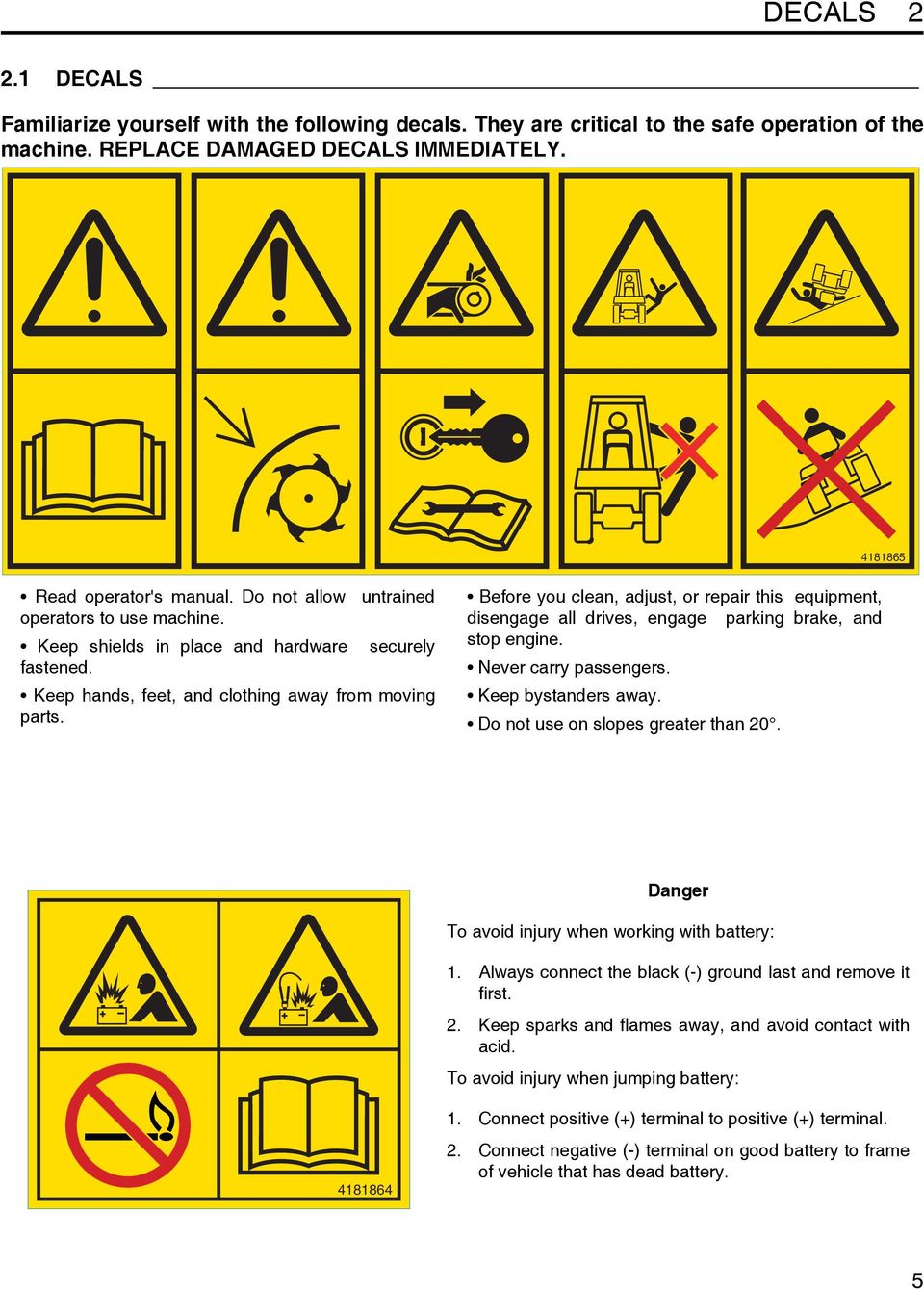

5 DECALS DECALS Familiarize yourself with the following decals. They are critical to the safe operation of the machine. REPLACE DAMAGED DECALS IMMEDIATELY Read operator's manual. Do not allow untrained operators to use machine. Keep shields in place and hardware securely fastened. Keep hands, feet, and clothing away from moving parts. Before you clean, adjust, or repair this equipment, disengage all drives, engage parking brake, and stop engine. Never carry passengers. Keep bystanders away. Do not use on slopes greater than 20. Danger To avoid injury when working with battery: 1. Always connect the black (-) ground last and remove it first. 2. Keep sparks and flames away, and avoid contact with acid. To avoid injury when jumping battery: Connect positive (+) terminal to positive (+) terminal. 2. Connect negative (-) terminal on good battery to frame of vehicle that has dead battery. 5

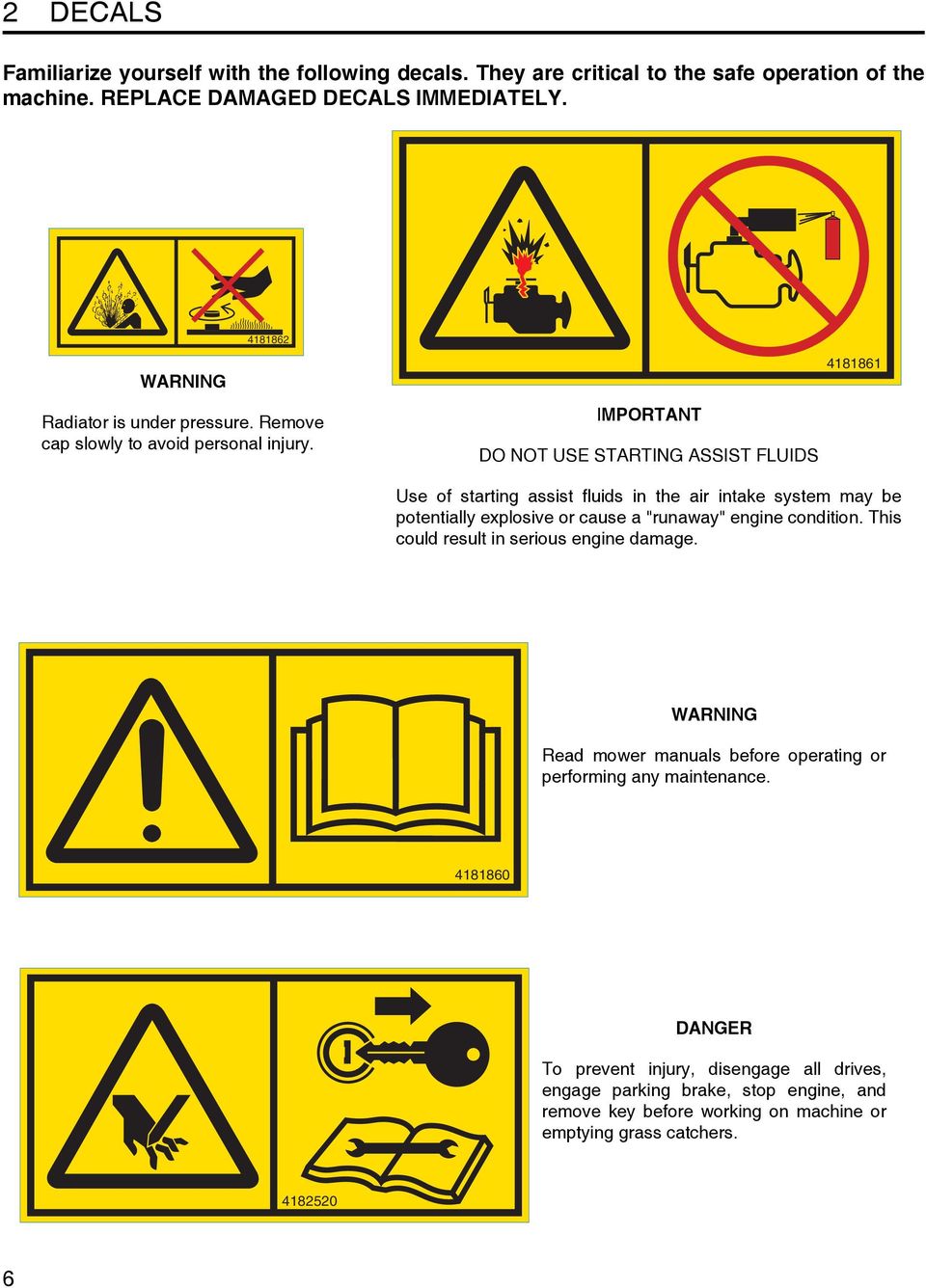

6 2 DECALS Familiarize yourself with the following decals. They are critical to the safe operation of the machine. REPLACE DAMAGED DECALS IMMEDIATELY. WARNING Radiator is under pressure. Remove cap slowly to avoid personal injury. IMPORTANT DO NOT USE STARTING ASSIST FLUIDS Use of starting assist fluids in the air intake system may be potentially explosive or cause a "runaway" engine condition. This could result in serious engine damage. WARNING Read mower manuals before operating or performing any maintenance DANGER To prevent injury, disengage all drives, engage parking brake, stop engine, and remove key before working on machine or emptying grass catchers

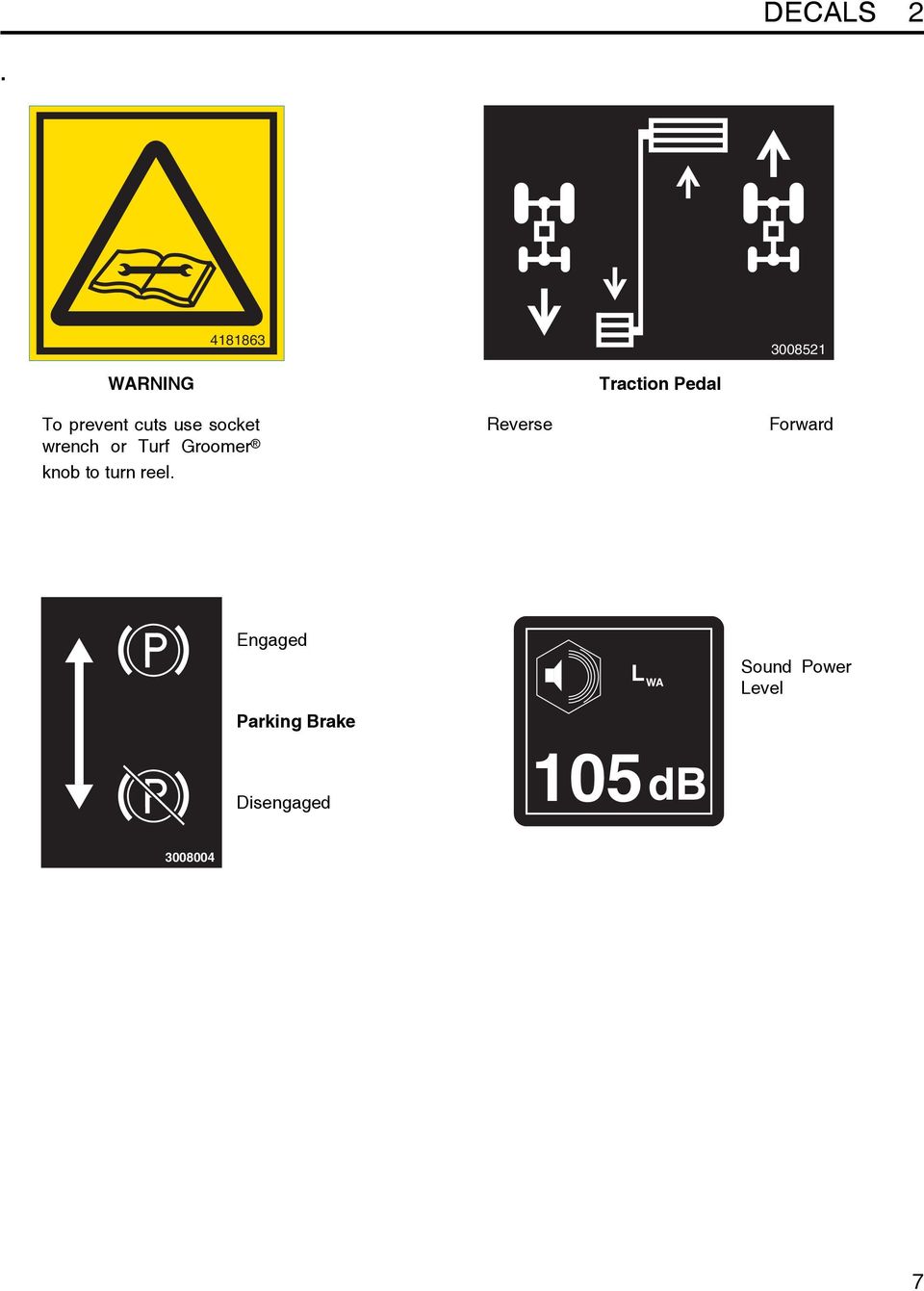

7 DECALS WARNING Traction Pedal To prevent cuts use socket wrench or Turf Groomer knob to turn reel. Reverse Forward Engaged Parking Brake Disengaged L WA 105dB Sound Power Level

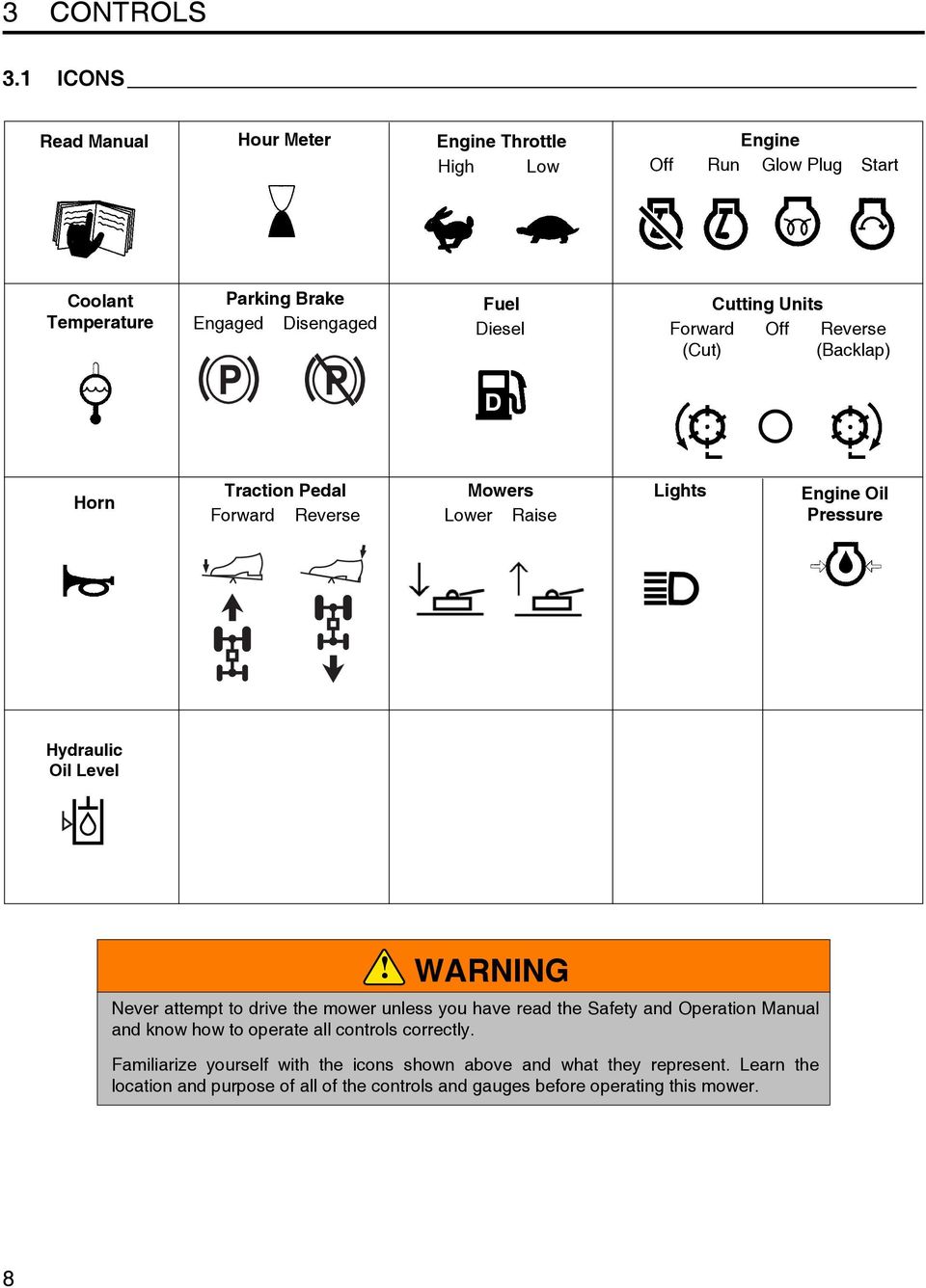

8 3 CONTROLS 3 CONTROLS 3.1 ICONS Read Manual Hour Meter Engine Throttle High Low Engine Off Run Glow Plug Start Coolant Temperature Parking Brake Engaged Disengaged Fuel Diesel Cutting Units Forward Off Reverse (Cut) (Backlap) D Horn Traction Pedal Forward Reverse Mowers Lower Raise Lights Engine Oil Pressure Hydraulic Oil Level WARNING Never attempt to drive the mower unless you have read the Safety and Operation Manual and know how to operate all controls correctly. Familiarize yourself with the icons shown above and what they represent. Learn the location and purpose of all of the controls and gauges before operating this mower. 8

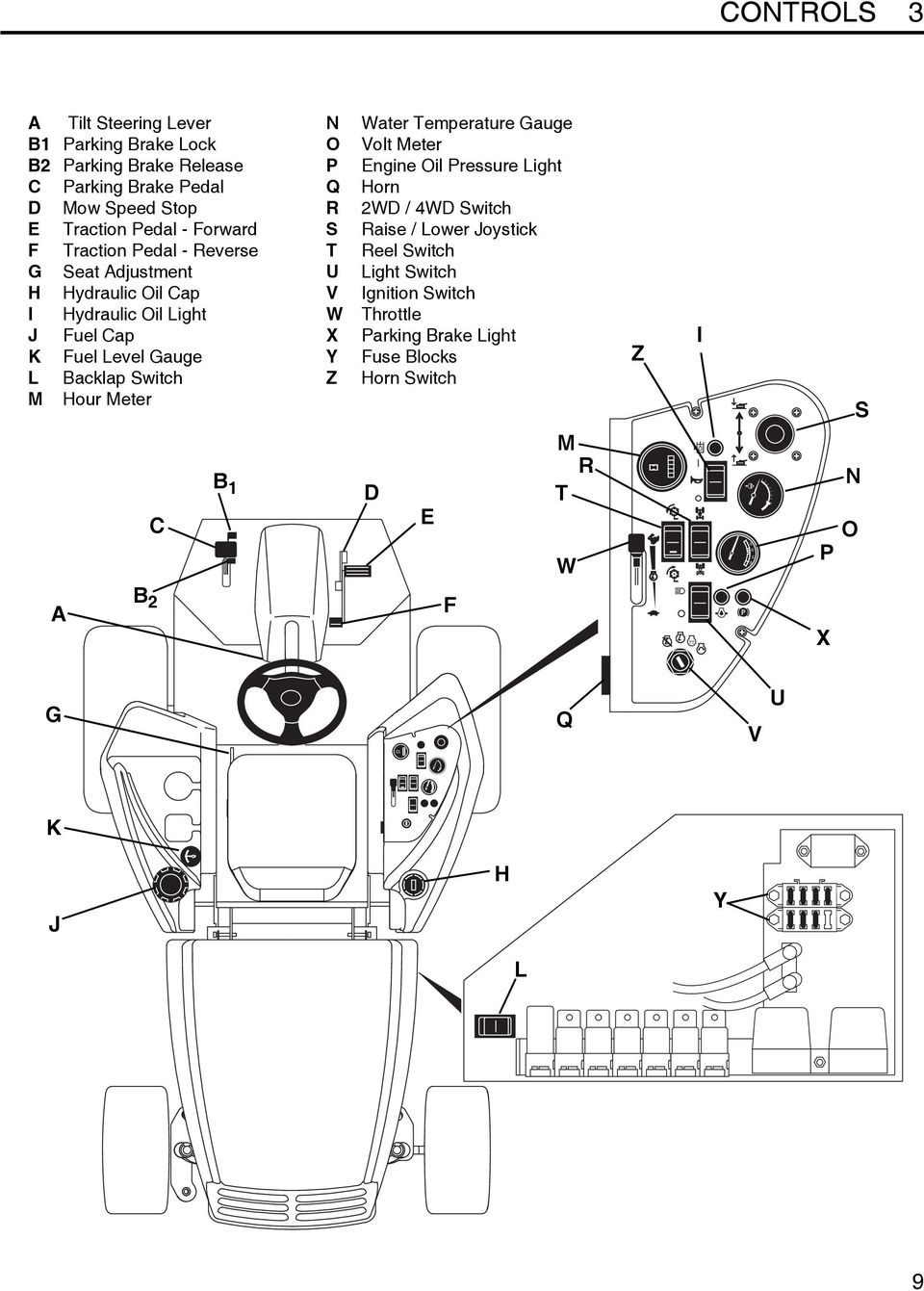

9 CONTROLS 3 A Tilt Steering Lever B1 Parking Brake Lock B2 Parking Brake Release C Parking Brake Pedal D Mow Speed Stop E Traction Pedal - Forward F Traction Pedal - Reverse G Seat Adjustment H Hydraulic Oil Cap I Hydraulic Oil Light J Fuel Cap K Fuel Level Gauge L Backlap Switch M Hour Meter C B 1 N O P Q R S T U V W X Y Z Water Temperature Gauge Volt Meter Engine Oil Pressure Light Horn 2WD / 4WD Switch Raise / Lower Joystick Reel Switch Light Switch Ignition Switch Throttle Parking Brake Light Fuse Blocks Horn Switch M R D T E W Z I P N O S A B 2 F X G Q V U K J H Y L 9

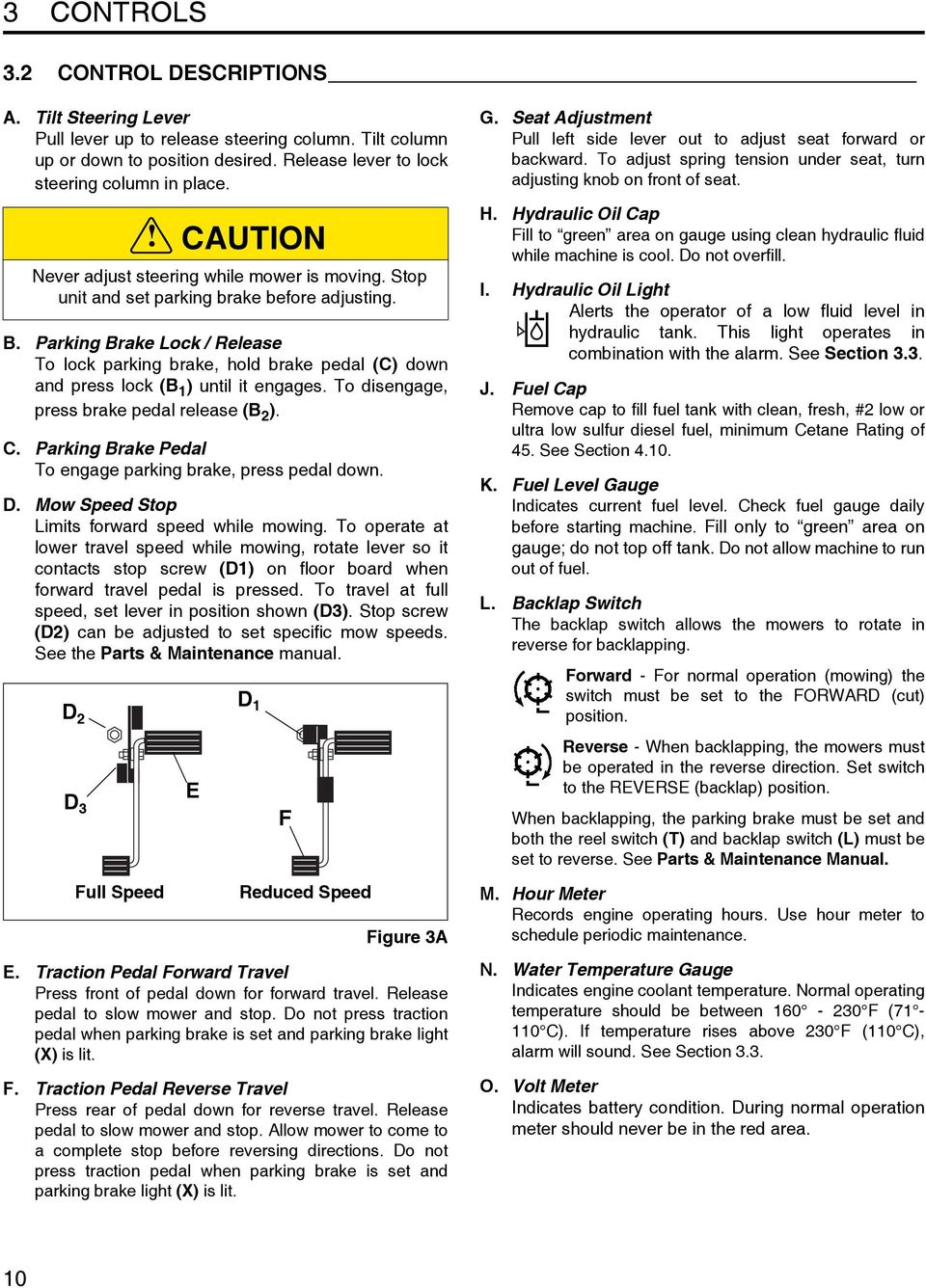

10 3 CONTROLS 3.2 CONTROL DESCRIPTIONS A. Tilt Steering Lever Pull lever up to release steering column. Tilt column up or down to position desired. Release lever to lock steering column in place. CAUTION Never adjust steering while mower is moving. Stop unit and set parking brake before adjusting. B. Parking Brake Lock / Release To lock parking brake, hold brake pedal (C) down and press lock (B 1 ) until it engages. To disengage, press brake pedal release (B 2 ). C. Parking Brake Pedal To engage parking brake, press pedal down. D. Mow Speed Stop Limits forward speed while mowing. To operate at lower travel speed while mowing, rotate lever so it contacts stop screw (D1) on floor board when forward travel pedal is pressed. To travel at full speed, set lever in position shown (D3). Stop screw (D2) can be adjusted to set specific mow speeds. See the Parts & Maintenance manual. D2 D 3 Full Speed E D 1 Figure 3A E. Traction Pedal Forward Travel Press front of pedal down for forward travel. Release pedal to slow mower and stop. Do not press traction pedal when parking brake is set and parking brake light (X) is lit. F. Traction Pedal Reverse Travel Press rear of pedal down for reverse travel. Release pedal to slow mower and stop. Allow mower to come to a complete stop before reversing directions. Do not press traction pedal when parking brake is set and parking brake light (X) is lit. F Reduced Speed G. Seat Adjustment Pull left side lever out to adjust seat forward or backward. To adjust spring tension under seat, turn adjusting knob on front of seat. H. Hydraulic Oil Cap Fill to green area on gauge using clean hydraulic fluid while machine is cool. Do not overfill. I. Hydraulic Oil Light Alerts the operator of a low fluid level in hydraulic tank. This light operates in combination with the alarm. See Section 3.3. J. Fuel Cap Remove cap to fill fuel tank with clean, fresh, #2 low or ultra low sulfur diesel fuel, minimum Cetane Rating of 45. See Section K. Fuel Level Gauge Indicates current fuel level. Check fuel gauge daily before starting machine. Fill only to green area on gauge; do not top off tank. Do not allow machine to run out of fuel. L. Backlap Switch The backlap switch allows the mowers to rotate in reverse for backlapping. Forward - For normal operation (mowing) the switch must be set to the FORWARD (cut) position. Reverse - When backlapping, the mowers must be operated in the reverse direction. Set switch to the REVERSE (backlap) position. When backlapping, the parking brake must be set and both the reel switch (T) and backlap switch (L) must be set to reverse. See Parts & Maintenance Manual. M. Hour Meter Records engine operating hours. Use hour meter to schedule periodic maintenance. N. Water Temperature Gauge Indicates engine coolant temperature. Normal operating temperature should be between F ( C). If temperature rises above 230 F (110 C), alarm will sound. See Section 3.3. O. Volt Meter Indicates battery condition. During normal operation meter should never be in the red area. 10

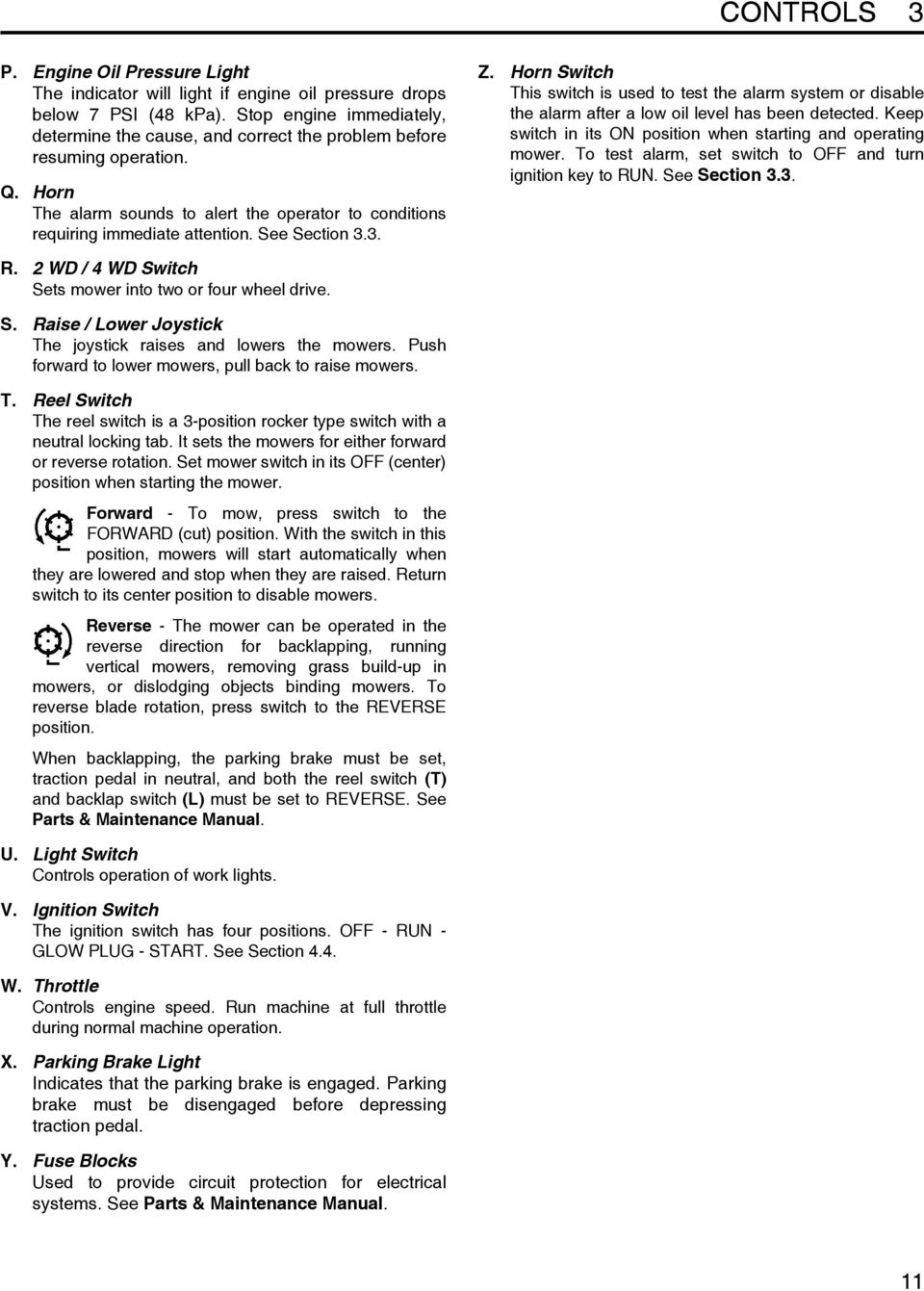

11 CONTROLS 3 P. Engine Oil Pressure Light The indicator will light if engine oil pressure drops below 7 PSI (48 kpa). Stop engine immediately, determine the cause, and correct the problem before resuming operation. Q. Horn The alarm sounds to alert the operator to conditions requiring immediate attention. See Section 3.3. Z. Horn Switch This switch is used to test the alarm system or disable the alarm after a low oil level has been detected. Keep switch in its ON position when starting and operating mower. To test alarm, set switch to OFF and turn ignition key to RUN. See Section 3.3. R. 2 WD / 4 WD Switch Sets mower into two or four wheel drive. S. Raise / Lower Joystick The joystick raises and lowers the mowers. Push forward to lower mowers, pull back to raise mowers. T. Reel Switch The reel switch is a 3-position rocker type switch with a neutral locking tab. It sets the mowers for either forward or reverse rotation. Set mower switch in its OFF (center) position when starting the mower. Forward - To mow, press switch to the FORWARD (cut) position. With the switch in this position, mowers will start automatically when they are lowered and stop when they are raised. Return switch to its center position to disable mowers. Reverse - The mower can be operated in the reverse direction for backlapping, running vertical mowers, removing grass build-up in mowers, or dislodging objects binding mowers. To reverse blade rotation, press switch to the REVERSE position. When backlapping, the parking brake must be set, traction pedal in neutral, and both the reel switch (T) and backlap switch (L) must be set to REVERSE. See Parts & Maintenance Manual. U. Light Switch Controls operation of work lights. V. Ignition Switch The ignition switch has four positions. OFF - RUN - GLOW PLUG - START. See Section 4.4. W. Throttle Controls engine speed. Run machine at full throttle during normal machine operation. X. Parking Brake Light Indicates that the parking brake is engaged. Parking brake must be disengaged before depressing traction pedal. Y. Fuse Blocks Used to provide circuit protection for electrical systems. See Parts & Maintenance Manual. 11

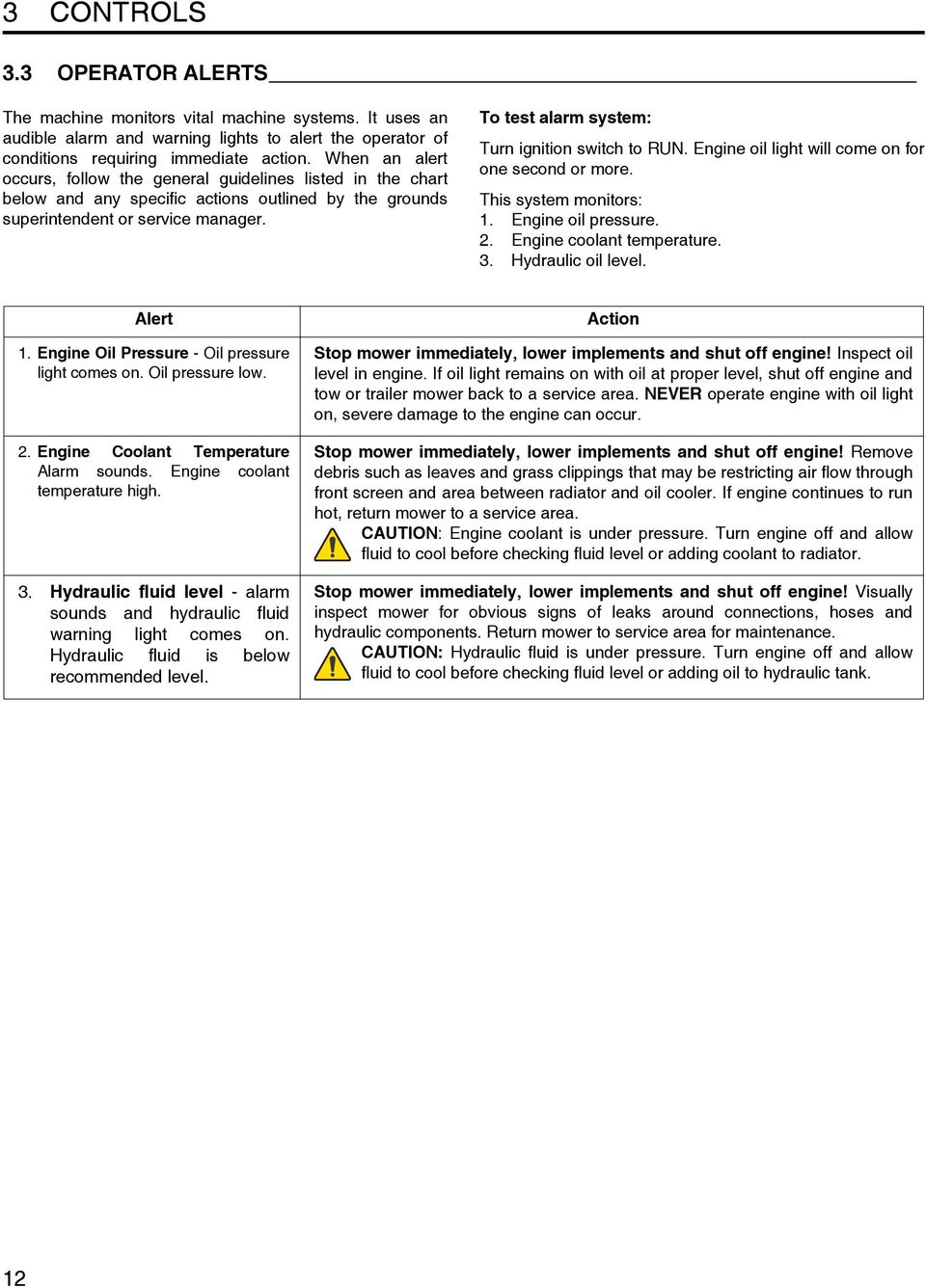

12 3 CONTROLS 3.3 OPERATOR ALERTS The machine monitors vital machine systems. It uses an audible alarm and warning lights to alert the operator of conditions requiring immediate action. When an alert occurs, follow the general guidelines listed in the chart below and any specific actions outlined by the grounds superintendent or service manager. To test alarm system: Turn ignition switch to RUN. Engine oil light will come on for one second or more. This system monitors: 1. Engine oil pressure. 2. Engine coolant temperature. 3. Hydraulic oil level. Alert Action 1. Engine Oil Pressure - Oil pressure light comes on. Oil pressure low. 2. Engine Coolant Temperature Alarm sounds. Engine coolant temperature high. 3. Hydraulic fluid level - alarm sounds and hydraulic fluid warning light comes on. Hydraulic fluid is below recommended level. Stop mower immediately, lower implements and shut off engine Inspect oil level in engine. If oil light remains on with oil at proper level, shut off engine and tow or trailer mower back to a service area. NEVER operate engine with oil light on, severe damage to the engine can occur. Stop mower immediately, lower implements and shut off engine Remove debris such as leaves and grass clippings that may be restricting air flow through front screen and area between radiator and oil cooler. If engine continues to run hot, return mower to a service area. CAUTION: Engine coolant is under pressure. Turn engine off and allow fluid to cool before checking fluid level or adding coolant to radiator. Stop mower immediately, lower implements and shut off engine Visually inspect mower for obvious signs of leaks around connections, hoses and hydraulic components. Return mower to service area for maintenance. CAUTION: Hydraulic fluid is under pressure. Turn engine off and allow fluid to cool before checking fluid level or adding oil to hydraulic tank. 12

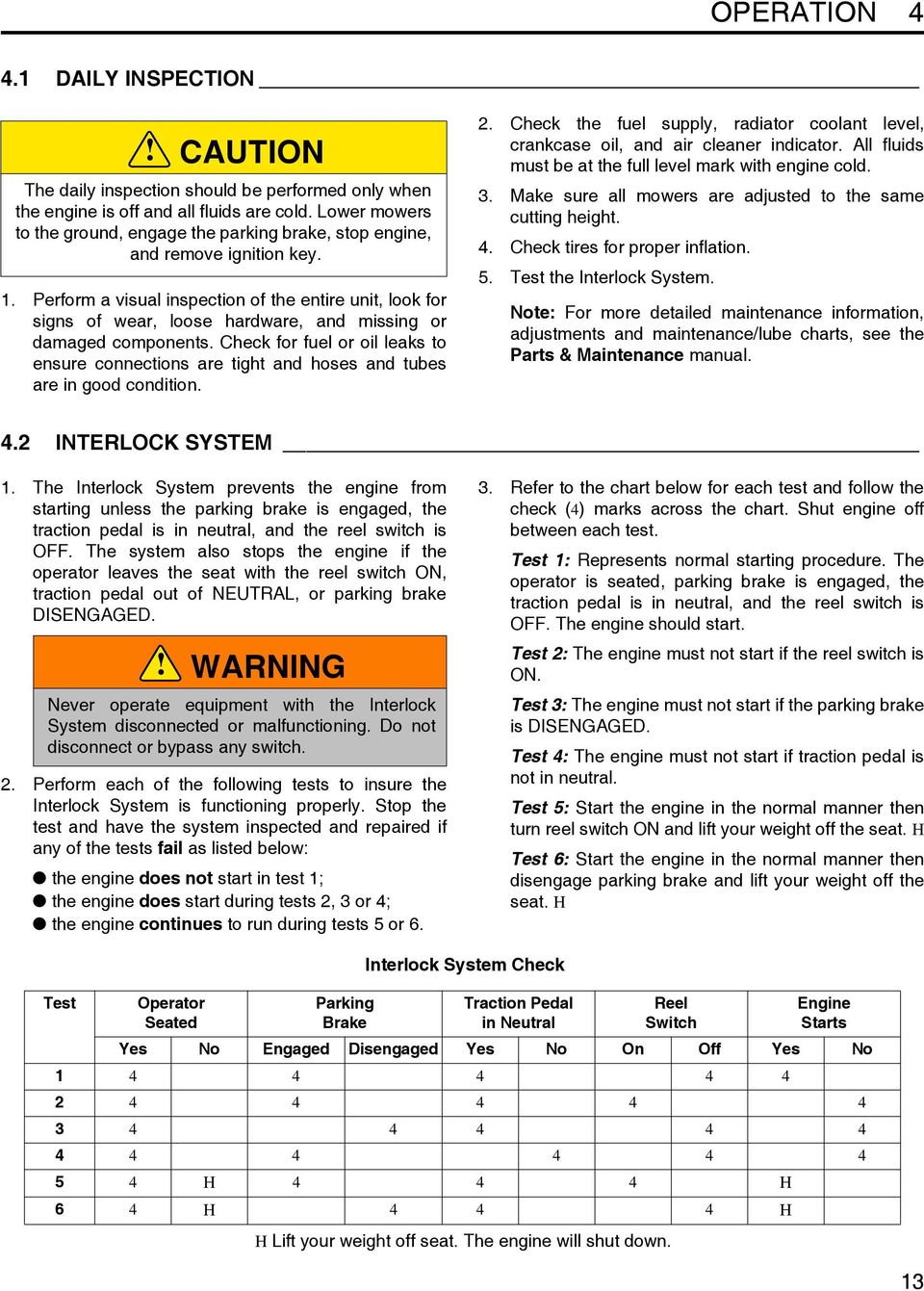

13 OPERATION 4 4 OPERATION 4.1 DAILY INSPECTION CAUTION The daily inspection should be performed only when the engine is off and all fluids are cold. Lower mowers to the ground, engage the parking brake, stop engine, and remove ignition key. 1. Perform a visual inspection of the entire unit, look for signs of wear, loose hardware, and missing or damaged components. Check for fuel or oil leaks to ensure connections are tight and hoses and tubes are in good condition. 2. Check the fuel supply, radiator coolant level, crankcase oil, and air cleaner indicator. All fluids must be at the full level mark with engine cold. 3. Make sure all mowers are adjusted to the same cutting height. 4. Check tires for proper inflation. 5. Test the Interlock System. Note: For more detailed maintenance information, adjustments and maintenance/lube charts, see the Parts & Maintenance manual. 4.2 INTERLOCK SYSTEM 1. The Interlock System prevents the engine from starting unless the parking brake is engaged, the traction pedal is in neutral, and the reel switch is OFF. The system also stops the engine if the operator leaves the seat with the reel switch ON, traction pedal out of NEUTRAL, or parking brake DISENGAGED. WARNING Never operate equipment with the Interlock System disconnected or malfunctioning. Do not disconnect or bypass any switch. 2. Perform each of the following tests to insure the Interlock System is functioning properly. Stop the test and have the system inspected and repaired if any of the tests fail as listed below: l the engine does not start in test 1; l the engine does start during tests 2, 3 or 4; l the engine continues to run during tests 5 or Refer to the chart below for each test and follow the check (4) marks across the chart. Shut engine off between each test. Test 1: Represents normal starting procedure. The operator is seated, parking brake is engaged, the traction pedal is in neutral, and the reel switch is OFF. The engine should start. Test 2: The engine must not start if the reel switch is ON. Test 3: The engine must not start if the parking brake is DISENGAGED. Test 4: The engine must not start if traction pedal is not in neutral. Test 5: Start the engine in the normal manner then turn reel switch ON and lift your weight off the seat. H Test 6: Start the engine in the normal manner then disengage parking brake and lift your weight off the seat. H Test Operator Seated Parking Brake Interlock System Check Traction Pedal in Neutral Reel Switch H Lift your weight off seat. The engine will shut down. Engine Starts Yes No Engaged Disengaged Yes No On Off Yes No H H 6 4 H H 13

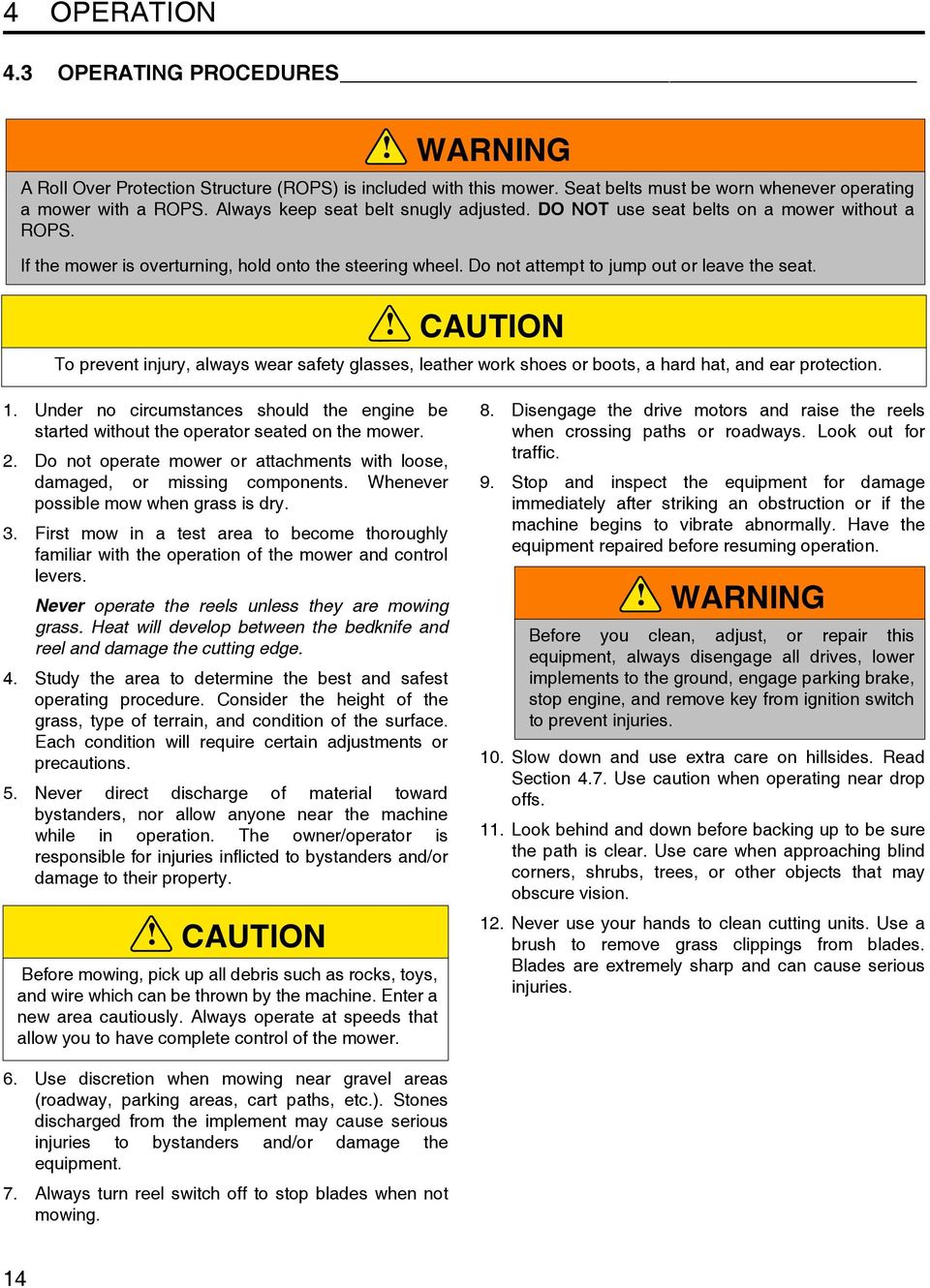

14 4 OPERATION 4.3 OPERATING PROCEDURES WARNING A Roll Over Protection Structure (ROPS) is included with this mower. Seat belts must be worn whenever operating a mower with a ROPS. Always keep seat belt snugly adjusted. DO NOT use seat belts on a mower without a ROPS. If the mower is overturning, hold onto the steering wheel. Do not attempt to jump out or leave the seat. CAUTION To prevent injury, always wear safety glasses, leather work shoes or boots, a hard hat, and ear protection. 1. Under no circumstances should the engine be started without the operator seated on the mower. 2. Do not operate mower or attachments with loose, damaged, or missing components. Whenever possible mow when grass is dry. 3. First mow in a test area to become thoroughly familiar with the operation of the mower and control levers. Never operate the reels unless they are mowing grass. Heat will develop between the bedknife and reel and damage the cutting edge. 4. Study the area to determine the best and safest operating procedure. Consider the height of the grass, type of terrain, and condition of the surface. Each condition will require certain adjustments or precautions. 5. Never direct discharge of material toward bystanders, nor allow anyone near the machine while in operation. The owner/operator is responsible for injuries inflicted to bystanders and/or damage to their property. CAUTION Before mowing, pick up all debris such as rocks, toys, and wire which can be thrown by the machine. Enter a new area cautiously. Always operate at speeds that allow you to have complete control of the mower. 8. Disengage the drive motors and raise the reels when crossing paths or roadways. Look out for traffic. 9. Stop and inspect the equipment for damage immediately after striking an obstruction or if the machine begins to vibrate abnormally. Have the equipment repaired before resuming operation. WARNING Before you clean, adjust, or repair this equipment, always disengage all drives, lower implements to the ground, engage parking brake, stop engine, and remove key from ignition switch to prevent injuries. 10. Slow down and use extra care on hillsides. Read Section 4.7. Use caution when operating near drop offs. 11. Look behind and down before backing up to be sure the path is clear. Use care when approaching blind corners, shrubs, trees, or other objects that may obscure vision. 12. Never use your hands to clean cutting units. Use a brush to remove grass clippings from blades. Blades are extremely sharp and can cause serious injuries. 6. Use discretion when mowing near gravel areas (roadway, parking areas, cart paths, etc.). Stones discharged from the implement may cause serious injuries to bystanders and/or damage the equipment. 7. Always turn reel switch off to stop blades when not mowing. 14

15 OPERATION STARTING IMPORTANT: Do not use starting assist fluids. Use of such fluids in the air intake system may be potentially explosive or cause a Runaway engine condition and could result in serious engine damage. 1. Make sure fuel shut off valve is completely open and the tow valve (See Section 4.9) is closed. 2. Sit in operator s seat, make sure reel switch (T) is OFF, parking brake (C) is engaged, and traction pedal (E and F) is in neutral. 3. Move throttle lever between 1/8 to 1/2 throttle (W). Turn ignition switch (V) to RUN. Parking brake light (X) and engine oil light (P) should be lit. 4. Turn ignition switch to GLOW PLUG position for about 3 to 5 seconds, then turn key to START position. Release as soon as engine starts. The colder the temperature, the longer it will take to energize plugs. Do not hold switch in GLOW PLUG position for more than 5 seconds, or in the START position for more than 15 seconds. Energizing glow plugs is not necessary when starting a warm engine. Once engine starts, engine oil light (P) should go out. 5. Allow the engine to become warm and properly lubricated before operating at high RPM. T W V P X Figure 4A 4.5 STOPPING / PARKING To stop: Remove your foot from traction pedal. The mower will automatically brake when the traction pedal returns to neutral. To park the mower under normal conditions: 1. Disengage the reel switch, raise the implements, and move away from the area of operation. 2. Select a flat and level area to park. a. Release traction pedal to bring the mower to a complete stop. b. Disengage all drives, lower implements to the ground, reduce throttle to slow, and allow engine to operate at no load for several minutes. NOTICE Permanent damage to the turbocharger may occur if the engine is shut down without allowing the turbocharger time to cool. To prevent damage, operate the engine with no load and at half throttle for 3 to 5 minutes before shutting off engine. 3. Engage parking brake, stop the engine, and always remove the ignition key. If an emergency arises and the mower must be parked in the area of operation, follow the guidelines outlined by the grounds superintendent. If the mower is parked on an incline, chock or block the wheels. 15

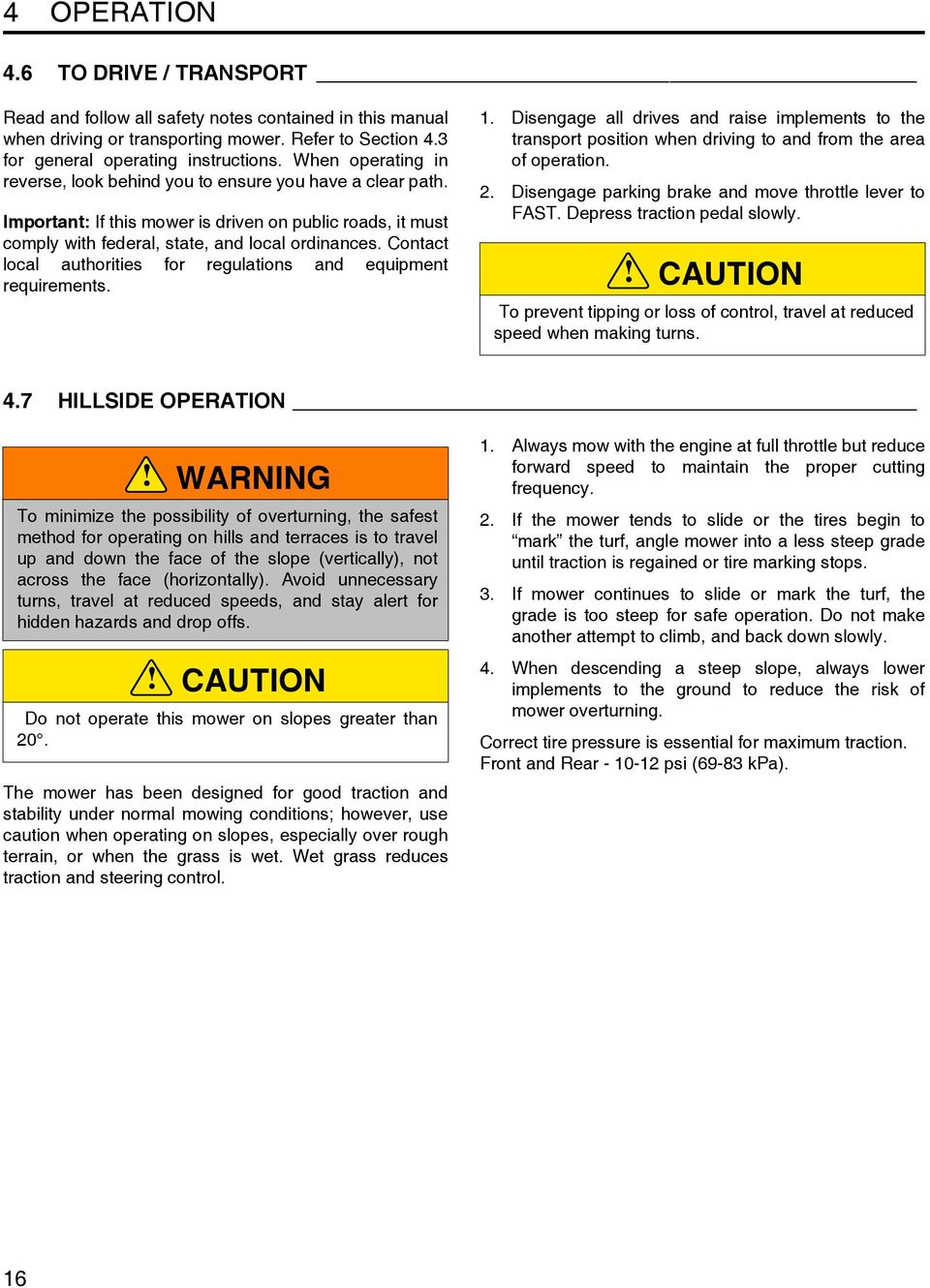

16 4 OPERATION 4.6 TO DRIVE / TRANSPORT Read and follow all safety notes contained in this manual when driving or transporting mower. Refer to Section 4.3 for general operating instructions. When operating in reverse, look behind you to ensure you have a clear path. Important: If this mower is driven on public roads, it must comply with federal, state, and local ordinances. Contact local authorities for regulations and equipment requirements. 1. Disengage all drives and raise implements to the transport position when driving to and from the area of operation. 2. Disengage parking brake and move throttle lever to FAST. Depress traction pedal slowly. CAUTION To prevent tipping or loss of control, travel at reduced speed when making turns. 4.7 HILLSIDE OPERATION WARNING To minimize the possibility of overturning, the safest method for operating on hills and terraces is to travel up and down the face of the slope (vertically), not across the face (horizontally). Avoid unnecessary turns, travel at reduced speeds, and stay alert for hidden hazards and drop offs. CAUTION Do not operate this mower on slopes greater than 20. The mower has been designed for good traction and stability under normal mowing conditions; however, use caution when operating on slopes, especially over rough terrain, or when the grass is wet. Wet grass reduces traction and steering control. 1. Always mow with the engine at full throttle but reduce forward speed to maintain the proper cutting frequency. 2. If the mower tends to slide or the tires begin to mark the turf, angle mower into a less steep grade until traction is regained or tire marking stops. 3. If mower continues to slide or mark the turf, the grade is too steep for safe operation. Do not make another attempt to climb, and back down slowly. 4. When descending a steep slope, always lower implements to the ground to reduce the risk of mower overturning. Correct tire pressure is essential for maximum traction. Front and Rear psi (69-83 kpa). 16

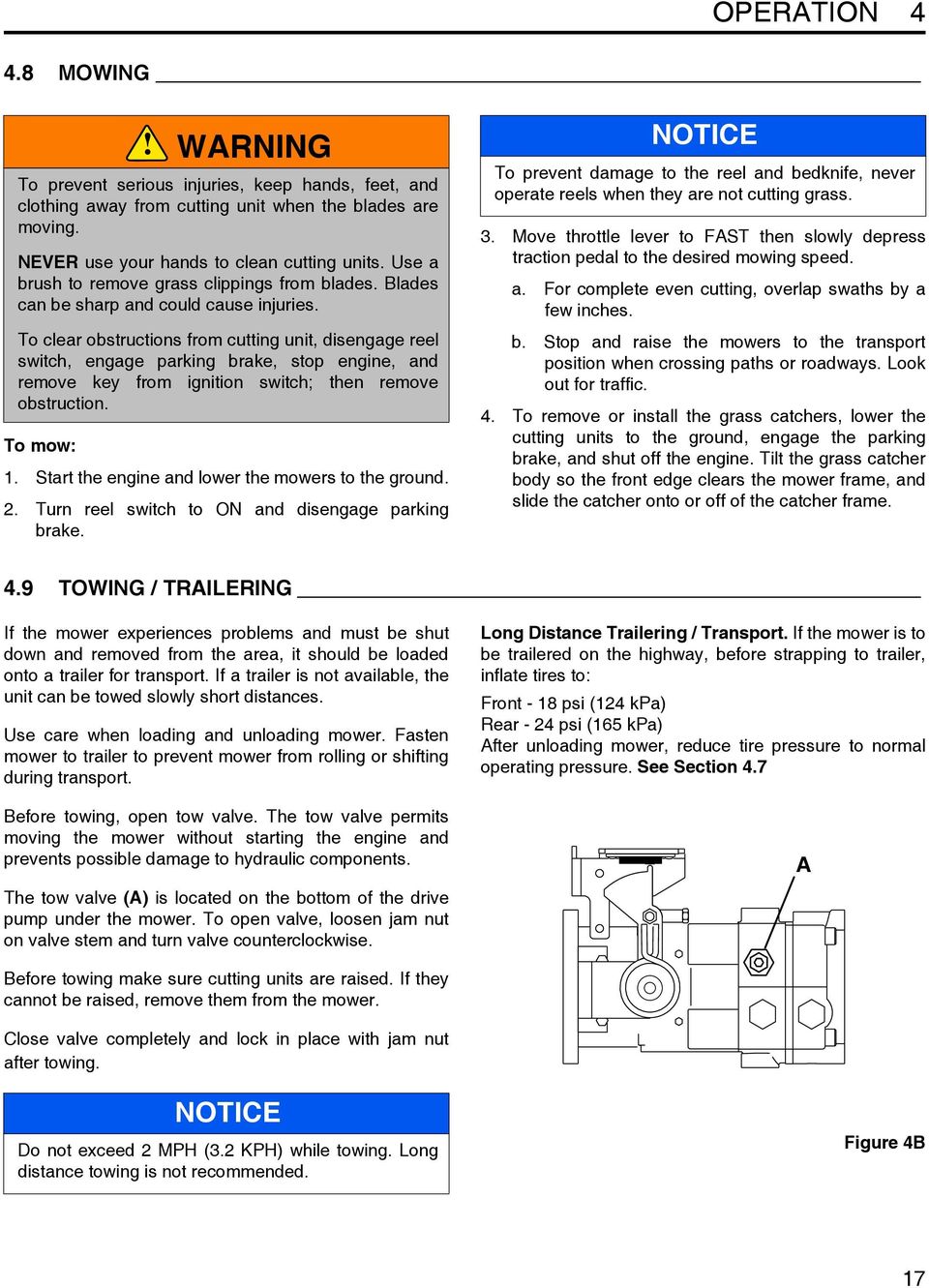

17 OPERATION MOWING NOTICE WARNING To prevent serious injuries, keep hands, feet, and clothing away from cutting unit when the blades are moving. NEVER use your hands to clean cutting units. Use a brush to remove grass clippings from blades. Blades can be sharp and could cause injuries. To clear obstructions from cutting unit, disengage reel switch, engage parking brake, stop engine, and remove key from ignition switch; then remove obstruction. To mow: 1. Start the engine and lower the mowers to the ground. 2. Turn reel switch to ON and disengage parking brake. To prevent damage to the reel and bedknife, never operate reels when they are not cutting grass. 3. Move throttle lever to FAST then slowly depress traction pedal to the desired mowing speed. a. For complete even cutting, overlap swaths by a few inches. b. Stop and raise the mowers to the transport position when crossing paths or roadways. Look out for traffic. 4. To remove or install the grass catchers, lower the cutting units to the ground, engage the parking brake, and shut off the engine. Tilt the grass catcher body so the front edge clears the mower frame, and slide the catcher onto or off of the catcher frame. 4.9 TOWING / TRAILERING If the mower experiences problems and must be shut down and removed from the area, it should be loaded onto a trailer for transport. If a trailer is not available, the unit can be towed slowly short distances. Use care when loading and unloading mower. Fasten mower to trailer to prevent mower from rolling or shifting during transport. Before towing, open tow valve. The tow valve permits moving the mower without starting the engine and prevents possible damage to hydraulic components. The tow valve (A) is located on the bottom of the drive pump under the mower. To open valve, loosen jam nut on valve stem and turn valve counterclockwise. Long Distance Trailering / Transport. If the mower is to be trailered on the highway, before strapping to trailer, inflate tires to: Front - 18 psi (124 kpa) Rear - 24 psi (165 kpa) After unloading mower, reduce tire pressure to normal operating pressure. See Section 4.7 A Before towing make sure cutting units are raised. If they cannot be raised, remove them from the mower. Close valve completely and lock in place with jam nut after towing. NOTICE Do not exceed 2 MPH (3.2 KPH) while towing. Long distance towing is not recommended. Figure 4B 17

18 4 OPERATION 4.10 DAILY MAINTENANCE Important: For more detailed maintenance information, adjustments, and maintenance/lubrication charts, see the Parts & Maintenance manual. 1. Park the mower on a flat, level surface. Fully lower the implements to the ground, engage parking brake, stop the engine, and remove key from ignition switch. 2. Grease and lubricate all points if required. To prevent fires, wash the cutting units and mower after each use. a. Use only fresh water for cleaning your equipment. NOTICE Use of salt water or effluent water has been known to encourage rust and corrosion of metal parts resulting in premature deterioration or failure. Damage of this nature is not covered by the factory warranty. b. Do not use high pressure spray. c. Do not spray water directly at the instrument panel, or any electrical components. d. Do not spray water into the cooling air intake or the engine air intake. NOTICE Do not wash a hot or running engine. Use compressed air to clean the mower, engine, and radiator fins to reduce the potential for corrosion and moisture contamination. FUEL Fill mower s fuel tank at the end of each operating day to full mark on fuel gauge. Always use clean, fresh, #2 low or ultra low sulfur diesel fuel. Minimum Cetane Rating 45. Handle fuel with care - it is highly flammable. Use an approved container; the spout must fit inside the fuel filler neck. Avoid using cans and funnels to transfer fuel. WARNING Never remove the fuel cap from the fuel tank, or add fuel, when the engine is running or while the engine is hot. Do not smoke when handling fuel. Never fill or drain the fuel tank indoors. Do not spill fuel. Clean spilled fuel immediately. Never handle or store fuel containers near an open flame or any device that may create sparks and ignite the fuel or fuel vapors. Be sure to reinstall and tighten fuel cap securely. Store fuel according to local, state, or federal ordinances and recommendations from your fuel supplier. Never overfill or allow the tank to become empty. HYDRAULIC HOSE, OIL, AND FILTER WARNING To prevent serious injury from hot, high pressure oil, never use your hands to check for oil leaks; use paper or cardboard. Hydraulic fluid escaping under pressure can have sufficient force to penetrate skin. If fluid is injected into the skin, it must be surgically removed within a few hours by a doctor familiar with this form of injury or gangrene may result. 1. Inspect hydraulic hoses and tubes daily. Look for wet hoses or oil spots and replace worn or damaged hoses and tubes before operating the machine. 2. Check the engine oil and hydraulic oil at the start of each day, before starting the engine. If the oil level is low, remove the oil filler cap, and add oil as required. Do not overfill. 18

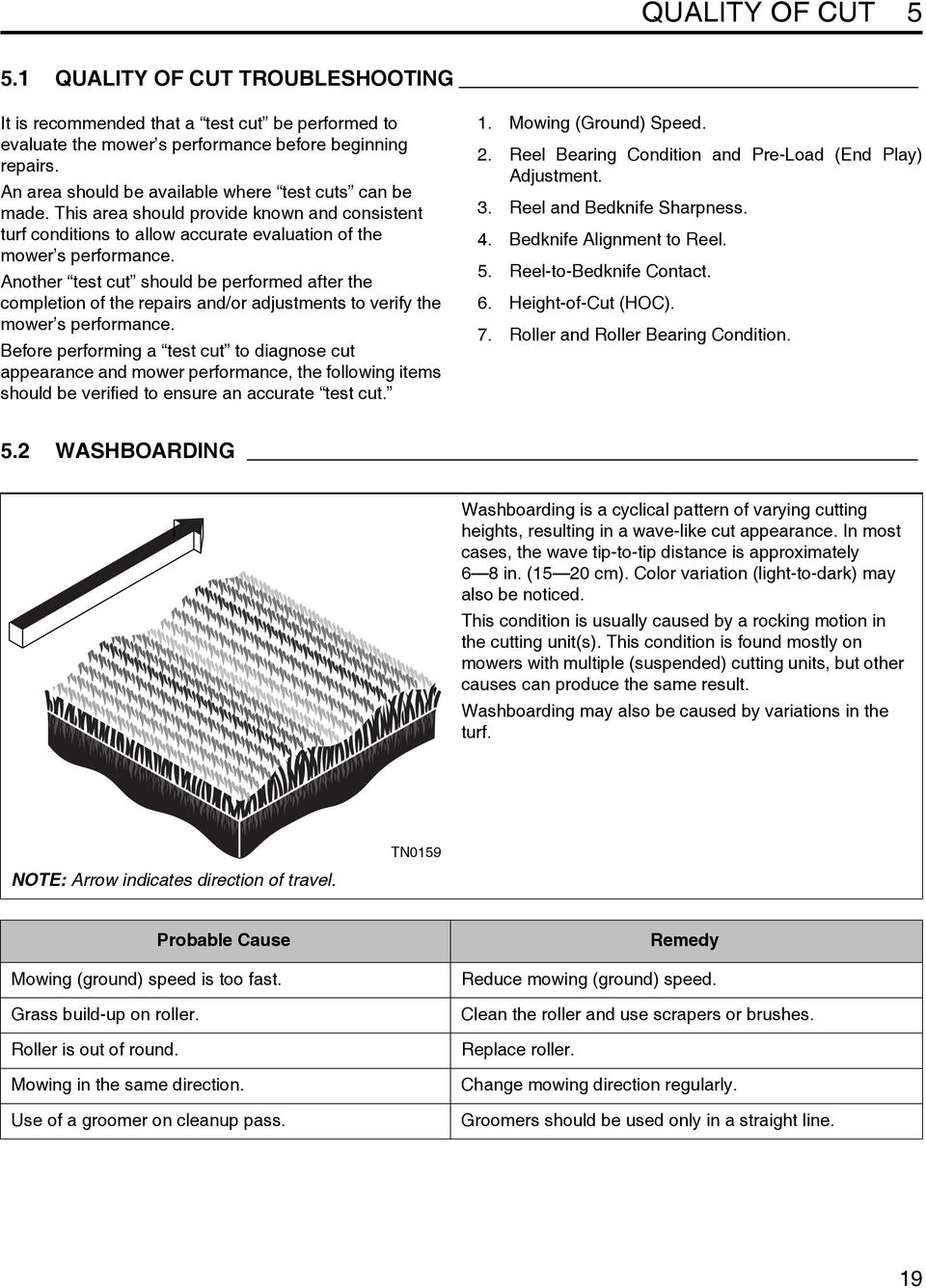

19 QUALITY OF CUT 5 5 OF CUT 5.1 QUALITY OF CUT TROUBLESHOOTING It is recommended that a test cut be performed to evaluate the mower s performance before beginning repairs. An area should be available where test cuts can be made. This area should provide known and consistent turf conditions to allow accurate evaluation of the mower s performance. Another test cut should be performed after the completion of the repairs and/or adjustments to verify the mower s performance. Before performing a test cut to diagnose cut appearance and mower performance, the following items should be verified to ensure an accurate test cut. 1. Mowing (Ground) Speed. 2. Reel Bearing Condition and Pre-Load (End Play) Adjustment. 3. Reel and Bedknife Sharpness. 4. Bedknife Alignment to Reel. 5. Reel-to-Bedknife Contact. 6. Height-of-Cut (HOC). 7. Roller and Roller Bearing Condition. 5.2 WASHBOARDING Washboarding is a cyclical pattern of varying cutting heights, resulting in a wave-like cut appearance. In most cases, the wave tip-to-tip distance is approximately 6 8 in. (15 20 cm). Color variation (light-to-dark) may also be noticed. This condition is usually caused by a rocking motion in the cutting unit(s). This condition is found mostly on mowers with multiple (suspended) cutting units, but other causes can produce the same result. Washboarding may also be caused by variations in the turf. NOTE: Arrow indicates direction of travel. TN0159 Probable Cause Mowing (ground) speed is too fast. Grass build-up on roller. Roller is out of round. Mowing in the same direction. Use of a groomer on cleanup pass. Remedy Reduce mowing (ground) speed. Clean the roller and use scrapers or brushes. Replace roller. Change mowing direction regularly. Groomers should be used only in a straight line. 19

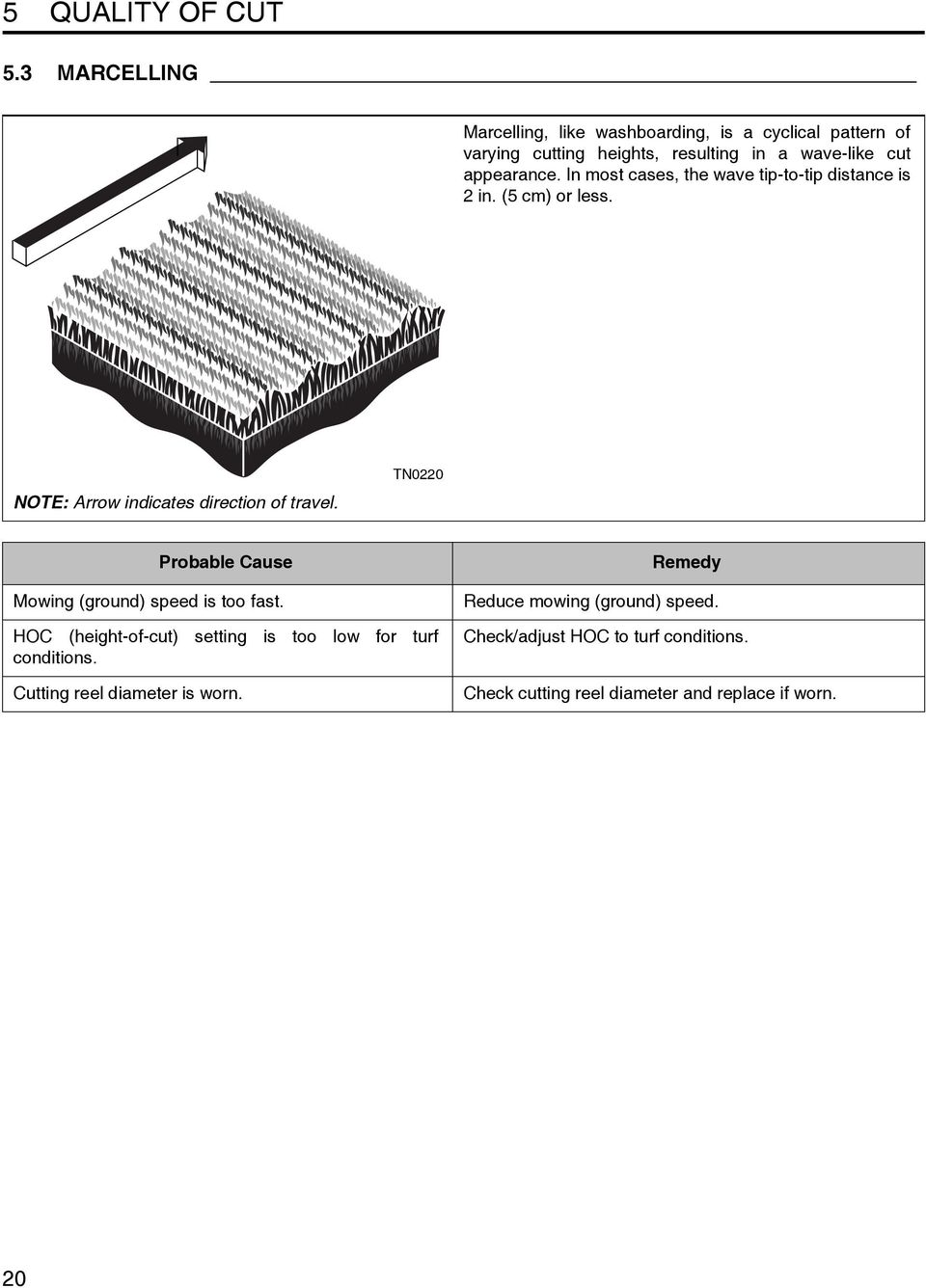

20 5 QUALITY OF CUT 5.3 MARCELLING Marcelling, like washboarding, is a cyclical pattern of varying cutting heights, resulting in a wave-like cut appearance. In most cases, the wave tip-to-tip distance is 2 in. (5 cm) or less. NOTE: Arrow indicates direction of travel. TN0220 Probable Cause Mowing (ground) speed is too fast. HOC (height-of-cut) setting is too low for turf conditions. Cutting reel diameter is worn. Remedy Reduce mowing (ground) speed. Check/adjust HOC to turf conditions. Check cutting reel diameter and replace if worn. 20

21 QUALITY OF CUT STEP CUTTING Step cutting occurs when grass is cut taller on one side of a reel than the other or one cutting unit to another. This is usually caused by mechanical wear or an incorrect roller or HOC (height-of-cut) adjustment. NOTE: Arrow indicates direction of travel. TN0221 Probable Cause HOC (height-of-cut) settings are different from one side of a reel to the other or from one cutting unit to another. Worn front roller bearings. Reel-to-bedknife contact is different from one side of the cutting unit to the other or from one cutting unit to another. Cutting reel movement is restricted. Variations in turf density. Machine weight distribution is uneven. Remedy Check HOC adjustment of cutting units. Check/replace front roller bearings. Check reel-to-bedknife contact. Check/remove cutting reel movement obstruction. Change mowing direction. Check/adjust tire inflation pressure. 21

22 5 QUALITY OF CUT 5.5 SCALPING Scalping is a condition in which areas of grass are cut noticeably shorter than the surrounding areas, resulting in a light green or even brown patch. This is usually caused by an excessively low height-of-cut (HOC) setting and/or uneven turf. NOTE: Arrow indicates direction of travel. TN0222 Probable Cause HOC (height-of-cut) settings are lower than normal. Improper reel-to-bedknife adjustment. Turf too uneven for the mower to follow. Cutting too much grass at one time. Mowing (ground) speed is too fast. Remedy Check/adjust the HOC settings. Adjust reel-to-bedknife setting for desired HOC. Change mowing direction. Mow more often. Reduce mowing (ground) speed. 22

23 QUALITY OF CUT STRAGGLERS Stragglers are scattered blades of uncut or poorly cut grass. NOTE: Arrow indicates direction of travel. TN0223 Probable Cause Bedknife improperly adjusted. Dull reel or bedknife cutting edges. Mowing (ground) speed is too fast. Grass is too tall. Mowing in the same direction. Nicks in reel or bedknife. Remedy Adjust reel-to-bedknife setting. Sharpen or replace reel blade and bedknife as necessary. Reduce mowing (ground) speed. Mow more often. Change mowing direction regularly. Grind, sharpen or replace reel blades and bedknife as necessary. 23

24 5 QUALITY OF CUT 5.7 STREAKS A streak is a line of uncut grass. This is usually caused by a nicked or bent bedknife. NOTE: Arrow indicates direction of travel. TN0224 Probable Cause Remedy Damaged bedknife. Damaged or unevenly worn reel. Loose or missing bedknife fasteners. Turning too aggressively. Cutting units don t overlap around turns or on side hills. Tire mats down grass before it is cut. Wet grass is matted down before it is cut. Replace bedknife. Inspect reel. Replace as needed. Check bedknife screws. Tighten loose screws; replace missing screws. Turn less aggressively to allow cutting units to overlap. Change mowing direction or pattern on side hills. Check/adjust tire inflation pressure. Mow when grass is dry. 24

25 QUALITY OF CUT WINDROWING Windrowing is the deposit of clippings concentrated at one end of cutting unit(s) or between two cutting units, forming a line in the direction of travel. NOTE: Arrow indicates direction of travel. TN0225 Probable Cause Remedy Grass is too tall. Mowing while grass is wet. Grass built up on roller(s). Grass collecting on bedknife. Mow more often. Mow when grass is dry. Clean roller(s) and scraper(s). Adjust reel-to-bedknife setting. 25

26 5 QUALITY OF CUT 5.9 RIFLING OR TRAMLINING Rifling or tramlining is a pattern of varying cutting heights, resulting in a wave-like cut appearance, usually due to heavy contact points across a reel and/or bedknife. NOTE: Arrow indicates direction of travel. Probable Cause Reel and/or bedknife unevenly worn. Missing, loose, or overtorqued bedknife screws. Mowing (ground) speed is too fast. Remedy Inspect bedknife and reel. Sharpen or replace reel and bedknife as necessary. Install, replace or tighten bedknife screws to proper torque setting. Reduce mowing (ground) speed MISMATCHED CUTTING UNITS Mismatched cutting units is a pattern of varying cutting heights, resulting in a stepped cut appearance, usually due to mismatched HOC (height-of-cut) adjustment from one cutting unit to another. NOTE: Arrow indicates direction of travel. Probable Cause HOC inconsistent from one cutting unit to another. Difference in mower ride height side to side. Remedy Check/adjust HOC on cutting units. Check/adjust tire inflation pressure. 26

27 NOTES 6 6 NOTES 27
