2 Nanocon 1, Rožnov, 2009 Nanostruktury pro optoelektroniku souboj kaskádových laserů a struktur typu W o reálnou aplikaci jako zdroj laserového záření v blízké infračervené oblasti Eduard Hulicius Fyzikální ústav AV ČR, v. v. i. Abstrakt Vpřednášce budou stručně popsány struktury kaskádových polovodičových laserů a laserové W struktury druhého typu na bázi GaSb. Dále budou diskutovány principy činnosti těchto struktur a budou srovnány s klasickými hetero- a nanostrukturami. Bude objasněn efekt nano, pomocí kterého se překonává omezení klasických struktur způsobené nezářivými Augerovými rekombinacemi. Bude zmíněn aplikační potenciál uvedených součástek jako koherentních i nekoherentních zdrojů záření v blízké infračervené oblasti a také současná situace ve vývoji a na trhu. Budou využity a prezentovány zkušenosti autora z EU projektů ADMIRAL, GLADIS a NEMIS co se týká struktur typu W a z návštěv řady zahraničních pracovišť, kde se připravují a studují kaskádové lasery.
3 Definice spektrálních oblastí: (Tab 1.1.). Vztahy mezi uvedenými veličinami vlnovou délkou, energií E, frekvencí f a vlnočtem : m 1.24/E (ev), f (THz) = 300 / m (cm -1 ) = / m Wavelength ( m) Energy (ev) Frequency (THz) Wavenumber (cm -1 ) Visible Near Infrared (NIR) Mid Infrared (MIR) Far Infrared (FIR or THz) mm Wave > < < <10
4 Spektrální oblasti a aplikace LD Hlavní proud : viditelná a blízká infračervená oblast Jsou to materiály dnes většinou dobře zvládnuté z důvodů historických i technologických. Stále zůstává prostor na zlepšování parametrů, i zavádění nových struktur (kvantové tečky), převratný break through ale neočekávám. Přiléhající oblasti jsou ultrafialová (nitridy, ZnO, diamant,...? větší hustota optických pamětí, medicínské aplikace,..) střední infračervená:
5 Střední infračervená oblast elektromagnetického záření, která se obvykle definuje od2do20μm, je pro optoelektroniku velmi zajímavá nejen z hlediska aplikací: Detekce, přesné a citlivé měření koncentrací různých látek (hlavně atmosférických polutantů, ale i různých průmyslových plynů) laserovou absorpční spektroskopií; v lékařství - diagnostika - složení dechu, i terapie - aktivace léků IČ zářením, které pronikne dost hluboko; "free space" komunikace (atmosférické okno); konverze optické energie na elektrickou (termofotovoltaika); ve vojenství atmosférické okno pro laserové zbraně; detektory, citlivá termovize; detekce výbušnin, jedů a pod.; ostraha v 2. IČ oblasti Historicky první aplikačně zaměřené práce zdrojích v (blízké) MIR oblasti byly podníceny pracemi na fluoridových vláknech s ještě nižším absolutním útlumem než mají křemenná vlákna (vlákna Dianov, FIAN; lasery - FIAN, GIREDMET, )
6

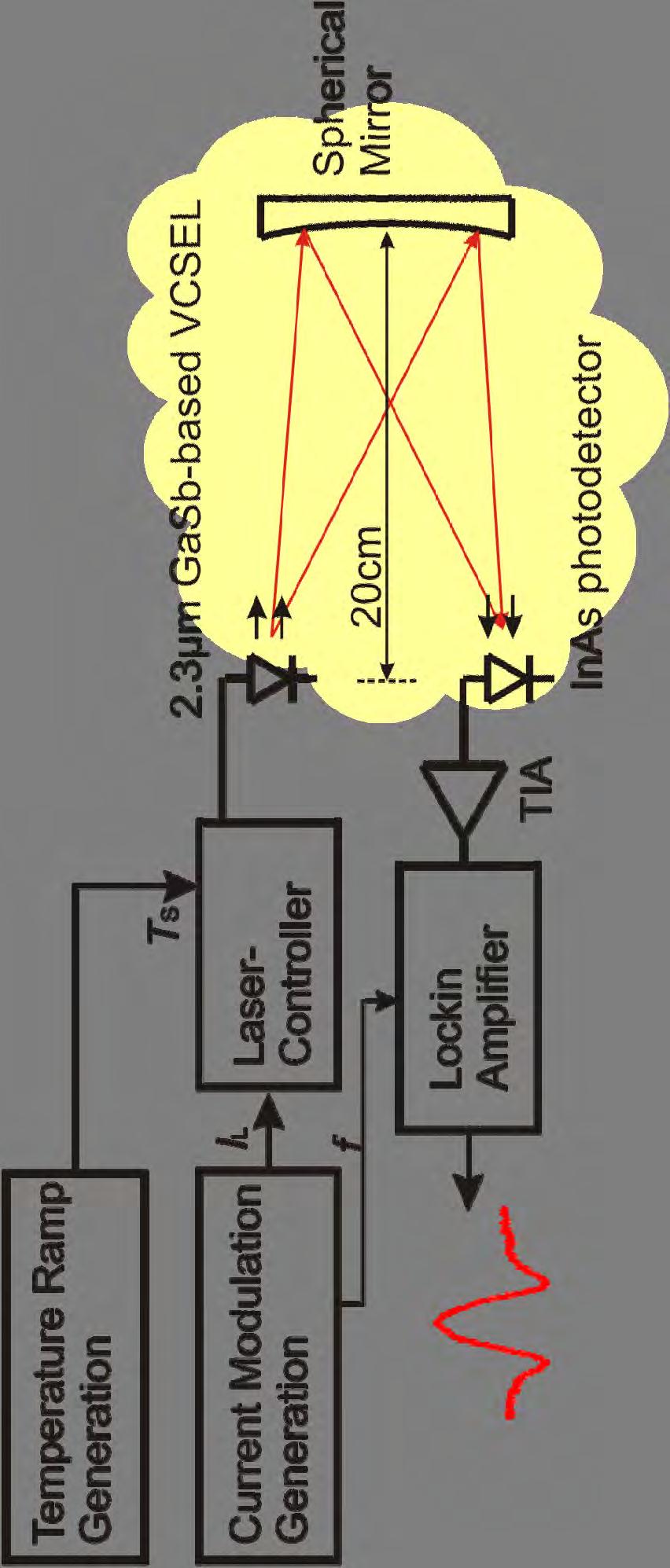

7 Wavelength Modulation Spectroscopy (WMS)
8 Závislost šířky zakázaného pásu na mřížkové konstantě vybraných polovodičových materiálů
9 Střední infračervená oblast je zajímavá i z hlediska nejmodernějšího materiálového inženýrství a nanotechnologií - vzhledem k využití kvantových jevů v nových součástkách: "W" struktury heteropřechodů II. typu - omezení nežádoucí Augerovy rekombinace; kaskádové lasery patrně současné nejsložitější polovodičové součástky; vlnová délka se mění geometrií, architekturou struktury negativní luminiscence pozoruhodný jev s zajímavými aplikacemi;
10 LD Laser Diode Laserová dioda

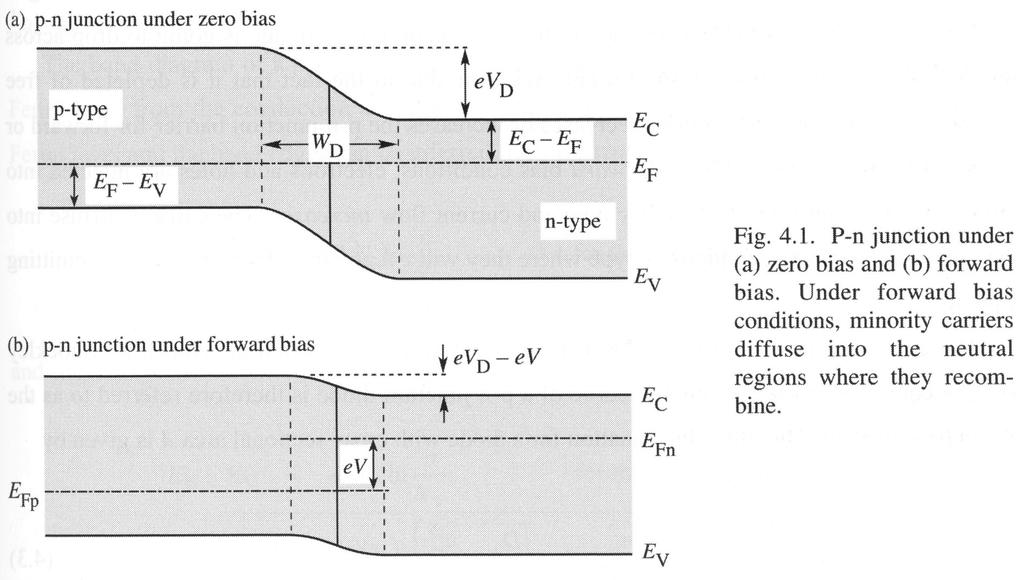

11 Rekombinace a propustné napětí
12 Emisní spektrum LED?
13 Spontánní a stimulovaná emise LD Zisk a ztráty v závislosti na energii fotonů, pro různé koncentrace elektronů v aktivní oblasti. Laserování začíná na dlouhovlnné straně spektra (absorpce).
14 hustoty stavů

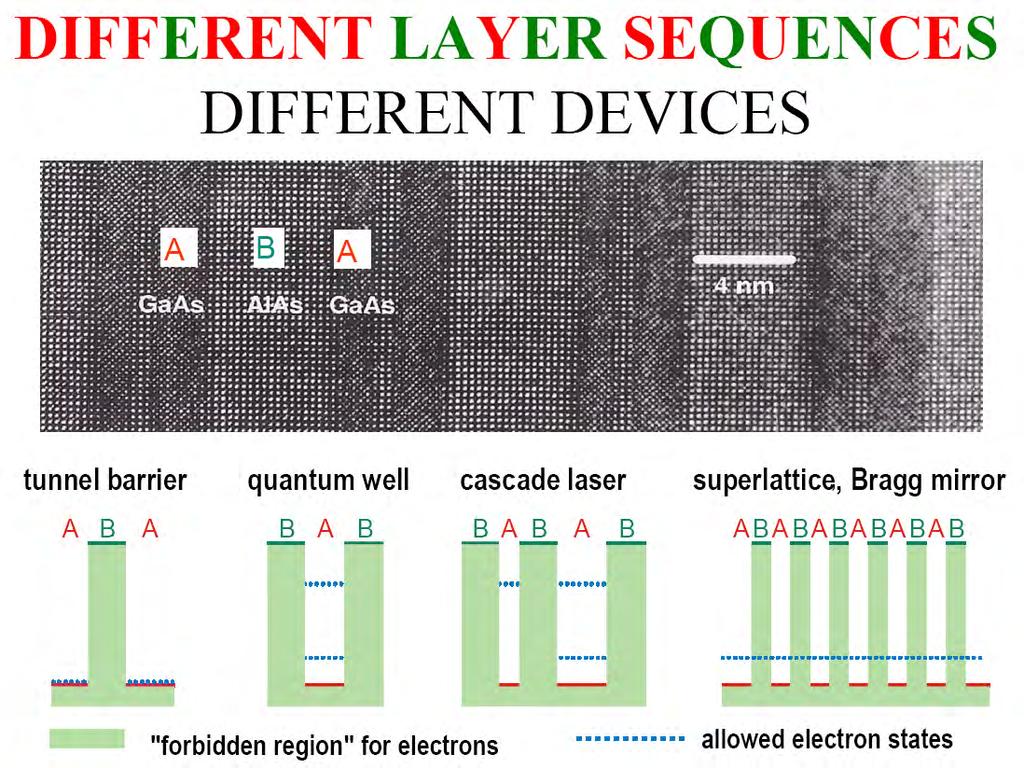

15
16
17 Appendix 1 Augerova nezářivá rekombinace Dvoustupňový proces Augerovy nezářivé rekombinace. V této jednoduché pásové struktuře musí být přechody šikmé (zachování hybnosti k) (CHCC) Energie z rekombinace je využita pro přechod mezi těžkými a lehkými děrami (CHHL)
18 Obvyklý případ pro A III B V polovodiče - je excitována díra ze spinorbitálně odštěpeného pásu (CHHS) Rezonanční Augerův proces v křemíku vyžaduje účast dvou elektronů (typ CHCC)
19 11. Kaskádové lasery a lasery se strukturou typu W Souboj těchto dvou typů struktury o reálnou aplikaci jako zdroje laserového záření ve střední infračervené oblasti, kde je mnoho možností uplatnění v medicíně, ekologii, komunikacích i ve vojenství. Přiklad aktuálního, dosud nerozhodnutého špičkového aplikovaného výzkumu, kterého se přednašeč aktivně účastní.
20 Kaskádové intersubband lasery
21 Kaskádové intersubband lasery
22 Kaskádové intersubband lasery
23
24 Základní způsoby generace záření ve (střední) infračervené oblasti
25 Pozor, není to toto:
26
27 Tunable Emission Over a Wide Spectral Range Conduction band schematic of GaInAs/ AlInAs quantum cascade laser lattice matched to InP. Cross sectional schematic of laser waveguide structure. Photograph of a self-contained prototype quantum cascade laser pointer realised at CQD. Demonstrated single mode emission from quantum cascade lasers spanning both atmospheric windows.
28 M. Razeghi, Center for Quantum Devices, Northwestern Univ., Evanston Uncooled Infrared (5-12 m) Quantum Cascade Lasers Lasers operating in the mid- and far-infrared (5-12 m) spectral region are desirable for many applications. Up until recently, the only such laser technologies available were based on bulky gas or solid-state lasers as well as cryogenically cooled semiconductor lasers. One of the most exciting projects at the Center for Quantum Devices (CQD) is uncooled infrared quantum cascade lasers (QCLs), which, being a semiconductor laser, is inherently compact and will help eliminate the need for bulky and unreliable cryogenic cooling. This translates to a smaller, cheaper, system with a longer lifetime and less maintenance. Besides our current records with respect to threshold current density and high peak power, we have recently demonstrated the highest power continuous wave QCLs at room temperature.
29 Distributed Feedback (DFB) Quantum Cascade Lasers
30 High Performance Lasers Operating at Room Temperature 75 period waveguide core Cavity: 3 mm x 25 m Cross section image of a buried-ridge QCL laser. Cross section image of a Au electroplated QCL. Electrical and optical characteristics of a typical 9 m quantum cascade laser operating in pulsed mode at room temperature. Peak output power of 2.5 W is the highest power for a quantum cascade laser in these conditions.
31 Highest average power QCL. Comparison of groups >4 m
32 M. Razeghi, Center for Quantum Devices, Northwestern Univ., Evanston Uncooled Infrared (5-12 m) Quantum Cascade Lasers Lasers operating in the mid- and far-infrared (5-12 m) spectral region are desirable for many applications. Up until recently, the only such laser technologies available were based on bulky gas or solid-state lasers as well as cryogenically cooled semiconductor lasers. One of the most exciting projects at the Center for Quantum Devices (CQD) is uncooled infrared quantum cascade lasers (QCLs), which, being a semiconductor laser, is inherently compact and will help eliminate the need for bulky and unreliable cryogenic cooling. This translates to a smaller, cheaper, system with a longer lifetime and less maintenance. Besides our current records with respect to threshold current density and high peak power, we have recently demonstrated the highest power continuous wave QCLs at room temperature.
33 Závěr (můj) W-DHS LD: ano 2 3,5 µm (možná do 4 µm) QCL: ano 200 3,5 µm (možná do 3 µm) Zatím Děkuji za pozornost
34 Naše výsledky v oboru struktur pro polovodičové lasery W-DHS (Double HetroStructure)
35 Podobně jako u LED je viditelná a blízká IČ oblast převážně průmyslová záležitost. Příprava LD pro střední a vzdálenou IČ i ultrafialovou oblast je velkou výzvou pro badatele. Často je také důležité nahradit stávající typy LD novými s výrazně lepšími parametry. Kvantové jámy (QW) Heteropřechody druhého typu Struktury s napnutými vrstvami Kvantové tečky (QD)
36 GaAs: buffer 230 nm AlGaAs-n typ 570 nm AlGaAs 400 nm GaAs 150 nm AlGaAs 320 nm AlGaAs-p typ 570 nm GaAs 700 nm GaAs:Te substrate SPSLS 12x (InAs / GaAs)
37 Srovnání laserů s ternární a supermřížkovou (MQW) aktivní oblastí Ternární InGaAs QW laser InAs/GaAs laser se supermřížkou Optical Power [a.u.] Intensity EL I ex =2 A I ex =2.25 A I ex =2.5 A I ex =3 A T=300 K Emission Energy [ev] T 0 = 109 K laser A 25 o C 40 o C 50 o C 60 o C 70 o C 80 o C 85 o C Optical Power [ W] Intensity PL EL I ex =0.46A T=300K Emission Energy [ev] T 0 = 126 K laser B 25 C 35 C 45 C 55 C 65 C 75 C 85 C Current Density [A/cm 2 ] Current Density [A/cm 2 ]
38 Podobně jako u LED je viditelná a blízká IČ oblast převážně průmyslová záležitost. Příprava LD pro střední a vzdálenou IČ i ultrafialovou oblast je velkou výzvou pro badatele. Často je také důležité nahradit stávající typy LD novými s výrazně lepšími parametry. Kvantové jámy (QW) Heteropřechody druhého typu Struktury s napnutými vrstvami Kvantové tečky (QD)
39 Základní způsoby generace záření ve (střední) infračervené oblasti
40
41 EU projekty, týkající se MID IR oblasti Control of Enviromental Pollution by Tunable Diode Laser Absorption Spectroscopy in the Spectral Range 2-4 µm ERB 3512 PL * (COP 813) ( ) Actaris SAS, DE, Schlumberger Industries SA, FR, University of Montpellier, FR, Thales, FR, Nanoplus, DE, Gaz de France, FR,, Gas Natural, ES, Omnisens, CH Advanced Room Temperature Mid-infrared Antimony-based Lasers by MOVPE (ADMIRAL) ERB INCO COPERNICUS 20CT97*BRITE/EURAM III-BRPR-CT ( ) EPICHEM, Bramborough, UK, AIXTRON, Aachen, Germany, RWTH, Aachen, Germany, UM2 University of Montpellier, France Gas Laser Analysis by Infra-red Spectroscopy (GLADIS) IST ( ) UM2 University of Montpellier, France, Ioffe Physicotechnical Institute St. Petersburg, Russia, Fraunhofer Institute, Garmisch-Partenkirchen, Germany, Institute of Electron Technology, Warsaw, Poland, IBSG, St. Petersburg, Russia
42 Optical Power [a.u.] C 50 C Excitation Current [ma] 0-10 EL Intensity [db] T=25 C T=50 C T=70 C I ex =70 ma Wavelength [nm]
43
44 The NEMIS project aims at the development and realisation of compact and packaged vertical-cavity surface-emitting semiconductor laser diodes (VCSEL) for the µm wavelength range and to demonstrate a pilot photonic sensing system for trace gas analysis using these new sources. The availability of electrically pumped VCSELs with their low-cost potential in this wavelength range that operate continuously at or at least near room-temperature and emit in a single transverse and longitudinal mode (i. e. single-frequency lasers) is considered a basic breakthrough for laser-based optical sensing applications. These devices are also modehop-free tuneable over a couple of nanometers via the laser current or the heatsink temperature. They are therefore ideal and unmatched sources for the spectroscopic analysis of gases and the detection of many environmentally important and/or toxic trace-gases, which is a market in the order of 10 million Euro today with an expected increase into several 100 million Euro with the availability of the new VCSELs
45 Application: trace gas sensing Outline BTJ-VCSEL Design BTJ-VCSEL Results Summary Outlook
46 NEMIS project NEMIS IST : New Mid-Infrared sources for photonic Sensors (University Montpellier 2 (F), WSI (G), IOP (Cz), Chalmers (Sw), Vertilas (G), Omnisens (CH), Siemens (G)) Gas analysis by absorption spectroscopy in the Mid-IR for environmental monitoring, industrial process control, (CH 4 and NH 3 detection at 2.3 µm, HF at 2.5 µm, ) Single frequency, P > 1 mw, CW, RT lasers VCSELs NEMIS project : EP GaSb-based VCSEL Three wavelength range of main interest defined by end users : 2.3 µm, 2.7 µm, 3.3 µm Create new mid-infrared sources for photonics sensors
47 Current Density (ka/cm 2 ) State of the art before NEMIS 1 st monolithic µ-cavity GaSb-based EP-VCSEL : P.I.N. structure : 2 AlAsSb/GaSb (N and P) DBRs, GaInSb/GaSb Type-II MQWs Laser operation at 2.2µm in pulsed regime (200 ns/1 KHz) at RT with I th >2kA/cm 2 (A. Baranov et al., Electronics Letters, 1998, Vol.34, p. 281) p-doped n-doped Voltage (V) Contact diameter: 200 µm MQW Active region n-dbr n-contact p-contact p-dbr GaSb n-substrate Voltage drop per 1 ka/cm 2 : Te-doped DBR ~ 25 mv/pair Be-doped DBR ~ 155 mv/pair Optical losses : Te-doped DBR ~ 5 10 cm -1 Be-doped DBR > 40 cm -1 * Perona et al. Semi. Sc. Tech (22), 2007 PIN structure no optimized for RT CW operation
48 Buried Tunnel Junction p + GaSb:Si n + InAsSb:Si n + p + energy = cm 2 with n = cm position Substitution: p-doped by n-doped material reduced electrical resistance lower absorption losses
49 Buried Tunnel Junction p + GaSb:Si p + energy space charge region n n + p + position blocking pn-junction current confinement by diameter d d
50 Summary GaSb-based VCSEL design with buried tunnel junction first device results: CO detection (57 ppm) cw laser emission up to µm single mode emission Outlook reduction of absorption within the cavity improvement of current confinement better matching of field maximum and active region position improvement of device performance (output power and efficiency) extending VCSEL emission wavelength to µm
51
52 Základní způsoby generace záření ve (střední) infračervené oblasti
53
54
55 Tunable Emission Over a Wide Spectral Range Conduction band schematic of GaInAs/ AlInAs quantum cascade laser lattice matched to InP. Cross sectional schematic of laser waveguide structure. Photograph of a self-contained prototype quantum cascade laser pointer realised at CQD. Demonstrated single mode emission from quantum cascade lasers spanning both atmospheric windows.
56 Distributed Feedback (DFB) Quantum Cascade Lasers
57 High Performance Lasers Operating at Room Temperature 75 period waveguide core Cavity: 3 mm x 25 m Cross section image of a buried-ridge QCL laser. Cross section image of a Au electroplated QCL. Electrical and optical characteristics of a typical 9 m quantum cascade laser operating in pulsed mode at room temperature. Peak output power of 2.5 W is the highest power for a quantum cascade laser in these conditions.
58 Highest average power QCL. Comparison of groups >4 m
59 M. Razeghi, Center for Quantum Devices, Northwestern Univ., Evanston Uncooled Infrared (5-12 m) Quantum Cascade Lasers Lasers operating in the mid- and far-infrared (5-12 m) spectral region are desirable for many applications. Up until recently, the only such laser technologies available were based on bulky gas or solid-state lasers as well as cryogenically cooled semiconductor lasers. One of the most exciting projects at the Center for Quantum Devices (CQD) is uncooled infrared quantum cascade lasers (QCLs), which, being a semiconductor laser, is inherently compact and will help eliminate the need for bulky and unreliable cryogenic cooling. This translates to a smaller, cheaper, system with a longer lifetime and less maintenance. Besides our current records with respect to threshold current density and high peak power, we have recently demonstrated the highest power continuous wave QCLs at room temperature.
60 Závěr (můj) W-DHS LD: ano 2 3,5 µm (možná do 4 µm) QCL: ano 200 3,5 µm (možná do 3 µm) Zatím Děkuji za pozornost
61 Appendix 2 MBE technology for QCL and W-DHS
62
63 MBE ve FZÚ AV ČR, v. v. i.
64 Appendix 3 Project activity overview WP4 - Characterisation (2 nd year) Eduard Hulicius Institute of Physics, AS CR, Prague, Czech Republic
65 Contents WP objectives Progress towards objectives Optical constant of GaSb:Te and AlAsSb used for DBR Noise measurement High resolution absorption spectra of selected gases Ageing equipment and measurement Deviations from plan Deliverables/Milestones 65
66 WP objectives Optical constant of GaSb:Te and AlAsSb Noise measurement High resolution absorption spectra of selected gases Ageing measurement 66
67 Progress towards objectives Optical constant of GaSb:Te and AlAsSb OK, interesting results, partly published, will be continued. Noise measurement First set was measured, the second is measured, publication is prepared (comparison of GLADIS-FP and NEMIS-VCSEL). High resolution absorption spectra of selected gases Till now service, will be continued with NEMIS lasers as planned. Ageing measurement First results are available (pulsed only), cw and more lasers and higher temperatures will be made during the third year (and after!) as planned. 67
68 Optical constants of GaSb:Te and AlAsSb Equipment used: FTIR reflectance at the angle of incidence of 10 deg, Bruker IFS55 and IFS66 (vacuum), room temperature; Evaporated and sputtered gold as reference. MIR ellipsometer attached to Bruker IFS55. NIR-VIS-UV reflectance at the angle of incidence of 10 deg, Varian Cary, room temperature. NIR-VIS-UV reflectance at the angle of incidence of 0 deg, Avantes AvaSpec-2048, room temperature. Silicon as reference. 68
69 Optical constants of GaSb:Te x x10 17 FIRrefl-FIRR1 REFLECTANCE x10 18 N f = 4x10 18 cm GaSb:Te (2 m, N f ) / GaSb:Te (N s =2.5x10 17 cm -3 ) WAVENUMBER (cm -1 ) Effect of Te doping on the optical response of GaSb:Te is best seen in the FIR spectra: plasma of free carriers overlap with the restrahlen band of the polar vibrations of the GaSb lattice (TO frequency of cm -1 ). Both free carriers and phonon contribute to lowering of the refractive index in the MIR range. Oscillator strengths obtained from the Drude-Lorentz fit quantify the effect. At lower dopings (<= 1E18 cm -3 ), the spectra are sensitive to the film thickness. 69
70 Optical constants of GaSb:Te GaSbFilms-ReflGap W gap, bare substrate, 2.5x10 17 cm REFLECTANCE x x x10 18 N f = 4x10 18 cm GaSb:Te (2 m, N f ) / GaSb:Te (N s =2.5x10 17 cm -3 ) W (cm -1 ) The bandgap range of GaSb:Te: Fermi energy penetrates the conduction band and increases the onset of absorption (Moss-Burstein shift). This slightly lowers the refractive index in MIR. 70
71 Optical constants of GaSb:Te N f = 4x10 18 cm x x x10 17 E g MIRrefl-DerR2 bare substrate, 2.5x10 17 cm -3 dr/dw (cm) GaSb:Te (2 m, N f ) / GaSb:Te (N s =2.5x10 17 cm -3 ) W (cm -1 ) The transparent range of intrinsic or slightly doped GaSb: The (thick) substrate is transparent and the spectra are influenced by the reflections on the (rough) backside; this is significant, since the optical contrast between the substrate and epilayer is small and the patterns produced by the coherent interference inside the epilayer are weak. The spurious contributions of the backsides are suppressed in differentiated spectra. 71
72 Optical constants of AlAsSb Ava_AlAsSb-ReflTOTa 0.6 R590 (Montpellier), GaSb REFLECTIVITY R595 (Montpellier) GaSb, cap 10nm 0.3 A2017 A2018 AlAsSb, 2000 nm GaSb, substrate PHOTON ENERGY (ev) The capped films of AlAsSb are transparent up to the visible range. The interference fringes provide fair sensitivity to both refractive index and film thickness. The capping layer influences strongly the spectra in NIR-VIS-UV range. In fact, above 3.5 ev, the penetration depth in GaSb is smaller than the cap thickness and the light does not see the ternary material. 72
73 Optical constants of AlAsSb 1.0 AlAsSb-ReflFIR 0.8 REFLECTIVITY A2017 A WAVENUMBER (cm -1 ) The FIR spectra of GaSb/AlAsSb/GaSb samples are rather complex, displaying the free carriers and lattice vibration of the substrate and cap GaSb, as well as the lattice vibration and (less clearly) free carriers in AlAsSb. The measured spectra (solid lines) can be fitted fairly well (dotted lines) assuming the Drude-Lorentz response of the substrate, film, and cap layer. There seems to be no clear signature of the significantly higher free-carrier density in A2018 compared to A2017, the target values being 5.2E17 and 2.3E18 cm -3, respectively. 73
74 Optical constants of AlAsSb AlAsSb-ReflMIR 0.40 A2017 REFLECTIVITY A WAVENUMBER (cm -1 ) The MIR spectra of GaSb/AlAsSb/GaSb samples are dominated by the interference within the ternary layer, with possible inclusion of the light reflected on the backside of the (transparent) substrate. 74
75 Optical constants of AlAsSb Ava_AlAsSb-ReflNIRa 0.45 A2017 d AlAsSb = nm d cap = nm A2018 d AlAsSb = nm d cap = nm REFLECTIVITY PHOTON ENERGY (ev) The NIR spectra of GaSb/AlAsSb/GaSb are free from the spurious reflections on the backside of the substrate; they are suitable for a precise determination of film thicknesses from the fits (lines) of the measured data (symbols) using the twolayer GaSb-AlAsSb-GaSb(cap) system. 75
76 Optical constants of AlAsSb R595 (Montpellier) d AlAsSb = nm d cap = nm Ava_AlAsSb-ReflNIRm REFLECTIVITY PHOTON ENERGY (ev) The NIR spectra of GaSb/AlAsSb/GaSb samples are free from the spurious reflections on the backside of the substrate; they are suitable for a precise determination of film thicknesses from the fits (lines) of the measured data (symbols) using the twolayer GaSb-AlAsSb-GaSb(cap) system.m Note the higher-lying envelope for the R595 sample, which is due to the thicker cap layer. 76
77 Optical constants of GaSb:Te and AlAsSb and evaluation of effective DBR layer thickness Summary of the target and optically measured film thicknesses Film thickness d in nm ====================== (error estimate in nm in parantheses) epilayers GaSb:Te/GaSb sample Te_content d(growth) d(optical) A1978 5E (10) A E (25) A1985 1E (20) A1986 4E (30) epilayers GaSb_subs/AlAsSb/GaSb_cap AlAsSb GaSb_cap sample d(growth) d(optical) d(growth) d(optical) A (2) (0.2) A (2) (0.2) 77
78 Noise measurement I-V and noise characteristics have been measured on NEMIS samples A 1847 and A 1853 (CW lasers from WSI) and A 1883 and A 1884 (pulsed laser from UM2). All these lasers were supplied on a provisional TO 46 headers with an optical window I-V characteristics: 10-3 I F / A A1884 A1883 A1853 A1847 T=300K U F / V 78
79 Noise measurement Results of noise measurements: S u / V 2 s A1853 T=300K f =1kHz 100k 10k 1k S u / V 2 s A1883 T=300K f =1kHz 100k 10k 1k U F / V U F / V 79
80 High resolution absorption spectra of CH 4 and CO measurement for WSI and Siemens According demands from WSI and Siemens absorption spectra of selected gases CH 4 and CO (CO 2 is under investigation) within the NEMIS spectral range were measured at lower and higher pressures at wavenumbers between 2000 and 6200 cm -1 with resolution of 0.01 or 0.02 cm -1. We have used spectrometer Brucker IFS 120 (highest resolution cm -1 was not necessary to use). Gas pressures were from 1.5 to 60 torr. Influence of pressure up to 1 bar in the NEMIS spectral range on width of absorption lines will be studied during the third year of the project. 80
81 High resolution absorption spectra of CH4 and CO measurement for WSI and Siemens [ m] Torr A=A Torr A=A Torr A=A Torr W [cm ] [ m] CO 1.4 A [arb. u.] A [arb. u.] Absorption spectra of selected gases were measured at low pressures and wavenumbers between 2000 and 6200 cm-1 CH Torr A=A Torr A=A Torr W [cm ] 81
82 High resolution absorption spectra of CH 4 and CO measurement for WSI and Siemens [ m] CH Torr A=A Torr A=A Torr A=A Torr [ m] CH4 A [arb. u.] A [arb. u.] Torr A=A Torr A=A Torr A=A Torr W [cm -1 ] [ m] W [cm -1 ] CH4 A [arb. u.] Torr A=A Torr A=A Torr A=A Torr W [cm -1 ] 82
83 High resolution absorption spectra of CH 4 and CO measurement for WSI and Siemens [ m] CO [ m] CO A [arb. u.] 1.0 A [arb. u.] Torr A=A Torr A=A Torr W [cm -1 ] Torr A=A Torr A=A Torr [ m] [ m] CO W [cm -1 ] CO 1.0 A [arb. u.] A [arb. u.] Torr A=A Torr A=A Torr Torr A=A Torr A=A Torr W [cm -1 ] W [cm -1 ]
84 Laser ageing measurement
85 Laser ageing measurement Time dependence of optical power output of studied pulse lasers. 2.4 A mA A mA 1 s/100khz Output Power [a.u.] TIME [hours] 85
86 Laser ageing measurement Glued pulse laser instability during first 500 hours A1884 1us/100kHz/30mA T T T T T :15 10:15 h :00 10:00 h A1883 1us/100kHz/40mA T T T T T :00-11:00 h :15 11:15 h :15 11:15 h :50 11:50 h :00 10:00 h :15 11:15 h. STABILITY [mv] :15 10:15 h :15 10:15 h. STABILITY [mv] :30 11:30 h :30 9:30 h :30 15:30 h. STABILITY [mv] A1883 1us/100kHz/40mA T T T T T TIME [s] :15 12:15 h TIME [s] :00 11:00 h TIME [s] 86
87 Laser ageing measurement Laser instability significantly decreases after 500 hours A1884 1us/100kHz/30mA T T A1883 1us/100kHz/40mA T T T T7 [mv] A1883 1us/100kHz/40mA T T3 STABILITY [mv] :00 10:00 h :00 10:00 h. STABILITY [mv] :00 11:00 h :00 11:00 h :00 11:00 h :15 11:15 h. STABILITY [mv] :00 11:00 h TIME [s] :15 10:15 h TIME [s] :00 11:00 h TIME [s] 87
88 WSI L-I-V measurement Light output-current-voltage (L-I-V) curve Temperature dependent L-I curve Information of the mode-gain offset Differential series resistance Differential quantum efficiency 88
89 WSI L-I-V measurement Photograph showing the schematic representation of L-I-V measurement setup. 89
90 WSI Spectra Measurement Vertex 70 FTIR (Bruker Optics GmbH) Spectra measurements with high resolution SMSR (Side Mode Suppression Ratio) Stopband of the DBR Characterization of the PL samples 90
91 WSI XRD Measurement Intens ity (cts /c) 10 4 Substrate AlS b/gas b 10 3 DBRs Active region QW (degree) Calibration of the MBE growth rate Control of the quatum well strain Information of the material composition 91
92 Deviations from WP4 plan/measures Small delay in ageing measurement due to delay of final NEMIS laser supply. Not important for final conclusions. Not expected continuation of DBR material optical measurements, which will be continued in the third year, because interesting and publishable results can be obtained. Interesting dissemination of NEMIS related results, which can be interesting for other researchers and applicators. 92
93 WP4 deliverables/milestones No deliverables or milestones in WP4 for this second year period. 93
94 WP4 near term plans MBE in-situ and ex-situ characterisations:wsi and UM2 the same as during the second year Specific diagnostic and more precise characterisation: IOP with collaboration of WSI and UM2 - optical constants of Bragg mirror materials - GaSb:Te - measurement of the noise of lasers: IOP Ageing of laser sets: IOP, lasers supplied by VERTILAS, WSI and UM2 - work on the standard (industrial) degradation equipment VERTILAS Laser absorption spectroscopy (LAS) measurements: IOP laser emission parameters change during ageing preparation of calibration of VCSELs by LAS exact measurement of selected gases at higher pressures
95 Comments Equipment, characterisation and diagnostic methods, results and conclusions which were incorporated in WP4 report by other partners will be (were) presented in detail by them during this meeting. Thank you for your attention 95
96 Appendix 4 The NEMIS Project details
97 Devices processing 1 Au/Ge/Ni top contact deposition 2 Wet etching 3 Isolation 4 Contact report 5 Substrate thinning and Au/Ge/Ni bottom contact deposition Simple and fast process InAsSb stop etch => wall etching Ring electrodes with several internal diameters : 10µm, 20µm, 40µm, 80µm and 160µm
98 EP-VCSEL performances at 2.3 µm Threshold Current (ma) Pulsed operation 3µs / 100kHz Total diameter 60µm Temperature (K) Threshold Current Density (A/cm 2 ) Voltage (V) C 13 C 15 C 17 C 19 C 20 C Current density (A/cm 2 ) CW Current (ma) 1 Optical power (arb.un.) Normalized optical power (db) C CW I=0.31nm/mA Wavelength (µm) 28 ma 29mA 30 ma 31mA 32 ma Pulsed operation (3 µs/100 khz) : Operation above 300K (J th ~0.6 ka/cm 2 ) J th min (0.3 ka/cm 2 250K CW operation : Maximum temperature 293K I th (CW) ~ 1 ka/cm 284K Wavelength shift Δλ/ΔI = 0.31 nm/ma
99 VCSEL Design p-contact dielectrical mirror: 4 x Si / SiO 2 (R = 99.7%) light active region: 5 Ga 0.63 InAsSb 0.89 quantum wells Al 0.33 GaAsSb 0.97 barriers (1.6% lattice mismatch) epitaxial mirror: 24 x AlAsSb / GaSb (R = 99.8%) n-gasb substrate n-contact buried tunnel junction (BTJ)
100 BTJ active region VCSEL Design - Field distribution epitaxial DBR 3 -cavity dielectric DBR position refractive index E 2
101 VCSEL Results L-I-V Characteristics voltage (V) C 30 C 40 C -10 C 0 C 10 C T h 50 C output power (µw) 8 µm curre nt (ma) continuous wave operation up to C: I th = 2.3 ma j th, eff = 2.0 ka / cm 2 U th = 0.85 V P max = 79 µw
102 CO Detection with GaSb-based BTJ-VCSEL normalized second harmonic spectrum (a.u.) measured fit wavelength (µm) 57 ppm CO * Wavelength Modulation Spectroscopy (WMS): small-signal wavelength modulation (f = 10 khz) superimposed on a constant bias I 0 = 7 ma * Jia Chen et al. Siemens Corporate Technology, Power & Sensor Systems first gas absorption measurements have been performed 57 ppm CO 2.33 µm by Siemens Corporate Technology
103 Appendix 5 MOVPE laboratory MIR co-operations 1) ČVUT Praha FEL 13) ÚRE/ÚFE AVČR Praha 2) VUT Brno FStavební 14) Univ. Porto, Portugal 3) Montpellier University, France 15) S-Y-S University, Kao-Shung, Taiwan 4) NanoPLUS, Germany 5) VŠCHT Praha - FCHI - ÚFCH 6) EMF Limited, UK 7) ÚFCH AVČR Praha 8) MU Brno - PřF - ÚFPF 9) EU SAV Bratislava Slovakia 10) Budapešť, Hungary 11) FTI A.F.Ioffe St. Petersburg Russia 12) MFF UK Praha Red = MidInfrared, (Partly) Blue - other cooperations (QD mainly)
104 Sylabus dvouhodinové semestrální přednášky "Nanotechnologie"pro obor bakalářského studia "Fyzikální inženýrství" zaměření "Fyzika nanostruktur" Eduard Hulicius, Laboratoř MOVPE, Oddělení polovodičů, Fyzikální ústav AV ČR, v. v. i. Praha 6, Cukrovarnická 10 ttp:// a 5. Polovodičové detektory záření: Solární fotovoltaické články, detektory s kvantovými tečkami. Fotovoltaický jev, zvyšování účinnosti přeměny světelné energie na elektrickou pomocí nanostruktur, různé typy fotovoltaických článků - nové zdroje elektrické energie. Rekordní účinnosti, perspektivy a omezení. Aplikace fotovoltaiky v kosmu, termofotovoltaika a ostatní okrajové využití. Informace a poznatky z práce Pačesovy energetické komise. Pohled na fotovoltaiku z hlediska fyzikálního, nikoliv ekonomického či ideologického.
105 Děkuji za pozornost
