1 SN SX

2

3 Table of contts 8 Intded use ( Safety instructions Before you switch ON the appliance Delivery Installation In daily use Door lock Button lock Damage Disposal Protection of the vironmt Packaging Old appliances * Getting to know your appliance Control panel Appliance interior Overview of mu Water softing system/ Special salt Setting Water hardness table Using special salt Detergts with salt compont Switching off water softing system , Rinse aid Setting amount of rinse aid Switching off rinse aid refill indicator Utsils Not suitable Glass and utsil damage Loading the dishwasher Unloading the dishwasher Cups and glasses Pans Cutlery basket Etagere Folding spikes Small accessories holder Knife shelf Adjusting the height of the basket Detergt Adding detergt Combination detergt / Overview of programmes Programme selection Information for test institutes Additional options Vario Eco Half load Extra drying HygiePlus

4 Intded use 1 Operating the appliance Programme data Aqua ssor Switching on the appliance Remaining running time display Timer programming End of programme Automatic switch off / interior light Switching off the appliance Interrupting the programme Terminating the programme Changing the programme Intsive drying Cleaning and maintance Overall condition of the machine Special salt and rinse aid Filters Spray arms Fault, what to do? Waste water pump Fault table Customer service Installation and connection.. 37 Product package Safety instructions Delivery Technical specifications Installation Waste-water connection Drinking water connection Warm water connection Electrical connection Removing the appliance Transportation Protection against frost (Emptying the appliance) Intded use Intdeduse This appliance is intded for use in the home and domestic vironmts. Use the dishwasher only in the home and only for its designated purpose: for washing domestic dishes. This appliance is intded for use up to a maximum altitude of 4000 metres above sea level. ( Safety instructions Safetyinstructions This appliance may be used by childr over the age of 8 years old and by persons with reduced physical, ssory or mtal capabilities or by persons with a lack of experice or knowledge if they are supervised or are instructed by a person responsible for their safety how to use the appliance safely and have understood the associated hazards. Childr must not play with, on, or around the appliance. Childr must not clean the appliance or carry out geral maintance unless they are at least 8 years old and are being supervised. 4

5 Safety instructions Keep childr below the age of 8 years old at a safe distance from the appliance and power cable. Before you switch ON the appliance Please read the instructions for use and installation carefully. They contain important information on how to install, use and maintain the appliance. Retain all documts for later use or for the subsequt owner. You can download the instructions for use from our website free of charge. The relevant Internet address can be found overleaf on these instructions for use. Delivery 1. Check the packaging and dishwasher immediately for damage caused in transit. Do not switch on a damaged appliance, but contact your supplier. 2. Please dispose of the packaging material in an vironmtally fridly manner. 3. Do not let childr play with packaging and its parts. There is a risk of suffocation from collapsible boxes and film. Installation Following installation, sure that the back of the dishwasher is not freely accessible (protection against contact due to hot surface). Install and connect the appliance according to the installation and assembly instructions. Prior to installation, disconnect the dishwasher from the power supply. Ensure that the protective conductor system of the domestic supply has be correctly installed. The electrical connection conditions must correspond with the specifications on the dishwasher rating plate 9:. If the power cord of this appliance is damaged, it must be replaced with a particular power cord. To prevt injury, the power cord may be purchased from customer service only. If the dishwasher is installed in a high-sided unit, the unit must be secured properly. 5

6 Safety instructions If the dishwasher is installed below or above other domestic appliances, follow the information for installation in combination with a dishwasher in the installation instructions for the particular appliances. Also follow the installation instructions for the dishwasher to sure that all appliances are operated safely. If there is no information or if the installation instructions do not include the appropriate information, contact the manufacturer of these appliances to sure that the dishwasher can be installed above or below these appliances. If you cannot obtain any information from the manufacturer, you must not install the dishwasher above or below these appliances. If you install a microwave ov above the dishwasher, the microwave ov may be damaged. Install built-under or integratable appliances only under continuous worktops which have be screwed to adjact cupboards to sure stability. Do not install the appliance near heat sources (radiators, heat storage tanks, cookers or other appliances which gerate heat) and do not install under a hob. Please note that the insulation material of the dishwasher power cord may melt next to heat sources (e.g. heating / hot water installations) or hot appliance parts. Make sure that the power cord of the dishwasher never comes into contact with heat sources or hot appliance parts. After installing the appliance, sure that the plug is easily accessible. (See Electrical connection) Some models: The plastic housing on the water connection contains an electric valve, the connecting cables are in the supply hose. Do not cut through this hose, do not immerse the plastic housing in water. In daily use Read and observe the safety information and instructions for use on the packaging for cleaning and rinsing agts. 6

7 Safety instructions Childproof lock (door lock)door * The description of the childproof lock is at the back in the velope. * depding on model Childproof lock (button lock)button lock You can secure your appliance from being uninttionally the programme terminated (e.g. improper operation by childr). Activating the button lock: 1. Start the required programme. 2. Hold down the button + for approx. 4 sec. until this is indicated on the digital display. If any button is pressed while the programme is running, this is indicated on the digital display. It is not possible to d (Reset) the programme. Deactivating the button lock: Damage The appliance may be repaired and oped up by a technician only. To do this, disconnect the appliance from the power supply. Pull out the mains plug or switch off the fuse. Turn off the tap. If the appliance is damaged, especially the fascia (cracks, holes, brok buttons), or the door function is impaired, stop operating the appliance. Pull out mains plug or switch off fuse. Turn off tap, call customer service. Disposal 1. Make redundant appliances unusable to prevt subsequt accidts. 2. Dispose of the appliance in a n vironmtally fridly manner. Hold down the button + for approx. 4 sec. until the display goes out. Wh the programme ds ( : on the digital display), the button lock is cancelled. If there is a power failure, the button lock is retained. Whever a programme is restarted, the button lock must be reactivated. 7

8 Safety instructions m Warning Risk of injury! To prevt injuries, e.g. caused by stumbling, op the dishwasher only briefly in order to load and unload the dishwasher. Knives and other utsils with sharp points must be placed in the cutlery basket with the points downwards or horizontally on the knife shelf*. Do not lean or sit on the op door. In the case of free-standing appliances, sure that the baskets are not overloaded. If the appliance is not in a cavity and a side panel is accessible, the door hinge area must be covered at the side for reasons of safety (risk of injury). The covers are available as optional accessories from customer service or specialist outlets. * depding on model m Warning Risk of explosion! Do not add any solvts to the washing chamber. Danger of explosion! m Warning Risk of scalding! Op the door carefully wh the programme is still running. There is a risk of hot water spraying out of the appliance. m Warning Risks to childr! If fitted, use the childproof lock. An exact description can be found in the back of the ve lope. Do not allow childr to play with or operate the appliance. Keep childr away from detergts and rinse aid. These may cause chemical burns in the mouth, throat and eyes or asphyxiation. 8

9 Protection of the vironmt Keep childr away from op dishwasher. There may be small parts in the dishwasher which childr could swallow and the water inside the dishwasher is not drinking water as it may contain detergt residue. Ensure that childr do not place fingers in the tablet collecting tray 1:. Small fingers could become caught in the slots. Wh oping and closing the door on an eye-level appliance, sure that childr do not become jammed or crushed betwe the appliance door and the cupboard door below. Childr could become locked in the appliance (danger of suffocation) or get into another dangerous situation. Redundant appliances: Pull out the mains plug, sever and dispose of the power cord. Destroy the door lock so that the door can no longer be closed. 7 Protection of the vironmt Protectionofthevironmt Both the packaging of new appliances and the old appliances themselves contain valuable raw materials and recyclable materials. Please dispose of the individual parts separated according to type. Please ask your dealer or inquire at your local authority about currt means of disposal. Packaging All plastic parts of the appliance are idtified with internationally standardised abbreviations (e.g. >PS< polystyre). Therefore, plastic waste can be sorted out wh the appliance is being disposed of. Please follow the safety instructions under Delivery. Old appliances Please follow the safety instructions under Disposal of your appliance. This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipmt - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU 9

10 Getting to know your appliance * Getting to know your appliance Gettingtoknowyourapliance Diagrams of the control panel and the interior of the appliance can be found in the velope at the front. Individual positions are referred to in the text. Control panel ( ON/OFF switch 0 Programme buttons ** 8 Door Timer programming * H Additional options ** P START button X Display Check water supply ` Salt refill indicator h Rinse aid refill indicator )" Digital display * depding on model ** Number depding on model Appliance interior 1" Interior light * 1* Top basket 12 Knife shelf * 1: Tablet collecting tray 1B Top spray arm 1J Bottom spray arm 1R Dispser for special salt 1Z Filters 1b Cutlery basket 1j Bottom basket 9" Dispser for rinse aid 9* Detergt dispser 92 Lock for detergt dispser 9: Rating plate * depding on model Overview of mu The settings can be found in the individual chapters. Water Hardness : - : ˆ š Intsive drying š: - š: Rinse aid : - : Hot water : - : * Automatic disconnection : - : ƒ * depding on model 10

11 Water softing system/special salt + Water softing system/special salt Watersoftingsystem/Special salt To sure good washing results, the dishwasher requires soft water, i.e. containing low amounts of lime, otherwise white limescale will be deposited on the utsils and inner container. Tap water above 1.2 mmol/l must be softed. The water is softed with special salt (regeration salt) in the water softing system of the dishwasher. The setting and therefore the required amount of salt depds on the degree of hardness of your tap water (see table). Setting The amount of salt dispsed can be set from : to : ˆ. Salt is not required at the set value :. 1. Find out about the hardness value of your tap water. Your water utility company will help you with this. 2. Set value can be found in the water hardness table. 3. Close the door. 4. Switch on ON/OFF switch (. 5. Hold down programme button # and press START button P until :... is indicated on the digital display. 6. Release both buttons. The LED for button # flashes and the digital display )" displays the factory setting :. To change the setting: 1. Press programme button 3. Each time the button is pressed, the set value increases by one level; wh the value of : ˆ has be reached, the display jumps back to : (off). 2. Press START button P. The chos setting has now be stored. Water hardness table 11

12 Water softing system/special salt Using special salt Always refill with special salt immediately before switching on the appliance. This sures that overrun special salt solution is immediately washed out and does not corrode the rinsing tank. 1. Op the screw-type cap of the compartmt 1R. 2. Fill the tank with water (only required wh switching on the appliance for the first time). 3. Th add dishwasher salt (not table salt or tablets). The water is displaced and runs out. As soon as the salt refill indicator ` on the fascia is lit, top up the salt. Using detergts with salt compontdetergts with salt compont If combined detergts with a salt compont are used, salt can usually be omitted up to a water hardness of 21 dh (37 fh, 26 Clarke, 3.7 mmol/ l). If the water hardness is over 21 dh, special salt must be used. Switching off salt refill indicator/water softing systemswitching off water softing system If the salt refill indicator ` is impaired (e.g. wh using combined detergts containing salt compont), it can be switched off. Proceed as described under Adjusting the water softing system and set the value to :. The water softing system and salt refill indicator are now switched off. m Caution Never fill the salt dispser with detergt. You will destroy the water softing system. * depding on model 12

13 Rinse aid, Rinse aid Rinseaid As soon as the rinse-aid refill indicator h is lit on the fascia, there is still a rinse-aid reserve of 1-2 rinsing processes. Refill with rinse aid. The rinse aid is required for stain-free utsils and clear glasses. Use only rinse aid for domestic dishwashers. Combined detergts with rinse-aid compont may be used up to a water hardness of 21 dh (37 fh, 26 Clarke, 3.7 mmol/l) only. If the water hardness is over 21 dh, rinse aid must be used. 1. Op the dispser 9" by pressing and lifting the plate on the cover. 2. Carefully pour rinse aid up to the max. mark in the filler oping. 3. Close cover until it clicks shut. 4. To prevt excessive foam formation during the next rinse cycle, remove any rinse aid which has run over with a cloth. 13

14 Utsils Setting amount of rinse aid The amount of rinse aid can be set from : to :. Please set rinse aid on : to obtain very good drying results ( : is already set in factory). Change this setting, only if streaks (select lower setting) or water stains (select higher setting) are left on the utsils. 1. Close the door. 2. Switch on ON/OFF switch (. 3. Hold down programme button # and press START button P until :... is indicated on the digital display. 4. Release both buttons. The LED for button # flashes and the digital display )" displays the factory setting :. 5. Press programme button # until the factory set value : is indicated on the digital display )". To change the setting: 1. Press programme button 3. Each time the button is pressed, the set value increases by one level; wh the value of : has be reached, the display jumps back to : (off). 2. Press START button P. The set value is saved. Switching off rinse aid refill indicator If the rinse-aid refill indicator h is impaired (e.g. wh using combined detergts containing rinse aid compont), it can be switched off. Proceed as described under Setting amount of rinse aid and set the value to :. The rinse aid refill indicator h is now switched off. - Utsils Utsils Not suitable Cutlery and utsils made of wood. Delicate decorative glasses, craft and antique utsils. These decors are not dishwasher-proof. Plastic parts not resistant to heat. Copper and tin utsils. Utsils which are soiled with ash, wax, lubricating grease or ink. Aluminium and silver parts have a tdcy to discolour and fade during the wash cycle. Ev some types of glass (e.g. crystal glass objects) may turn cloudy after many wash cycles. Glass and utsil damage Causes: Glass type and glass production process. Chemical composition of the detergt. Water temperature of the wash programme. Recommdation: Use only glasses and porcelain which the manufacturer designates as dishwasher-proof. Use a detergt which protects utsils. Take glass and cutlery out of the dishwasher as soon as possible after the programme ds. 14

15 Utsils Loading the dishwasher 1. Remove large food remnants. It is not necessary to prerinse utsils under running water. 2. Place the utsils so that they are secure and cannot tip over. all utsils with their opings face down. parts with curves or indtations are at an angle, thereby allowing water to drain. does not obstruct rotation of the two spray arms 1B and 1J. Very small utsils should not be washed in the machine, as they may fall out of the baskets. Unloading the dishwasher To prevt water from dripping off the upper basket onto the utsils in the lower basket, it is recommded to empty the appliance from the bottom up. Hot utsils are ssitive to shock! Therefore, wh the programme ds, leave the utsils to cool down in the dishwasher until they can be handled. Note Wh the programme ds, water droplets can still be se inside the appliance. This does not affect the drying of the utsils. Cups and glasses Top basket 1* Note Utsils must not be placed above the tablet collecting tray 1:. These may block the lid of the detergt dispser and prevt it from oping fully. 15

16 Utsils Pans Bottom basket 1j Cutlery basket You should always place cutlery unsorted with the points downwards. To prevt injuries, place long, pointed implemts and knives on the knife shelf. Tip Heavily soiled utsils (pans) should be placed in the bottom basket. The more powerful spray jet provides a better dishwashing result. Tip Other examples, such as the best way of loading your dishwasher, can be found on our homepage as a free download. The corresponding Internet address can be found on the back page of these instructions for use. EtagereEtagere * The etagere and the space underneath can be used for small cups and glasses or for larger items of cutlery, such as wood spoons or serving cutlery. The etagere can be folded up if not required. * Depding on the model, a 3-fold height adjustmt is possible. To do this, first place the etagere vertically and pull up, th place at a slight angle, push down to the required height (1, 2, or 3) and snap into place. 16

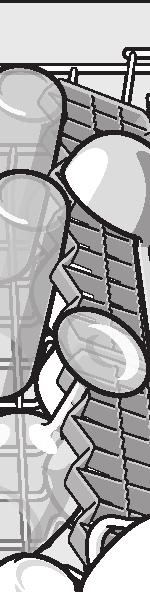

17 Utsils Folding spikesfolding spikes * * depding on model The spikes can be folded down to improve arrangemt of pans, bowls and glasses. Knife shelf *Knife shelf * depding on model Long knives and other utsils can be arranged horizontally. Small accessories holder *Small * depding on model Light-weight plastic accessories, e.g. cups, lids, etc. can be held securely in the small accessories holder. accessories holder Adjusting the height of the basketadjusting the height of the basket * * depding on model If required, the height of the upper utsils basket 1* can be adjusted to provide more space for tall utsils either in the upper or lower basket. Appliance height 81.5 cm Appliance height 86.5 cm Top basket Bottom basket Setting 1 max. ø 22 cm 30 cm Setting 2 max. ø 24.5 cm 27.5 cm Setting 3 max. ø 27 cm 25 cm Top basket Bottom basket Setting 1 max. ø 24 cm 33 cm Setting 2 max. ø 26.5 cm 30.5 cm Setting 3 max. ø 29 cm 28 cm Select one of the two following procedures according to the design of the top basket for your appliance model: 17

18 Detergt Top basket with side levers 1. Pull out the top basket 1* out. 2. To lower the basket, press in the left and th the right lever on the outside of the basket. In doing so, hold the sides of the basket along the upper edge to prevt it from suddly dropping. 3. To raise the basket, hold the basket on the sides of the upper edge and lift it up. 4. Before re-inserting the basket again, sure that it is at the same height on both sides. Otherwise, the appliance door cannot be closed and the upper spray arm will not be connected to the water circuit.. Detergt Detergt You can use tablets as well as powder or liquid detergts for dishwashers, but never use washing-up liquid. The dosage can be individually adjusted with powder or a liquid detergt according to the degree of soiling. Tablets contain an adequately large amount of active ingredits for all cleaning tasks. Modern, powerful detergts predominantly use a low-alkaline formulation with zymes. Enzymes break down starch and remove protein. To remove coloured stains (e.g. tea, ketchup), oxyg-based bleaching agts are gerally used. Note To sure a good washing result, always follow the instructions on the detergt packaging! If you have further questions, we recommd that you contact the detergt manufacturers helpline. m Warning Read and observe the safety information and instructions for use on the packaging for cleaning and rinsing agts. Top basket with upper and lower roller pairs 1. Pull out the top basket 1* out. 2. Remove the upper basket and reattach it to the upper (stage 3) or lower (stage 1) rollers. 18

19 Detergt Adding detergt 1. If the detergt dispser 9* is still closed, press the lock 92 to op the detergt dispser. Pour detergt into the dry detergt dispser 9* only (insert tablet flat, not on its edge). Dosage: see manufacturer s instructions on the packaging. The graduated detergt dispser 9* helps you add the correct amount of powder or liquid detergt. Usually 20 ml 25 ml are adequate for normal soiling. If using tablets, one tablet is adequate. 2. Close the cover on the detergt dispser by sliding it up until the lock gages without difficulty. The detergt dispser ops automatically at the optimum time depding on the programme. The powder or liquid detergt is distributed in the appliance and is dissolved, the tablet falls into the tablet collecting tray where it dissolves in doses. Tip If the utsils are only lightly soiled, slightly less than the indicated amount of detergt is usually adequate. Suitable detergts and care products can be purchased online via our website or via customer service (see back page). 19

20 Detergt Combination detergt Apart from convtional detergts (Solo), a number of products are offered with additional functions. These products contain not only the detergt but also rinse-aid and salt replacemt substances (3in1) and, depding on the combination (4in1, 5in1, etc.), additional componts such as glass protection or stainless steel cleaner. Combination detergts function only up to a specific degree of hardness (usually 21 dh). Over this limit salt and rinse-aid must be added. As soon as combined detergts are used, the rinse programme is adjusted automatically to sure the best possible rinsing and drying result. m Warning Do not place small parts for washing in the tablet collecting tray 1:; this prevts the tablet from dissolving evly. m Warning If you want to add more utsils after the programme has started, do not use the tablet collecting tray 1: as a handle for the upper basket. The tablet could already be there and you will touch the partially dissolved tablet. Notes You will obtain optimum rinsing and drying results by using solo detergts and applying salt and rinse aid separately. If programmes are short, tablets may not have full cleaning effect due to differt dissolving properties and there may ev be undissolved detergt residue. It is recommded to use washing powder for these programmes. The Intsive programme (on some models) requires one tab only. Wh using washing powder, you can apply some of this cleaning agt to the inside of the appliance s door. Ev if the rinse-aid and/or salt refill indicator is lit, the rinse programme will run correctly with combined detergts. If using detergts in a water-soluble protective cover: Take hold of the cover with dry hands only and put the detergt into an absolutely dry detergt dispser only, otherwise the detergt may stick. If you switch from combined detergts to solo detergts, sure that the water softing system and amount of rinse aid have be set to the correct value. 20

21 Overview of programmes / Overview of programmes Overviewofprogrames The max. possible number of programmes is illustrated in this overview. The corresponding programmes and their arrangemt can be found on the fascia. Type of utsils Type of soiling Programme Possible additional options pots and pans, non-ssitive utsils and cutlery mixed utsils and cutlery ssitive utsils, cutlery, temperaturessitive plastic and glasses all types of utsils very adhesive burnedin or dried-on food remnants containing starch or protein part dried, common household food remnants slightly adhesive, fresh food remnants cold rinsing, intermediate cleaning ± / Intsive Plus 70 Ù / Ø Express Sparkle 65 Á Auto â / à Eco 50 ñ / ð Quick 45 ù / ø Prerinse all all all all Extra drying none Programme sequce Pre-rinse Clean 70 Intermediate rinse Final rinse 72 Drying Pre-rinse Clean 65 Intermediate rinse Final rinse 65 Drying Is optimised according to the soiling with the aid of ssors. Prerinse Clean 50 Intermediate rinse Final rinse 65 Drying Clean 45 Intermediate rinse Final rinse 55 Prerinse 21

22 Additional options Programme selection You can select a suitable programme according to the type of utsils and degree of soiling. Information for test institutes Test institutes receive the information for comparability tests (e.g. according to EN60436). These are the conditions for conducting the tests, however these are not the results or consumption values. Request by to: dishwasher@test-appliances.com The product number (E no.) and the production number (FD) are required which you can find on the rating plate 9: on the appliance door. 0 Additional options Aditional options * depding on model Additional options can be set with the buttons H. Vario Eco *Vario Eco Water and ergy consumption can be reduced with the Vario Eco function. The running time is extded for optimum cleaning and drying results. Half load Half load * If you have only a few items to wash (e.g. glasses, cups, plates), you can switch to half load. This will save water, ergy and time. It is recommded to put a little less detergt in the detergt dispser than for a full load. Extra drying *Extra An increased temperature during the final rinse and an extded drying phase sure that ev plastic parts dry better. There is a slight increase in the ergy consumption. drying μ HygiePlus *HygiePlus This function increases the temperatures and retains them for an extra long time to obtain a defined disinfection performance. Continuous use of this function increases the hygie status. This additional option is ideal for cleaning e.g. chopping boards and baby bottles. 22

23 Operating the appliance 1 Operating the appliance Operatingtheapliance Programme data The programme data (consumption values) can be found in the summary of instructions. They refer to normal conditions and the water hardness set value :. Differt influcing factors such as e.g. water temperature or line pressure may result in deviations. Aqua ssoraqua ssor * * depding on model The Aqua ssor is an optical measuring device (light barrier) which measures the turbidity of the rinsing water. The Aqua ssor is used according to the programme. If the Aqua ssor is active, clean rinsing water can be transferred to the next rinse bath and water consumption can be reduced by 3 6 litres. If the turbidity is greater, the water is drained and is replaced with fresh water. In the automatic programmes the temperature and running time can also be adjusted to the degree of soiling. Switching on the appliance 1. Turn on the tap fully. 2. Switch on ON/OFF switch (. The Intsive Plus programme display flashes. This programme remains selected if no other programme button 0 is pressed. The expected programme duration flashes on the digital display )". 3. Press the START button P. The programme starts running. Remaining running time display Wh the programme is selected, the remaining running time of the programme is indicated on the digital display )". The running time is determined during the programme by the water temperature, the number of utsils as well as the degree of soiling and may vary (depding on the selected programme). Timer programmingtimer programming * * depding on model You can delay the start of the programme in 1-hour steps up to 24 hours. 1. Close the door. 2. Switch on ON/OFF switch (. 3. Press + until the digital display )" jumps to œ: or button until the displayed time corresponds with your requiremts. 5. Press START button P, timer programming is activated. 6. To delete timer programming, press + or button until )" œ: is indicated on the digital display. You can change your programme selection at any time until the programme starts. 23

24 Operating the appliance End of programme The programme has ded wh the value : is indicated on the numerical display )". Automatic switch off after d of programme or interior light*automatic switch off / interior light * depding on model To save ergy, the dishwasher can be automatically switched off 1 min or 120 min after the programme ds. The setting can be selected from : to : ƒ. : Appliance does not switch off automatically. The interior light 1" comes on wh the door is oped irrespective of whether the ON/OFF switch ( is switched on or off. Wh the door is closed the light is off. If the door is op for longer than 60 min., the light switches off automatically. The interior light 1" is lit only wh the set value : is selected. : Appliance switches off after 1 min. : ƒ Appliance switches off after 120 min. Note Note that with the settings : and : ƒ, the interior light 1" is switched off. To activate the interior lighting, press the ON/OFF switch (.If the door is op for longer than 60 minutes, the light will switch off automatically. 1. Close the door. 2. Switch on ON/OFF switch (. 3. Hold down programme button # and press START button P until :... is indicated on the digital display. 4. Release both buttons. The LED for button # flashes and the digital display )" displays the factory setting :. 5. Keep pressing programme button # until the value :... is indicated on the numerical display )". To change the setting: 1. Press programme button 3. Each time the button is pressed, the set value increases by one level; wh the value of : ƒ has be reached, the display jumps back to :. 2. Press START button P. The set value is saved. 24

25 Operating the appliance Switching off the appliance Short time after the d of the programme: 1. Switch off ON/OFF switch (. 2. Turn off the tap (not applicable if Aqua-Stop fitted). 3. Remove the utsils wh they have cooled down. Note Wh the programme ds, leave the appliance to cool down a while before oping it. This will prevt steam from escaping and causing longterm damage to your built-in furniture. Interrupting the programme 1. Switch off ON/OFF switch (. The LEDs go out. The programme is saved. If the door was oped on an appliance which has a warm water connection or is heated, first leave the door ajar for several minutes and th close. Otherwise, expansion (pressure) may cause the appliance door to spring op or water to run out of the appliance. 2. To continue the programme, switch on the ON/OFF switch ( again. Terminating the programmeterminating the programme (Reset) Changing the programme Wh the START button P has be pressed, the programme cannot be changed. The only way a programme can be changed is by Cancel programme (Reset). Intsive drying The final rinse uses a higher temperature which improves the drying result. The running time may increase slightly. (Caution if utsils are delicate!) 1. Close the door. 2. Switch on ON/OFF switch (. 3. Hold down programme button # and press START button P until the digital display )" :... is indicated. 4. Release both buttons. The LED for button # flashes and the digital display )" displays the factory setting :. 5. Press programme button # until the factory set value š: is indicated on the digital display )". To change the setting, 1. Press the button 3 to switch the Intsive drying on š: or off š:. 2. Press START button P. The set value is saved. 1. Press START button P for approx. 3 sec. The numerical display )" indicates :. 2. The programme sequce lasts approx. 1 min. On the digital display )" is indicated :. 3. Switch off ON/OFF switch (. 25

26 Cleaning and maintance 2 Cleaning and maintance Cleaningandmaintance A regular inspection and maintance of your machine will help to prevt faults. This saves time and prevts problems. Overall condition of the machine Check spray arm for grease and limescale deposits. If you find such deposits: Fill detergt dispser with detergt. Start the appliance without utsils in the programme with the highest rinsing temperature. Clean the appliance with detergts/ appliance cleaners which are particularly suitable for use with dishwashers. To extd the life of your appliance, clean the appliance regularly with a special dishwasher detergt. To sure that the door seal always remains clean and hygiic, regularly clean it with a damp cloth and a little washing-up liquid. If the appliance is switched off for a prolonged period, leave the door ajar to prevt the formation of an unpleasant odour. Never use a steam cleaner to clean your dishwasher. The manufacturer is not liable for any consequtial damage. Regularly wipe the front of the appliance and fascia with a damp cloth; water and a little washing up liquid are adequate. Do not use sponges with a rough surface or abrasive detergts, as these could scratch the surfaces. Stainless steel appliances: To prevt corrosion, avoid using sponge cloths or wash them out thoroughly several times before using for the first time. m Warning Health hazard Never use other domestic detergts, e.g. containing chlorine! Special salt and rinse aid Check the refill indicators ` and h. If required, refill salt and/or rinse aid. 26

27 Cleaning and maintance Filters The filters 1Z keep large foreign objects in the rinsing water away from the pump. These foreign objects may occasionally block the filters. The filter system consists of a coarse filter, a flat fine filter and a microfilter. 1. After each washing cycle check the filters for residue. 2. Unscrew filter cylinder as illustrated and take out filter system. Spray arms Limescale and contaminants in the rinsing water may block nozzles and bearings on the spray arms 1B and 1J. 1. Check outlet nozzles on the spray arms for blockages. 2. Unscrew the upper spray arm 1B. 3. Remove the lower spray arm 1J upwards. 4. Clean spray arms under running water. 5. Re-gage or screw on spray arms. 3. Remove any residue and clean filters under running water. 4. Re-install filter system in reverse sequce and sure that the arrow marks are opposite each other after closing the filter system. 27

28 Fault, what to do? 3 Fault, what to do? Fault, what todo? Experice has shown that you can rectify most faults which occur in daily operation yourself. This sures that the machine is quickly available to you again. In the following overview you can find possible causes of malfunctions and helpful information for rectifying them. Note If the appliance stops during dishwashing or does not start for no obvious reason, first run the Abort programme function (Reset). (See chapter titled Operating the appliance ) m Warning Don t forget: Repairs may be carried out by technicians only. If a compont has to be replaced, sure that only original spare parts are used. Improper repairs or use of non-original spare parts may cause considerable damage and put the user at considerable risk. Waste water pump Large food remnants or foreign objects which were not captured by the filters may block the waste water pump. The rinsing water will th be above the filter. m Warning Risk of cuts! Wh cleaning the waste water pump, sure that you do not injure yourself on pieces of brok glass or pointed implemts. In this case: 1. First always disconnect the appliance from the power supply. 2. Take out top basket 1* and bottom basket 1j. 3. Remove the filters 1Z. 4. Scoop out water, use a sponge if required. 5. Prise out the white pump cover (as illustrated) using a spoon. Grip the cover on the crosspiece and lift diagonally inwards. Remove cover completely. 6. Check impeller wheel and remove any foreign objects. 7. Place cover in the original position and press down until it gages (click). 8. Install filters. 9. Re-insert baskets. 28

29 Fault, what to do? Fault table Fault Cause Remedial action Check water supply Supply hose kinked. Install supply hose without kinks. display X lights up. Tap turned off. Turn the tap on. Tap jammed or calcified. Turn the tap on. Flow rate must be min. 10 l/min. wh water supply is op. Filter in the water supply blocked. Switch off the appliance and pull out the mains plug. Turn off the tap. Unscrew water connection. Error code : ˆ is lit. Error code : ƒ is lit. Fault code : is lit. Fault code : is lit. Fault code : is lit. Error code :ƒƒ is lit. Error code :ƒ is lit. Intake oping (on right inside of appliance) covered by utsils. Heating elemt calcified or soiled. Water protection system activated. Constant water inflow. Filters 1Z are soiled or blocked. Waste-water hose kinked or blocked. Siphon connection still sealed. Cover on the waste water pump loose. Clean filter in the supply hose. Screw water connection on again. Check for leaks. Reconnect power supply. Switch on the appliance. Arrange utsils so that the intake oping is not obstructed. Clean appliance with dishwasher cleaning agt or descaler. Operate the dishwasher with water softing system and check the setting (see chapter Water softing system/special salt ). Turn off tap. Call customer service and mtion the fault code. Clean filters. (see Cleaning and maintance ). Install hose without kinks, remove any residue. Check connection to siphon and op if required. Lock cover correctly. (See Waste water pump ) 29

30 Fault, what to do? Fault Cause Remedial action Error code :ƒ is lit. Waste water pump blocked or cover on the waste water pump is Clean pump and lock cover correctly. (See Waste water pump ) not locked in position. Error code :ƒˆ is lit. Mains voltage too low. Not an appliance fault, have the mains voltage and electrical installation checked. A differt error code is indicated on the digital display. ( : to : ) A technical fault has probably occurred. Switch off appliances with the ON/OFF switch (. After a short time restart the appliance. If the problem recurs, turn off the tap and pull out the mains plug. Call customer service and mtion the error code. Display flashes. Door not closed properly. Close the door. Ensure that no objects (utsil, fragrance dispser) are protruding over the basket and prevting the door from closing. Refill indicator for salt ` No rinse aid. Refill rinse aid. and/or rinse-aid h is lit. No salt. Refill with special salt. Ssor does not detect salt tablets. Use differt special salt. Refill indicator for salt ` and/or rinse-aid h is not lit. Water is left in the appliance at the d of the programme. Refill indicator switched off. There is still ough special salt/ rinse aid available. Filter system or area under the filters 1Z is blocked. Program has not ded yet. Activation/deactivation (see chapter Water softing system/special salt or Rinse aid). Check refill indicator, levels. Clean filters and area underneath (see Waste water pump ). Wait until programme ds or reset (see Terminating the programme ). 30

31 Fault, what to do? Fault Cause Remedial action Utsils not dry. No or too little rinse aid in the Refill rinse aid. dispser. Programme selected without drying. Water collecting in depressions on the utsils and cutlery. Select programme with drying (see Overview of programmes, Programme sequce ). Arrange utsils in a sloping position, arrange affected utsils as sloping as possible. The combined detergt used has a poor drying performance Intsive drying to increase drying not activated. Utsils were removed too early or drying process had not ded yet. The eco rinse aid used has a poor drying performance. Use differt combination detergt with better drying performance. Use of rinse aid also increases the drying performance. Activate intsive drying (see Operating the appliance ) Wait until program ds or wait until 30 min after program ds before removing utsils. Use a proprietary rinse aid. Eco products are much less effective. Plastic utsils not dry. Special properties of plastic. Plastic has a lower heat storage capacity and therefore dries less well. Cutlery not dry. Appliance interior wet after rinse cycle. Cutlery not arranged properly in the cutlery basket. Cutlery not arranged properly in the cutlery drawer. No appliance fault Separate cutlery if possible, prevt contact points. Arrange cutlery properly and separate if possible. On account of the Condsation drying principle, water droplets are physically induced and required in the container. The humidity in the air condses on the inner walls of the dishwasher, drains and is pumped out. 31

32 Fault, what to do? Fault Cause Remedial action Food remnants on the utsils. Detergt residue. Utsils placed too closely together, utsils basket overfilled. Spray arm rotation obstructed. Spray arm nozzles are blocked. Filters 1Z dirty. Filters 1Z inserted incorrectly and/or not gaged. Rinse programme too weak. Utsils precleaned too intsely; ssors therefore decide on weak programme sequce. Stubborn soiling cannot be completely removed. Tall narrow receptacles in corner areas are not rinsed adequately. Top basket 1* on right and left not set to same height. Detergt dispser cover blocked by utsils and therefore does not op fully. Detergt dispser cover blocked by the tablet. Tablets used in the quick or short programme. Dissolving time of the detergt is not reached in the selected short programme. Washing effect and dissolving performance are reduced after a prolonged storage time or detergt is very lumpy. Arrange utsils with adequate clearance betwe them suring that the spray jets can reach the surface of the utsils. Prevt contact points. Arrange utsils so that the spray arm can rotate without obstruction. Clean the spray arm nozzles, (see Cleaning and maintance ). Clean filters (see Cleaning and maintance ). Insert and gage filters correctly. Select a more intsive rinse programme. Do not prerinse utsils. Remove only large food remnants. Recommded programme Eco 50 or Intsive. Do not place hollow receptacles too obliquely and do not place in the corner area. Set top basket to same height using side levers. Detergt dispser cover must not be obstructed by utsils. Do not place utsils or fragrance dispser in the tablet collecting tray. Tablet must be inserted flat and not upright. Dissolving time of tablets too long for a quick or short programme. Use a detergt powder or select a more intsive programme. Change detergt. 32

33 Fault, what to do? Fault Cause Remedial action Water stains on plastic parts. Washable or water-soluble coatings in the container or on the door. White, stubborn coatings; limescale on the utsils, container or door. Tea or lipstick residue on the utsils. Droplet formation on plastic surface is physically unavoidable. After drying, water stains are visible. Detergt substances are deposited. These coatings cannot usually be removed with chemicals (appliance cleaner,...). If there is a white coating on the container floor, the water softing system has be set marginally. Salt dispser cover 1R not closed. Only for glasses: Initial glass corrosion can only appartly be wiped off. Detergt substances are deposited. These coatings cannot usually be removed with chemicals (appliance cleaner,...). Hardness range incorrectly set or water hardness greater than 8.9 mmol/l. 3 in 1 detergt or bio/eco detergt not effective ough. Underdosing of detergt. Too weak rinse programme selected. Too low rinsing temperature. Too little or unsuitable detergt. Utsils precleaned too intsely; ssors therefore decide on weak programme sequce. Stubborn soiling cannot be completely removed. Use a more intsive programme (more water changes). Arrange utsils in a sloping position. Use rinse aid. If required, increase softing setting. Change detergt brand. Clean appliance mechanically. Increase softing setting and change detergt if required. Close salt dispser cover correctly. See Glass and utsil damage. Change detergt brand. Clean appliance mechanically. Set water softing system according to instructions for use or top up salt. Set water softing system according to instructions for use or use separate detergts (proprietary detergt, salt, rinse aid). Increase detergt dosage or change detergt. Select a more intsive rinse programme. Select programme with higher washing temperature. Use suitable detergt at correct dosage. Do not prerinse utsils. Remove only large food remnants. Recommded programme Eco 50 33

34 Fault, what to do? Fault Cause Remedial action Coloured (blue, yellow, brown), difficult to remove to non-removable coatings in the appliance or on stainless steel utsils. Coloured (yellow, orange, brown), easily removable deposits inside the appliance (mainly in the floor area) Discolouration of the plastic parts inside the appliance. Film formation consisting of ingredits from vegetables (e.g. cabbage, celery, potatoes, noodles,...) or the tap water (e.g. manganese). Film formation caused by metallic componts on silver or aluminium utsils. Film formation consisting of ingredits from food remnants and substances from the tap water (limescale), soapy Plastic parts inside the appliance may become discoloured during the service life of the dishwasher. Can be partly removed with machine cleaner or by mechanical cleaning. Coatings are harmless. Can be partly removed with machine cleaner or by mechanical cleaning. Check function of the water softing system (refill with salt) or, if using combined detergts (tablets), activate water softing system (see chapter Water softing system/special salt ) Discolouration is normal and will not impair the function of the dishwasher. Plastic parts discoloured. Too low rinsing temperature. Select programme with higher washing temperature. Removable streaks on glasses, glasses with metallic appearance and cutlery. Utsils precleaned too intsely; ssors therefore decide on weak programme sequce. Stubborn soiling cannot be completely removed. Too much rinse aid. No rinse aid added or setting too low. Detergt residue in the final rinse programme section. Detergt dispser cover blocked by utsils (cover does not op fully). Utsils precleaned too intsely; ssors therefore decide on weak programme sequce. Stubborn soiling cannot be completely removed. Do not prerinse utsils. Remove only large food remnants. Recommded programme Eco 50 Set rinse aid amount to lower setting. Add rinse aid and check dosage (recommded setting 4 5). Detergt dispser cover must not be obstructed by utsils. Do not place utsils or fragrance dispser in the tablet collecting tray. Do not prerinse utsils. Remove only large food remnants. Recommded programme Eco 50 34

35 Fault, what to do? Fault Cause Remedial action Initial or existing, irreversible clouding of glass. Rust spots on the cutlery. Glasses not dishwasher-proof, only suitable for dishwasher. Cutlery not adequately rustresistant. Knife blades are frequtly more severely affected. Cutlery will also rust if rusting parts are rinsed at the same time (pan handles, damaged utsil baskets, etc.). Salt contt in the rinsing water too high, as salt dispser lock not fasted firmly or salt was spilled while being refilled. Use dishwasher-proof glasses. Avoid long steam phase (standing time after wash cycle ds). Use wash cycle at lower temperature. Set water softing system according to the water hardness (if required one setting lower). Use detergt with glass protection compont. Use corrosion-resistant cutlery. Do not wash rusting parts. Fast salt dispser lock firmly or remove spilled salt. Appliance does not start. The mains fuse has tripped. Check mains fuse. Power cord not inserted. Ensure that the power cord is plugged all the way into the back of the appliance and into the socket. Check that the socket functions. The appliance door has not be shut properly. Close the door. Programme starts automatically. The door is difficult to op. You did not wait until programme ded. Child lock is activated. Perform reset. (See Terminating the programme ). Deactivate child lock. (See instructions for use at the back) Door cannot be closed. Door lock has be activated. Close door with increased force. Cover on the detergt dispser cannot be closed. Door cannot be closed due to installation. Detergt dispser or cover guide blocked by sticky detergt residue. Check appliance installation: Door or attached parts must close without obstruction. Remove detergt residue. 35

36 Fault, what to do? Fault Cause Remedial action Ensure that the spray arms can rotate freely. Detergt residue in the detergt dispser or in the tablet collecting tray. Appliance stops in the programme or programme is interrupted. Filling valves making striking noises. Knocking or rattling noise. Unusual foam formation. Spray arms blocked by utsils, therefore detergt is not rinsed out. The detergt dispser was damp wh filled. Door not closed properly. Do not place utsils or fragrance dispser in the tablet collecting tray. Top basket presses against the door and prevts door from being closed securely. Power and/or water supply interrupted. Depds on domestic installation, as appliance is not defective. No effect on appliance function. Spray arm strikes the utsils, utsils not positioned correctly. If there is a low load, the water jets strike the washing tank directly. Light utsils move during the wash cycle. Handwash liquid in the rinse aid dispser. Rinse aid spilled. Pour detergt into the dry detergt dispser only. Close the door. Check whether rear panel is being pressed in, e.g. by socket or by hose holder which has not be removed. Restore power and/or water supply. No remedial action possible. Position utsils so that the spray arms do not strike the utsils. Load the appliance with more utsils or distribute the utsils more evly in the dishwasher. Arrange light utsils securely. Immediately refill rinse aid dispser with rinse aid. Remove rinse aid with a cloth. 36

37 Customer service 4 Customer service Customerservice If you are unable to rectify the fault, please contact your customer service. We always find a suitable solution, ev to avoid unnecessary visits by technicians. Contact information for your nearest customer service can be found on the back of these instructions for use or on the closed customer service list. Wh calling, please state the appliance number (E- Nr. = 1) and the production number (FD = 2) which can be found on the rating plate 9: on the appliance door. 5 Installation and connection Installationandconection The dishwasher must be connected correctly, otherwise it will not function properly. The specifications for the inlet and outlet as well as the electrical connected loads must correspond with the required criteria as specified in the following paragraphs or in the installation instructions. Install the appliance in the correct sequce: 1. Checking appliance on delivery 2. Installing the appliance 3. Waste water connection 4. Drinking water connection 5. Electrical connection Rely on the competce of the manufa cturer. Contact us. You can therefore be sure that the repair is carried out by trained service technicians who carry original spare parts for your domestic appliances. 37

38 Installation and connection Product package If you have any complaints, contact the dealer where you purchased the appliance or our customer service. Dishwasher Instructions for use Installation instructions Warranty* Installation materials Steam guard plate* Rubber apron* Power cord * depding on model Safety instructions Please follow the safety instructions under Installation. Delivery Your dishwasher has be checked thoroughly in the factory to sure that it is in working order. This may cause small water stains. These will disappear after the first wash cycle. Technical specifications Weight: max. 60 kg Voltage: V, 50 Hz or 60 Hz Connected load: W Fuse: 10/16 A (UK 13A) Power input: off mode (Po)* 0.10 W left on mode (Pl)* 0.10 W *according to regulations (EU) nos. 1016/2010 and 1059/2010 Additional functions and settings may increase the power input. Water pressure: at least 0.05 MPa (0.5 bar), maximum 1 MPa (10 bar). At a higher water pressure: connect pressure-reducing valve ahead. Inlet rate: minimum 10 litres/minute Water temperature: cold water; hot water max. temperature 60 C. Capacity: place settings (depding on model). 38

39 Installation and connection Installation The required installation dimsions can be found in the installation instructions. Level the appliance with the aid of the height-adjustable feet. Ensure that the appliance is situated securely on the floor. A built-under or integrated appliance which is installed subsequtly as a free-standing appliance must be secured to prevt it from overturning, e.g. by screwing it to the wall or by installing it under a continuous worktop which is screwed to adjact cupboards. The appliance can easily be installed in a fitted kitch betwe wood and plastic walls. Waste-water connection 1. The required work sequce can be found in the installation instructions. If required, fit a siphon with an drainage connection. 2. Connect the waste-water hose to the drainage connection of the siphon with the closed parts. Ensure that the drainage hose is not kinked, crushed or twisted and that there is no cover plate in the drainage to prevt the waste water from flowing out! Drinking water connection 1. Fast the drinking water connection to the tap according to the installation instructions using the closed parts. Ensure that the drinking water connection is not kinked, crushed or twisted. 2. Wh replacing the appliance, always use a new water supply hose. Water pressure: At least 0.05 MPa (0.5 bar), maximum 1 MPa (10 bar). At a higher water pressure: connect pressure-reducing valve ahead. Inlet rate: Minimum 10 litres/minute Water temperature: Cold water; hot water max. temperature 60 C. 39

40 Installation and connection Warm water connection *Warm * depding on model The dishwasher can be connected to cold or hot water up to max. 60 C. Connection to hot water is recommded if the hot water can be supplied by ergetically favourable means and from a suitable installation, e.g. solar heating system with circulation line. This will save ergy and time. The hot water setting : allows you to adjust your appliance optimally to operation with hot water. It is recommded to have a water temperature (temperature of the incoming water) of at least 40 C and no more than 60 C. It is not recommded to connect the appliance to hot water if the water is supplied from an electric boiler. water connection Setting hot water: 1. Close the door. 2. Switch on ON/OFF switch (. 3. Hold down programme button # and press START button P until :... is indicated on the digital display. 4. Release both buttons. The LED for button # flashes and the digital display )" displays the factory setting :. 5. Press programme button # until the factory set value : is indicated on the digital display )". To change the setting: 1. By pressing the 3 button, you can switch the hot water setting off : or on :. 2. Press START button P. The set value is saved. 40

41 Installation and connection Electrical connection Connect the appliance to an alternating currt only, ranging from 220 V to 240 V and 50 Hz or 60 Hz via a correctly installed socket with protective earth conductor. See rating plate for required fusing 9:. The socket must be near the appliance and freely accessible following installation. If the plug is not freely accessible, an allpole disconnector with a contact oping of at least 3 mm must be fitted on the installation side to satisfy the relevant safety instructions. The connection may be modified by technicians only. A power cord extsion may be purchased from customer service only. Use only a residual currt operated circuit-breaker which features the symbol. Only this extsion guarantees compliance with the currtly valid regulations. The appliance features a water damage protection system. Please note the system will not function unless the power supply is connected. Removing the appliance Also observe the sequce of worksteps here. 1. Disconnect the appliance from the power supply. 2. Turn off the water supply. 3. Undo the waste water and drinking water connection. 4. Loos fasting screws for the furniture parts. 5. If fitted, remove the base panel. 6. Pull out the appliance, carefully pulling the hose behind. 41

42 Installation and connection Transportation Empty the dishwasher and secure loose parts. Drain the appliance according to the following steps: 1. Turn on the tap. 2. Close the door. 3. Switch on ON/OFF switch (. 4. Select programme with the highest temperature. The expected programme duration is indicated on the numerical display )". 5. Press START button P. Programme sequce starts. 6. After approx. 4 minutes press the START button P until : is indicated on the digital display. After approx. 1 min : is indicated on the digital display. 7. Switch off ON/OFF switch (. 8. Turn off the tap, disconnect supply hose and drain water. Transport appliance upright only. (This prevts residual water from running into the machine control and damaging the programme sequce.) Protection against frostprotection against frost (Emptying the appliance) If the appliance is in a room where there is a risk of frost (e.g. holiday home), empty the appliance completely (see Transportation). 42
