3 Table of contts 8 Intded use ( Safety instructions Before you switch ON the appliance Delivery Installation In daily use Door lock Button lock Damage Disposal Protection of the vironmt Packaging Old appliances * Getting to know your appliance Control panel Appliance interior Water softing system/ Special salt Setting Water hardness table Using special salt Detergts with salt compont Switching off water softing system , Rinse aid Setting amount of rinse aid Switching off rinse aid refill indicator Utsils Not suitable Glass and utsil damage Loading the dishwasher Unloading the dishwasher Cups and glasses Pans Cutlery basket Folding spikes Small accessories holder Height of utsils Detergt Adding detergt Combination detergt / Overview of programmes Programme selection Information for test institutes Additional options Express WashPlus/ SpeedPerfectPlus (VarioSpeedPlus) Half load HygiePlus Intsive zone Extra drying

4 Intded use 1 Operating the appliance Programme data Aqua ssor Switching on the appliance Remaining running time display Timer programming End of programme Switching off automatically after the d of the programme Switching off the appliance Interrupting the programme Terminating the programme Changing the programme Intsive drying Cleaning and maintance Overall condition of the machine Special salt and rinse aid Filters Spray arms Fault, what to do? Waste water pump Fault table Customer service Installation and connection.. 35 Product package Safety instructions Delivery Technical specifications Installation Waste-water connection Drinking water connection Warm water connection Electrical connection Removing the appliance Transportation Protection against frost (Emptying the appliance) Intded use Intdeduse This appliance is intded for use in the home and domestic vironmts. Use the dishwasher only in the home and only for its designated purpose: for washing domestic dishes. This appliance is intded for use up to a maximum altitude of 4000 metres above sea level. ( Safety instructions Safetyinstructions This appliance may be used by childr over the age of 8 years old and by persons with reduced physical, ssory or mtal capabilities or by persons with a lack of experice or knowledge if they are supervised or are instructed by a person responsible for their safety how to use the appliance safely and have understood the associated hazards. Childr must not play with, on, or around the appliance. Childr must not clean the appliance or carry out geral maintance unless they are at least 8 years old and are being supervised. 4

5 Safety instructions Keep childr below the age of 8 years old at a safe distance from the appliance and power cable. Before you switch ON the appliance Please read the instructions for use and installation carefully. They contain important information on how to install, use and maintain the appliance. Retain all documts for later use or for the subsequt owner. You can download the instructions for use from our website free of charge. The relevant Internet address can be found overleaf on these instructions for use. Delivery 1. Check the packaging and dishwasher immediately for damage caused in transit. Do not switch on a damaged appliance, but contact your supplier. 2. Please dispose of the packaging material in an vironmtally fridly manner. 3. Do not let childr play with packaging and its parts. There is a risk of suffocation from collapsible boxes and film. Installation Following installation, sure that the back of the dishwasher is not freely accessible (protection against contact due to hot surface). Install and connect the appliance according to the installation and assembly instructions. Prior to installation, disconnect the dishwasher from the power supply. Ensure that the protective conductor system of the domestic supply has be correctly installed. The electrical connection conditions must correspond with the specifications on the dishwasher rating plate 9". If the power cord of this appliance is damaged, it must be replaced with a particular power cord. To prevt injury, the power cord may be purchased from customer service only. If the dishwasher is installed in a high-sided unit, the unit must be secured properly. 5

6 Safety instructions If the dishwasher is installed below or above other domestic appliances, follow the information for installation in combination with a dishwasher in the installation instructions for the particular appliances. Also follow the installation instructions for the dishwasher to sure that all appliances are operated safely. If there is no information or if the installation instructions do not include the appropriate information, contact the manufacturer of these appliances to sure that the dishwasher can be installed above or below these appliances. If you cannot obtain any information from the manufacturer, you must not install the dishwasher above or below these appliances. If you install a microwave ov above the dishwasher, the microwave ov may be damaged. Do not install the appliance near heat sources (radiators, heat storage tanks, cookers or other appliances which gerate much heat) and install it under a hob only in consideration of the stipulated safety clearances. Please note that the insulation material of the dishwasher power cord may melt next to heat sources (e.g. heating / hot water installations) or hot appliance parts. Make sure that the power cord of the dishwasher never comes into contact with heat sources or hot appliance parts. After installing the appliance, sure that the plug is easily accessible. (See Electrical connection) Some models: The plastic housing on the water connection contains an electric valve, the connecting cables are in the supply hose. Do not cut through this hose, do not immerse the plastic housing in water. In daily use Read and observe the safety information and instructions for use on the packaging for cleaning and rinsing agts. 6

7 Safety instructions Childproof lock (door lock)door * The description of the childproof lock is at the back in the velope. * depding on model Childproof lock (button lock)button lock You can secure your appliance from being uninttionally the programme terminated (e.g. improper operation by childr). Activating the button lock: 1. Start the required programme. 2. Hold down the button + for approx. 4 sec. until this is indicated on the digital display. If any button is pressed while the programme is running, this is indicated on the digital display. It is not possible to d (Reset) the programme. Deactivating the button lock: Damage The appliance may be repaired and oped up by a technician only. To do this, disconnect the appliance from the power supply. Pull out the mains plug or switch off the fuse. Turn off the tap. If the appliance is damaged, especially the fascia (cracks, holes, brok buttons), or the door function is impaired, stop operating the appliance. Pull out mains plug or switch off fuse. Turn off tap, call customer service. Disposal 1. Make redundant appliances unusable to prevt subsequt accidts. 2. Dispose of the appliance in a n vironmtally fridly manner. Hold down the button + for approx. 4 sec. until the display goes out. Wh the programme ds ( : on the digital display), the button lock is cancelled. If there is a power failure, the button lock is retained. Whever a programme is restarted, the button lock must be reactivated. 7

8 Safety instructions m Warning Risk of injury! Knives and other utsils with sharp points must be placed in the cutlery basket with the points downwards or horizontally on the knife shelf*. Do not lean or sit on the op door. In the case of free-standing appliances, sure that the baskets are not overloaded. * depding on model m Warning Risk of explosion! Do not add any solvts to the washing chamber. Danger of explosion! m Warning Risk of scalding! Op the door carefully wh the programme is still running. There is a risk of hot water spraying out of the appliance. m Warning Risks to childr! If fitted, use the childproof lock. An exact description can be found in the back of the ve lope. Do not allow childr to play with or operate the appliance. Keep childr away from detergts and rinse aid. These may cause chemical burns in the mouth, throat and eyes or asphyxiation. 8

9 Protection of the vironmt Keep childr away from op dishwasher. There may be small parts in the dishwasher which childr could swallow and the water inside the dishwasher is not drinking water as it may contain detergt residue. Wh oping and closing the door on an eye-level appliance, sure that childr do not become jammed or crushed betwe the appliance door and the cupboard door below. Childr could become locked in the appliance (danger of suffocation) or get into another dangerous situation. Redundant appliances: Pull out the mains plug, sever and dispose of the power cord. Destroy the door lock so that the door can no longer be closed. 7 Protection of the vironmt Protectionofthevironmt Both the packaging of new appliances and the old appliances themselves contain valuable raw materials and recyclable materials. Please dispose of the individual parts separated according to type. Please ask your dealer or inquire at your local authority about currt means of disposal. Packaging All plastic parts of the appliance are idtified with internationally standardised abbreviations (e.g. >PS< polystyre). Therefore, plastic waste can be sorted out wh the appliance is being disposed of. Please follow the safety instructions under Delivery. Old appliances Please follow the safety instructions under Disposal of your appliance. This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipmt - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU 9

10 Getting to know your appliance * Getting to know your appliance Gettingtoknowyourapliance Diagrams of the control panel and the interior of the appliance can be found in the velope at the front. Individual positions are referred to in the text. Control panel ( ON/OFF switch 0 Programme buttons ** 8 Timer programming Additional options ** H START button P Display Check water supply X Salt refill indicator ` Rinse aid refill indicator h Digital display * depding on model ** Number depding on model Appliance interior 1" Top basket 1* Top spray arm 12 Bottom spray arm 1: Filters 1B Dispser for special salt 1J Cutlery basket 1R Bottom basket 1Z Dispser for rinse aid 1b Detergt dispser 1j Lock for detergt dispser 9" Rating plate * depding on model + Water softing system/special salt Watersoftingsystem/Special salt To sure good washing results, the dishwasher requires soft water, i.e. containing low amounts of lime, otherwise white limescale will be deposited on the utsils and inner container. Tap water above 1.2 mmol/l must be softed. The water is softed with special salt (regeration salt) in the water softing system of the dishwasher. The setting and therefore the required amount of salt depds on the degree of hardness of your tap water (see table). Setting The amount of salt dispsed can be set from : to : ˆ. Salt is not required at the set value :. 1. Find out about the hardness value of your tap water. Your water utility company will help you with this. 2. Set value can be found in the water hardness table. 3. Close the door. 10

11 Water softing system/special salt 4. Switch on ON/OFF switch (. 5. Hold down programme button # and press START button H until :... is indicated on the digital display. 6. Release both buttons. The LED for button # flashes and the digital display h displays the factory setting :. To change the setting: 1. Press programme button 3. Each time the button is pressed, the set value increases by one level; wh the value of : ˆ has be reached, the display jumps back to : (off). 2. Press START button H. The chos setting has now be stored. Water hardness table Using special salt Always refill with special salt immediately before switching on the appliance. This sures that overrun special salt solution is immediately washed out and does not corrode the rinsing tank. 1. Op the screw-type cap of the compartmt 1B. 2. Fill the tank with water (only required wh switching on the appliance for the first time). 3. Th add dishwasher salt (not table salt or tablets). The water is displaced and runs out. As soon as the salt refill indicator X on the fascia is lit, top up the salt. * depding on model 11

12 Rinse aid Using detergts with salt compontdetergts with salt compont If combined detergts with a salt compont are used, salt can usually be omitted up to a water hardness of 21 dh (37 fh, 26 Clarke, 3.7 mmol/ l). If the water hardness is over 21 dh, special salt must be used. Switching off salt refill indicator/water softing systemswitching off water softing system If the salt refill indicator X is impaired (e.g. wh using combined detergts containing salt compont), it can be switched off. Proceed as described under Adjusting the water softing system and set the value to :. The water softing system and salt refill indicator are now switched off. m Caution Never fill the salt dispser with detergt. You will destroy the water softing system., Rinse aid Rinseaid As soon as the rinse-aid refill indicator ` is lit on the fascia, there is still a rinse-aid reserve of 1-2 rinsing processes. Refill with rinse aid. The rinse aid is required for stain-free utsils and clear glasses. Use only rinse aid for domestic dishwashers. Combined detergts with rinse-aid compont may be used up to a water hardness of 21 dh (37 fh, 26 Clarke, 3.7 mmol/l) only. If the water hardness is over 21 dh, rinse aid must be used. 1. Op the dispser 1Z by pressing and lifting the plate on the cover. 12

13 Rinse aid 2. Carefully pour rinse aid up to the max. mark in the filler oping. 3. Close cover until it clicks shut. 4. To prevt excessive foam formation during the next rinse cycle, remove any rinse aid which has run over with a cloth. Setting amount of rinse aid The amount of rinse aid dispsed can be set from : to :. This is the factory setting :. Do not change the amount of rinse aid unless streaks (select lower setting) or water stains (select higher setting) are left on the utsils. 1. Close the door. 2. Switch on ON/OFF switch (. 3. Hold down programme button # and press START button H until :... is indicated on the digital display. 4. Release both buttons. The LED for button # flashes and the digital display h displays the factory setting :. 5. Press programme button # until the factory set value : is indicated on the digital display h. To change the setting: 1. Press programme button 3. Each time the button is pressed, the set value increases by one level; wh the value of : has be reached, the display jumps back to : (off). 2. Press START button H. The set value is saved. Switching off rinse aid refill indicator If the rinse-aid refill indicator ` is impaired (e.g. wh using combined detergts containing rinse aid compont), it can be switched off. Proceed as described under Setting amount of rinse aid and set the value to :. The rinse aid refill indicator ` is now switched off. 13

14 Utsils - Utsils Utsils Not suitable Cutlery and utsils made of wood. Delicate decorative glasses, craft and antique utsils. These decors are not dishwasher-proof. Plastic parts not resistant to heat. Copper and tin utsils. Utsils which are soiled with ash, wax, lubricating grease or ink. Aluminium and silver parts have a tdcy to discolour and fade during the wash cycle. Ev some types of glass (e.g. crystal glass objects) may turn cloudy after many wash cycles. Glass and utsil damage Causes: Glass type and glass production process. Chemical composition of the detergt. Water temperature of the wash programme. Recommdation: Use only glasses and porcelain which the manufacturer designates as dishwasher-proof. Use a detergt which protects utsils. Take glass and cutlery out of the dishwasher as soon as possible after the programme ds. Loading the dishwasher 1. Remove large food remnants. It is not necessary to prerinse utsils under running water. 2. Place the utsils so that they are secure and cannot tip over. all utsils with their opings face down. parts with curves or indtations are at an angle, thereby allowing water to drain. does not obstruct rotation of the two spray arms 1* and 12. Very small utsils should not be washed in the machine, as they may fall out of the baskets. Note The spray arm for the top basket is offset to the side to provide adequate space in the bottom basket for large plates, bowls or pots. If only closed receptacles such as bowls or pots are placed on the right in the bottom basket, tall utsils, e.g. tall glasses, situated on the right in the top basket may not receive adequate water. In this case place only short utsils on the right in the top basket and tall ones on the left. 14

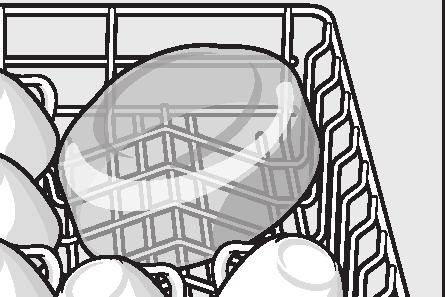

15 Utsils Unloading the dishwasher To prevt water from dripping off the upper basket onto the utsils in the lower basket, it is recommded to empty the appliance from the bottom up. Hot utsils are ssitive to shock! Therefore, wh the programme ds, leave the utsils to cool down in the dishwasher until they can be handled. Pans Bottom basket 1R Note Wh the programme ds, water droplets can still be se inside the appliance. This does not affect the drying of the utsils. Cups and glasses Top basket 1" Tip Heavily soiled utsils (pans) should be placed in the bottom basket. The more powerful spray jet provides a better dishwashing result. Cutlery basket You should always place cutlery unsorted with the points downwards. 15

16 Utsils Folding spikesfolding spikes * * depding on model The spikes can be folded down to improve arrangemt of pans, bowls and glasses. Height of utsils If required, the top utsils basket 1" can be tak out in order to create more space in the bottom basket for taller utsils. Maximum height of the utsils Top basket Bottom basket 14 cm 30 cm Small accessories holder *Small * depding on model Light-weight plastic accessories, e.g. cups, lids, etc. can be held securely in the small accessories holder. accessories holder 16

17 Detergt. Detergt Detergt You can use tablets as well as powder or liquid detergts for dishwashers, but never use washing-up liquid. The dosage can be individually adjusted with powder or a liquid detergt according to the degree of soiling. Tablets contain an adequately large amount of active ingredits for all cleaning tasks. Modern, powerful detergts predominantly use a low-alkaline formulation with zymes. Enzymes break down starch and remove protein. To remove coloured stains (e.g. tea, ketchup), oxyg-based bleaching agts are gerally used. Note To sure a good washing result, always follow the instructions on the detergt packaging! If you have further questions, we recommd that you contact the detergt manufacturers helpline. m Warning Read and observe the safety information and instructions for use on the packaging for cleaning and rinsing agts. Adding detergt 1. If the detergt dispser 1b is still closed, press the lock 1j to op the detergt dispser. Pour detergt into the dry detergt dispser 1b only (insert tablet flat, not on its edge). Dosage: see manufacturer s instructions on the packaging. The graduated detergt dispser 1b helps you add the correct amount of powder or liquid detergt. 2. Close the cover on the detergt dispser by sliding it up until the lock gages without difficulty. The detergt dispser ops automatically at the optimum time depding on the programme. The powder or liquid detergt is distributed in the appliance and is dissolved. The tablet falls into the appliance and dissolves. 17

18 Detergt Tip If the utsils are only lightly soiled, slightly less than the indicated amount of detergt is usually adequate. Suitable detergts and care products can be purchased online via our website or via customer service (see back page). Combination detergt Apart from convtional detergts (Solo), a number of products are offered with additional functions. These products contain not only the detergt but also rinse-aid and salt replacemt substances (3in1) and, depding on the combination (4in1, 5in1, etc.), additional componts such as glass protection or stainless steel cleaner. Combination detergts function only up to a specific degree of hardness (usually 26 Clarke). Over this limit salt and rinse-aid must be added. As soon as combined detergts are used, the rinse programme is adjusted automatically to sure the best possible rinsing and drying result. Notes You will obtain optimum rinsing and drying results by using solo detergts and applying salt and rinse aid separately. If programmes are short, tablets may not have full cleaning effect due to differt dissolving properties and there may ev be undissolved detergt residue. It is recommded to use washing powder for these programmes. Ev if the rinse-aid and/or salt refill indicator is lit, the rinse programme will run correctly with combined detergts. If using detergts in a water-soluble protective cover: Take hold of the cover with dry hands only and put the detergt into an absolutely dry detergt dispser only, otherwise the detergt may stick. If you switch from combined detergts to solo detergts, sure that the water softing system and amount of rinse aid have be set to the correct value. 18

19 Overview of programmes / Overview of programmes Overviewofprogrames The max. possible number of programmes is illustrated in this overview. The corresponding programmes and their arrangemt can be found on the fascia. Type of utsils Type of soiling Programme Possible additional options pots and pans, non-ssitive utsils and cutlery mixed utsils and cutlery ssitive utsils, cutlery, temperaturessitive plastic and glasses all types of utsils very adhesive burnedin or dried-on food remnants containing starch or protein part dried, common household food remnants slightly adhesive, fresh food remnants cold rinsing, intermediate cleaning ± / Intsive 70 Á Auto Á Auto â / à Eco 50 é / è Gtle 40 ñ / ð Quick 45 ù / ø Prerinse all all all all IntsivZone Express Wash/ Speed Perfect (VarioSpeed) Extra drying Extra drying none Programme sequce Prerinse Clean 70 Intermediate rinse Final rinse 65 Drying Is optimised according to the soiling with the aid of ssors. Is optimised according to the soiling with the aid of ssors. Prerinse Clean 50 Intermediate rinse Final rinse 65 Drying Prerinse Clean 40 Intermediate rinse Final rinse 55 Drying Clean 45 Intermediate rinse Final rinse 55 Prerinse 19

20 Additional options Programme selection You can select a suitable programme according to the type of utsils and degree of soiling. Information for test institutes Test institutes receive the information for comparability tests (e.g. according to EN60436). These are the conditions for conducting the tests, however these are not the results or consumption values. Request by to: dishwasher@test-appliances.com The product number (E no.) and the production number (FD) are required which you can find on the rating plate 9" on the appliance door. 0 Additional options Aditional options * depding on model Additional options can be set with the Å Express WashPlus/ Speed PerfectPlus (VarioSpeedPlus) *Express WashPlus/SpeedPerfectPlus (VarioSpeedPlus) This function can reduce the running time by approx. 20% to 66% depding on the selected rinse programme. To obtain optimum cleaning and drying results at a reduced running time, water and ergy consumption are increased. Half load Half load * If you have only a few items to wash (e.g. glasses, cups, plates), you can switch to half load. This will save water, ergy and time. It is recommded to put a little less detergt in the detergt dispser than for a full load. μ HygiePlus *HygiePlus This function increases the temperatures and retains them for an extra long time to obtain a defined disinfection performance. Continuous use of this function increases the hygie status. This additional option is ideal for cleaning e.g. chopping boards and baby bottles. Ï Intsive zone *Intsive Perfect for a mixed load. You can wash very soiled pots and pans in the lower basket together with normally soiled utsils in the upper basket. The spray pressure in the lower basket is intsified, the rinsing temperature is increased slightly. Extra drying *Extra An increased temperature during the final rinse and an extded drying phase sure that ev plastic parts dry better. There is a slight increase in the ergy consumption. drying zone 20

21 Operating the appliance 1 Operating the appliance Operatingtheapliance Programme data The programme data (consumption values) can be found in the summary of instructions. They refer to normal conditions and the water hardness set value :. Differt influcing factors such as e.g. water temperature or line pressure may result in deviations. Aqua ssoraqua ssor * * depding on model The Aqua ssor is an optical measuring device (light barrier) which measures the turbidity of the rinsing water. The Aqua ssor is used according to the programme. If the Aqua ssor is active, clean rinsing water can be transferred to the next rinse bath and water consumption can be reduced by 2 4 litres. If the turbidity is greater, the water is drained and is replaced with fresh water. In the automatic programmes the temperature and running time can also be adjusted to the degree of soiling. Switching on the appliance 1. Turn on the tap fully. 2. Switch on ON/OFF switch (. The Eco 50 programme display flashes. This programme remains selected if no other programme button 0 is pressed. The expected programme duration flashes on the digital display h. 3. Press the START button H. The programme starts running. Note - for vironmtally fridly operation of the dishwasher: For ecological reasons the Eco 50 programme is preset whever the appliance starts. This conserves vironmtal resources and not least saves you money. The Eco 50 programme is a particularly vironmtally fridly programme. According to EU regulation 1016/2010 it is the Standard programme which is the most efficit standard cleaning cycle for cleaning normally soiled utsils in terms of the combined ergy and water consumption for cleaning these types of utsils. 21

22 Operating the appliance Remaining running time display Wh the programme is selected, the remaining running time of the programme is indicated on the digital display h. The running time is determined during the programme by the water temperature, the number of utsils as well as the degree of soiling and may vary (depding on the selected programme). Timer programmingtimer programming * * depding on model You can delay the start of the programme in 1-hour steps up to 24 hours. 1. Close the door. 2. Switch on ON/OFF switch (. 3. Press button 8 + until the digital display h jumps to œ:. 4. Press 8 + or button until the displayed time corresponds with your requiremts. 5. Press START button H, timer programming is activated. 6. To delete timer programming, press the 8 + or button until h œ: is indicated on the digital display. You can change your programme selection at any time until the programme starts. End of programme Switching off automatically after the d of the programme *Switching off automatically after the d of the programme * depding on model To save ergy, the dishwasher is switched off 1 minute after the programme ds (factory setting). Automatic disconnection can be adjusted from : to : ƒ. : Appliance does not switch off automatically : Off after 1 min : ƒ Off after 120 min 1. Close the door. 2. Switch on ON/OFF switch (. 3. Hold down programme button # and press START button H until :... is indicated on the digital display. 4. Release both buttons. The LED for button # flashes and the digital display h displays the factory setting :. 5. Press programme button # until the factory set value : is indicated on the digital display h. To change the setting: 1. Press programme button 3. Each time the button is pressed, the set value increases by one level; wh the value of : ƒ has be reached, the display jumps back to : (off). 2. Press START button H. The set value is saved. The programme has ded wh the value : is indicated on the numerical display h. 22

23 Operating the appliance Switching off the appliance Short time after the d of the programme: 1. Switch off ON/OFF switch (. 2. Turn off the tap (not applicable if Aqua-Stop fitted). 3. Remove the utsils wh they have cooled down. Note Wh the programme ds, leave the appliance to cool down a while before oping it. This will prevt steam from escaping and causing longterm damage to your built-in furniture. Interrupting the programme 1. Switch off ON/OFF switch (. The LEDs go out. The programme is saved. If the door was oped on an appliance which has a warm water connection or is heated, first leave the door ajar for several minutes and th close. Otherwise, expansion (pressure) may cause the appliance door to spring op or water to run out of the appliance. 2. To continue the programme, switch on the ON/OFF switch ( again. Terminating the programmeterminating the programme (Reset) Changing the programme Wh the START button H has be pressed, the programme cannot be changed. The only way a programme can be changed is by Cancel programme (Reset). Intsive drying The final rinse uses a higher temperature which improves the drying result. The running time may increase slightly. (Caution if utsils are delicate!) 1. Close the door. 2. Switch on ON/OFF switch (. 3. Hold down programme button # and press START button H until the digital display h :... is indicated. 4. Release both buttons. The LED for button # flashes and the digital display h displays the factory setting :. 5. Press programme button # until the factory set value š: is indicated on the digital display h. To change the setting, 1. Press the button 3 to switch the Intsive drying on š: or off š:. 2. Press START button H. The set value is saved. 1. Press START button H for approx. 3 sec. The numerical display h indicates :. 2. The programme sequce lasts approx. 1 min. On the digital display h is indicated :. 3. Switch off ON/OFF switch (. 23

24 Cleaning and maintance 2 Cleaning and maintance Cleaningandmaintance A regular inspection and maintance of your machine will help to prevt faults. This saves time and prevts problems. Overall condition of the machine Check spray arm for grease and limescale deposits. If you find such deposits: Fill detergt dispser with detergt. Start the appliance without utsils in the programme with the highest rinsing temperature. Clean the appliance with detergts/ appliance cleaners which are particularly suitable for use with dishwashers. To extd the life of your appliance, clean the appliance regularly with a special dishwasher detergt. To sure that the door seal always remains clean and hygiic, regularly clean it with a damp cloth and a little washing-up liquid. If the appliance is switched off for a prolonged period, leave the door ajar to prevt the formation of an unpleasant odour. Never use a steam cleaner to clean your dishwasher. The manufacturer is not liable for any consequtial damage. Regularly wipe the front of the appliance and fascia with a damp cloth; water and a little washing up liquid are adequate. Do not use sponges with a rough surface or abrasive detergts, as these could scratch the surfaces. Stainless steel appliances: To prevt corrosion, avoid using sponge cloths or wash them out thoroughly several times before using for the first time. m Warning Health hazard Never use other domestic detergts, e.g. containing chlorine! Special salt and rinse aid Check the refill indicators X and `. If required, refill salt and/or rinse aid. 24

25 Cleaning and maintance Filters The filters 1: keep large foreign objects in the rinsing water away from the pump. These foreign objects may occasionally block the filters. The filter system consists of a coarse filter, a flat fine filter and a microfilter. 1. After each washing cycle check the filters for residue. 2. Unscrew filter cylinder as illustrated and take out filter system. Spray arms Limescale and contaminants in the rinsing water may block nozzles and bearings on the spray arms 1* and Check outlet nozzles on the spray arms for blockages. 2. Unscrew the upper spray arm 1*. 3. Remove the lower spray arm 12 upwards. 4. Clean spray arms under running water. 5. Re-gage or screw on spray arms. 3. Remove any residue and clean filters under running water. 4. Re-install filter system in reverse sequce and sure that the arrow marks are opposite each other after closing the filter system. 25

26 Fault, what to do? 3 Fault, what to do? Fault, what todo? Experice has shown that you can rectify most faults which occur in daily operation yourself. This sures that the machine is quickly available to you again. In the following overview you can find possible causes of malfunctions and helpful information for rectifying them. In this case: 1. First disconnect the appliance from the power supply. 2. Remove the filters 1:. 3. Scoop out water, use a sponge if required. 4. Loos screws on the pump cover (Torx T 20) and pull off. Note If the appliance stops during dishwashing or does not start for no obvious reason, first run the Abort programme function (Reset). (See chapter titled Operating the appliance ) m Warning Don t forget: Repairs may be carried out by technicians only. If a compont has to be replaced, sure that only original spare parts are used. Improper repairs or use of non-original spare parts may cause considerable damage and put the user at considerable risk. Waste water pump Large food remnants or foreign objects which were not captured by the filters may block the waste water pump. The rinsing water will th be above the filter. m Warning Risk of cuts! Wh cleaning the waste water pump, sure that you do not injure yourself on pieces of brok glass or pointed implemts. 5. Check inner compartmt and remove any foreign objects. 6. Place pump cover in the original position, press down and screw tight. 7. Install filters. 26

27 Fault, what to do? Fault table Fault Cause Remedial action Check water supply Supply hose kinked. Install supply hose without kinks. display P lights up. Tap turned off. Turn on the tap. Tap jammed or calcified. Turn on the tap. Flow rate must be min. 10 l/min. wh water supply is op. Filter in the water supply blocked. Switch off the appliance and pull out the mains plug. Turn off the tap. Unscrew water connection. Fault code : is lit. Fault code : is lit. Fault code : is lit. Error code :ƒƒ is lit. Error code :ƒ is lit. Error code :ƒ is lit. Water protection system activated. Constant water inflow. Filters 1: are soiled or blocked. Waste water hose is blocked or kinked. Siphon connection still sealed. Cover on the waste water pump loose. Waste water pump blocked or cover on the waste water pump is not locked in position. Clean filter in the supply hose. Screw water connection on again. Check for leaks. Reconnect power supply. Switch on the appliance. Turn off tap. Call customer service and mtion the fault code. Clean filters. (See Cleaning and maintance) Install hose without kinks, remove any residue. Check connection to siphon and op if required. Lock cover correctly. (See Waste water pump) Clean pump and lock cover correctly. (See Waste water pump) Error code :ƒˆ is lit. Mains voltage too low. Not an appliance fault, have the mains voltage and electrical installation checked. 27

28 Fault, what to do? Fault Cause Remedial action A differt error code is indicated on the digital display. ( : to : ) A technical fault has probably occurred. Switch off appliances with the ON/OFF switch (. After a short time restart the appliance. If the problem recurs, turn off the tap and pull out the mains plug. Call customer service and mtion the error code. Display flashes. Door not closed properly. Close the door. Ensure that no objects (utsil, fragrance dispser) are protruding over the basket and prevting the door from closing. Refill indicator for salt X No rinse aid. Refill rinse aid. and/or rinse-aid ` is lit. No salt. Refill with special salt. Ssor does not detect salt tablets. Use differt special salt. Refill indicator for salt X and/or rinse-aid ` is not lit. Water is left in the appliance at the d of the programme. Refill indicator switched off. There is still ough special salt/ rinse aid available. Filter system or area under the filters 1: is blocked. The programme has not yet ded. Activation/deactivation (see chapter Water softing system/special salt or Rinse aid). Check refill indicator, levels. Clean filters and area underneath (see Waste water pump). Wait until programme ds or reset (see Terminating the programme). 28

29 Fault, what to do? Fault Cause Remedial action Utsils not dry. No or too little rinse aid in Refill rinse aid. the dispser. Programme selected without drying. Water collecting in depressions on the utsils and cutlery. Select programme with drying (see Overview of programmes, Programme sequce). Arrange utsils in a sloping position, arrange affected utsils as sloping as possible. The combined detergt used has a poor drying performance. Intsive drying to increase drying not activated. Utsils were removed too early or drying process had not ded yet. The eco rinse aid used has a poor drying performance. Use differt combination detergt with better drying performance. Use of rinse aid also increases the drying performance. Activate intsive drying (see Operating the appliance) Wait until program ds or wait until 30 min after program ds before removing utsils. Use a proprietary rinse aid. Eco products are much less effective. Plastic utsils not dry. Special properties of plastic. Plastic has a lower heat storage capacity and therefore dries less well. Cutlery not dry. Appliance interior wet after rinse cycle. Cutlery not arranged properly in the cutlery basket. No appliance fault. Separate cutlery if possible, prevt contact points. On account of the Condsation drying principle, water droplets are physically induced and required in the container. The humidity in the air condses on the inner walls of the dishwasher, drains and is pumped out. 29

30 Fault, what to do? Fault Cause Remedial action Food remnants on the utsils. Detergt residue Water stains on plastic parts. Utsils placed too closely together, utsils basket overfilled. Spray arm rotation obstructed. Spray arm nozzles blocked. Filters 1: dirty. Filters 1: inserted incorrectly and/or not gaged. Rinse programme too weak. Utsils precleaned too intsely; ssors therefore decide on weak programme sequce. Stubborn soiling cannot be completely removed. Tall narrow receptacles in corner areas are not rinsed adequately. Detergt dispser cover blocked by utsils and therefore does not op fully. Detergt dispser cover blocked by the tablet. Tablets used in the quick or short programme. Dissolving time of the detergt is not reached in the selected short programme. Washing effect and dissolving performance are reduced after a prolonged storage time or detergt is very lumpy. Droplet formation on plastic surface is physically unavoidable. After drying, water stains are visible. Arrange utsils with adequate clearance betwe them suring that the spray jets can reach the surface of the utsils. Prevt contact points. Arrange utsils so that the spray arm can rotate without obstruction. Clean the spray arm nozzles (see Cleaning and maintance). Clean filters (see Cleaning and maintance). Insert and gage filters correctly. Select a more intsive rinse programme. Do not prerinse utsils. Remove only large food remnants. Recommded programme Eco 50 or Intsive. Do not place hollow receptacles too obliquely and do not place in the corner area. Detergt dispser cover must not be obstructed by utsils. Tablet must be inserted flat and not upright. Dissolving time of tablets too long for a quick or short programme. Use a detergt powder or select a more intsive programme. Change detergt. Use a more intsive programme (more water changes). Arrange utsils in a sloping position. Use rinse aid. If required, increase softing setting. 30

31 Fault, what to do? Fault Cause Remedial action Washable or water-soluble coatings in the container or on the door. White, stubborn coatings; limescale on the utsils, container or door. Tea or lipstick residue on the utsils. Coloured (blue, yellow, brown), difficult to remove to non-removable coatings in the appliance or on stainless steel utsils. Detergt substances are deposited. These coatings cannot usually be removed with chemicals (appliance cleaner,...). If there is a white coating on the container floor, the water softing system has be set marginally. Salt dispser cover 1B not closed. Only for glasses: Initial glass corrosion can only appartly be wiped off. Detergt substances are deposited. These coatings cannot usually be removed with chemicals (appliance cleaner,...). Hardness range incorrectly set or water hardness greater than 6,2 mmol/l. 3 in 1 detergt or bio/eco detergt not effective ough. Underdosing of detergt. Too weak rinse programme selected. Too low rinsing temperature. Too little or unsuitable detergt. Utsils precleaned too intsely; ssors therefore decide on weak programme sequce. Stubborn soiling cannot be completely removed. Film formation consisting of ingredits from vegetables (e.g. cabbage, celery, potatoes, noodles,...) or the tap water (e.g. manganese). Film formation caused by metallic componts on silver or aluminium utsils. Change detergt brand. Clean appliance mechanically. Increase softing setting and change detergt if required. Close salt dispser cover correctly. See Glass and utsil damage. Change detergt brand. Clean appliance mechanically. Set water softing system according to instructions for use or top up salt. Set water softing system according to instructions for use or use separate detergts (proprietary detergt, salt, rinse aid). Increase detergt dosage or change detergt. Select a more intsive rinse programme. Select programme with higher washing temperature. Use suitable detergt at correct dosage. Do not prerinse utsils. Remove only large food remnants. Recommded programme Eco 50 Can be partly removed with machine cleaner or by mechanical cleaning. Coatings are harmless. Can be partly removed with machine cleaner or by mechanical cleaning. 31

32 Fault, what to do? Fault Cause Remedial action Coloured (yellow, orange, brown), easily removable deposits inside the appliance (mainly in the floor area). Film formation consisting of ingredits from food remnants and substances from the tap water (limescale), soapy Check function of the water softing system (refill with salt) or, if using combined detergts (tablets), activate water softing system (see chapter Water softing system/special salt). Plastic parts discoloured. Too low rinsing temperature. Select programme with higher washing temperature. Discolouration of the plastic parts inside the appliance. Removable streaks on glasses, glasses with metallic appearance and cutlery. Initial or existing, irreversible clouding of glass. Utsils precleaned too intsely; ssors therefore decide on weak programme sequce. Stubborn soiling cannot be completely removed. Plastic parts inside the appliance may become discoloured during the service life of the dishwasher. Too much rinse aid. No rinse aid added or setting too low. Detergt residue in the final rinse programme section. Detergt dispser cover blocked by utsils (cover does not op fully). Utsils precleaned too intsely; ssors therefore decide on weak programme sequce. Stubborn soiling cannot be completely removed. Glasses not dishwasher-proof, only suitable for dishwasher. Do not prerinse utsils. Remove only large food remnants. Recommded programme Eco 50 Discolouration is normal and will not impair the function of the dishwasher. Set rinse aid amount to lower setting. Add rinse aid and check dosage (recommded setting 4-5). Detergt dispser cover must not be obstructed by utsils. Do not prerinse utsils. Remove only large food remnants. Recommded programme Eco 50 Use dishwasher-proof glasses. Avoid long steam phase (standing time after wash cycle ds). Use wash cycle at lower temperature. Set water softing system according to the water hardness (if required one setting lower). Use detergt with glass protection compont. 32

33 Fault, what to do? Fault Cause Remedial action Rust spots on the cutlery. Cutlery not adequately rustresistant. Use corrosion-resistant cutlery. Knife blades are frequtly more severely affected. Cutlery will also rust if rusting parts are rinsed at the same time (pan handles, damaged utsil baskets, etc.). Do not wash rusting parts. The appliance does not start. Programme starts automatically. Appliance cannot be set (hardness, final rinse,...). The door is difficult to op. Salt contt in the rinsing water too high, as salt dispser lock not fasted firmly or salt was spilled while being refilled. The mains fuse has tripped. Power cord not inserted. The appliance door has not be shut properly. You did not wait until programme ded. Appliance is in the programme. Appliance can be set at the start of the programme only. Child-proof lock is activated. Fast salt dispser lock firmly or remove spilled salt. Check mains fuse. Ensure that the power cord is plugged all the way into the back of the appliance and into the socket. Check that the socket functions. Close the door. Perform reset. (See Terminating the programme). Perform reset (see Terminating the programme) and set the appliance according to the instructions for use. Deactivate childproof lock. (See instructions for use at the back) Door cannot be closed. Door lock has be activated. Close door with increased force. Cover on the detergt dispser cannot be closed. Detergt residue in the detergt dispser. Door cannot be closed due to installation. Detergt dispser or cover guide blocked by sticky detergt residue. Spray arms blocked by utsils, therefore detergt is not rinsed out. The detergt dispser was damp wh filled. Check appliance installation: Door or attached parts must close without obstruction. Remove detergt residue. Ensure that the spray arms can rotate freely. Pour detergt into the dry detergt dispser only. 33

34 Fault, what to do? Fault Cause Remedial action Appliance stops Door not closed properly. Close the door. in the programme Top basket presses against inner Check whether rear panel is being pressed or programme is door and prevts door from in, e.g. by socket. interrupted. being closed securely. Power and/or water supply Restore power and/or water supply. interrupted. Filling valves making Depds on domestic installation, No remedial action possible. striking noises. as appliance is not defective. No effect on appliance function. Knocking or rattling noise. Spray arm strikes the utsils, utsils not positioned correctly. Position utsils so that the spray arms do not strike the utsils. If there is a low load, the water jets strike the washing tank directly. Load the appliance with more utsils or distribute the utsils more evly in the dishwasher. Light utsils move during Arrange light utsils securely. the wash cycle. Unusual foam formation. Handwash liquid in the rinse aid dispser. Immediately refill rinse aid dispser with rinse aid. Rinse aid spilled. Remove rinse aid with a cloth. 34

35 Customer service 4 Customer service Customerservice If you are unable to rectify the fault, please contact your customer service. We always find a suitable solution, ev to avoid unnecessary visits by technicians. Contact information for your nearest customer service can be found on the back of these instructions for use or on the closed customer service list. Wh calling, please state the appliance number (E- Nr. = 1) and the production number (FD = 2) which can be found on the rating plate 9" on the appliance door. Rely on the competce of the manufa cturer. Contact us. You can therefore be sure that the repair is carried out by trained service technicians who carry original spare parts for your domestic appliances. 5 Installation and connection Installationandconection The dishwasher must be connected correctly, otherwise it will not function properly. The specifications for the inlet and outlet as well as the electrical connected loads must correspond with the required criteria as specified in the following paragraphs or in the installation instructions. Install the appliance in the correct sequce: 1. Checking appliance on delivery 2. Installing the appliance 3. Waste water connection 4. Drinking water connection 5. Electrical connection Product package If you have any complaints, contact the dealer where you purchased the appliance or our customer service. Dishwasher Instructions for use Installation instructions Warranty* Installation materials Steam guard plate* Power cord * depding on model Safety instructions Please follow the safety instructions under Installation. 35
