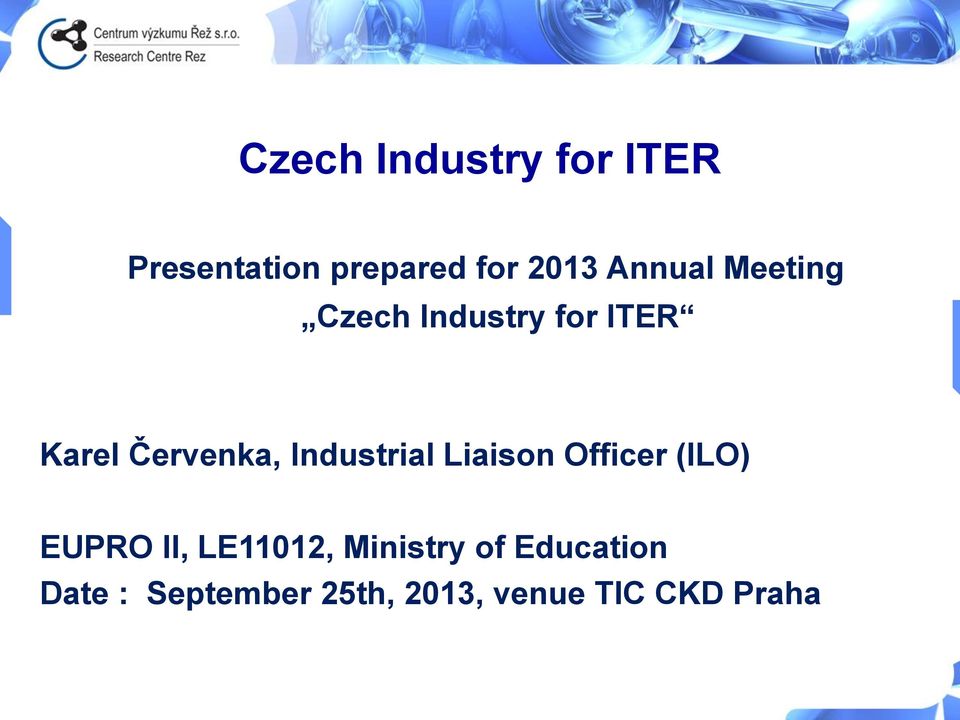

1 Czech Industry for ITER Presentation prepared for 2013 Annual Meeting Czech Industry for ITER Karel Červenka, Industrial Liaison Officer (ILO) EUPRO II, LE11012, Ministry of Education Date : September 25th, 2013, venue TIC CKD Praha

2 Database of Czech companies Currently, the database CZECH FOR ITER contains over 50 companies and organizations from the Czech Republic CZECH FOR ITER members are regularly informed of the progress of the ITER construction, F4E Call for Tenders and and announcement of the tender results

3 pages are in Czech and English version Czech version provides and updates information on the European part of the ITER project, English version gives the possibility of interactive access to the website of Czech companies and organizations

4 SOFT Liege Highlights from SOFT Liege F4E communicates the latest on components, procurement and business opportunities.

5 Procurement strategy F4E 12 November 2012 F4E presents its new procurement strategy for the supply of the Poloidal Field coils

6 13 November 2012 Business opportunities UK UK companies learn more about F4E business opportunties F4E tells UK companies about the procurement process and procurement opportunities that are arising from the construction of ITER.

7 Project Team IPT - ITER Blanket 2 December 2012 F4E hosts the Blanket Integrated Project Team Meeting The Blanket Integrated Project Team (IPT) quarterly meeting enabled work to advance successfully on the ITER Blanket project.

8 2013 ITER Business Forum Toulon, March participants from at least 350 companies based in 26 countries. 48 hours full of thematic sessions, networking and business meetings.

9 Poland Industry 10 April 2013 Poland s industry and SMEs declare a strong interest in ITER F4E and Poland s ILO highlight ITER business opportunities and economic benefits.

10 11th ISFNT Barcelona Major international fusion technology conference held in Barcelona 11th ISFNT between September 2013 ISFNT-11: F4E publishes presentations given at last ISFNT.

11 Monaco ITER International Fusion Energy Days ITER Organization Communication department

12 F4E Procurement Contracts are awarded according to EU public tender procedures which will take one of the following forms: open procedure, restricted procedure, negotiated procedure, and competitive dialogue.

13 F4E Procurement Open procedure All economic operators are invited to submit a tender. Tenders are evaluated on the basis of the criteria published in the contract notice.

14 F4E Procurement - Two stages restricted procedure Stage one: Call for expression of interest. Companies are shortlisted based upon technical and financial capabilities of the market survey. Stage two: Only pre-selected candidates are invited to submit their tender. Tenders are evaluated on the basis of the criteria published in the contract notice.

15 F4E procurement - Negotiated procedure: Negotiated procedure can be used for the award of the contracts having a value of less than or equal to Euro and in the exceptional cases defined in Article 100 of F4E Implementing rules.

16 F4E Procurement Competitive dialogue F4E can launch such procedure in collaboration with industry, when it is not possible to define the appropriate technical means or solutions to meet the F4E requirements.

17 DIVERTOR: (CASSETTE BODIES) F4E publishes a complementary market survey before the launch of the Call F4E Market Survey

18 F4E Industry and Associations Portal F4E s new Industry Portal has been since June 2012 available New portal is the entry point for companies and associations who want to answer F4E Calls for Tender The portal also offers increased networking opportunities among industry and the opportunity to search relevant business partners or subcontractors

19 Industry and Associations Portal

20 Czech participation at ITER project Nuclear Physics Insitiute ASCR, Rez Institute of Applied Mechanics, Brno Centrum výzkumu, Rez Association EURATOM-IPP.CR Institute of Plasma Physics AS CR ATEKO, Hradec Králové

21 Nuclear Physics Insitiute ASCR, Rez NPI Cyclotron-based Irradiation Facility - member of IFMIF broader-approach collaboration The neutron irradiation stations at NPI were developed within the EU program of obtaining and benchmarking nuclear data relevant to the fusion technologies

22 Nuclear Physics Insitiute ASCR, Rez

23 Institute of Applied Mechanics, Brno IAM develops and improves methodologies for prediction of big welded construction deformations All methods are verified by real experimental measurements.

24 Institute of Applied Mechanics, Brno...more than 8 years of experiences lead to solution of numerical welding analyses of whole Vacuum Vessel fabrication

25 Centrum výzkumu REZ, Ltd. Vacuum Vessel RCR tests both in-pile and out-of-pile VV components for long-run cyclic thermal fatigue loads. Beryllium coated Primary First Wall qualification mock-ups are tested up to MW/m 2 and 0.6 dpa

26 Centrum výzkumu REZ, Ltd. Vacuum Vessel Six mock-ups successfully tested, with more than 3000 full-power operation hours on BESTH device Two successful out-of-pile tests of TW3 irradiation rig, prepared for inserting into LVR-15 research reactor Testing Primary First Wall mock-ups with high heat flux load for future fusion applications.

27 ATEKO Hradec Králové - Turbo Circulators ATEKO a.s. Hradec Kralove - Czech Republic ( developed and delivered Four sets of Helium Turbo Circulators (TC) for cooling & testing of the TBM / TDM modulus. Basic parameters of the helium TC EFDA: Inlet/Outlet pressure [MPa] 8 / Flow-rate [kg/s] 1 / 1.4 Impeller diameter [mm] 185 Speed [rpm[ Power [kw] 232

28 ATEKO Hradec Králové - Turbo Circulators

29 Opportunities 2013 F4E-OPE-319 High Heat Flux Test Facility for In-vessel Components F4E-OMF-331 Multiple Framework contracts for Engineering Services in the area of TBM F4E-OFC-358 Radiation Testing Services for ITER Prototype Components and Systems F4E-FPA- 372 R&D experimental activities in support of the conceptual and preliminary design of the European Test Blanket Systems, F4E-FPA-380 Activities of Support of the Conceptual and Preliminary Design of the European Test Blanket Systems

30 Opportunities Divertor Remote Handling Equipment 2013 Plug and Cask Systems 2013 Viewing/Metrology Systems 2013 Neutral Beam Remote Handling Eq. Hot Cell Maintenance Eq. Vacuum Vessel Assembly Welding Blanket Firs Wall (EU share) Divertor Cassette Body Divertor Cassette Integration Divertor Inner Target J.Žďárek Radial Plate (EU share) Toroidal Field Magnets Assembly 27 different buildings EC Radio Frequency Power Sources EC Power Supply NB Power Supply Hardware, software, systems

31 F4E Industry and Associations Portal F4E Industry Portal - Tutorial 1 General introduction to F4E Industry & Associations Portal Všeobecný úvod k portálu

32 F4E Industry and Associations Portal F4E Industry Portal - Tutorial 2 How to manage your account?

33 F4E Industry and Associations Portal F4E Industry Portal - Tutorial 3 How to pre-qualify your company?

34 F4E Industry and Associations Portal F4E Industry Portal - Tutorial 4 How to find out about F4E calls?

35 F4E Industry and Associations Portal F4E Industry Portal - Tutorial 5 How to look for business partners?

36 Magnets (1/2) PF Coils Vyhodnoceno a podepsáno : ASG Superconductors 27.5M Probíhá: Winding Tooling 1 [OPE-463](Uzávěrka ) Připravuje se vypsání soutěží CFT: - Site & infrastructure Manager: v únoru Additional tooling: v březnu Impregnation tooling: v březnu Manufacturing: v červnu Cold test: v červenci 2014

37 Magnets (2/2) TF Coils Právě probíhá: TF Coils Insertion => K podpisu má být připraveno Q3 2013

38 Divertor In Vessel Components Vyhodnocuje se: [OMF-444] Divertor Cassette bodies (ke schválení v září 2013) Připravuje se: Cassette assembly (brzy proběhne průzkum evropského trhu) First Wall: Vyhodnoceno: [OPE-319] HHF test facility for IVC. Probíhá vyhodnocení: [OPE-489] - Dodávka plátů z CuCrZr plates; a prototyp ve skutečném rozměru (probíhá jednání s dodavateli) Připravuje se: grant on characterisation of plates (vypsání v říjnu 2013)

39 Probíhá: Remote Handling - Divertor RHS [OMF-340-1]. Probíhá vyhodnocování tendrů s vyhlášením výsledků 01/2014. Cask & Plug RHS [OMF-340-2]. Vyhodnocování požadavků na účast v dialogu právě probíhá. Zahájení dialogu se předpokládá 12/2013. Neutral Beam RHS (OMF-340-3). Dokončeno vyhodnocování požadavků na účast v dialogu. Zahájení dialogu 09/2013. In-Vessel Viewing System (OMF-383). Vyhodnocování požadavků na účast právě probíhá. Vyzvání k dialogu se předpokládá 02/2014.

40 Cryoplant Cryo and Fuel Cycle Vyhodnocuje se: [OPE-376] (probíhají jednání). Tritium Plant Vyhodnoceno:: WDS tanks [OPE-500] to ENSA S.A 2.1M - Dodací lhůta 20 měsíců Preliminary design of main WDS [OPE-421] to Kraftanlagen- Heidelberg 2M Vacuum pumping Připravuje se: supply of warm regeneration lines (začátek roku 2014)

41 TBM, Materials, Engineering Support TBM & Materials Připravuje se: Průzkum evropského trhu - materiáleurofer Engineering Support Probíhá: [OFC-413] post-irradiation material characterization. [OMF-466] provision of nuclear analysis. [OMF-508] Engineering support in electromagnetic & electromechanical analysis Připravuje se: [OMF-503] provision of seismic, dynamic, and structural analyses of ITER buildings and mechanical components Připravuje se: [OPE-468] provision of metrology support services.

42 Neutral Beam and EC Power Supplies Vyhodnocuje se: [OPE-054] Electron Cyclotron HV Power Supplies Probíhá vyhodnocování: superconducting magnet for gyrotron [OPE-299] Připravuje se: [OPE-278] AGPS (vyhlášení tendru: Q4 2013); probíhají průmyslové konzultace a návštěvy k získání technických podkladů pro harmonogram a náklady.

43 Neutral Beam Test Facility NBTF [Mitica/Prima/Spider] [OPE-454]: EC-Power Supply: vyhodnocuje se [OPE-299]: Superconducting magnet : vyhodnocuje se [OPE-520]: MITICA Vessel: vypsání tendru 10/2013. [OPE-307]: MITICA Cryoplant: vypsání tendru Q [OPE-278]: AGPS-GRPS: vypsání tendru 10/2013. [OPE-396]: SPIDER HVD dodá COELME SpA, 2.8M lhůta 4 roky

44 Diagnostics Diagnostics [bolometers, infrared tech, optical, reflectometers, dust measurement etc.] : Vyhodnocuje se: [OFC-433] Port Integration (target award: early 2014); [OPE-449] Prototype LTCC (Low Temperature co-fired ceramic) pick-up coils. Probíhá: [FPA-409] Core-plasma LIDAR Thomson scattering diagnostic. [GRT-519] ITER plasma magnetic control. Vyhodnocuje se: [FPA-408-CXRS] Core-plasma charge exchange recombination spectrometer; [FPA-384] bolometers; Vyhodnoceno: [FPA-407] equatorial visible/ir wide-angle viewing system (WAVS), to CEA / Ciemat / Bertin Technologies. [FPA-393] core-plasma Thomson scattering system;

45 Buildings (and site adaptation) TB02-Lift and cranes [OPE-285] : Podepsáno (27/06/2013) s NKM Noel special cranes. TB03-Nuclear tokamak building/assembly hall/doors [OPE-286]: Podepsáno s with VFR consortium. TB04- Mechanical & Electrical System [OPE-301]: Podepsáno s GDF-Suez consortium. TB05- Design & Build package [OPE-378]: Podepsáno s Ferrovial Agroman SA.

46 Buildings (and site adaptation) TB06- HV electrical Power distribution [OPE-428]: Připravuje se vypsání tendru. TB07-Design &Build package [OPE-429]: Uděleno pro Ferrovial Agroman SA (Spain). TB08-site infrastructure [OPE-374]: podepsáno. General strategy presentation update: October
