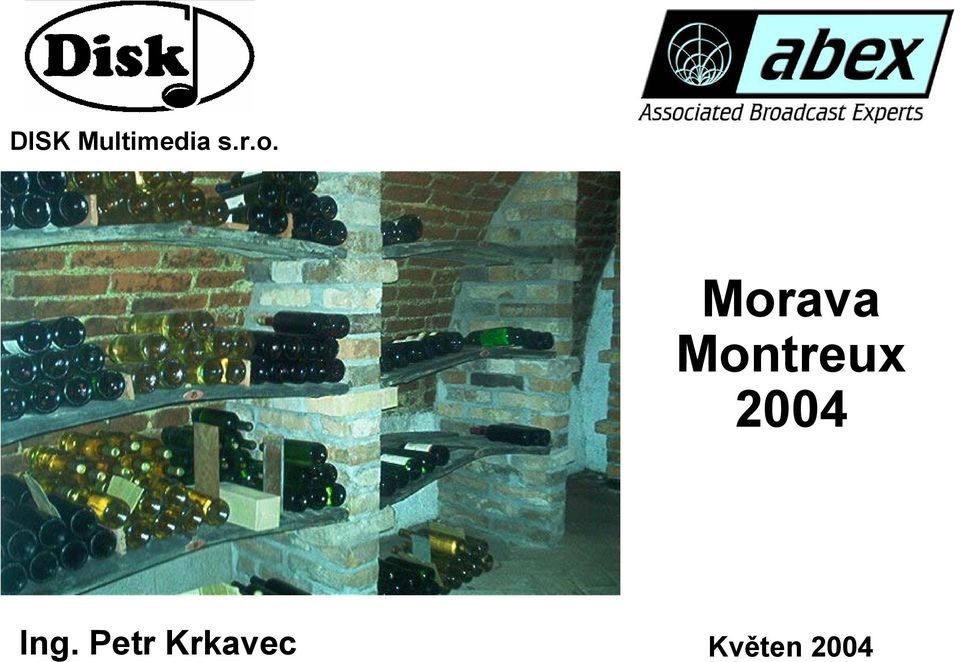

1 DISK Multimedia s.r.o. Morava Montreux 2004 Ing. Petr Krkavec Květen 2004

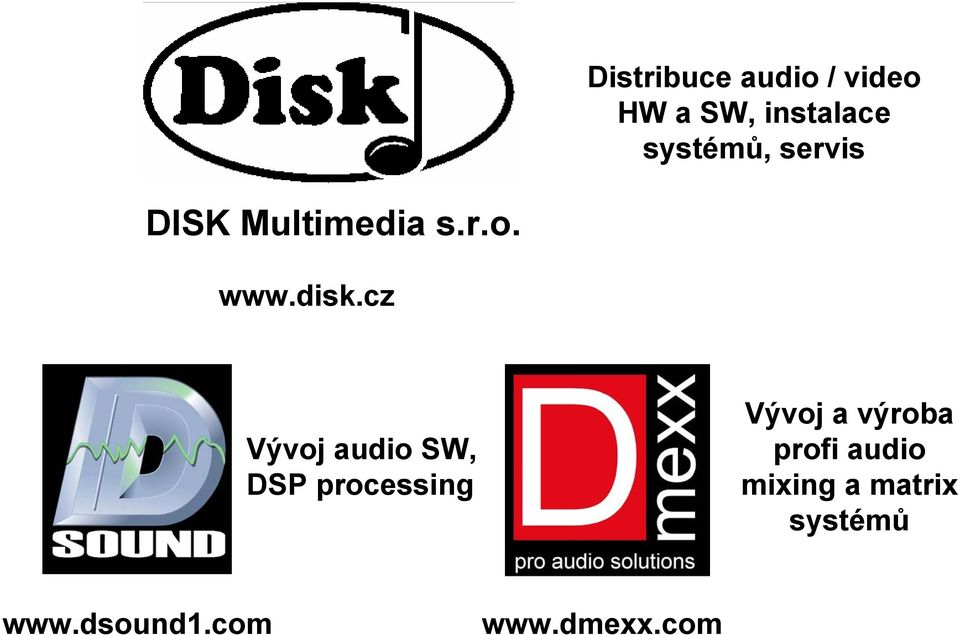

2 Distribuce audio / video HW a SW, instalace systémů, servis DISK Multimedia s.r.o. Vývoj audio SW, DSP processing Vývoj a výroba profi audio mixing a matrix systémů

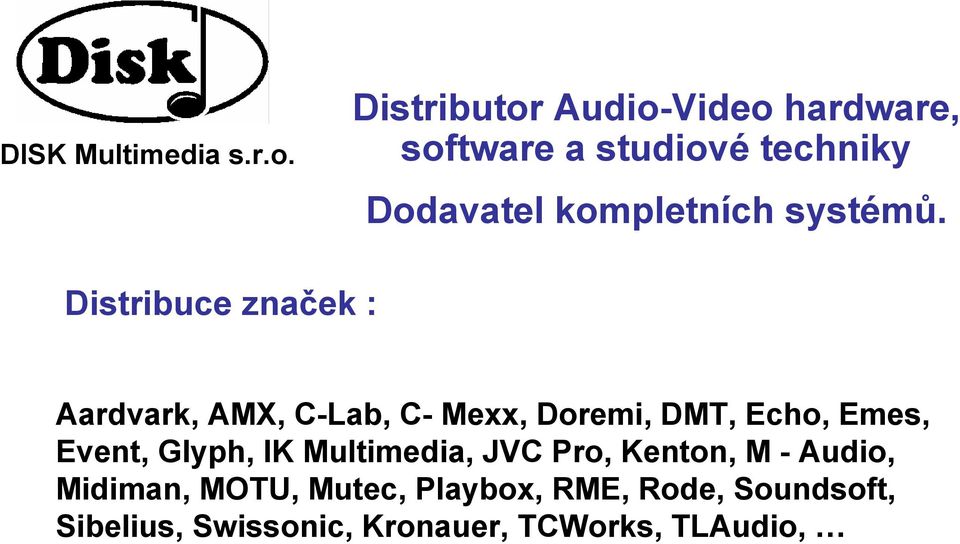

3 DISK Multimedia s.r.o. Distributor Audio-Video hardware, software a studiové techniky Dodavatel kompletních systémů. Distribuce značek : Aardvark, AMX, C-Lab, C- Mexx, Doremi, DMT, Echo, Emes, Event, Glyph, IK Multimedia, JVC Pro, Kenton, M - Audio, Midiman, MOTU, Mutec, Playbox, RME, Rode, Soundsoft, Sibelius, Swissonic, Kronauer, TCWorks, TLAudio,

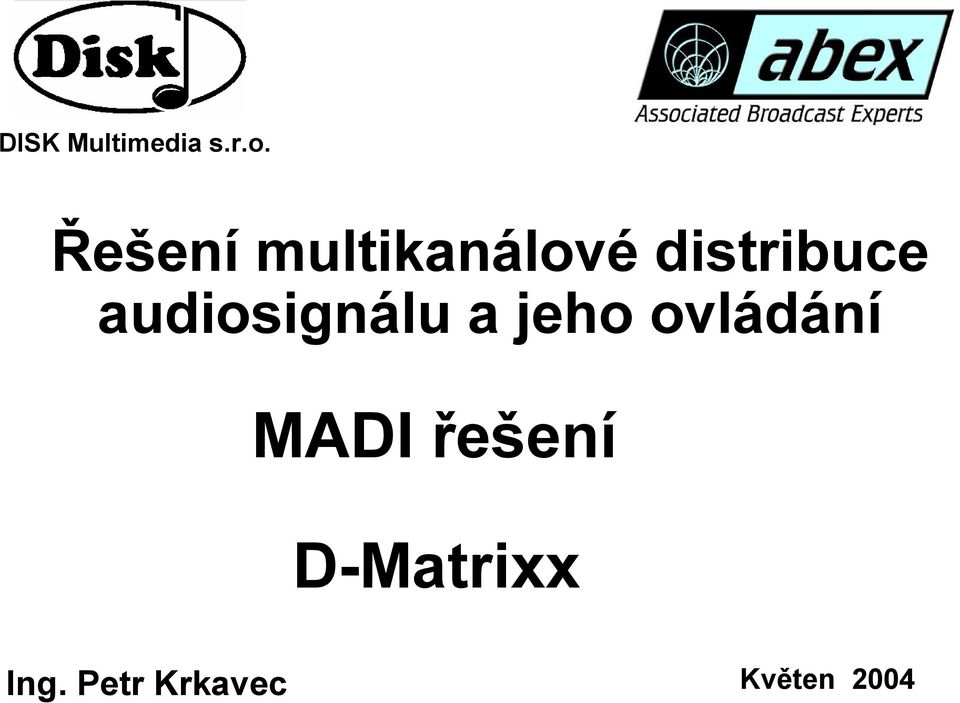

4 DISK Multimedia s.r.o. Řešení multikanálové distribuce audiosignálu a jeho ovládání MADI řešení D-Matrixx Ing. Petr Krkavec Květen 2004

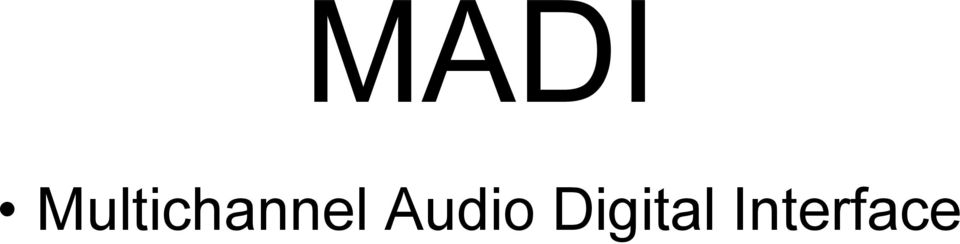

5 MADI Multichannel Audio Digital Interface

6 MADI historie Definováno již v roce 1989 jako rozšíření již existujícího AES3 formátu (AES/EBU) MADI = 28 x seriový multiplex AES/EBU, to je 56 diskrétních audio kanálů Max. datový tok - 100Mbit/s V roce 2001 definováno 64 kanálů

7 MADI specifikace : 32, 56, 64 kanálů do 48 khz khz 16/24 bit Datový tok max. 100 Mbit/s

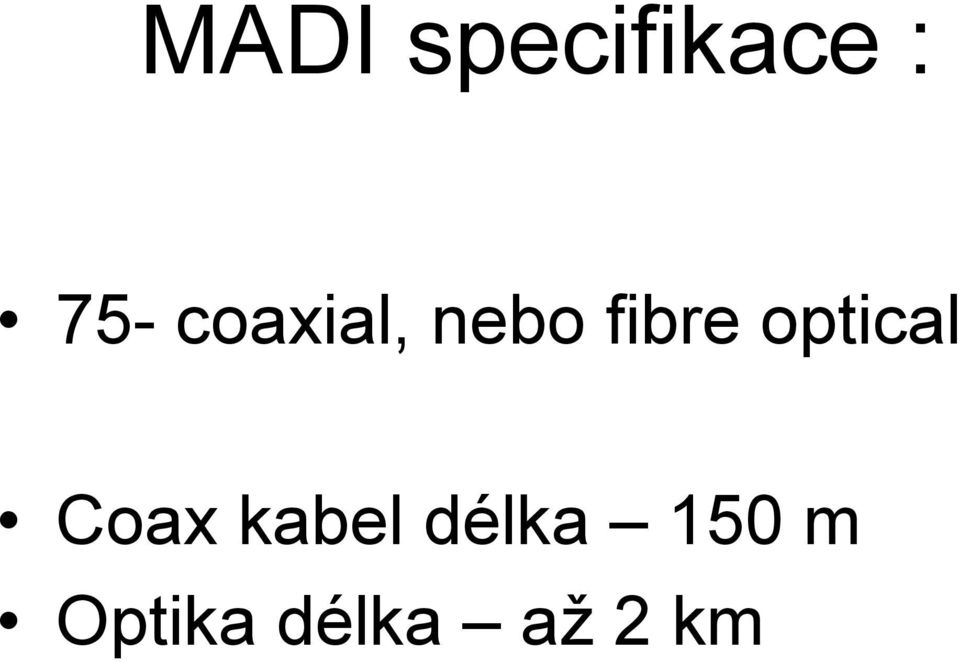

8 MADI specifikace : 75- coaxial, nebo fibre optical Coax kabel délka 150 m Optika délka až 2 km

9 Výrobci - implementace

10 MADI karta pro DMX R100

11

12 MADI karta pro DiGiCo D5

13 Studer D19m / D21m Series Remote I/O Box AD/DA-Converters, Interface

14 24 and 48 Track R1 Hard Disk Systems

15 24 and 48 Track DR 100 Hard Disk recorder MADI I/O

16 MADI AES/EBU Splitter / Combiner 32 x AES/EBU MADI

17

18 MADI pro rozhraní - PC/MAC

19 HDSP MADI card MADI PCI karta PC / Mac 64 in 64 out

20 ADI x ADAT - MADI interface ( obousměrně )

21 MADI Bridge 8 x MADI I/O MADI Switcher / Router

22

23 DISK Multimedia s.r.o. Řešení multikanálové distribuce audiosignálu a jeho ovládání D-Matrixx Ing. Petr Krkavec Květen 2004

24 D-Matrixx Management multikanálového audio signálu pro : Divadla Sportovní stadiony Koncertní haly PA systémy Studia Hotely Veřejné budovy

25 D-Matrixx solution 64 x 64 Multi AD-DA 64 D-Matrixx core 64 x 64 MADI analog Ethernet (wireless) 64 x out 64 x in

26 D-Matrixx Block diagram IN OUT

27 product series router & multi channel mixing core based on embedded low latency ASIO technology latency: between below 1 ms and 8 ms dynamic section: -> compressor -> limiter -> noise gate/expander -> solo -> mute -> phase -> invert & back loop sample rate: 44,1 96 khz resolution: 32 bit float delay: up to 1 minute! every line of input and output contains: -> gain (-126 db to + 24dB) four band configurable full prametric EQ s direct form I realisation of four second order cascaded IIR filter sections, frequency range 20 Hz - 20 khz, Q-1-50 (select. types-peak, hi pass, low pass, hi shelf, low shelf, notch, band pass) -> delay (up to 1 min. per channel) controllable via MIDI, ethernet (TCP/IP), special control I/O on demand

28 product series Multi AD-DA analog XLR balanced in/out - MADI

29

30 D-Matrixx solution 64 x 64 Multi AD-DA 64 D-Matrixx core 64 x 64 MADI analog Ethernet (wireless) 64 x out 64 x in

31

32

33

34 Range X ( 1 x ADAT, Toslink, Dolby Digital stream ) Na vzdálenost 60 m po jednom analogovém mic. kabelu 8 digitálních!

35 Range X Pro ( 2 x ADAT, 1 x Midi ) Na vzdálenost 100 m po jednom ethernetovém CAT5 kabelu 32 digitálních audio kanálů a jeden MIDI!

36 DIGITAL MASTER CONTROL SWITCHER SMX-1016

37 Full digital format 4:2:2, 10 bit Up to 3 VTR s remote RS 422 SDI, YUV, Y/C, Composite inputs 2 DSK and 2 LOGO Generators Digital Master Control Switcher SMX-1016 provides up to 16 video/ audio inputs, two external DSK, two internal LOGO and two external audio OVER. DSK inputs may be analogue or SDI and also the combination of them. Unique architecture of input replaceable modules let realize as composite analogue, component analogue (YUV) so SDI inputs according customers require. SMX-1016 has internal generates of video / audio still - stores and two logotypes, built-in reference PAL synchropulse generator. It is possible machine control up to three VTRs through RS-422/RS-232 interface. Ideal for Master Control Room

38 FEATURES MENU ADJUSTMENT - current time indication - any inputs select pushbutton on control panel can be assigned to any physical input - full PC control PEAK / VU DISPLAY - stereo, left to both, right to both modes - transfer of audio signal preset levels to the program bus - additional two monaural program audio signal outputs CONTROL - machine control up to three VTRs through RS-422/RS-232 interface - standard control modes, including JOG and SHUTTLE - up to 16 TALLY outputs - GPI inputs IPES 6 types of wipes 9 wipes with a soft edge 3 programmed transition rates fade to black program freeze

39 FEATURES VIDEO three buses: PGM / PST / AUX up to 16 external video inputs three different input modules available for placing in five slots in various combinations: 4 inputs SDI module ( + 32 mks auto timing); 2 inputs composite analogue PAL/SECAM module (frame synchronizer); 2 inputs component analogue YUV module ( + 32 mks auto timing); internal VITS generator genlock or stand-alone mode out-of-phase source definition and indication internal sources: video / audio still-stores plus color bars, black and white DSK - two external DSK inputs (SDI and/or YUV with + 32 mks auto timing) - additional two independent internal logotype (static or dynamic) AUDIO - up to 16 external audio stereo inputs - up to two OVER inputs - program/over ratio adjustments - up to 20s stereo or 40s mono internal audi store duration - breakaway transitions - gain and balance adjustments for program and preset audio

40

41

42 DISK Multimedia s.r.o. Morava Montreux 2004 Ing. Petr Krkavec Květen 2004
