CZECH RAILWAYS AND HIGH-SPEED TRAFFIC

Rozměr: px

Začít zobrazení ze stránky:

Download "CZECH RAILWAYS AND HIGH-SPEED TRAFFIC"

Radovan Pavlík
před 8 lety
Počet zobrazení:

1 CZECH RAILWAYS AND HIGH-SPEED TRAFFIC Lecturer: Bohumil Pokorný České dráhy, a.s.,

2 EXISTING CONDITIONS The Czech Republic needs quality and fast railway traffic conection with the other countries in EU Existing lines have low technical parametres Heavy terrain conditions and high density of human places complicate building of new lines The building of new lines is very expensive and for the present is over finance possibility statewe understand the modernized corridor lines as branch lines connecting to present and futur European high-speed network Lódž 2

building of new lines The building of new lines is very expensive and for the present is over finance possibility statewe

3 MODERNIZATION OF CZECH CORRIDOR LINES First step for substantial improvement of technical conditions and speed increase Modernization of four corridor lines shoud provide higher quality conection of the Czech Republic to the European rail network We understand the modernized corridor lines as branch lines connecting to present and futur European high-speed network Lódž 3

conection of the Czech Republic to the European rail network We understand the modernized

4 CZECH NATIONAL CORRIDORS Úvod Proč používat tuto šablonu Dodržet jednotný image ČD firemní grafika důležitá forma prezentace společnosti vizuální forma komunikace ve stejných dresech a barvách design manuál ČD Ulehčit a urychlit si tvorbu prezentace šablony pro grafy, tabulky, stránky s texty nejvhodnější rozložení informací na stránkách navigační prvky Lódž 4

a barvách design manuál ČD Ulehčit a urychlit si tvorbu prezentace šablony pro grafy,

5 INTENT OF NEW HIGH-SPEED LINES IN THE CZECH REPUBLIC The second step after the modernisation of existing lines Mixed traffic with classic trains with locomotives and high-speed units Maximally utilisation of high-speed lines to serve the largest territory of the Czech Republic New high-speed lines with modernized lines will creat future basic network of very fast railway traffic in the Czech Republic Lódž 5

high-speed lines to serve the largest territory of the Czech Republic New high-speed lines with

6 DRAFT OF FUTURE HIGH-SPEED RAIL NETWORK IN THE CZECH REPUBLIC Lódž 6

7 Orientation travelling times of high-speed trains running on high-speed and conventional rail lines in the Czech Republic Lódž 7

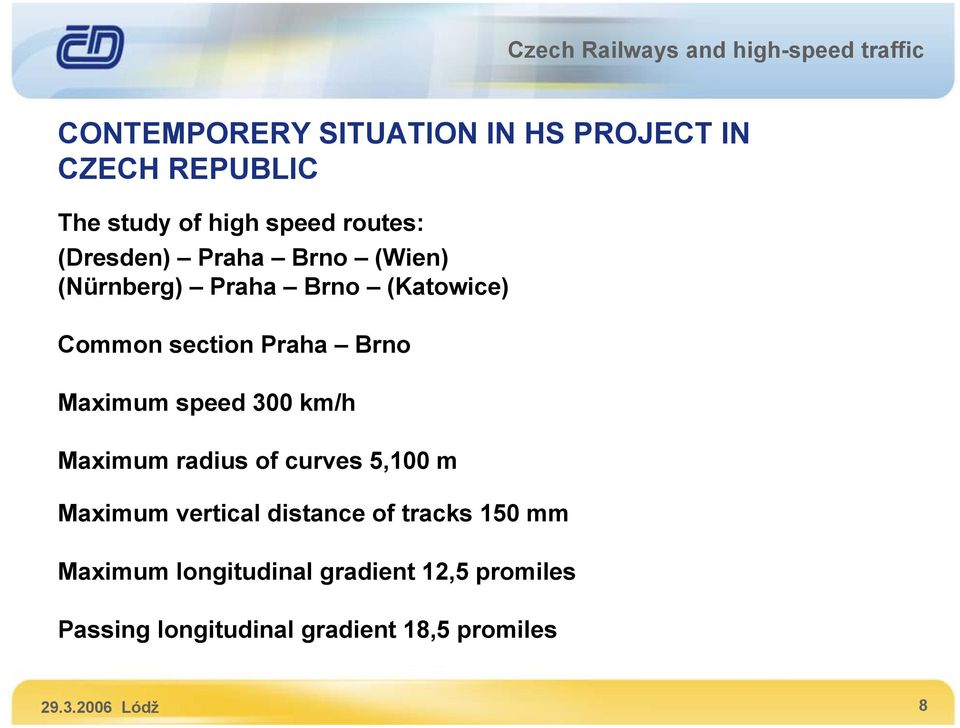

8 CONTEMPORERY SITUATION IN HS PROJECT IN CZECH REPUBLIC The study of high speed routes: (Dresden) Praha Brno (Wien) (Nürnberg) Praha Brno (Katowice) Common section Praha Brno Maximum speed 300 km/h Maximum radius of curves 5,100 m Maximum vertical distance of tracks 150 mm Maximum longitudinal gradient 12,5 promiles Passing longitudinal gradient 18,5 promiles Lódž 8

speed 300 km/h Maximum radius of curves 5,100 m Maximum vertical distance of tracks 150 mm

9 CONTEMPORERY SITUATION IN HS PROJECT IN THE CZECH REPUBLIC Maximum mass to axle 22,5 t Speed during the overtaking 100 km/h Speed during the turn to the existing line 130 km/h Electricity traction systém 25 kv/50 Hz Ministry of transport just has provided the protection of planed routes in planning documents in individuel separate territories Lódž 9

Electricity traction systém 25 kv/50 Hz Ministry of transport just has provided the

10 ASSUMPTIVE TRAVELLING TIMES OF HIGH-SPEED TRAINS RUNNING ON HIGH-SPEED AND MODERNIZED CONVENTIONAL RAIL LINES AMONG CAPITOL PRAG AND GREAT CITIES IN CZECH Praha Brno 1 hour Praha Ostrava.. 1 hour 45 min Praha Olomouc 1 hour 40 min Praha Zlín.. 2 hour 10 min Praha Jihlava 1 hour Praha Plzeň. 30 min Praha Ústí n.l. 30 min Praha Teplice.. 30 min Praha Most.. 50 min Praha Karlovy Vary.. 1 hour 55 min Lódž 10

. 1 hour 45 min Praha Olomouc 1 hour 40 min Praha Zlín.. 2 hour 10 min Praha Jihlava 1 hour Praha Plzeň.

11 ASSUMPTIVE TRAVELLING TIMES OF HIGH-SPEED TRAINS RUNNING ON HIGH-SPEED AND MODERNIZED CONVENTIONAL RAIL LINES AMONG CAPITOL PRAG AND GREAT CITIES IN ABROAD Praha Dresden 40 min Praha Berlin.. 1 hour 40 min Praha Nürnberg 1 hour 30 min Praha Wien.. 1 hour 45 min Praha Bratislava. 1 hour 45 min Praha Katowice 2 hour 15 min Praha Warszawa..3 hour 45 min Lódž 11

Praha Berlin.. 1 hour 40 min Praha Nürnberg 1 hour 30 min Praha Wien.

12 EUROPEAN HIGH-SPEED LINES LINES OF SUPRANATIONAL IMPORTANCE Economic criteria will meet only lines connecting places with high level transport flows formation Significance of high speed lines in Europe can t restrict only to a territory of one state European transport flows = > European high-speed lines Supranational importance lines => European financing Connection of Prague, the capital of the Czech Republic, to European high-speed network meets required economic criteria Example for next progress could be the Thalys system Lódž 12

flows = > European high-speed lines Supranational importance lines => European financing Connection of Prague, the capital of the Czech

13 The first czech HS train Lódž 13

14 Czech tilting trains shortly before the opening of the regular sevice between Praha - Ostrava end Praha - Břeclav Lódž 14

15 THE FIRST CZECH HS TRAIN EMU SERIES 680 TILTING TRAIN PENDOLINO Manufacturer ALSTOM FERROVIARIA Savigliano 7 cars unit in permanent connection (4 second class cars, dinnig car and 2 first class cars) Maximum speed 230 km/h Active tilting of cars provided by hydraulic cylinders 3 traction power systems (3 kv DC, 25 kv/50 Hz AC,15 kv/16,7 Hz AC) Interlocking system PZB 90, INDUSI, LS 90, ETCS 2 Mobile communication system GSM R Unit fully complies with provisions of Directive 96/48EC on the interoperability of the trans-european high-speed rail system Lódž 15

traction power systems (3 kv DC, 25 kv/50 Hz AC,15 kv/16,7 Hz AC) Interlocking system PZB 90, INDUSI, LS 90, ETCS 2 Mobile communication system

16 PREPARATION OF THE FIRST HIGH-SPEED SECTIONS IN THE CZECH REPUBLIC Within the modernization of the third national corridor, there will be two smaller sections build up with the parameters of high-speed lines. These two sections are following: o Praha Beroun o Plzeň - Rokycany Lódž 16

smaller sections build up with the parameters of high-speed lines.

17 The first two czech HS sections in preparation Germany Poland Beroun Praha Praha Rokycany Brno Germany Austria Slovakia Praha Beroun ~ 25 km Praha Rokycany ~ 13 km Lódž 17

18 Thank you for your attention Ing. Bohumil Pokorný České dráhy Tel.: pokornyb@gr.cd.cz Lódž 18
