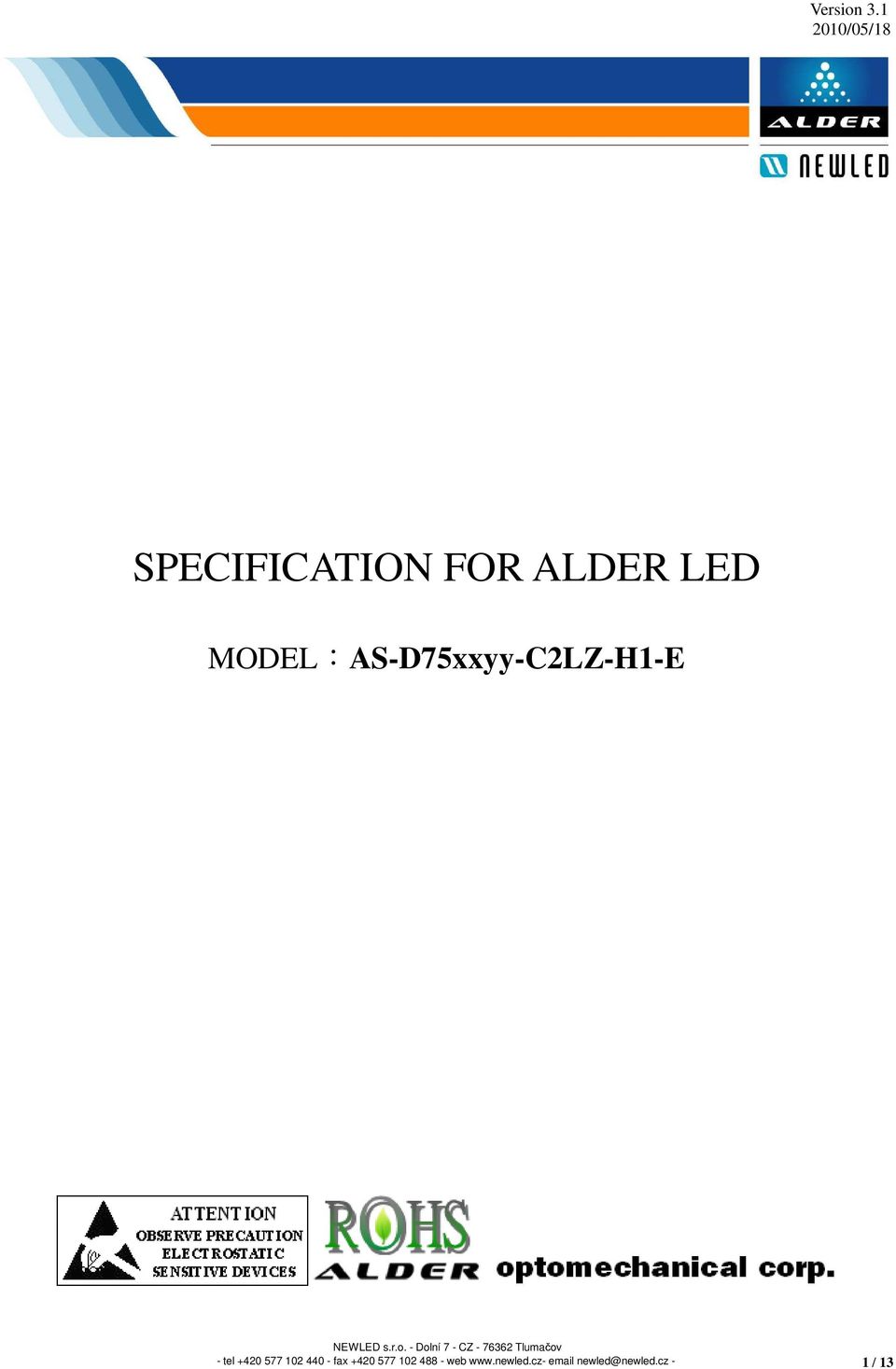

1 SPECIFICATION FOR ALDER LED MODEL:AS-D75xxyy-C2LZ-H1-E 1 / 13

2 Absolute Maximum Ratings (Ta = 25 C) Parameter Symbol Absolute maximum Rating Unit Peak Forward Current I FP 500 ma Forward Current(DC) IF 350 ma Operation Temperature range Topr -40 ~ C Storage Temperature range Tstg -40 ~ C Junction Temperature Tj 125 C ESD Sensitivity VB 2000 V Reflow Soldering Temperature Tsol 260 C for 5 seconds C Flux Characteristics ( Ta = 25 C) Luminous If=350mA (lm) Model No. Color Min. Typ. Max. AS-D75SRyy-C2LZ-H1-E Red AS-D75PGyy-C2LZ-H1-E Green AS-D75SByy-C2LZ-H1-E Blue AS-D75AMyy-C2LZ-H1-E Amber AS-D75WCyy-C2LZ-H1-E Cool White AS-D75WWyy-C2LZ-H1-E Warm White Electrical/Optical Characteristics Model No. Color If=350mA(for each chip) Wavelength (λd) Min Typ. Max Typ.(nm) AS-D75SRyy-C2LZ-H1-E Red AS-D75PGyy-C2LZ-H1-E Green AS-D75SByy-C2LZ-H1-E Blue AS-D75AMyy-C2LZ-H1-E Amber AS-D75WCyy-C2LZ-H1-E Cool White K AS-D75WWyy-C2LZ-H1-E Warm White K Version 3.1 Emission Angle Characteristics Model No. Color 2θ½ L,LS type EL type Batwing Fousing AS-D75SRyy-C2LZ-H1-E Red AS-D75PGyy-C2LZ-H1-E Green AS-D75SByy-C2LZ-H1-E Blue AS-D75AMyy-C2LZ-H1-E Amber AS-D75WCyy-C2LZ-H1-E Cool White AS-D75WWyy-C2LZ-H1-E Warm White Unit Deg 2 / 13

Flux @ If=350mA (lm) Model No. Color Min. Typ. Max.

3 Typical Electrical/ Optical Characteristics Curves (Ta=25 C Unless Otherwise Noted) Version 3.1 Dominant Wavelength vs. Relative Intensity Dominant Wavelength vs. Relative Intensity 3 / 13

4 4 / 13

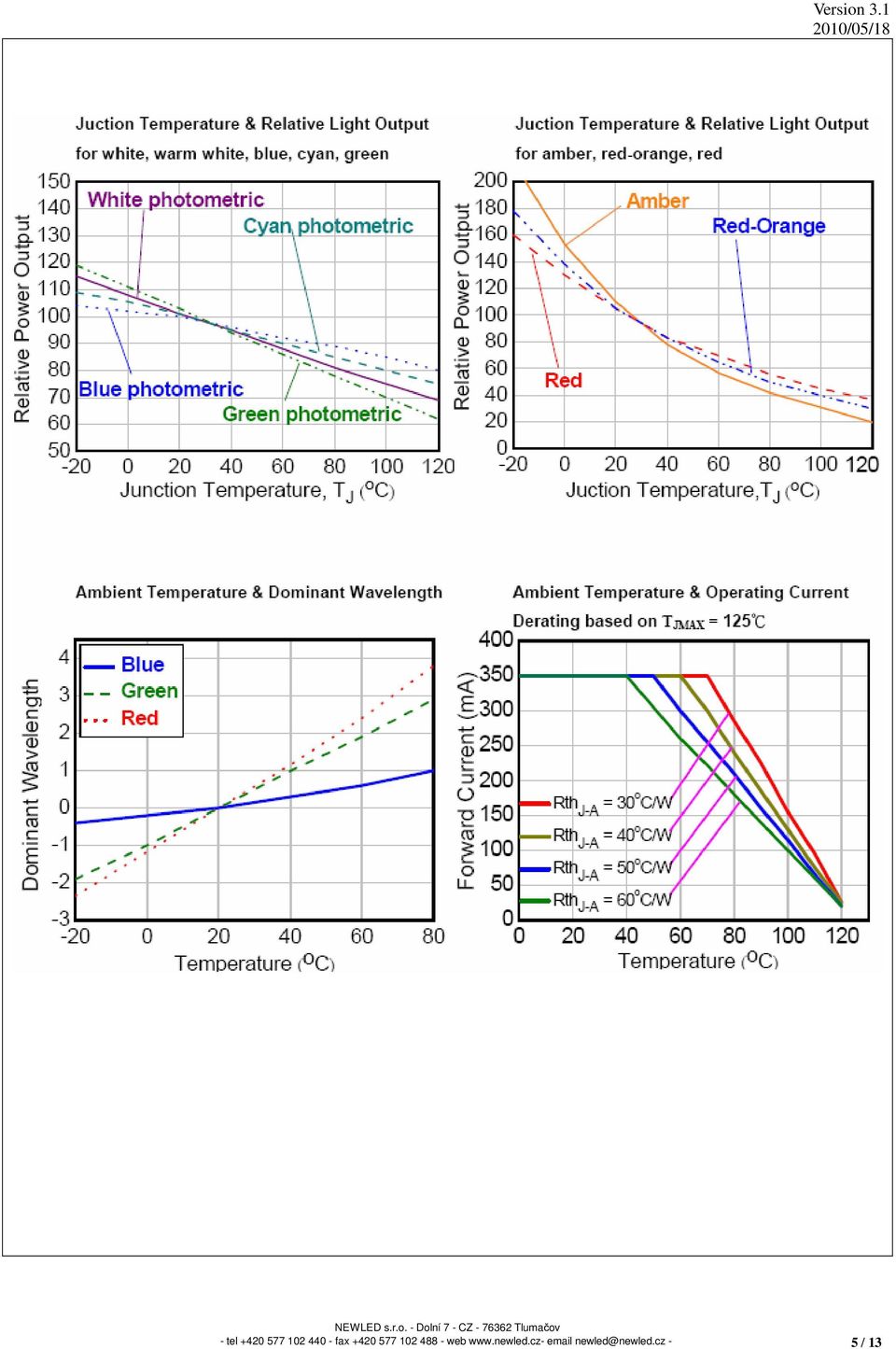

5 5 / 13

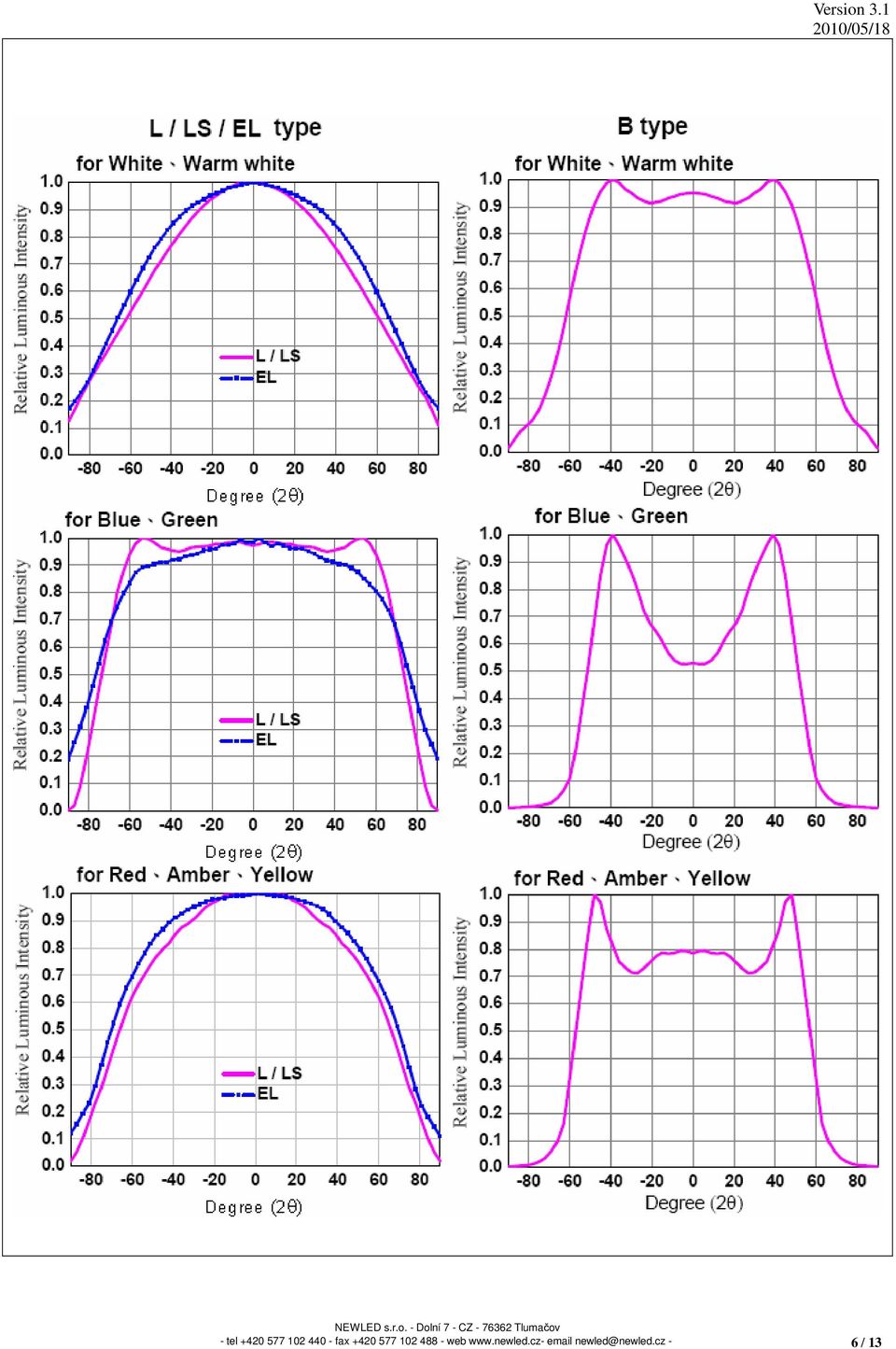

6 6 / 13

7 7 / 13

8 Package Dimensions Version / 13

9 Notes: All dimensions are in mm with tolerance ±0.25mm unless otherwise noted. 9 / 13

10 Packing Specifications Version 3.1 Packing Quantity Pcs / Per Tube Tubes / Inner Carton Inner Cartons / Ourside Carton 10 / 13

11 11 / 13

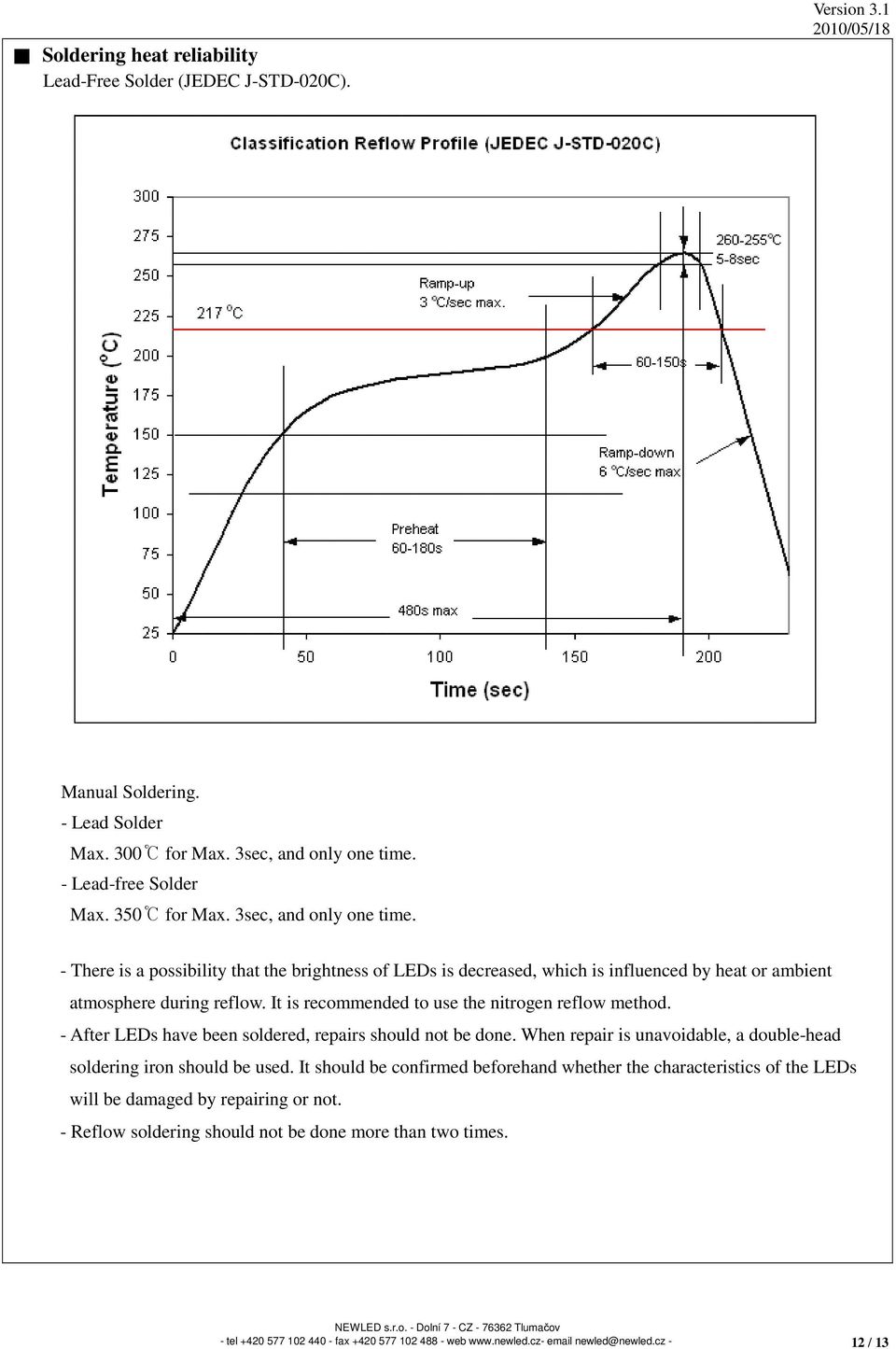

12 Soldering heat reliability Lead-Free Solder (JEDEC J-STD-020C). Version 3.1 Manual Soldering. - Lead Solder Max. 300 for Max. 3sec, and only one time. - Lead-free Solder Max. 350 for Max. 3sec, and only one time. - There is a possibility that the brightness of LEDs is decreased, which is influenced by heat or ambient atmosphere during reflow. It is recommended to use the nitrogen reflow method. - After LEDs have been soldered, repairs should not be done. When repair is unavoidable, a double-head soldering iron should be used. It should be confirmed beforehand whether the characteristics of the LEDs will be damaged by repairing or not. - Reflow soldering should not be done more than two times. 12 / 13

It is recommended to use the nitrogen reflow method. - After LEDs have been soldered, repairs should not be done.

13 Reliability Test Items And Results Version 3.1 No. Test Items Test Condition Note Pass 1 Life Test If = 350 ma 168 Hr OK 2 Soldering Test 260 C max 2 Times OK 3 Reflow Test 260 C max 2 Times OK 4 Thermal Shock -40 C ~ 100 C 84 Cycles OK 5 Temperature Cycle -35 C ~ 75 C 168 Cycles OK 6 High Temperature Storage 100 C 168 Hr OK 7 Low Temperature Storage -40 C. 168 Hr OK 8 High Temperature / High Humidity 85 C,85%RH 168 Hr OK Notes: 1. Measurement shall be taken after the tested samples have been returned to normal ambient conditions (generally after two hours);sample Q ty is 20 pcs. 2. Appropriate material for coating over LED for any purpose, such as waterproof, must be tested by the customer. Incompatible material may result in color change, or even premature LED failure. Alder will not be held responsible for any such misuse. Precautions For Use 1. Over-current-proof Customer must apply resistors for protection, otherwise slight voltage shift will cause big current change(burn out will happen). 2. Storage 2.1 Before opening the package, the storage condition of temperature and R.H. are:30 C, 70%R.H. Max. 2.2 The LED should be kept in a damp proof box with desiccating agent. 13 / 13

Cycle -35 C ~ 75 C 168 Cycles OK 6 High Temperature Storage 100 C 168 Hr OK 7 Low Temperature Storage -40 C. 168 Hr OK 8 High Temperature / High Humidity 85 C,85%RH 168 Hr OK Notes: 1.
