Vojtěch Merunka. Metoda BORM

Transkript

1 Vojtěch Merunka Metoda BORM

2 BORM Business and Object Relation Modeling B O R M i n f o r m a t i o n e n g i n e e r i n g p r o c e s s Práce na BORMu začaly na počátku 90. let ve výzkumném projektu VAPPIENS Britské rady (Know-How Fund of the British Council). Metoda je od roku 1996 vyvíjena s podporou firmy Deloitte, kde se také používá. Podrobný popis BORMu lze nalézt v knize Carda, Merunka, Polák: Umění systémového návrhu - objektově orientovaná tvorba informačních systémů pomocí původní metody BORM, Grada Pro BORM se doposud používal CASE nástroj Metaedit finské firmy Metacase Ltd nebo MS Visio. Craft.CASE se používá od roku 2005.

3 Publikace o BORMu Umění systémového návrhu Objektově orientovaná tvorba informačních systémů pomocí původní metody BORM, Grada, Praha 2003 knihy Management of the Object-Oriented Development Process, Akron Publishing, Virgin Island 2005 Accounting Information Systems, South-Western Publishing, Mason-Ohio 2004 Využití metod umělé inteligence ve vodním hospodářství, nakladatelství Akademie vědčr, Praha 2004 a dalších cca 5 vysokoškolských skript The BORM methodology: a third-generation fully object-oriented methodology, Knowledge-Based Systems 3(10) 2003, Elsevier Science Publishing, New York. časopisy a další 4 články v českých vědeckých časopisech Process Modeling for Object Oriented Analysis using BORM Object Behavioral Analysis, in Proceedings of Fourth International Conference on Requirements Engineering, ΙΕΕΕ Computer Society, Chicago a dalších cca 20 příspěvků na konferencích doma i v zahraničí konference

4 BORM - kontext celé metody business map konceptuální softwarový y subjektů business struktur a jejich chování zadání pro IS analýza a návrh n řešení ení IS návrh řešení implementace návrhu řešení Filosofie BORMu: business inženýrství tvorba informačního systému pomocí postupné transformace ů softwarové inženýrství (tvorba softwaru od zadání k řešení) ení)

5 BORM and MDA Approach business engineering area software engineering area business s conceptual s (platform-independent) software s (platform-dependent) participant participant (ing card) object object object collection collection collection class class class states & transitions real world problem function, scenario (CSF, goals, targets, issues) activity (job positions, perf. measures, devices) communication message method message delegation method object oriented solution association (relationship tables) data flows has-a message parameters & return values has-a composing relation dependency dependency dependency is-a hierarchy type hierachy polymorphism polymorphism inheritance inheritance BORM interviews BORM process diagrams UML-based s

6 Transformation Techniques OBJECT NORMALIZATION 1st, 2nd, 3rd ONF DESIGN PATTERNS structural patterns, behavioral patterns BEHAVIORAL CONSTRAINTS dependencies between successors and predecessors OBJECT EVOLUTION from participants to object classes, collections, HIERARCHY EVOLUTION from IS-A through type hierarchy to inheritance RELATIONSHIP EVOLUTION from associations to composition, aggregations,

7 Transformation Techniques - Behavioral Constraints object relationship (from A to B) behavioral constraints B is dynamicaly accessible from A HAS-A hierarchy normal aggregation IS-A hierarchy poly- -morphism inheritance B is an instance of a class A B is dependent on A A needs B to perform anything Yes Yes Yes Yes A needs to pass data to B Yes Yes Yes Yes A needs to get data from B Yes Yes Yes B shares the same behaviour as A Yes Yes B uses the methods of A Yes values of A have influence to values or behav. of B Yes behav. (methods) of A have influence to values or behav. of B Yes values or behav. of B have influence to values or behav. ofa Yes

8 Transformation Techniques - Hierarchy Evolution Motto: do not start system ing with software-oriented concepts. IS-A A HIERARCHY (business objects) POLYMORPHISM (conceptual objects) INHERITANCE (software objects) Collection Collection Collection IS-A Dictionary IS-A type type type Bag Set IS-A Set Array String Array ByteArray Array IS-A IS-A IS-A Set type type type Bag Dictionary ByteArray String Bag Dictionary ByteArray String

9 Business Map

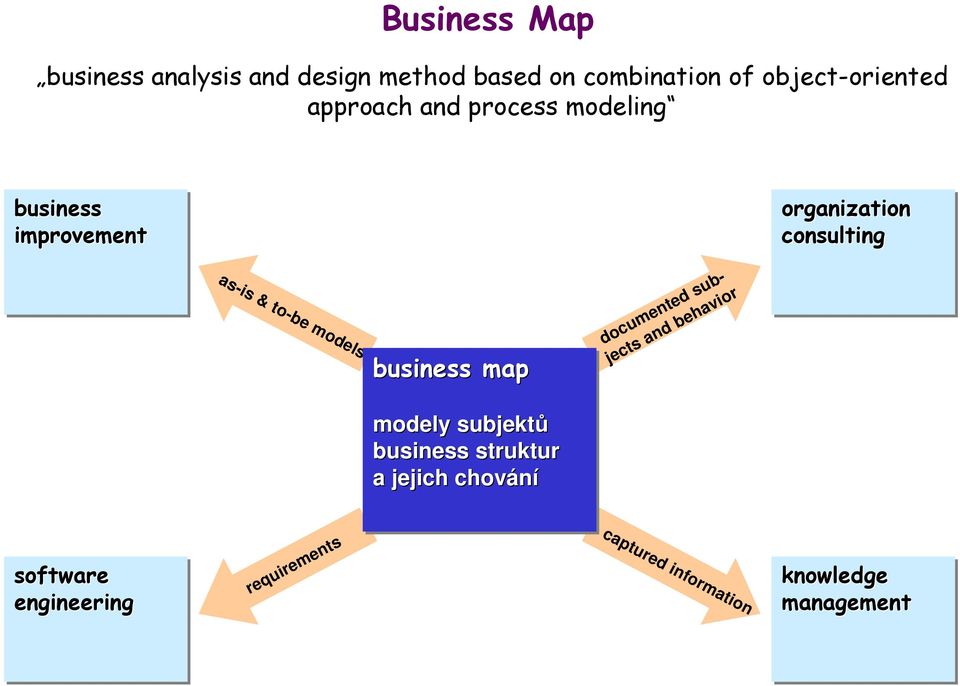

10 Business Map business analysis and design method based on combination of object-oriented approach and process ing business improvement organization consulting as-is & to-be s business map documented subjects and behavior y subjektů business struktur a jejich chování software engineering requirements captured information knowledge management

11 BORM - Business Map - framework 1. concept 2. structure 3. relationships 4. processes 5. verification behavior subjects components functions hierarchies of participants hierarchies of scenarios participant roles content of scenarios diagrams ing cards simulation & testing explanation: phase thread task

12 Funkce, Scénáře, Participanti a Modelové karty Users request new functionality Initiation: User requests new functionality. Derived from: Admin and Maintenance Action: IT Support evaluates the requests and accumulates relevant information for future development. Result: Developer periodically receives requests for upgrades (accumulated, not one-by-one). Developer IT Support User Developer CVDB IT Support New version release System error User Users request for change Users request new functionality

13 Procesní diagram Každý objekt, který v procesu participuje, mám svoje v čase proměnlivé chování a komunikuje s druhými objekty. role objektů tvoří proces Výsledný proces je dán n sledem událostí vyvolávaných vaných komunikacemi a datovými toky mezi objekty.

14 Transition from Business Engineering to Software Engineering

15 Conceptual Model Creation Define software system boundary, select objects within the system from all business objects ed. Document behavior of business objects outside the system boundary. OBJECT EVOLUTION: Decide for implementation of object types as classes or as collections. HIERARCHY EVOLUTION: Define object types and assemble type hierarchy. RELATIONSHIP EVOLUTION: Transform object associations to more concrete relations like object composing, object dependency, polymorphism or object delegation.

16 BORM uses UML notation, but has following differences: Extra symbol for method. Conceptual Diagrams method A Object A message message parameter Object B method B Extra symbol for message among methods. Extra symbol for collection of objects. Extra symbol for class object. collection name collection type message return NAME attributes operations Extra symbols for relations known from pure object languages such as delegation, dependence, polymorphism independent in inheritance, etc. In each ing phase, only limited set of concepts is used. For better expression of some ing details, it is allowed to put together data, behavioral and history related concepts in one diagram.

17 craftcase.comcom

18 Projekt Craft.CASE je původní český ovací a analytický CASE nástroj podporující metodu BORM, která je založena na kombinaci objektově orientovaného přístupu a procesního ování. Nástroj vzniká ve firmě e-fractal s.r.o. Zadání vychází ze dvou potřeb: 1) Jednoduše ovladatelný a na prostředky počítače nenáročný. 2) Modelovací nástroj přesně šitý na míru metodě BORM, který je částečně konfigurovatelný, dokáže procesy simulovat a generuje výstupní dokumentaci. Program je vyvíjen v prostředí VisualWorks/Smalltalk a je určen pro použití ve Windows 2000 a XP. craftcase.comcom

19 Shrnutí - projektování pomocí Craft.CASE společná databáze business konceptuální business diagramy transformace konceptuální diagramy simulátor vazby pomocné hierarchie vazby generátor kódu k ování zadání pro IS a jeho prostředí analýza a návrh n IS

20 Business Map - Simulační záznam Díky simulacím m lze podrobně analyzovat role jednotlivých objektů nebo skupin objektů v ovaném m procesu.

21 Business Map - Procesní diagram - Simulace Každý objekt, který v procesu participuje, mám svoje v čase proměnlivé chování a komunikuje s druhými objekty. Výsledný proces je dán n sledem událostí vyvolávaných vaných komunikacemi a datovými toky mezi objekty.

22 Business Map - Dokumentace Prvky všech ů jsou ukládány do databáze, se kterou lze přímo pracovat. Ve většině případů se prvky musí do databáze předem vložit a teprve potom lze s nimi pracovat v diagramech. Výstupní dokumentace je tvořena hypertexty ve formátu HTML a také PDF a obsahuje: 1. seznamy prvků z databáze 2. diagramy 3. simulační záznamy 4. ové karty (= tabulky s křížovými referencemi)

23 MCDrive

24 Scénáře

25 Modelové karty

26 Car Fleet I.S. APPENDIX - A

27 Participant Relationships

28 Process Diagram

29 Move to Conceptual Diagram

30 Conceptual Diagram

31 Software Diagram - Client Side

32 Software Diagram - Server Side

33 SW Components

34 SW Implementation relational data (Oracle converted via ODBC into MS Acess) object structure - client data (visual ing in VisualWorks/Smalltalk)

35 Car Fleet - VisualWorks/Smalltalk implementation R.P.Knott, V. Merunka, J. Polak program borrowed car launcher archive list of cars and garages database of car users

36 workflow of car request from car user perspective create new request request after chief s evaluation cancel request requests waiting at car assign

37 workflow of car request from car user perspective - continued request after car assign borrowed cars request cancel car borrow car borrow must be completed by physical car return to garage. this is why here is no button

38 workflow of car request from chief perspective car assign request to have assigned some car requests to be evaluated car is returned car state (reserved, in service,...) request cancel

39 APPENDIX - B BORM and ICT Management

40 BORM in the ICT Lifecycle market conditions, vision&mission statements 1. business needs & business strategy ICTArchitecture legacy situation (e.g. system architecture, bussiness processes, applications&data) existing ICT systems, user requirements (e.g. to-be processes including material flows & data flows), 2. ICT strategy - ICT assessment - ICT strategic plan - ICT implementation/tactical plan 3. project initiation business requirements - ICT project goals & objectives - gap analysis to-be vs. as-is(processes/ict) - business case (cost&benefit analysis) - decision on package or in-house devel. project charter (project sponsor,, manager, team, schedule,, budget,...) (ideally all aspects of business incl. measures; usually in description of future business processes) required target ICT architecture, ICT organization feedback changes in legacy situation (2-5 years need to update the whole ICT strategy) feedback (maintainance changes, requests for new features) 4. in-house development - analysis & design & implementation - tests - roll-out new or updated ICT systems, new or updated user behavior 5. using packages - configuration - test - roll-out 6. maintenance & support - user help desk - configuration management - risk management & security

41 BORM Software Development Process inspired by Ambler s Approach project initiation in-house development using packages maintenance & support INITIATE CONSTRUCT DELIVER MAINTAIN & SUPORT well define user requirements select optimal solution prepare all required for project start success... well end efficient performed analysis best system assembling and testing to have good documentation... start system use seamless and efectively well prepare users of the system... to have satisfied users repair defects to have good knowledge base for possible new version start... development platform operation platform Each phase has associate its key performance issues, corresponding roles, activities etc.

42 BORM Software Development Process detail project initiation in-house development using packages maintenance & support INITIATE CONSTRUCT DELIVER MAINTAIN & SUPPORT JUSTIFY DEFINE REQUIRE- MENTS MODEL TESTS IN THE SMALL TESTS IN THE LARGE RELEASE SUPPORT DEFINE MGMT DOCUMENTS DEFINE INFRA- STRUCTURE GENERALIZE PROGRAM REWORK ASSESS IDENTIFY DEFECTS zahajovací tým pracovní tým provozní tým podpora týmem projektové kanceláře podpora týmem help desk spolupráce zástupců budoucích ch uživatelů spolupráce všech v budoucích ch uživatelů PODPŮRNÉ PROCESY zajištění kvality, people management, risc management, reuse management, právní zabezpečení, ení,, bezpečnost, řízení infrastruktury,...

43 BORM Software Development Process Support Processes QUALITY ASSURANCE IDENTIFY A RISK RISK MANAGEMENT ASSESS THE RISK DEVELOP MITIGATION STRATEGIES TRAINING & EDUCATION PERFORM INTRO TRAININGS PERFORM DETAILED TRAININGS FOLLOW ISO STANDARDS DEVELOP A RISK MANAGEMENT PLAN MITIGATE THE RISK REPORT RISK DEVELOP A TRAINING PLAN REUSE MANAGEMENT METRICS MANAGEMENT DELIVERABLES MANAGEMENT INFRA- STRUCTURE MANAGEMENT COLLECT REUSABLE ITEMS DEVELOP METRICS PLAN PERFORM AND DISCUSS MANAGE SOFTWARE CONFI- GURATION APPLY CMM, TECHNIQUES

44 Nasazení rolí v jednotlivých fázích je odlišné program generaliz e test in the small development engineer er project manager subject matter expert / user technical writer INITIATE CONSTRUCT DELIVER MAINTAIN & SUPPORT
