2 Features and benefits: Laser engraving mobile systém for engraving of big moulds Replaces CNC EDM and micro-milling New way of laser head clamping New Motor travel X,Y,Z Remote control of system HCP20 More mobile and smaller metal box Easy of use with LIGHTER software

3 Inprovement of HCP20 in comparison with HCP10: New way of laser head clamping to optimise its rotating to work position. Improved focusing of laser head on the working area by using two red points. Ethernet connection with superior PC (notebook is advantage) allows to prepare data far from laser (without laser) or to use remote control of system HCP20. Optimalization of working box designed for storing of the whole laser system. The box is smaller, more mobile and also adapted for loading to car and moving in a hall. It is equipped with rotary drum for careful placing of laser head and optical cable. Manual travel X, Y, Z for quick setting of laser head working position. Motor travel X,Y,Z for very precise moving of laser head to work position. KEY button on the control board allows to lock the axis in the chosen place without any aberration. Block of power supply of clamping magnet is newly equipped except UPS function also with acoustic alarm for line voltage fault. - HCP20 meets the hardest demands for mobile, quick and precise engraving of the large tools and molds. - Frequent moving and visiting our customers is now without any problem and risk. HCP 20 - specification HCP 20-20W HCP 20-30W HCP 20-50W Nominal power 20 W 30W 50W Pulse emergy (max.) 1000 μj 1000 μj 1000 μj Peak power (max.) 10 kw 10 kw 12 kw Max. power 300W 300W 300W Input voltage 100 do 240V 100 do 240V 100 do 240V Imput current 3 do 1,25A max 3 do 1,25A max 3 do 1,4A max Head cable lenght 3 m standard 3 m standard 3 m standard Laser source Fiber laser Fiber laser Fiber laser Emission of radiation Pulsed Pulsed Pulsed Wavelength nm nm nm Modulation 20 khz 100 khz 30 khz 100 khz 50 khz 100 khz Aiming Beam nm nm nm Temperature range - operative Temperature range - storing 5 C do 50 C -10 C do 60 C 5 C do 40 C -10C do 60 C 10 C do 35 C -10C do 60 C Cooling Forsed Air Forsed Air Forsed Air Marking speed Up to 2000mm/sec Up to 2000mm/sec Up to 2000mm/sec Objective F-Theta mm 63S 100S 160S 254S 100L 160L 254L 330L Working distance mm Working area (mm x mm) 35x35 50x50 100x x140 60x60 110x x x220

4 HCP20 complies with the strictest requirements and criteria for mobile, fast and precise work for large engraving tools and molds. Frequent moving or commuting with laser engraving system to the customer is now without problems and risks.

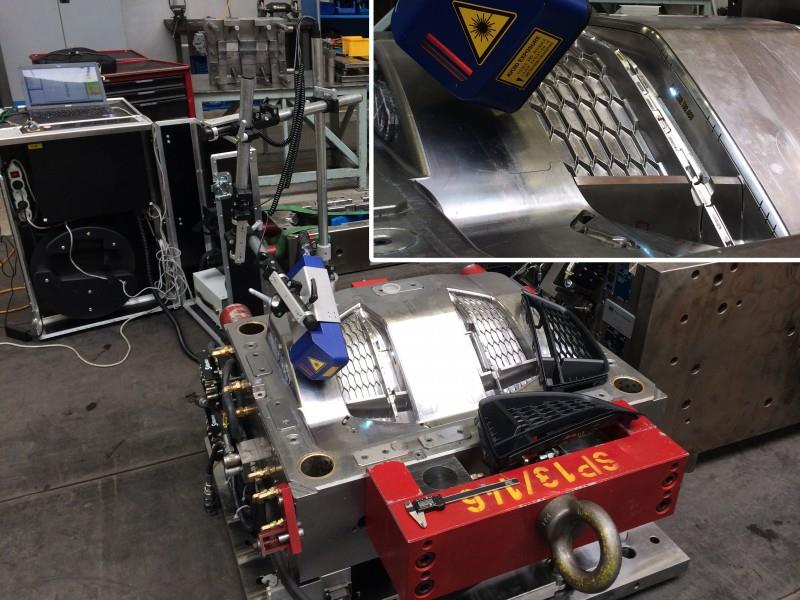

5 Examples of use: Engraving grid in aluminum Engraving directional light

6 Engraving homologation describe of light in car Engraving of mould

7 Features and benefits: Ultra compact laser head Low power consumption High quality marking and precision New portable and storable device in elegant box Easy of use with LIGHTER software Built-in encoder for smooth engraving Manual feed

8 HCP 10 is the ultra compact pulsed fiber laser offering first class performance and advanced software features. Thanks to state-of- the-art technology HCP 10 allows fast marking on metal and plastic material increasing systems productivity typical for automotive and electronics industry. Ultra compact dimension allows ease mechanical installations in the production line or inside a machines where limited space is always a key issue. With the smallest scanning head of the market place (112x298x90 mm), HCP 10 drastically simplifies systém design and machine integration. Available with 10W and 20W laser power emission, HCP 10 is very simple to set up and to parameterise using Lighter software suite. Thanks to Lighter ease of use HMI, operator can design any kind of label, with logo, text, datamatrix, bar codes. HCP 10 implements Embedded Marking Controller (EMC) for complete system control in Stand Alone Mode or Master Slave Mode. HCP 10 is equipped with up to 4indipendent axys controls ( X,Y,Z, rotative axys) to implement Multi- Layers and Rotating Marking and to change marking head position.dedicated encoder input is applied for Marking On Fly even in accelerated and un-costant speed conditions. Low Power consumption and excellent power efficiency are classified at top in its category. Elegant and compact portable box HCP Fiber Laser System in the portable box is equipped with all the necessary components to get to any place quickly. Simple and quick installation allows to mark light and small parts on the table of the box.we mark big pressing moulds by strong electromagnet that is fixed to a mould and positioning system.

9 HCP 10 - specification HCP 10-20W HCP 10-30W HCP 10-50W Nominal power 20 W 30W 50W Pulse emergy (max.) 1000 μj 1000 μj 1000 μj Peak power (max.) 10 kw 10 kw 12 kw Max. power 300W 300W 300W Input voltage 100 do 240V 100 do 240V 100 do 240V Imput current 3 do 1,25A max 3 do 1,25A max 3 do 1,4A max Head cable lenght 3 m standard 3 m standard 3 m standard Laser source Fiber laser Fiber laser Fiber laser Emission of radiation Pulsed Pulsed Pulsed Wavelength nm nm nm Modulation 20 khz 100 khz 30 khz 100 khz 50 khz 100 khz Aiming Beam nm nm nm Temperature range - operative Temperature range - storing 5 C do 50 C -10 C do 60 C 5 C do 40 C -10C do 60 C 10 C do 35 C -10C do 60 C Cooling Forsed Air Forsed Air Forsed Air Marking speed Up to 2000mm/sec Up to 2000mm/sec Up to 2000mm/sec Objective F-Theta mm 63S 100S 160S 254S 100L 160L 254L 330L Working distance mm Working area (mm x mm) 35x35 50x50 100x x140 60x60 110x x x220 The various parts of the laser can interact with the marking system. Marking set consists of two parts: PCI electronic board (imarkpci) that ensures control signals flow to the laser and an efficient software (Lighter) that provides graphical user interface for marking designs and marking process automation. Graphic editor of software Lighter creates and edits strings, shapes, barcodes, matrix codes. It is also able to import logos in raster and vector format.

10 Examples of use:

12 MEPAC VŽDY NĚCO NOVÉHO Pro naše zákazníky máme velkou škálu produktů pro přesné strojírenství od nástrojů po přístrojovou techniku, laserové systémy. Veškeré naše produkty můžete také zakoupit na našem e-shopu wwww.mepac-eshop.cz. Naši obchodní zástupci nabízejí odborné poradenství v oblasti přesného strojírenství, ale také kompletní sortiment našeho zboží v pojízdných prodejnách. V sekci prodeje přístrojů a nástrojů zastupujeme na Českém, Slovenském a Polském trhu, 17 zahraničních firem. Veškeré naše zboží zakoupíte na MEPAC CZ, s.r.o. tel. /mob. /fax Central office TŘINEC Oldřichovice Třinec Branch office VSETÍN Průmyslový areál Jasenice objekt Vsetín Branch office VRBNO Zlatohorská Vrbno p. Pradědem Branch office POLSKO Czechowice - Dziedzice MEPAC SK, s.r.o. Kotešová Kotešová (okres Bytča) tel.: mob.: (shop) mob.: (shop) mob.: (workshop) tel.: mob.: (production) mob.: (production) mob.: (shop) mob.: (shop) tel.: mob.: (shop) mob.: (shop) mob.: (workshop) fax: tel.: mob.: tel.: mob.: mob.: info@mepac.cz info.vsetin@mepac.cz info.vrbno@mepac.cz bak@mepac.cz brodnan@mepac.cz Věříme, že i Vaše firma najde v našem bohatém sortimentu užitečné přístroje či nástroje pro Vaši práci. kolektiv firem MEPAC CZ, s.r.o. a MEPAC SK, s.r.o.
