Contents System class D, unshielded Module cat. 5e Patch Panel cat. 5e Installation cable cat. 5e Patchcords cat.

Transkript

1

2 With its wide range of applications, a passive network, ICT and telecommunications infrastructure constitutes one of the crucial elements of each building project. Universal solutions should be considered when selecting network technologies. custom-made system requires a consultation with the principal and the end user. properly selected system will respond to new applications and be ready for changes and further expansion. properly designed network infrastructure takes into consideration the regulations of the applicable law and recommendations of standards established by international standardisation committees. network infrastructure built on the basis of open and modular solutions prepares it for further challenges and ensures high working efficiency. Modern data exchange systems require efficient cabling which employs both copper and optical fibre technologies. The idea which combines the above assumptions is provided by the universal Structural Cabling System of BKT Elektronik. Based on many years of experience, BKT Elektronik has created the unique Structural Cabline System, taking into account customers' needs and best interest. The BKT Elektronik System includes the best-in-class and complete offer of products necessary to design structural networks. It allows for quick and effective connection of network devices through cable networks. Components of the Structural Cabling System of BKT Elektronik hold certificates of independent European testing laboratories (GHMT, 3P) and the Polish Institute of Telecommunications, which ensure maintenance of constant parameters in accordance with the latest standard requirements. n ISO 9001 quality management system put in place in BKT Elektronik guarantees stability and constant quality of services to meet customers' demands and obligations resulting from the law. Furthermore, the offer of BKT Elektronik covers training and practical workshops. The purpose of educational meetings is to widen the participants' knowledge on modern network technologies and to exchange experiences. Companies taking part in training courses receive the status of the Certified Installer and Designer of the Structural Cabling System of BKT Elektronik which further enables them to design and install cable networks with 25 years of warranty for the offered system. unique value of BKT Elektronik is an individual design office with many years of experience and qualifications for designing electrical, telecommunications and ICT systems and Data Centre. reference list of companies and institutions using our solutions and technologies is one of the best recommendations of our company, proving the quality of services and products. Contents System class D, unshielded Module cat. 5e Patch Panel cat. 5e Installation cable cat. 5e Patchcords cat. 5e System class D, shielded Module cat. 5e Patch Panel cat. 5e Installation cable cat. 5e Patchcords cat. 5e ccesories (sockets, organizers, insert) System class D (permanent link) System class E, unshielded Module cat. 6 Patch Panel cat. 6 Installation cable cat. 6 Patchcords cat. 6 System class E, shielded Module cat. 6 Patch Panel cat. 6 Installation cable cat. 6 Patchcords cat. 6 ccesories (sockets, organizers, insert) System class E, (permanent link) System class E, unshielded Module cat. 6 Patch Panel cat. 6 Installation cable cat. 6 System class E, shielded Module cat. 6 Patch Panel cat. 6 Installation cable cat. 6, 7 Patchcords cat. 6 ccesories (sockets, organizers, insert) System class E, (permanent link) System class E, BKT NL, shielded Module cat. 6 Patch Panel cat. 6 Installation cable cat. 7 Patchcords cat. 6 ccesories (sockets, organizers, insert) System class E, BKT NL, (permanent link) System class F, BKT NL, shielded Module cat. 8.2 Patch Panel cat. 7 Installation cable cat. 7, 7 Patchcords ccesories (sockets, organizers, insert) System class F, BKT NL, (permanent link) System class F, BKT NL, shielded Module cat. 8.2 Patch Panel cat. 7 Installation cable cat. 7 Patchcords ccesories (sockets, organizers, insert) System class F, BKT NL, (permanent link) System class II, BKT NL, shielded Module cat. 8.2 Patch Panel cat. 8.2 Installation cable cat. 8.2 Patchcords ccesories (sockets, organizers, insert) System class II, BKT.NL, (permanent link) System class C, ISDN, LS Patch Panel cat. 3 Installation cable cat. 3 Patchcords cat. 5e Components LS Frames, flush box, sockets 230V

3 System class D 1

4 System class D, unshielded Module cat. 5e The RJ45 Module Keystone BKT is used for forming outlets in both flush and surface mounted versions through fitting them adapters also, enables development of modular patch panels for data cabinets. : Module Keystone BKT RJ45 cat. 5e tool free ź Slot connection IDC for cables with WG 22-WG 26 ź Color-coded terminals according to T568 and T568B schemes ź Quick and simple installation ź Keystone BKT modules are equipped with an additional cable organizer tool allows termination by using 110&LS or a dedicated tool BKT HT with head 28 ź Conforms with requirements of electromagnetic compatibility EM ź Possibility of mounting in a wide range of installation equipment available on the market ź Dimensions (H x W x D)-20mm x 16mm x 34mm : Module Keystone BKT BKT RJ45 cat. 5e tool ź Slot connection IDC for cables with WG 22-WG 26 ź Color-coded terminals according to T568 and T568B schemes ź Quick and simple installation ź Terminal wire mounting with the help of 110 & LS mounting tool or a dedicated tool BKT HT with head 18 ź Conforms with requirements of electromagnetic compatibility EMC ź Possibility of mounting in a wide range of installation equipment available on the market ź Dimensions (H x W x D)- 21mm x 16mm x 33mm Patch Panel cat. 5e Patch Panel serve as terminals for wire cables laid vertically or horizontally and function as a connecting point for active equipment working within a network. ll elements feature high quality transmission and mechanical parameters. : : Patch Panel 19" BKT 24 x RJ45 ź Cross Panel designed in 19 standard with a height of 1U ź Integrated cabling shelf for securing cables using cable ties ź 24 Unshielded RJ45 ports ź Slot connection IDC LS for cables with WG 22 - WG 26 ź Color-coded terminals according to T568 and T568B schemes ź Black color RL 9005 Patch Panel 19" BKT 48 x RJ45 ź Cross Panel designed in 19 standard with a height of 1U ź Integrated cabling shelf for securing cables using cable ties ź 48 Unshielded RJ45 ports ź Slot connection IDC LS for cables with WG 22 - WG 26 ź Color-coded terminals according to T568 and T568B schemes ź Black color RL

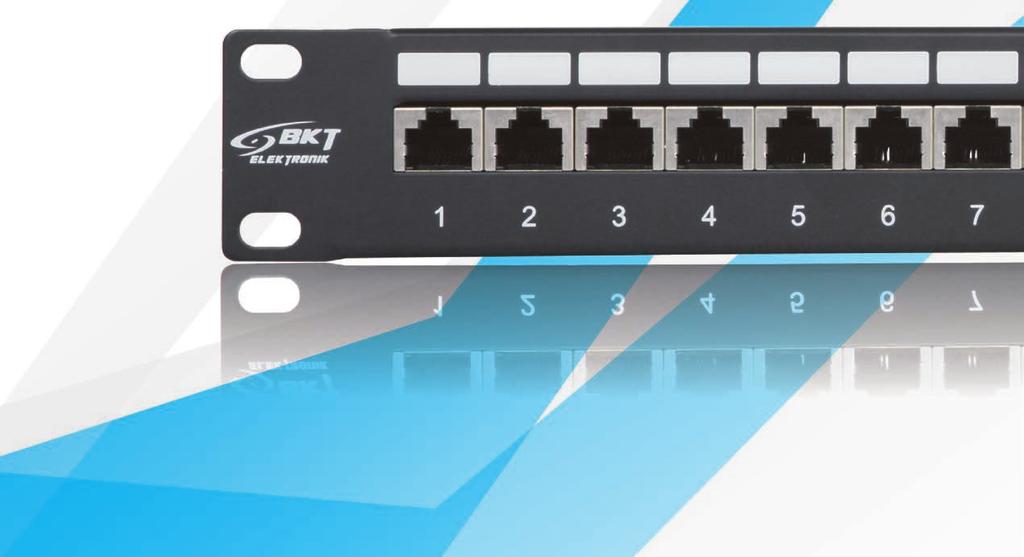

5 System class D, unshielded : : Patch Panel Modular 19'' BKT 24xRJ45 Patch panel modular 19'' designed for tool and tool free Keystone BKT modules. ź Modular patch panel 19'' with a height of 1U for mounting tool and tool free Keystone BKT modules ź Possibility of mounting up to 24 shielded and unshielded Keystone BKT modules ź Integrated cable organizer for holding cables using cable ties ź Metal construction ensuring galvanized connection with module shielding ź Earthing cable ź Black color RL 9005 Patch Panel modular 19'' BKT 24xRJ45 shifted slots Patch panel modular 19'' with shifted slots are designed specially for system cat. 6. ź Modular patch panel 19'' with a height of 1U for mounting tool and tool free Keystone BKT modules ź Possibility of mounting up to 24 shielded and unshielded Keystone BKT modules ź Possibility of mounting modules cat.7, 7 - GG45 ź Integrated cable organizer for holding cables using cable ties ź Metal construction ensuring galvanized connection with module shielding ź Earthing cable ź Black color RL 9005 : : Patch Panel Modular 19'' BKT 24xRJ45 ngle Slots Patch panel modular 19'' is specifically designed to eliminate the horizontal organization of cables in the teleinformation rack. rrangement of patch cords to the sides of rack 19'' enables to use full teleinformation rack capacity. ź Modular patch panel 19'' with a height of 1U for mounting tool and tool free Keystone BKT modules ź Possibility of mounting up to 24 shielded and unshielded Keystone BKT modules ź Integrated cable organizer for holding cables using cable ties ź Metal construction ensuring galvanized connection with module shielding ź Earthing cable ź Black color RL 9005 Patch Panel Modular 19'' BKT 48xRJ45 Patch panel modular 19'' specifically designed for maximum packing tool free module BKT in 1U of space, increasing packing capabilities of telecommunications cabinets by 100%. ź Modular patch panel 19'' with a height of 1U for mounting tool free Keystone BKT modules ź Possibility of mounting up to 48 shielded and unshielded Keystone BKT modules ź Integrated cable organizer for holding cables using cable ties ź Metal construction ensuring galvanized connection with module shielding ź Earthing cable ź Black color RL

6 System class D, unshielded Installation cable cat. 5e BKT 275 cat. 5e U/UTP PVC installation cable pplication: ź Primary (Campus), Secondary(Riser), Tertiary (Horizontal) ź IEEE 802.3: 10Base-T; 100Base-T; 1000Base-T ź IEEE MB; ISDN; TPDDI; TM ź NSI/TI 568C.2 2-nd ed.; IEC ź EN 50173; EN Flame resistance: ź PVC: IEC Construction: Mechanical properties: Conductor Insulation Twisting Cable lay up Sheath Bare copper wire Ø 0,5mm (WG24) Polyethylene, Ø 0,9mm 2 cores to the pair 4 pairs to the core PVC alt. LSHF (FRNC, LSOH), grey RL 7035 Bending radius Temperature range installation installed during operation during installation 25 mm 50 mm -20 C to +70 C 0 C to +60 C Technical data: Product name BKT 275 cat.5e U/UTP 4P PVC Cable type Outer diameter (mm) Fire load MJ/km KWh/m Weight (kg/km) Tensile force (N) Nominal velocity of propagation NVP (%) J-2YY 4 x 2 x , Product code BKT 275 cat. 5e U/UTP LSHF installation cable pplication: ź Primary (Campus), Secondary(Riser), Tertiary (Horizontal) ź IEEE 802.3: 10Base-T; 100Base-T; 1000Base-T ź IEEE MB; ISDN; TPDDI; TM ź NSI/TI 568C.2 2-nd ed.; IEC ź EN 50173; EN Flame resistance: ź LSHF(LSOH): IEC ź ROHS 2002/95/EC Construction: Mechanical properties: Conductor Insulation Twisting Cable lay up Sheath Bare copper wire Ø 0,5mm (WG24) Polyethylene, Ø 0,9mm 2 cores to the pair 4 pairs to the core PVC alt. LSHF (FRNC, LSOH), grey RL 7035 Bending radius Temperature range installation installed during operation during installation 25 mm 50 mm -20 C to +70 C 0 C to +60 C Technical data: Product name BKT 275 cat.5e U/UTP 4P LSHF Cable type Outer diameter (mm) Fire load MJ/km KWh/m Weight (kg/km) Tensile force (N) Nominal velocity of propagation NVP (%) Product code J-2YY 4 x 2 x ,

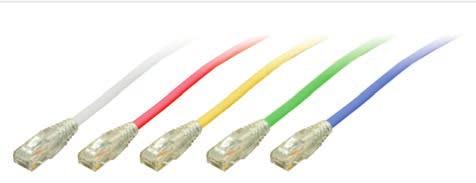

7 System class D, unshielded Patchcords cat. 5e Crossover/patch cable used for connections in distribution cabinets or for connecting devices to subscriber s outlets. The patch cord is terminated in molded unshielded RJ45 connectors at both ends. BKT U/UTP Patchcord, cat. 5e, PVC, Molded RJ45 Connector BKT U/UTP Patchcord cat. 5e, LSZH, Crimp RJ45 Connector ź Connector Type: unshielded RJ45 ź Cable Form Standard: NSI/TI-568B ź Cable Type: U/UTP cat. 5e WG 24 PVC ź Sheath Material: PVC ź Color: according to the table below ź PN-EN ź NSI/TI-568 ź RoHS ź Connector Type: unshielded RJ45 ź Cable Form Standard: NSI/TI-568B ź Cable Type: U/UTP cat. 5e WG 26 LSZH ź Sheath Material: PVC ź Color: according to the table below ź PN-EN ź NSI/TI-568 ź IEC ź IEC ź RoHS Colors grey X green X blue X yellow X red X black X X X patchcord length (m) Colors grey X red X green X blue X yellow X X X patchcord length (m) 5

8 System class D, shielded Module cat. 5e The RJ45 Module Keystone BKT is used for forming outlets in both flush and surface mounted versions through fitting them adapters also, enables development of modular patch panels for data cabinets. : Module Keystone BKT RJ45 cat. 5e tool free ź Slot connection IDC for cables with WG 22-WG 26 ź Color-coded terminals according to T568 and T568B schemes ź Quick and simple installation ź Keystone BKT modules are equipped with an additional cable organizer tool allows termination by using 110&LS or a dedicated tool BKT HT with head 28 ź Conforms with requirements of electromagnetic compatibility EMC ź Possibility of mounting in a wide range of installation equipment available on the market ź Dimensions (H x W x D) - 20mm x 16mm x 34mm : Module Keystone BKT RJ45 cat. 5e tool ź Slot connection IDC for cables with WG 22-WG 26 ź Color-coded terminals according to T568 and T568B schemes ź Quick and simple installation ź Terminal wire mounting with the help of 110&LS mounting tool or a dedicated tool BKT HT with head 18 ź Conforms with requirements of electromagnetic compatibility EMC ź Possibility of mounting in a wide range of installation equipment available on the market ź Dimensions (H x W x D) - 21 mm x 16 mm x 33 mm Patch Panel cat. 5e Patch panel serve as terminals for wire cables laid vertically or horizontally and function as a connecting point for active equipment working within a network. ll elements feature high quality transmission and mechanical parameters.. : : Patch Panel 19" BKT 24 x RJ45 ź Cross Panel designed in 19 standard with a height of 1U ź Integrated cabling shelf for securing cables using cable ties ź 24 shielded RJ45 ports ź Slot connection IDC LS for cables with WG 22 - WG 26 ź Color-coded terminals according to T568 and T568B schemes ź Earthing cable ź Black color RL 9005 Patch Panel 19" BKT 48 x RJ45 ź Cross Panel designed in 19 standard with a height of 1U ź Integrated cabling shelf for securing cables using cable ties ź 48 shielded RJ45 ports ź Slot connection IDC LS for cables with WG 22 - WG 26 ź Color-coded terminals according to T568 and T568B schemes ź Earthing cable ź Black color RL

9 System class D, shielded : : Patch Panel Modular 19'' BKT 24xRJ45 Patch panel modular 19'' designed for tool and tool free Keystone BKT modules. ź Modular patch panel 19'' with a height of 1U for mounting tool and tool free Keystone BKT modules ź Possibility of mounting up to 24 shielded and unshielded Keystone BKT modules ź Integrated cable organizer for holding cables using cable ties ź Metal construction ensuring galvanized connection with module shielding ź Earthing cable ź Black color RL 9005 Patch Panel modular 19'' BKT 24xRJ45 shifted slots Patch panel modular 19'' with shifted slots are designed specially for system cat. 6. ź Modular patch panel 19'' with a height of 1U for mounting tool and tool free Keystone modules ź Possibility of mounting up to 24 shielded and unshielded Keystone BKT modules ź Possibility of mounting modules cat. 7, 7 - GG45 ź Integrated cable organizer for holding cables using cable ties ź Metal construction ensuring galvanized connection with module shielding ź Earthing cable ź Black color RL 9005 : : Patch Panel Modular 19'' BKT 24xRJ45 ngle Slots Patch panel modular 19'' is specifically designed to eliminate the horizontal organization of cables in the teleinformation rack. rrangement of patch cords to the sides of rack 19'' enables to use full teleinformation rack capacity. ź Modular patch panel 19'' with a height of 1U for mounting tool and tool free Keystone BKT modules ź Possibility of mounting up to 24 shielded and unshielded Keystone BKT modules ź Integrated cable organizer for holding cables using cable ties ź Metal construction ensuring galvanized connection with module shielding ź Earthing cable ź Black color RL 9005 Patch Panel Modular 19'' BKT 48xRJ45 Patch panel modular 19'' specifically designed for maximum packing tool free module BKT in 1U of space, increasing packing capabilities of telecommunications cabinets by 100%. ź Modular patch panel 19'' with a height of 1U for mounting tool free Keystone BKT modules ź Possibility of mounting up to 48 shielded and unshielded Keystone BKT modules ź Integrated cable organizer for holding cables using cable ties ź Metal construction ensuring galvanized connection with module shielding ź Earthing cable ź Black color RL

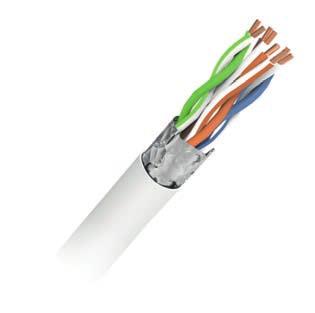

10 System class D, shielded Installation cable cat. 5e BKT 285 cat. 5e F/UTP PVC installation cable pplication: ź Primary (Campus), Secondary(Riser), Tertiary (Horizontal) ź IEEE 802.3: 10Base-T; 100Base-T; 1000Base-T; ź IEEE MB; ISDN; TPDDI; TM ź EI/TI 568-C.2 2-nd ed; IEC ź EN 50173; EN Flame resistance: ź PVC: IEC Construction: Conductor Bare copper wire Ø 0,5mm (WG24) Insulation Polyethylene, Ø 1,1 mm Twisting 2 cores to the pair Cable lay up 4 pairs to the core l-laminated plastic foil, drain wire WG26 Screen tinned Sheath PVC alt. LSHF (FRNC, LSOH), grey RL 7035 Mechanical properties: Bending radius Temperature range installation installed during operation during installation 25 mm 50 mm -20 C to +60 C 0 C to +50 C Technical data: Product name Cable type Outer diameter (mm) Fire load MJ/km KWh/m Weight (kg/km) Copper content (kg/km) Tensile force (N) Nominal velocity of propagation NVP (%) Product code BKT 285 cat. 5e F/UTP 4P PVC J-02Y(St)Y 4 x 2 x , , BKT 285 cat. 5e F/UTP LSHF installation cable pplication: ź Primary (Campus), Secondary(Riser), Tertiary (Horizontal) ź IEEE 802.3: 10Base-T; 100Base-T; 1000Base-T; ź IEEE MB; ISDN; TPDDI; TM ź EI/TI 568-C.2 2-nd ed; IEC ź EN 50173; EN Flame resistance: ź LSHF(LSOH): IEC ź ROHS 2011/65/EU Construction: Conductor Bare copper wire Ø 0,5mm (WG24) Insulation Polyethylene, Ø 1,1 mm Twisting 2 cores to the pair Cable lay up 4 pairs to the core l-laminated plastic foil, drain wire WG26 Screen tinned Sheath PVC alt. LSHF (FRNC, LSOH), grey RL 7035 Mechanical properties: Bending radius Temperature range installation installed during operation during installation 25 mm 50 mm -20 C to +60 C 0 C to +50 C Technical data: Product name BKT 285 cat. 5e F/UTP 4P LSHF Cable type J-02Y(St)Y 4 x 2 x 0.5 Outer diameter (mm) Fire load MJ/km KWh/m Weight (kg/km) Copper content (kg/km) Tensile force (N) Nominal velocity of propagation NVP (%) Product code , ,

11 System class D, shielded Patchcords cat. 5e Crossover/patch cable used for connections in distribution cabinets or for connecting devices to subscriber s outlets. The patch cord is terminated in molded shielded RJ45 connectors at both ends. BKT F/UTP Patchcord, cat. 5e, PVC, Molded RJ45 Connector BKT F/UTP Patchcord cat. 5e, LSZH, Crimp RJ45 Connector Product Details: Product Details: ź Connector Type: shielded RJ45 ź Cable Form Standard: NSI/TI-568B ź Cable Type: F/UTP Cat 5e WG 26 PVC ź Sheath Material: PVC ź Color: according to the table below ź PN-EN ź NSI/TI-568 ź RoHS ź Connector Type: shielded RJ45 ź Cable Form Standard: NSI/TI-568B ź Cable Type: F/UTP Cat 5e WG 26 LSZH ź Sheath Material: PVC ź Color: according to the table below ź PN-EN ź NSI/TI-568 ź IEC ź IEC ź RoHS Colors grey X green X blue X yellow X red X black X X X patchcord length (m) - grey: 0,5; 1; 1,5; 2; 3, 5; 7,5; 10m Other colors: 0,5; 1; 2; 3; 5m Colors grey X red X green X blue X yellow X X X patchcord length (m) BKT SF/UTP Patchcord cat. 5e, LSZH, Crimp RJ45 Connector Product Details: ź Connector Type: shielded RJ45 ź Cable Form Type: NSI/TI-568B ź Cable Form Type: NSI/TI-568B ź Sheath Material: PVC ź Color: according to the table below ź PN-EN ź NSI/TI-568 ź IEC ź IEC ź RoHS Colors grey red green blue yellow X X X X X X X patchcord length (m) 9

12 System class D, shielded ccesories (sockets, organizers, insert) System of socket frames with support, surface-mounted boxes, flush boxes, sockets, dummy plugs and electrical sockets is applied in dedicated power installations in 45 x 45 mm standard. This solution allows putting together complete logical access points starting from dedicated power supply through LN and optical fiber connection. : : BKT Flat Plate 1 x RJ45 Socket ź The socket allows mounting telecom jacks in 45 x 45 mm standard ź To be mounted together with socket frames with support or directly in cable trays ź nti-dust cover for RJ45 jack ź Large label field ź Positive locking ź The socket allows mounting keystone RJ45 modules by the most of the manufacturers on the market ź Size (width x height): 22.5 x 45 mm ź Color: white BKT Flat Plate 2 x RJ45 Socket ź The socket allows mounting telecom jacks in 45 x 45 mm standard; ź To be mounted together with socket frames with support or directly in cable trays; ź nti-dust cover for RJ45 jack; ź Large label field; ź Positive locking; ź The socket allows mounting keystone RJ45 modules produced by the most of the manufacturers on the market; ź Size (width x height): 45 x 45 mm; ź Color: white. : : BKT Horizontal cable management 19'' ź Universal horizontal cable organizer 19 with a height of 1U for use inside of telecommunications cabinets ź 5 universal brackets support the organization of cables, and provide appropriate route for horizontal structural cabling ź The possibility to lead the cable through both the top as well as the right and left sides of the organizer ź The possibility of installing cable organizer in both the front and rear of the cabinet ź Ensure proper bend radius for management cables ź Black color RL 9005 BKT Plastic horizontal cable organizer with heightened flexibility 19" ź llows for clear organization of cabling ź Holders can be mounted horizontally as well as vertically ź Holes between holders allow for leading cables through the back of the organizer ź dditional side holders mounted at the side of the organizer allow for vertical organization of cabling ź Material - highly flexible plastic ź Standard: 19 ź Height: 1U ź Holder quantity: 5 ps. : : BKT Plastic cable organizer with heightened flexibility ź llows for clear organization of cabling ź Mounted on the side of the horizontal cable organizer ( ) without the use of tools ź Mountable on the side of mounting rails through the use of standard cage nuts ź Material - highly flexible plastic ź Type: - 1U 40x80mm - 1U 80x80mm 10

13 System class D, shielded : : BKT Insert - White Dummy Plug dummy plug to be mounted in modular panels or adapters used for mounting BKT module. ź Keystone Standard ź Color: white BKT Insert Black Dummy Plug dummy plug to be mounted in modular panels or adapters used for mounting BKT module. ź Keystone Standard ź Color: black : : BKT Insert for SC Simplex or LC Duplex Connectors, white n insert for SC Simplex or LC Duplex connectors to be mounted in modular panels or adapters used for mounting BKT modules. ź Keystone Standard ź Color: white BKT Insert for ST Connector, white n insert for ST connector to be mounted in modular panels or adapters used for mounting BKT modules. ź Keystone Standard ź Color: white : BKT Insert for F and RC Connectors, white n insert for F or RC connectors to be mounted in modular panels or adapters used for mounting BKT modules. ź Keystone Standard ź Color: white 11

14 System class D (permanent link) Floor distribution point Installation cable Subscriber socket Module Keystone BKT RJ45 cat. 5e tool free, unshielded : BKT 275 cat. 5e U/UTP PVC cable : BKT Flat Plate 1 x RJ45 Socket (22,5/45) : Module Keystone BKT RJ45 cat. 5e tool, unshielded : BKT 275 cat. 5e U/UTP LSHF cable : Module Keystone BKT RJ45 cat. 5e tool free, unshielded : BKT Flat Plate 2 x RJ45 Socket (44/45) : Module Keystone BKT RJ45 cat.5e tool free, shielded : BKT 285 cat. 5e F/UTP PVC cable : Panel Patch krosujący Panel 19" BKT DRKOM, 24 x RJ45, 24xRJ45, nieekranowany unshielded Panel Patch krosujący Panel 19" BKT DRKOM, 48 x RJ45, 24xRJ45, nieekranowany unshielded Panel Patch krosujący Panel Modular 19" BKT DRKOM, 19'' BKT 24xRJ45, nieekranowany 24 x RJ45 Panel Patch krosujący Panel modular 19" BKT DRKOM, 19'' BKT 24xRJ45, nieekranowany 24xRJ45 shifted slots Patch Panel Modular 19'' BKT 24xRJ45 ngle Slots Panel Patch krosujący Panel Modular 19" BKT DRKOM, 19'' BKT 24xRJ45, 48xRJ45 nieekranowany Panel Patch krosujący Panel 19" BKT DRKOM, 24 x RJ45 24xRJ45, nieekranowany Panel Patch krosujący Panel 19" BKT DRKOM, 48 x RJ45 24xRJ45, nieekranowany Module Keystone BKT RJ45 cat.5e tool free, shielded : Module Keystone BKT RJ45 cat.5e tool, shielded : BKT 285 cat. 5e F/UTP LSHF cable : : : : : : : : :

15 Class system E 13

16 System class E, unshielded Module cat. 6 The RJ45 Module Keystone BKT is used for forming outlets in both flush and surface mounted versions through fitting them adapters also, enables development of modular patch panels for data cabinets. : Module Keystone BKT RJ45 cat. 6 tool free ź Slot connection IDC for cables with WG 22 - WG 26 ź Color-coded terminals according to T568 and T568B schemes ź Quick and simple installation ź Keystone BKT modules are equipped with an additional cable organizer tool allows termination by using 110&LS or a dedicated tool BKT HT with head 28 ź Conforms with requirements of electromagnetic compatibility EMC ź Possibility of mounting in a wide range of installation equipment available on the market ź Dimensions (H x W x D) 20mm x 16mm x 34mm : Module Keystone BKT RJ45 cat. 6 tool ź Slot connection IDC for cables with WG 22-WG 26 ź Color-coded terminals according to T568 and T568B schemes ź Quick and simple installation ź Terminal wire mounting with the help of 110 & LS mounting tool or a dedicated tool BKT HT with head 18 ź Conforms with requirements of electromagnetic compatibility EMC ź Possibility of mounting in a wide range of installation equipment available on the market ź Dimensions (H x W x D) - 21mm x 16mm x 33mm Patch Panel cat. 6 Patch Panel serve as terminals for wire cables laid vertically or horizontally and function as a connecting point for active equipment working within a network. ll elements feature high quality transmission and mechanical parameters. : : Patch Panel 19" BKT 24 x RJ45 ź Cross Panel designed in 19 standard with a height of 1U ź Integrated cabling shelf for securing cables using cable ties ź 24 Unshielded RJ45 ports ź Slot connection IDC LS for cables with WG 22 - WG 26 ź Color-coded terminals according to T568 and T568B schemes ź Black color RL 9005 Patch Panel 19" BKT 48 x RJ45 ź Cross Panel designed in 19 standard with a height of 1U ź Integrated cabling shelf for securing cables using cable ties ź 48 Unshielded RJ45 ports ź Slot connection IDC LS for cables with WG 22 - WG 26 ź Color-coded terminals according to T568 and T568B schemes ź Black color RL

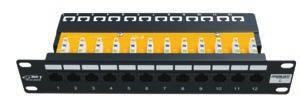

17 System class E, unshielded : : Patch Panel 10" BKT 12 x RJ45 ź Cross Panel designed in 10 standard with a height of 1U ź Integrated cabling shelf for securing cables using cable ties ź 12 Unshielded RJ45 ports ź Slot connection IDC LS for cables with WG 22 - WG 26 ź Color-coded terminals according to T568 and T568B schemes ź Black color RL 9005 Patch Panel Modular 19'' BKT 24xRJ45 Patch panel modular 19'' designed for tool and tool free Keystone BKT modules. ź Modular patch panel 19'' with a height of 1U for mounting tool and tool free Keystone BKT modules ź Possibility of mounting up to 24 shielded and unshielded Keystone BKT modules ź Integrated cable organizer for holding cables using cable ties ź Metal construction ensuring galvanized connection with module shielding ź Earthing cable ź Black color RL 9005 : : Patch Panel modular 19'' BKT 24xRJ45 shifted slots Patch panel modular 19'' with shifted slots are designed specially for system cat. 6. ź Modular patch panel 19'' with a height of 1U for mounting tool and tool free Keystone BKT modules ź Possibility of mounting up to 24 shielded and unshielded Keystone BKT modules ź Possibility of mounting modules cat.7, 7 - GG45 ź Integrated cable organizer for holding cables using cable ties ź Metal construction ensuring galvanized connection with module shielding ź Earthing cable ź Black color RL 9005 : Patch Panel Modular 19'' BKT 24xRJ45 ngle Slots Patch panel modular 19'' is specifically designed to eliminate the horizontal organization of cables in the teleinformation rack. rrangement of patch cords to the sides of rack 19'' enables to use full teleinformation rack capacity. ź Modular patch panel 19'' with a height of 1U for mounting tool and tool free Keystone BKT modules ź Possibility of mounting up to 24 shielded and unshielded Keystone BKT modules ź Integrated cable organizer for holding cables using cable ties ź Metal construction ensuring galvanized connection with module shielding ź Earthing cable ź Black color RL 9005 Patch Panel Modular 19'' BKT 48xRJ45 Patch panel modular 19'' specifically designed for maximum packing tool free module BKT in 1U of space, increasing packing capabilities of telecommunications cabinets by 100%. ź Modular patch panel 19'' with a height of 1U for mounting tool free Keystone BKT modules ź Possibility of mounting up to 48 shielded and unshielded Keystone BKT modules ź Integrated cable organizer for holding cables using cable ties ź Metal construction ensuring galvanized connection with module shielding ź Earthing cable ź Black color RL

18 System class E, unshielded Installation cable cat 6 BKT 405 cat. 6 U/UTP PVC installation cable pplication: ź Primary (Campus), Secondary (Riser), Tertiary (Horizontal) ź IEEE 802.3: 10Base-T; 100Base-T; 1000Base-T; ź IEEE MB; ISDN; TPDDI; TM ź Power over Ethernet (PoE) / PoE+ ź EI/TI 568-C.2 2-nd ed.; IEC ź EN ; EN ź IEEE 802.3at Flame resistance: ź PVC: IEC Construction: Mechanical properties: Conductor Insulation Twisting Cable lay up Sheath Bare copper wire Ø 0,5mm Polyethylene, Ø 0,95mm 2 cores to the pair 4 pairs to the core PVC or LSHF (FRNC, LSOH), blue RL 5012 Bending radius Temperature range installation installed during operation during installation 8 x D 4 x D -20 C to +60 C 0 C to +50 C Technical data: Product name BKT 405 cat 6 U/UTP 4P PVC Cable type Outer diameter (mm) Fire load MJ/km KWh/m Weight (kg/km) Tensile force (N) J-2YY 4 x 2 x , Nominal velocity of propagation NVP (%) 67 Product code BKT 405 cat. 6 U/UTP LSHF installation cable pplication: ź Primary (Campus), Secondary (Riser), Tertiary (Horizontal) ź IEEE 802.3: 10Base-T; 100Base-T; 1000Base-T; ź IEEE MB; ISDN; TPDDI; TM ź Power over Ethernet (PoE) / PoE+ ź EI/TI 568-C.2 2-nd ed.; IEC ź EN ; EN ź IEEE 802.3at Flame resistance: ź LSHF: IEC ; IEC ; IEC Construction: Mechanical properties: Conductor Insulation Twisting Cable lay up Sheath Bare copper wire Ø 0,5mm Polyethylene, Ø 0,95mm 2 cores to the pair 4 pairs to the core PVC or LSHF (FRNC, LSOH), blue RL 5012 Bending radius Temperature range installation installed during operation during installation 8 x D 4 x D -20 C to +60 C 0 C to +50 C Technical data: Product name BKT 405 cat.6 U/UTP 4P LSHF Cable type Outer diameter (mm) Fire load MJ/km KWh/m Weight (kg/km) Tensile force (N) Nominal velocity of propagation NVP (%) Product code J-2YY 4 x 2 x ,

19 System class E, unshielded Patchcords cat. 6 Crossover/patch cable used for connections in distribution cabinets or for connecting devices to subscriber s outlets. The patch cord is terminated in molded unshielded RJ45 connectors at both ends. BKT U/UTP Patchcord cat. 6, LSZH, Molded RJ45 Connector BKT U/UTP Patchcord cat. 6, LSZH, Crimp RJ45 Connector ź Connector Type: unshielded RJ45 ź Cable Form Type: NSI/TI-568B ź Cable Type: U/UTP Cat 6 WG 24 LSZH ź Sheath Material: PVC ź Color: according to the table below ź PN-EN ź NSI/TI-568 ź IEC ź IEC ź RoHS ź Connector Type: unshielded RJ45 ź Cable Form Standard: NSI/TI-568B ź Cable Type: U/UTP Cat 6 WG 26 LSZH ź Sheath Material: PVC ź Color: according to the table below ź PN-EN ź NSI/TI-568 ź IEC ź IEC ź RoHS Colors grey green blue yellow red black X X X X X X X X patchcord length (m) - grey: 0,5; 1; 1,5; 2; 3, 5; 7,5; 10m Other colors: 0,5; 1; 2; 3; 5m Colors grey X red X green X blue X yellow X X X patchcord length (m) BKT U/UTP Patchcord cat. 6, LSHF, BKT RJ45 crimped plug ź Connector Type: unshielded RJ45 ź Cable Form Type: NSI/TI-568B ź Cable Type: U/UTP LSHF cat. 6 BKT 350L WG 24/7 ź Sheath Material: PVC-PC ź Color: according to the table below ź PN-EN ź EN ź IEC ź IEC ź IEC ź NSI/TI-568-C.2 ź RoHS 2011/65/EU Colors grey X X X patchcord length (m) - grey: 0,5; 1; 1,5; 2; 3, 4; 5; 7,5; 10m 17

20 System class E, shielded Module cat. 6 The RJ45 Module Keystone BKT is used for forming outlets in both flush and surface mounted versions through fitting them adapters also, enables development of modular patch panels for data cabinets. : Module Keystone BKT RJ45 cat.6 tool free ź Slot connection IDC for cables with WG 22 - WG 26 ź Color-coded terminals according to T568 and T568B schemes ź Quick and simple installation. ź Keystone BKT modules are equipped with an additional cable organizer tool allows termination by using 110 & LS or a dedicated tool BKT HT with head 28 ź Conforms with requirements of electromagnetic compatibility EMC ź Possibility of mounting in a wide range of installation equipment available on the market ź Dimensions (H x W x D) - 20mm x 16mm x 34mm : Module Keystone BKT RJ45 cat. 6 tool ź Slot connection IDC for cables with WG 22 - WG 26 ź Color-coded terminals according to T568 and T568B schemes ź Quick and simple installation ź Terminal wire mounting with the help of 110 & LS mounting tool or a dedicated tool BKT HT with head 18 ź Conforms with requirements of electromagnetic compatibility EMC ź Possibility of mounting in a wide range of installation equipment available on the market ź Dimensions (H x W x D) - 21mm x 16mm x 33mm Patch Panel cat. 6 Patch Panel serve as terminals for wire cables laid vertically or horizontally and function as a connecting point for active equipment working within a network. ll elements feature high quality transmission and mechanical parameters. : : Patch Panel 19" BKT 24 x RJ45 ź Cross Panel designed in 19 standard with a height of 1U ź Integrated cabling shelf for securing cables using cable ties ź 24 shielded RJ45 ports ź Slot connection IDC LS for cables with WG 22 - WG 26 ź Color-coded terminals according to T568 and T568B schemes ź Earthing cable ź Black color RL 9005 Patch Panel 19" BKT 48 x RJ45 ź Cross Panel designed in 19 standard with a height of 1U ź Integrated cabling shelf for securing cables using cable ties ź 48 shielded RJ45 ports ź Slot connection IDC LS for cables with WG 22 - WG 26 ź Color-coded terminals according to T568 and T568B schemes ź Earthing cable ź Black color RL

21 System class E, shielded : : Patch Panel 10" BKT 12 x RJ45 ź Cross Panel designed in 10 standard with a height of 1U ź Integrated cabling shelf for securing cables using cable ties ź 12 shielded RJ45 ports ź Slot connection IDC LS for cables with WG 22 - WG 26 ź Color-coded terminals according to T568 and T568B schemes ź Earthing cable ź Black color RL 9005 Patch Panel Modular 19'' BKT 24xRJ45 Patch panel modular 19'' designed for tool and tool free Keystone BKT modules. ź Modular patch panel 19'' with a height of 1U for mounting tool and tool free Keystone BKT modules ź Possibility of mounting up to 24 shielded and unshielded Keystone BKT modules ź Integrated cable organizer for holding cables using cable ties ź Metal construction ensuring galvanized connection with module shielding ź Earthing cable ź Black color RL 9005 : : Patch Panel modular 19'' BKT 24xRJ45 shifted slots Patch panel modular 19'' with shifted slots are designed specially for system cat. 6. ź Modular patch panel 19'' with a height of 1U for mounting tool and tool free Keystone BKT modules ź Possibility of mounting up to 24 shielded and unshielded Keystone BKT modules ź Possibility of mounting modules cat.7, 7 - GG45 ź Integrated cable organizer for holding cables using cable ties ź Metal construction ensuring galvanized connection with module shielding ź Earthing cable ź Black color RL 9005 : Patch Panel Modular 19'' BKT 24xRJ45 ngle Slots Patch panel modular 19'' is specifically designed to eliminate the horizontal organization of cables in the teleinformation rack. rrangement of patch cords to the sides of rack 19'' enables to use full teleinformation rack capacity. ź Modular patch panel 19'' with a height of 1U for mounting tool and tool free Keystone BKT modules ź Possibility of mounting up to 24 shielded and unshielded Keystone BKT modules ź Integrated cable organizer for holding cables using cable ties ź Metal construction ensuring galvanized connection with module shielding ź Earthing cable ź Black color RL 9005 Patch Panel Modular 19'' BKT 48xRJ45 Patch panel modular 19'' specifically designed for maximum packing tool free module BKT in 1U of space, increasing packing capabilities of telecommunications cabinets by 100%. ź Modular patch panel 19'' with a height of 1U for mounting tool free Keystone BKT modules ź Possibility of mounting up to 48 shielded and unshielded Keystone BKT modules ź Integrated cable organizer for holding cables using cable ties ź Metal construction ensuring galvanized connection with module shielding ź Earthing cable ź Black color RL

22 System class E, shielded Installation cable cat 6 BKT 455 cat 6 U/FTP PVC installation cable pplication: ź Primary (Campus), Secondary (Riser), Tertiary (Horizontal) ź IEEE 802.3: 10Base-T; 100Base-T; 1000Base-T; ź IEEE MB; ISDN; TPDDI; TM ź TI/EI 568-B.2 ; IEC ź EN 50173; EN Flame resistance: ź PVC : IEC Construction: Conductor Bare copper wire Ø 0,5mm (WG23) Insulation Polyethylene, Ø 1,4mm Twisting 2 cores to the pair Cable lay up 4 pairs to the core l-laminated foil around each pair, drain wire Pair screen WG26 tinned Sheath PVC, LSHF, LSHF-FR, blue RL 5012 Mechanical properties: Bending radius Temperature range installation installed during operation during installation 8 x D 4 x D -20 C to +60 C 0 C to +50 C Technical data: Product name Cable type Outer diameter (mm) Fire load MJ/km KWh/m Weight (kg/km) Tensile force (N) Nominal velocity of propagation NVP (%) Product code BKT 455 cat.6 U/FTP 4P PVC J-02YS(St)Y 4 x 2 x BKT 455 cat 6 U/FTP LSHF installation cable pplication: ź Primary (Campus), Secondary (Riser), Tertiary (Horizontal) ź IEEE 802.3: 10Base-T; 100Base-T; 1000Base-T; ź IEEE MB; ISDN; TPDDI; TM ź TI/EI 568-B.2 ; IEC ź EN 50173; EN Flame resistance: ź LSHF : IEC ; IEC 61034, IEC ź LSHF-FR : IEC ; IEC 61034, IEC Construction: Conductor Bare copper wire Ø 0,5mm (WG23) Insulation Polyethylene, Ø 1,4mm Twisting 2 cores to the pair Cable lay up 4 pairs to the core Pair screen l-laminated foil around each pair, drain wire WG26 tinned Sheath PVC, LSHF, LSHF-FR, blue RL 5012 Mechanical properties: Bending radius Temperature range installation 8 x D installed 4 x D during operation -20 C to +60 C during installation 0 C to +50 C Technical data: Product name BKT 455 cat.6 U/FTP 4P LSHF Cable type J-02YS(St)H 4 x 2 x 0.5 Outer diameter (mm) Fire load MJ/km KWh/m Weight (kg/km) Tensile force (N) Nominal velocity of propagation NVP (%) Product code

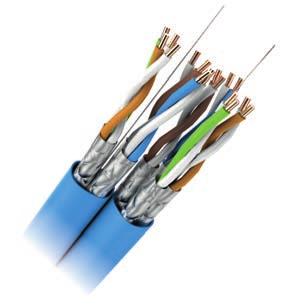

23 System class E, shielded BKT 455 cat 6 U/FTP LSHF DUPLEX installation cable pplication: ź Primary (Campus), Secondary (Riser), Tertiary (Horizontal) ź IEEE 802.3: 10Base-T; 100Base-T; 1000Base-T; ź IEEE MB; ISDN; TPDDI; TM ź TI/EI 568-B.2 ; IEC ź EN 50173; EN Flame resistance: ź LSHF : IEC ; IEC 61034, IEC ź LSHF-FR : IEC ; IEC 61034, IEC Construction: Conductor Insulation Twisting Bare copper wire Ø 0,5mm (WG23) Polyethylene, Ø 1,4mm 2 cores to the pair Cable lay up 4 pairs to the core Pair screen l-laminated foil around each pair, drain wire WG26 tinned Sheath PVC, LSHF, LSHF-FR, blue RL 5012 Mechanical properties: Bending radius Temperature range installation installed during operation during installation 8 x D 4 x D -20 C to +60 C 0 C to +50 C Technical data: Product name BKT 455 cat.6 U/FTP 4P LSHF Cable type J-02YS(St)H 4 x 2 x 0.5 Outer diameter (mm) Fire load MJ/km KWh/m Weight (kg/km) Tensile force (N) Nominal velocity of propagation NVP (%) Product code D Patchcords cat. 6 Crossover/patch cable used for connections in distribution cabinets or for connecting devices to subscriber s outlets. The patch cord is terminated in molded unshielded RJ45 connectors at both ends. BKT S/FTP Patchcord Cat 6, LSZH, Molded RJ45 Connector BKT S/FTP Patchcord Cat 6, LSZH, Crimped plug RJ45 Connector ź Connector Type: shielded RJ45 ź Cable Form Standard: NSI/TI-568B ź Cable Type: S/FTP cat. 6 WG 27 LSZH ź Sheath Material: PVC ź Color: according to the table below ź PN-EN ź NSI/TI-568 ź IEC ź IEC ź RoHS ź Connector Type: shielded RJ45 ź Cable Form Type: NSI/TI-568B ź Cable Type: S/FTP Cat 6 WG 26 LSZH ź Sheath Material: PVC ź Color: according to the table below ź PN-EN ź NSI/TI-568 ź IEC ź IEC ź RoHS Colors grey green blue yellow red black X X X X X X X X patchcord length (m) - grey: 0,5; 1; 1,5; 2; 3, 5; 7,5; 10m Other colors: 0,5; 1; 2; 3; 5m Colors grey X red X green X blue X yellow X X X patchcord length (m) 21

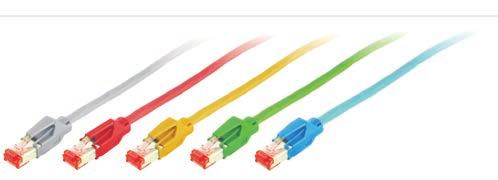

24 System class E, Shielded BKT S/FTP Patchcord cat. 6, LSZH, Crimb RJ45 Connector ź Connector Type: shielded RJ45 ź Cable Form Standard: NSI/TI-568B ź Cable Type: U/FTP LSHF cat. 6 BKT 550L WG 26/7 ź Sheath Material: PVC-PC ź PN-EN ź EN ź IEC ź IEC ź IEC ź NSI/TI-568-C.2 Colors grey X X X patchcord length (m) - 0,5; 1; 1,5; 2; 3; 4;5;7,5; 10m ccesories (sockets, organizers, insert) : : BKT Flat Plate 1 x RJ45 Socket ź The socket allows mounting telecom jacks in 45 x 45 mm standard ź To be mounted together with socket frames with support or directly in cable trays ź nti-dust cover for RJ45 jack ź Large label field ź Positive locking ź The socket allows mounting keystone RJ45 modules by the most of the manufacturers on the market ź Size (width x height): 22.5 x 45 mm ź Color: white BKT Flat Plate 2xRJ45 Socket ź The socket allows mounting telecom jacks in 45 x 45 mm standard ź To be mounted together with socket frames with support or directly in cable trays ź nti-dust cover for RJ45 jack ź Large label field ź Positive locking ź The socket allows mounting keystone RJ45 modules produced by the most of the manufacturers on the market ź Size (width x height): 45 x 45 mm ź Color: white : : BKT Horizontal cable management 19'' ź Universal horizontal cable organizer 19 with a height of 1U for use inside of telecommunications cabinets ź 5 universal brackets support the organization of cables, and provide appropriate route for horizontal structural cabling ź The possibility to lead the cable through both the top as well as the right and left sides of the organizer ź The possibility of installing cable organizer in both the front and rear of the cabinet ź Ensure proper bend radius for management cables ź Black color RL 9005 BKT Plastic horizontal cable organizer with heightened flexibility 19" ź llows for clear organization of cabling ź Holders can be mounted horizontally as well as vertically ź Holes between holders allow for leading cables through the back of the organizer ź dditional side holders mounted at the side of the organizer allow for vertical organization of cabling ź Material - highly flexible plastic ź Standard: 19 ź Height: 1U ź Holder quantity: 5 ps. 22

25 System class E, shielded : : : BKT Plastic cable organizer with heightened flexibility ź llows for clear organization of cabling ź Mounted on the side of the horizontal cable organizer ( ) without the use of tools ź Mountable on the side of mounting rails through the use of standard cage nuts ź Material - highly flexible plastic ź Type: - 1U 40x80mm - 2U 80x80mm BKT Insert - White Dummy Plug dummy plug to be mounted in modular panels or adapters used for mounting BKT module. ź Keystone Standard ź Color: white : : BKT Insert Black Dummy Plug dummy plug to be mounted in modular panels or adapters used for mounting BKT module. ź Keystone Standard ź Color: black BKT Insert for SC Simplex or LC Duplex Connectors, white n insert for SC Simplex or LC Duplex connectors to be mounted in modular panels or adapters used for mounting BKT modules. ź Keystone Standard ź Color: white : : BKT Insert for F and RC Connectors, white n insert for F or RC connectors to be mounted in modular panels or adapters used for mounting BKT modules. ź Keystone Standard ź Color: white BKT Insert for ST Connector, white n insert for ST connector to be mounted in modular panels or adapters used for mounting BKT modules. ź Keystone Standard ź Color: white 23

26 System class E, (pernament link) Floor distribution point Installation cable Subscriber socket Module Keystone BKT RJ45 cat.6 tool free, unshielded : BKT 405 cat. 6 U/UTP PVC cable : BKT Flat Plate 1 x RJ45 Socket (22,5/45) Module Keystone BKT RJ45 cat.6 tool, unshielded : BKT 405 cat. 6 U/UTP LSHF cable : Module Keystone BKT RJ45 cat. 6 tool free, unshielded : BKT Flat Plate 2 x RJ45 Socket (44/45) : : Module Keystone BKT RJ45 cat.6 tool free, shielded : Patch Panel 19" BKT 24 x RJ45, unshielded Patch Panel 19" BKT 48 x RJ45, unshielded Patch Panel Modular 19'' BKT 24 x RJ45 Patch Panel modular 19'' BKT 24 x RJ45 shifted slots Patch Panel Modular 19'' BKT 24 x RJ45 ngle Slots Patch Panel Modular 19'' BKT 48 x RJ45 Patch Panel 19" BKT 24 x RJ45 Patch Panel 19" BKT 48 x RJ45 BKT 455 cat. 6 U/FTP PVC cable : Module Keystone BKT RJ45 cat. 6 tool free, shielded : Module Keystone BKT RJ45 cat. 6 too, shielded : BKT 455 cat. 6 U/FTP LSHF cable : BKT 455 cat. 6 U/FTP LSHF DUPLEX cable : D : : : : : : : :

27 Class system E 25

28 System class E, unshielded Module cat. 6 The RJ45 Module Keystone is used for forming outlets in both flush and surface mounted versions through fitting them adapters also, enables development of modular patch panels for data cabinets. : Module Keystone BKT RJ45 cat. 6 tool free ź Slot connection IDC for cables with WG 22 - WG 26 ź Color-coded terminals according to T568 and T568B schemes ź Quick and simple installation ź Keystone BKT modules are equipped with an additional cable organizer tool allows termination by using 110 & LS or a dedicated tool BKT HT with head 28. ź Conforms with requirements of electromagnetic compatibility EMC ź Possibility of mounting in a wide range of installation equipment available on the market. ź Dimensions (H x W x D) 20mm x 16mm x 34mm. Patch Panel cat. 6 Patch Panel serve as terminals for wire cables laid vertically or horizontally and function as a connecting point for active equipment working within a network. ll elements feature high quality transmission and mechanical parameters. : : Patch Panel Modular 19'' BKT 24xRJ45 ngle Slots Patch panel modular 19'' is specifically designed to eliminate the horizontal organization of cables in the teleinformation rack. rrangement of patch cords to the sides of rack 19'' enables to use full teleinformation rack capacity. ź Modular patch panel 19'' with a height of 1U for mounting tool and tool free Keystone modules ź Possibility of mounting up to 24 shielded and unshielded Keystone BKT modules ź Integrated cable organizer for holding cables using cable ties ź Metal construction ensuring galvanized connection with module shielding ź Earthing cable ź Black color RL 9005 Patch Panel modular 19'' BKT 24xRJ45 shifted slots Patch panel modular 19'' with shifted slots are designed specially for system cat. 6. ź Modular patch panel 19'' with a height of 1U for mounting tool and tool free Keystone BKT modules ź Possibility of mounting up to 24 shielded and unshielded Keystone BKT modules ź Possibility of mounting modules cat.7, 7 - GG45 ź Integrated cable organizer for holding cables using cable ties ź Metal construction ensuring galvanized connection with module shielding ź Earthing cable ź Black color RL 9005 : Patch Panel Modular 19'' BKT 48xRJ45 Patch panel modular 19'' specifically designed for maximum packing tool free module BKT in 1U of space, increasing packing capabilities of telecommunications cabinets by 100%. ź Modular patch panel 19'' with a height of 1U for mounting tool free Keystone BKT modules ź Possibility of mounting up to 48 shielded and unshielded Keystone BKT modules ź Integrated cable organizer for holding cables using cable ties ź Metal construction ensuring galvanized connection with module shielding ź Earthing cable ź Black color RL

29 System class E, unshielded Installation cable cat. 6 BKT 505 Z1 cat.6 U/UTP installation cable pplication: ź Primary (Campus), Secondary (Riser), Tertiary (Horizontal) ź IEEE 802.3: 10Base-T; 100Base-T; 1000Base-T; 10GBase-T ź IEC ź EN ź EN ź NSI/TI-568-C.2 Flame resistance: ź LSHF(LSOH): IEC ; IEC ; IEC 61034; Construction: Conductor Bare copper wire Ø 0,5mm (WG23) Insulation Polyethylene, Ø 1,1mm (colored+white) Twisting 2 cores to the pair Cable lay up 4 pairs to the core separated with non metallic cross separator (spline) Sheath LSHF, Ø 8,8 mm, blue RL 5024 Mechanical properties: Bending radius Temperature range installation installed during operation during installation 35 mm 70 mm -20 C to +60 C 0 C to +50 C Technical data: Product name BKT 505 cat 6 U/UTP 4P LSHF Cable type Outer diameter (mm) Fire load MJ/km KWh/m Weight (kg/km) Tensile force (N) J-2YH 4 x 2 x Nominal velocity of propagation NVP (%) 65 Product code Patchcords cat. 6 Crossover/patch cable used for connections in distribution cabinets or for connecting devices to subscriber s outlets. The patch cord is terminated in molded unshielded RJ45 connectors at both ends. BKT U/UTP Patchcord cat. 6, LSHF, Crimped plug RJ45 Connector ź Connector Type: unshielded BKT RJ45 ź Cable Form Standard: NSI/TI-568B ź Cable Type: U/FTP LSHF cat. 6 BKT 550L WG 26/7 ź Sheath Material: PVC-PC ź Color: according to the table below ź PN-EN ź EN ź IEC ź IEC ź IEC ź NSI/TI-568-C.2 ź RoHS 2011/65/EU Colors grey 2144H490.X 2144H490.X X patchcord length (m) - 0,5; 1; 1,5; 2; 3; 4;5;7,5; 10m 27

30 System class E, shielded Module cat. 6 The RJ45 Module Keystone BKT is used for forming outlets in both flush and surface mounted versions through fitting them adapters also, enables development of modular patch panels for data cabinets. : Module Keystone BKT RJ45 cat. 6 tool free ź Slot connection IDC for cables with WG 22 - WG 26 ź Color-coded terminals according to T568 and T568B schemes ź Quick and simple installation ź Keystone BKT modules are equipped with an additional cable organizer tool allows termination by using 110 & LS or a dedicated tool BKT HT with head 28. ź Conforms with requirements of electromagnetic compatibility EMC ź Possibility of mounting in a wide range of installation equipment available on the market ź Dimensions (H x W x D) 20mm x 16mm x 34mm Patch Panel cat. 6 Patch Panel serve as terminals for wire cables laid vertically or horizontally and function as a connecting point for active equipment working within a network. ll elements feature high quality transmission and mechanical parameters. : : Patch Panel Modular 19'' BKT 24 x RJ45 ngle Slots Patch panel modular 19'' is specifically designed to eliminate the horizontal organization of cables in the teleinformation rack. rrangement of patch cords to the sides of rack 19'' enables to use full teleinformation rack capacity. ź Modular patch panel 19'' with a height of 1U for mounting tool and tool free Keystone BKT modules ź Possibility of mounting up to 24 shielded and unshielded Keystone BKT modules ź Integrated cable organizer for holding cables using cable ties ź Metal construction ensuring galvanized connection with module shielding ź Earthing cable ź Black color RL 9005 Patch Panel modular 19'' BKT 24 x RJ45 shifted slots Patch panel modular 19'' with shifted slots are designed specially for system cat. 6. ź Modular patch panel 19'' with a height of 1U for mounting tool and tool free Keystone BKT modules ź Possibility of mounting up to 24 shielded and unshielded Keystone BKT modules ź Integrated cable organizer for holding cables using cable ties ź Metal construction ensuring galvanized connection with module shielding ź Earthing cable ź Black color RL 9005 : Patch Panel Modular 19'' BKT 48 x RJ45 Patch panel modular 19'' specifically designed for maximum packing tool free module BKT in 1U of space, increasing packing capabilities of telecommunications cabinets by 100%. ź Modular patch panel 19'' with a height of 1U for mounting tool free Keystone BKT modules ź Possibility of mounting up to 48 shielded and unshielded Keystone BKT modules ź Integrated cable organizer for holding cables using cable ties ź Metal construction ensuring galvanized connection with module shielding ź Earthing cable ź Black color RL

31 System class E, shielded Installation cable cat 6, 7 BKT 585 U/FTP cat. 6 LSHF installation cable pplication: ź Primary (Campus), Secondary (Riser), Tertiary (Horizontal) ź IEEE 802.3: 10Base-T; 100Base-T; 1000Base-T ; 10GBase-T ź IEEE MB; ISDN; TPDDI; TM ź EN ; EN ; IEC ź TI/EI-568-B.2 Flame resistance: ź PVC: IEC Construction: Conductor Bare copper wire, Ø 0.55 mm (WG23) Insulation Polyethylene, Ø 1.4 mm Twisting 2 cores to the pair Cable lay up 4 pairs to the core Pair screen l-laminated plastic foil around each pair, drain wire WG26 (tin-coated) Sheath PVC or LSHF, LSHF-FR Mechanical properties: Bending radius Temperature range installation installed during operation during installation 8 x D 4 x D -20 C to +60 C 0 C to +50 C Technical data: Product name Cable type Outer diameter (mm) Fire load MJ/km KWh/m Weight (kg/km) Copper content (kg/km) Tensile force (N) Nominal velocity of propagation NVP (%) Product code BKT 585 cat. 6 U/FTP 4P LSHF J-02YSCH 4 x 2 x BKT 585 U/FTP cat 6 LSHF DUPLEX installation cable pplication: ź Primary (Campus), Secondary (Riser), Tertiary (Horizontal) ź IEEE 802.3: 10Base-T; 100Base-T; 1000Base-T ; 10GBase-T ź IEEE MB; ISDN; TPDDI; TM ź EN ; EN ; IEC ź TI/EI-568-B.2 Flame resistance: ź LSHF: IEC ; IEC 61034, IEC ź LSHF-FR: IEC ; IEC 61034, IEC Construction: Conductor Bare copper wire, Ø 0.55 mm (WG23) Insulation Polyethylene, Ø 1.4 mm Twisting 2 cores to the pair Cable lay up 4 pairs to the core l-laminated plastic foil around each pair, drain Pair screen wire WG26 (tin-coated) Sheath PVC or LSHF, LSHF-FR Mechanical properties: Bending radius Temperature range installation installed during operation during installation 8 x D 4 x D -20 C to +60 C 0 C to +50 C Technical data: Product name Cable type Outer diameter (mm) Fire load MJ/km KWh/m Weight (kg/km) Copper content (kg/km) Tensile force (N) Nominal velocity of propagation NVP (%) Product code BKT 585 cat. 6 U/FTP 4P LSHF J-02YSCH 4 x 2 x D 29

32 System class E, shielded BKT 695 S/FTP cat. 7 FRNC installation cable pplication: ź Primary (Campus), Secondary(Riser), Tertiary (Horizontal) ź IEEE 802.3: 10Base-T; 100Base-T; 1000Base-T; 10GBase-T IEEE MB; ISDN; TPDDI; TM ź IEC ź EN Flame resistance: ź FRNC (LSHF, LSOH, LSZH) :IEC ; IEC ; IEC Construction: Conductor Bare copper wire, Ø 0.56 mm (WG23) Insulation Polyethylene, Ø 1.4 mm Twisting 2 cores to the pair Pair screen l - laminated aluminium foil Cable lay up 4 pairs (PiMF) to the core Screen Copper braid, tinned Sheath FRNC (LSHF, LSOH), yellow Mechanical properties: Bending radius Temperature range installation installed during operation during installation 30 mm 60 mm -20 C to +60 C 0 C to +50 C Technical data: Product name Cable type Outer diameter (mm) Fire load MJ/km KWh/m Weight (kg/km) Tensile force (N) Nominal velocity of propagation NVP (%) Product code BKT 695 cat. 7 S/FTP 4P FRNC J-02YSCH 4 x 2 x 0,56 PiMF BKT 695 S/FTP cat. 7 FRNC DUPLEX installation cable pplication: ź Primary (Campus), Secondary(Riser), Tertiary (Horizontal) ź IEEE 802.3: 10Base-T; 100Base-T; 1000Base-T; 10GBase-T IEEE MB; ISDN; TPDDI; TM ź IEC ź EN Flame resistance: ź FRNC (LSHF, LSOH, LSZH) :IEC ; IEC ; IEC Construction: Conductor Bare copper wire, Ø 0.56 mm (WG23) Insulation Polyethylene, Ø 1.4 mm Twisting 2 cores to the pair Pair screen l - laminated aluminium foil Cable lay up 4 pairs (PiMF) to the core Screen Copper braid, tinned Sheath FRNC (LSHF, LSOH), yellow Mechanical properties: Bending installation radius installed Temperature during operation range during installation 30 mm 60 mm -20 C to +60 C 0 C to +50 C Technical data: Product name BKT 695 cat. 7 S/FTP 4P FRNC Cable type J-02YSCH 4 x 2 x 0,56 PiMF Outer diameter (mm) 6.9 Fire load MJ/km KWh/m Weight (kg/km) Tensile force (N) Nominal velocity of propagation NVP (%) Product code D 30

33 System class E, shielded Patchcords cat. 6 Crossover/patch cable used for connections in distribution cabinets or for connecting devices to subscriber s outlets. The patch cord is terminated in molded unshielded RJ45 connectors at both ends. BKT S/FTP Patchcord cat. 6, LSHF, Crimp RJ45 Connector BKT U/FTP Patchcord cat. 6, LSHF, Crimp BKT RJ45 Connector Standardy: ź Connector Type: shielded RJ45 ź Cable Form Standard: NSI/TI-568B ź Cable Type: S/FTP LSHF cat. 7 BKT 650L WG 26/7 ź Sheath Material: PVC-PC ź Color: according to the table below ź PN-EN ź EN ź IEC ź IEC ź IEC ź NSI/TI-568-C.2 ź RoHS 2011/65/EU ź Connector ź PN-EN Type: shielded RJ45 ź Cable ź EN Form Standard: NSI/TI-568B ź Cable ź ISO/IEC Type: U/FTP LSHF cat. 6 BKT 550L WG ź IEC 26/ ź Sheath ź IEC Material: PVC-PC ź IEC ź IEC ź NSI/TI-568-C.2 ź RoHS 2011/65/EU ź PN-EN ź EN ź IEC ź IEC ź IEC ź NSI/TI-568-C.2 ź RoHS 2011/65/EU Colors grey green blue yellow red 2145N500.X 2145N511.X 2145N522.X 2145N533.X 2145N544.X Colors grey 2145H500.X X X patchcord length (m) - 0,5; 1; 1,5; 2; 3; 4;5;7,5; 10m X X patchcord length (m) - 0,5; 1; 1,5; 2; 3; 4;5;7,5; 10m BKT S/FTP Patchcord cat. 6, LSZH, Crimp RJ45 Connector ź Connector Type: shielded RJ45 ź Cable Form Standard: NSI/TI-568B ź Cable Type: S/FTP Cat 6 WG 26 LSZH ź Sheath Material: PVC ź Color: according to the table below ź PN-EN ź NSI/TI-568 ź IEC ź IEC ź RoHS Colors grey red green blue yellow X X X X X X X patchcord length (m) 31

34 System class E, shielded ccesories (sockets, organizers, insert) : : BKT Flat Plate 1 x RJ45 Socket ź The socket allows mounting telecom jacks in 45 x 45 mm standard ź To be mounted together with socket frames with support or directly in cable trays ź nti-dust cover for RJ45 jack ź Large label field ź Positive locking ź The socket allows mounting keystone RJ45 modules by the most of the manufacturers on the market ź Size (width x height): 22.5 x 45 mm ź Color: white BKT Flat Plate 2xRJ45 Socket ź The socket allows mounting telecom jacks in 45 x 45 mm standard ź To be mounted together with socket frames with support or directly in cable trays ź nti-dust cover for RJ45 jack ź Large label field ź Positive locking ź The socket allows mounting keystone RJ45 modules produced by the most of the manufacturers on the market ź Size (width x height): 45 x 45 mm ź Color: white : : BKT Horizontal cable management 19'' ź Universal horizontal cable organizer 19 with a height of 1U for use inside of telecommunications cabinets ź 5 universal brackets support the organization of cables, and provide appropriate route for horizontal structural cabling ź The possibility to lead the cable through both the top as well as the right and left sides of the organizer ź The possibility of installing cable organizer in both the front and rear of the cabinet ź Ensure proper bend radius for management cables ź Black color RL 9005 BKT Plastic horizontal cable organizer with heightened flexibility 19" ź llows for clear organization of cabling ź Holders can be mounted horizontally as well as vertically ź Holes between holders allow for leading cables through the back of the organizer ź dditional side holders mounted at the side of the organizer allow for vertical organization of cabling ź Material - highly flexible plastic ź Standard: 19 ź Height: 1U ź Holder quantity: 5 ps. : : BKT Plastic cable organizer with heightened flexibility ź llows for clear organization of cabling ź Mounted on the side of the horizontal cable organizer ( ) without the use of tools ź Mountable on the side of mounting rails through the use of standard cage nuts ź Material - highly flexible plastic ź Type: - 1U 40x80mm - 1U 80x80mm 32

35 System class E, shielded : : BKT Insert - White Dummy Plug dummy plug to be mounted in modular panels or adapters used for mounting BKT module. ź Keystone Standard ź Color: white BKT Insert Black Dummy Plug dummy plug to be mounted in modular panels or adapters used for mounting BKT module. ź Keystone Standard ź Color: black : : BKT Insert for SC Simplex or LC Duplex Connectors, white n insert for SC Simplex or LC Duplex connectors to be mounted in modular panels or adapters used for mounting BKT modules. ź Keystone Standard ź Color: white BKT Insert for ST Connector, white n insert for ST connector to be mounted in modular panels or adapters used for mounting BKT modules. ź Keystone Standard ź Color: white : BKT Insert for F and RC Connectors, white n insert for F or RC connectors to be mounted in modular panels or adapters used for mounting BKT modules. ź Keystone Standard ź Color: white 33

36 System class E, (pernament link) Floor distribution point Installation cable Subscriber socket BKT 505 cat. 6 U/UTP LSHF cable : BKT Flat Plate 1 x RJ45 Socket (22,5/45) : Module Keystone BKT RJ45 cat. 6 tool free, ushielded : BKT 585 U/FTP cat. 6 LSOH cable : Module Keystone BKT RJ45 cat. 6 tool free, ushielded : BKT Flat Plate 2 x RJ45 Socket (44/45) : Module Keystone BKT RJ45 cat.6 tool free, shielded : BKT 585 U/FTP cat. 6 LSOH DUPLEX cable Panel Patch krosujący Panel modular 19" BKT DRKOM, 19'' BKT 24xRJ45, x RJ45 nieekranowany shifted slots Panel Patch krosujący Panel Modular 19" BKT DRKOM, 19'' BKT 24xRJ45, x RJ45 nieekranowany ngle Slots Panel Patch krosujący Panel Modular 19" BKT DRKOM, 19'' BKT 24xRJ45, 48 x RJ45 nieekranowany : D Module Keystone BKT RJ45 cat.6 tool free, shielded : BKT 695 S/FTP cat. 7 FRNC cable : BKT 695 S/FTP cat. 7 FRNC DUPLEX cable : D : : :

37 Class system E BKT NL 35

38 Class system E, BKT NL, shielded Module cat. 6 BKT NL RJ45 Shielded Module for telecom and computer installations. Made entirely of metal, its single-piece structure provides complete 360 shielding. The module fulfills the requirements of Category 6 pursuant to ISO/IEC : BKT NL RJ45 cat. 6 Module, toolless 2 x Faston 2.8 mm Connectors cceptable Conductor Gauge: WG 4-Pair RJ45 Socket Easy identification of colored pairs Quick and easy mounting ź The conductors are terminated in connectors by pressing the casing ź Compliance with the requirements of EMC ź Complete 360 shielding ź Size: 36 x 14 x 17 mm Patch Panel cat. 6 Patch Panel serve as terminals for wire cables laid vertically or horizontally and function as a connecting point for active equipment working within a network. ll elements feature high quality transmission and mechanical parameters. : : BKT NL adapter for mountig socket modules in keystone standard ź dapter for installaton BKT NL 4P and BKT NL RJ45 socket modules in modular patch panels in keystone standard ź Installaton with the use of the latch ź Size (width x height x depth): 14 x 17 x 16 mm ź Color: silver : Patch Panel Modular 19'' BKT 24 x RJ45 Patch panel modular 19'' designed for tool and tool free Keystone BKT modules. ź Modular patch panel 19'' with a height of 1U for mounting tool and tool free Keystone BKT modules ź Possibility of mounting up to 24 shielded and unshielded Keystone BKT modules ź Integrated cable organizer for holding cables using cable ties ź Metal construction ensuring galvanized connection with module shielding ź Earthing cable ź Black color RL 9005 Patch Panel modular 19'' BKT 24 x RJ45 shifted slots Patch panel modular 19'' with shifted slots are designed specially for system cat. 6. ź Modular patch panel 19'' with a height of 1U for mounting tool and tool free Keystone BKT modules ź Possibility of mounting up to 24 shielded and unshielded Keystone BKT modules ź Integrated cable organizer for holding cables using cable ties ź Metal construction ensuring galvanized connection with module shielding ź Earthing cable ź Black color RL

39 Class system E, BKT NL, shielded : : Patch Panel Modular 19'' BKT 24xRJ45 ngle Slots Patch panel modular 19'' is specifically designed to eliminate the horizontal organization of cables in the teleinformation rack. rrangement of patch cords to the sides of rack 19'' enables to use full teleinformation rack capacity. ź Modular patch panel 19'' with a height of 1U for mounting tool and tool free Keystone BKT modules ź Possibility of mounting up to 24 shielded and unshielded Keystone BKT modules ź Integrated cable organizer for holding cables using cable ties ź Metal construction ensuring galvanized connection with module shielding ź Earthing cable ź Black color RL 9005 BKT NL 19 Modular Patch Panel 16 x BKT NL MMC 6P Modular 16 Port Patch Panel for mounting up to 16 BKT NL MMC 6P modules. Universal 19 panel for BKT NL MMC 6P modules; Possibility of mounting BKT NL MMC 4P or BKT NL RJ45 through adapter; Integrated cable tray for fixing a cable; Metal structure providing a galvanic connection with the shields of the modules; Earthing contact; Color: black (RL 9005); Size: 1U (482.6 x 44 mm). Installation cable cat. 7 BKT 695 cat.7 S/FTP FRNC installation cable pplication: ź Primary (Campus), Secondary(Riser), Tertiary (Horizontal) ź IEEE 802.3: 10Base-T; 100Base-T; 1000Base-T; 10GBase-T IEEE MB; ISDN; TPDDI; TM ź IEC ź EN Flame resistance: ź FRNC (LSHF, LSOH, LSZH) :IEC ; IEC ; IEC Construction: Conductor Bare copper wire, Ø 0.56 mm (WG23) Insulation Polyethylene, Ø 1.4 mm Twisting 2 cores to the pair Pair screen l - laminated aluminium foil Cable lay up 4 pairs (PiMF) to the core Screen Copper braid, tinned Sheath FRNC (LSHF, LSOH), yellow Mechanical properties: Bending radius Temperature range installation installed during operation during installation 30 mm 60 mm -20 C to +60 C 0 C to +50 C Technical data: Product name Cable type Outer diameter (mm) Fire load MJ/km KWh/m Weight (kg/km) Tensile force (N) Nominal velocity of propagation NVP (%) Product code BKT 695 cat. 7 S/FTP 4P FRNC J-02YSCH 4 x 2 x 0,56 PiMF

40 Class system E, BKT NL, shielded BKT 695 cat. 7 S/FTP FRNC DUPLEX installation cable pplication: ź Primary (Campus), Secondary(Riser), Tertiary (Horizontal) ź IEEE 802.3: 10Base-T; 100Base-T; 1000Base-T; 10GBase-T IEEE MB; ISDN; TPDDI; TM ź IEC ź EN Flame resistance: ź FRNC (LSHF, LSOH, LSZH) :IEC ; IEC ; IEC Construction: Conductor Bare copper wire, Ø 0.56 mm (WG23) Insulation Polyethylene, Ø 1.4 mm Twisting 2 cores to the pair Pair screen l - laminated aluminium foil Cable lay up 4 pairs (PiMF) to the core Screen Copper braid, tinned Sheath FRNC (LSHF, LSOH), yellow Mechanical properties: Bending installation radius installed Temperature during operation range during installation 30 mm 60 mm -20 C to +60 C 0 C to +50 C Technical data: Product name BKT 695 cat. 7 S/FTP 4P FRNC Cable type J-02YSCH 4 x 2 x 0,56 PiMF Outer diameter (mm) 6.9 Fire load MJ/km KWh/m Weight (kg/km) Tensile force (N) Nominal velocity of propagation NVP (%) Product code D BKT 1000 cat.7 S/FTP LSHF installation cable pplication: ź Primary (Campus), Secondary(Riser), Tertiary (Horizontal) ź IEEE 802.3: 10Base-T; 100Base-T; 1000Base-T; 10GBase-T IEEE MB ISDN; TPDDI; TM, CTV ź IEC ź EN ź EN Flame resistance: ź LSHF (LSOH, LSZH) :IEC ; IEC ; IEC Construction: Conductor Bare copper wire, Ø 0.56 mm (WG23) Insulation Polyethylene, Ø 1.38 mm Twisting 2 cores to the pair Pair screen l - laminated aluminium foil Cable lay up 4 pairs (PiMF) to the core Screen Copper braid, tinned Sheath LSHF, LSHF-FR, orange RL 2003 Mechanical properties: Bending installation radius installed Temperature during operation range during installation 30 mm 60 mm -20 C to +60 C 0 C to +50 C Technical data: Product name BKT 1000 cat. 7 S/FTP 4P LSHF Cable type J-02YSCH 4 x 2 x 0.56 PiMF Outer diameter (mm) 7.3 Fire load MJ/km KWh/m Weight (kg/km) Tensile force (N) Nominal velocity of propagation NVP (%) 79 Product code

41 Class system E, BKT NL, shielded Patchcords cat. 6 Crossover/patch cable used for connections in distribution cabinets or for connecting devices to subscriber s outlets. The patch cord is terminated in molded unshielded RJ45 connectors at both ends. BKT S/FTP Patchcord cat. 6, LSHF, Crimp BKT RJ45 Connector BKT S/FTP Patchcord cat. 6, LSZH, Crimp RJ45 Connector ź Connector Type: shielded RJ45 ź Cable Form Standard: NSI/TI-568B ź Cable Type: S/FTP LSHF cat. 7 BKT 650L WG 26/7 ź Sheath Material: PVC-PC ź PN-EN ź EN ź IEC ź IEC ź IEC ź NSI/TI-568-C.2 ź RoHS 2011/65/EU ź Connector Type: shielded RJ45 ź Cable Form Standard: NSI/TI-568B ź Cable Type: S/FTP Cat 6 WG 26 LSZH ź Sheath Material: PVC ź Color: according to the table below ź PN-EN ź NSI/TI-568 ź IEC ź IEC ź RoHS Colors grey green blue yellow red 2145N500.X 2145N511.X 2145N522.X 2145N533.X 2145N544.X Colors grey red green blue yellow X X X X X X X patchcord length (m) - 0,5; 1; 1,5; 2; 3; 4;5;7,5; 10m X X patchcord length (m) BKT U/FTP Patchcord cat. 6, LSHF, Crimp BKT RJ45 Connector ź Connector Type: shielded RJ45 ź Cable Form Standard: NSI/TI-568B ź Cable Type: U/FTP LSHF cat. 6 BKT 550L WG 26/7 ź Sheath Material: PVC-PC ź PN-EN ź EN ź IEC ź IEC ź IEC ź NSI/TI-568-C.2 ź RoHS 2011/65/EU Colors grey 2145H500.X X X patchcord length (m) - 0,5; 1; 1,5; 2; 3; 4;5;7,5; 10m 39

42 Class system E, BKT NL, shielded ccesories (sockets, organizers, insert) : : BKT Flat Plate 1 x RJ45 Socket ź The socket allows mounting telecom jacks in 45 x 45 mm standard ź To be mounted together with socket frames with support or directly in cable trays ź nti-dust cover for RJ45 jack ź Large label field ź Positive locking ź The socket allows mounting keystone RJ45 modules by the most of the manufacturers on the market ź Size (width x height): 22.5 x 45 mm ź Color: white BKT Flat Plate 2 x RJ45 Socket ź The socket allows mounting telecom jacks in 45 x 45 mm standard; ź To be mounted together with socket frames with support or directly in cable trays; ź nti-dust cover for RJ45 jack; ź Large label field; ź Positive locking; ź The socket allows mounting keystone RJ45 modules produced by the most of the manufacturers on the market; ź Size (width x height): 45 x 45 mm; ź Color: white. : : BKT NL Faceplate with Metal Support for 2xMMC 4P or 2xRJ45 Faceplate with metal support for electrical system equipment in 50x50 mm standard. It allows mounting modules in BKT.NL standard. To be mounted in boxes and cable trays using 50x50 mm frame. The faceplate has a label field. ź llows mounting telecom jacks ź To be mounted with 50x50 mm frames ź The faceplate structure allows mounting up to two BKT.NL MMC 4P or BKT.NL RJ45 modules ź nti-dust covers for BKT.NL sockets ź Large label field ź Size (width x height): 50 x 50 mm ź Color: white RL 9010 BKT Horizontal cable management 19'' ź Universal horizontal cable organizer 19 with a height of 1U for use inside of telecommunications cabinets. ź 5 universal brackets support the organization of cables, and provide appropriate route for horizontal structural cabling. ź The possibility to lead the cable through both the top as well as the right and left sides of the organizer. ź The possibility of installing cable organizer in both the front and rear of the cabinet. ź Ensure proper bend radius for management cables. ź Black color RL

43 Class system E, BKT NL, shielded : : : BKT Plastic horizontal cable organizer with heightened flexibility 19" ź llows for clear organization of cabling ź Holders can be mounted horizontally as well as vertically ź Holes between holders allow for leading cables through the back of the organizer ź dditional side holders mounted at the side of the organizer allow for vertical organization of cabling ź Material - highly flexible plastic ź Standard: 19 ź Height: 1U ź Holder quantity: 5 ps. BKT Plastic cable organizer with heightened flexibility ź llows for clear organization of cabling ź Mounted on the side of the horizontal cable organizer ( ) without the use of tools ź Mountable on the side of mounting rails through the use of standard cage nuts ź Material - highly flexible plastic ź Type: - 1U 40x80mm - 1U 80x80mm : Indeks: BKT NL Dummy Plug for MMC 6P Modular Patch Panels BKT NL dummy plug for covering unused inputs in MMC 6P patch panels. ź llows covering unused inputs in sockets and patch panels ź Quick mounting by pressing-in ź Color: white BKT NL Dummy Plug for MMC 6P Modular Patch Panels BKT NL dummy plug for covering unused inputs in MMC 6P patch panels. ź llows covering unused inputs in sockets and patch panels ź Quick mounting by pressing-in ź Color: black : : BKT.NL Faceplate for Mounting BKT.NL MMC 4P/RJ45 Modules in MMC 6P Modular Patch Panels BKT.NL Faceplate for Mounting BKT.NL MMC 4P/RJ45 Modules in MMC 6P Modular Patch Panels Faceplate for mounting BKT.NL MMC 4P or BKT.NL RJ45 modules in BKT.NL 6P modular patch panels and sockets. ź For mounting BKT.NL MMC 4P or BKT.NL RJ45 modules in BKT.NL MMC 6P sockets and panels ź nti-dust cover ź Color: white Faceplate for mounting BKT.NL MMC 4P or BKT.NL RJ45 modules in BKT.NL 6P modular patch panels and sockets. ź For mounting BKT.NL MMC 4P or BKT.NL RJ45 modules in BKT.NL MMC 6P sockets and panels ź nti-dust cover ź Color: black 41

44 Class system E, BKT NL, (pernament link) Floor distribution point Installation cable Subscriber socket : BKT NL adapter for mountig socket modules in keystone standard Inde x: BKT Flat Plate 1 x RJ45 Socket (22,5/45) : BKT NL adapter for mountig socket modules in keystone standard Inde x: BKT Flat Plate 2 x RJ45 Socket (44/45) BKT 695 S/FTP cat.7 : BKT NL Faceplate with Metal Support for 2xMMC 4P or 2xRJ45 (20/20) : BKT NL RJ45 Cat 6 Module, toolless : BKT 695 S/FTP cat. 7 FRNC DUPLEX : D BKT NL RJ45 Cat 6 Module, toolless : BKT 1000 S/FTP cat.7 : BKT.NL Faceplate for Mounting BKT.NL MMC 4P/RJ45 Modules in MMC 6P Modular Patch Panels, white : BKT.NL Faceplate for Mounting BKT.NL MMC 4P/RJ45 Modules in MMC 6P Modular Patch Panels, black : Patch Panel Modular 19'' BKT 24 x RJ45 : Patch Panel modular 19'' BKT 24 x RJ45 shifted slots : Patch Panel Modular 19'' BKT 24xRJ45 ngle Slots : PBKT.NL 19 Modular Patch Panel 16 x BKT.NL MMC 6P :

45 Class system F BKT NL 43

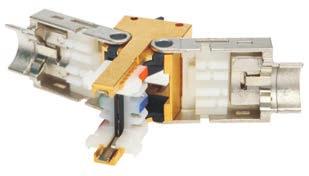

46 Class system F, BKT NL, shielded Module cat 8.2 BKT NL MMC 4P Shielded Module for telecom and computer installations. Made entirely of metal, its single-piece structure provides complete 360 shielding. The module fulfills the requirements of Category 8.2. : BKT NL MMC 4P Cat 8.2 Module, toolless ź 2 x Faston 2.8 mm Connectors ź cceptable Conductor Gauge: WG ź 4-Pair Socket ź Easy identification of colored pairs ź Quick and easy mounting ź The conductors are terminated in connectors by pressing the casing ź Compliance with the requirements of EMC ź Complete 360 shielding Patch Panel cat. 7 Patch Panel serve as terminals for wire cables laid vertically or horizontally and function as a connecting point for active equipment working within a network. ll elements feature high quality transmission and mechanical parameters. : : BKT NL adapter for mountig socket modules in keystone standard ź dapter for installaton BKT NL 4P and BKT NL RJ45 socket modules in modular patch panels in keystone standard ź Installaton with the use of the latch ź Size (width x height x depth): 14 x 17 x 16 mm ź Color: silver : Patch Panel Modular 19'' BKT 24 x RJ45 Patch panel modular 19'' designed for tool and tool free Keystone BKT modules. ź Modular patch panel 19'' with a height of 1U for mounting tool and tool free Keystone BKT modules ź Possibility of mounting up to 24 shielded and unshielded Keystone BKT modules ź Integrated cable organizer for holding cables using cable ties ź Metal construction ensuring galvanized connection with module shielding ź Earthing cable ź Black color RL 9005 Patch Panel modular 19'' BKT 24 x RJ45 shifted slots Patch panel modular 19'' with shifted slots are designed specially for system cat. 6. ź Modular patch panel 19'' with a height of 1U for mounting tool and tool free Keystone BKT modules ź Possibility of mounting up to 24 shielded and unshielded Keystone BKT modules ź Integrated cable organizer for holding cables using cable ties ź Metal construction ensuring galvanized connection with module shielding ź Earthing cable ź Black color RL

47 Class system F, BKT NL, shielded : : Patch Panel Modular 19'' BKT 24xRJ45 ngle Slots Patch panel modular 19'' is specifically designed to eliminate the horizontal organization of cables in the teleinformation rack. rrangement of patch cords to the sides of rack 19'' enables to use full teleinformation rack capacity. ź Modular patch panel 19'' with a height of 1U for mounting tool and tool free Keystone BKT modules ź Possibility of mounting up to 24 shielded and unshielded Keystone BKT modules ź Integrated cable organizer for holding cables using cable ties ź Metal construction ensuring galvanized connection with module shielding ź Earthing cable ź Black color RL 9005 BKT NL 19 Modular Patch Panel 16 x BKT NL MMC 6P Modular 16 Port Patch Panel for mounting up to 16 BKT NL MMC 6P modules. Universal 19 panel for BKT NL MMC 6P modules; Possibility of mounting BKT NL MMC 4P or BKT NL RJ45 through adapter; Integrated cable tray for fixing a cable; Metal structure providing a galvanic connection with the shields of the modules; Earthing contact; Color: black (RL 9005); Size: 1U (482.6 x 44 mm). 45

48 Class system F, BKT NL, shielded Installation cable cat 7, 7 BKT 1000 cat.7 S/FTP LSHF installation cable pplication: ź Primary (Campus), Secondary(Riser), Tertiary (Horizontal) ź IEEE 802.3: 10Base-T; 100Base-T; 1000Base-T; 10GBase-T IEEE MB ISDN; TPDDI; TM, CTV ź IEC ź EN ź EN Flame resistance: ź LSHF (LSOH, LSZH) :IEC ; IEC ; IEC Construction: Conductor Bare copper wire, Ø 0.56 mm (WG23) Insulation Polyethylene, Ø 1.38 mm Twisting 2 cores to the pair Pair screen l - laminated aluminium foil Cable lay up 4 pairs (PiMF) to the core Screen Copper braid, tinned Sheath LSHF, LSHF-FR, orange RL 2003 Mechanical properties: Bending installation radius installed Temperature during operation range during installation 30 mm 60 mm -20 C to +60 C 0 C to +50 C Technical data: Product name BKT 1000 cat. 7 S/FTP 4P LSHF Cable type J-02YSCH 4 x 2 x 0.56 PiMF Outer diameter (mm) 7.3 Fire load MJ/km KWh/m Weight (kg/km) Tensile force (N) Nominal velocity of propagation NVP (%) 79 Product code BKT 1200 cat 7 S/FTP LSHF installation cable pplication: ź Primary (Campus), Secondary(Riser), Tertiary (Horizontal) ź IEEE 802.3: 10Base-T; 100Base-T; 1000Base-T; 10GBase-T IEEE ź ISDN; TPDDI; TM, CTV, Broadband Video ź IEC ź EN Flame resistance: ź LSHF(LSOH, LSZH) :IEC ; IEC ; IEC Construction: Mechanical properties: Conductor Insulation Twisting Pair screen Cable lay up Screen Sheath Bare copper wire, Ø 0.58 mm (WG23) Polyethylene, Ø 1.4 mm 2 cores to the pair l - laminated aluminium foil 4 pairs (PiMF) to the core Copper braid, tinned LSHF, LSHF-FR, melon yellow RL 1028 Bending radius Temperature range installation installed during operation during installation 35 mm 70 mm -20 C to +60 C 0 C to +50 C Technical data: Product name BKT 1200 cat. 7 S/FTP 4P LSHF Cable type J-02YSCH 4 x 2 x 0.56 PiMF Outer diameter (mm) 7.8 Fire load MJ/km Weight (kg/km) Tensile Force (N) Nominal velocity of propagation NVP (%) 76 Product code

49 Class system F, BKT NL, shielded Patchcords Crossover/patch cable used for connections in distribution cabinets or for connecting devices to subscriber s outlets. Shielded. Terminated in MMC 4P connector at both ends. BKT NL MMC 4P / MMC 4P Patch Cord, S/FTP 10GbE, LSHF BKT NL MMC 4P / RJ45 Patch Cord, S/FTP 10GbE, LSHF ź Connector 1: BKT NL MMC 4P ź Connector 2: BKT NL MMC 4P ź Connector 1 Form Standard: MMC 4P ź Connector 2 Form Standard: MMC 4P ź Cable: S/FTP ź Transmission: 10 GbE ź Cable Color: grey / yellow ź Connector Sheath Color: grey / yellow ź PN-EN ź NSI/TI-568 ź RoHS ź Connector 1: BKT NL MMC 4P ź Connector 2: RJ45 HQ ź Connector 1 Form Standard: MMC 4P ź Connector 2 Form Standard: 568B ź Cable: S/FTP ź Transmission: 10 GbE ź Cable Color: yellow/grey ź Connector Sheath Color: yellow ź PN-EN ź NSI/TI-568 ź RoHS Colors grey/grey yellow/yellow X X X X patch cord length (m); available lengths: 0.5m; 1m; 1.5m; 2m; 3m; 5m; 7.5m; 10m. Colors yellow/grey yellow/yellow X X X X patch cord length (m); available lengths: 0.5m; 1m; 1.5m; 2m; 3m; 5m; 7.5m; 10m. BKT NL MMC 2P / MMC 2P Patch Cord, SF/UTP 100MbE, LSHF BKT NL MMC 2P / RJ45 Patch Cord, SF/UTP 100MbE, LSHF ź Connector 1: BKT NL MMC 2P ź Connector 2: BKT NL MMC 2P ź Connector 1 Form Standard: MMC 2P ź Connector 2 Form Standard: MMC 2P ź Cable: SF/UTP ź Transmission: 100 MbE ź Cable Color: grey / yellow ź Connector Sheath Color: grey / yellow ź PN-EN ź NSI/TI-568 ź RoHS ź Connector 1: BKT NL MMC 2P ź Connector 2: RJ45 ź Connector 1 Form Standard: MMC 2P ź Connector 2 Form Standard: 568B ź Cable: SF/UTP ź Transmission: 100 MbE ź Cable Color: yellow/grey ź Connector Sheath Color: yellow ź PN-EN ź NSI/TI-568 ź RoHS Colors grey/grey yellow/yellow X X X X patch cord length (m); available lengths: 0.5m; 1m; 1.5m; 2m; 3m; 5m; 7.5m; 10m. Colors yellow/grey yellow/yellow X X X X patch cord length (m); available lengths: 0.5m; 1m; 1.5m; 2m; 3m; 5m; 7.5m; 10m. 47

50 Class system F, BKT NL, shielded BKT NL MMC 1P / MMC 1P Patch Cord, UTP TEL BKT NL MMC 1P / RJ45 Patch Cord, UTP TEL ź Connector 1: BKT NL MMC 1P ź Connector 2: BKT NL MMC 1P ź Connector 1 Form Standard: MMC 1P ź Connector 2 Form Standard: MMC 1P ź Cable: UTP ź Transmission: TEL ź Cable Color: grey ź PN-EN ź NSI/TI-568 ź RoHS ź Connector 1: BKT NL MMC 1P ź Connector 2: RJ45 ź Connector 1 Form Standard: MMC 1P ź Connector 2 Form Standard: 4-5 ź Cable: UTP ź Transmission: TEL ź Cable Color: grey ź Connector Sheath Color: green ź PN-EN ź NSI/TI-568 ź RoHS Colors green/grey X X X patch cord length (m); available lengths: 0.5m; 1m; 1.5m; 2m; 3m; 5m; 7.5m; 10m. Colors green/grey X X X patch cord length (m); available lengths: 0.5m; 1m; 1.5m; 2m; 3m; 5m; 7.5m; 10m. BKT NL MMC 2P / MMC 2P Patch Cord, UTP ISDN BKT NL MMC 2P / RJ45 Patch Cord, UTP ISDN ź Connector 1: BKT NL MMC 2P ź Connector 2: BKT NL MMC 2P ź Connector 1 Form Standard: MMC 2P ź Connector 2 Form Standard: MMC 2P ź Cable: UTP ź Transmission: ISDN ź Cable Color: grey ź Connector Sheath Color: green ź PN-EN ź NSI/TI-568 ź RoHS ź Connector 1: BKT NL MMC 2P ź Connector 2: RJ45 ź Connector 1 Form Standard: MMC 2P ź Connector 2 Form Standard: 3-6, 4-5 ź Cable: UTP ź Transmission: TEL ź Cable Color: grey ź Connector Sheath Color: green ź PN-EN ź NSI/TI-568 ź RoHS Colors green/grey X X X patch cord length (m); available lengths: 0.5m; 1m; 1.5m; 2m; 3m; 5m; 7.5m; 10m. Colors green/grey X X X patch cord length (m); available lengths: 0.5m; 1m; 1.5m; 2m; 3m; 5m; 7.5m; 10m. 48

51 System class F, BKT NL, shielded BKT NL MMC 1P / RJ11 (6/4) Patch Cord, UTP TEL BKT NL MMC 2P / RJ11 (6/4) Patch Cord, UTP ISDN ź Connector 1: BKT NL MMC 1P ź Connector 2: RJ11 (6/4) ź Connector 1 Form Standard: MMC 1P ź Connector 2 Form Standard: 3-4 ź Cable: UTP ź Transmission: TEL ź Cable Color: grey ź Connector Sheath Color: green ź PN-EN ź NSI/TI-568 ź RoHS ź Connector 1: BKT NL MMC 2P ź Connector 2: RJ11 (6/4) ź Connector 1 Form Standard: MMC 2P ź Connector 2 Form Standard: 2-5, 3-4 ź Cable: UTP ź Transmission: TEL ź Cable Color: grey ź PN-EN ź NSI/TI-568 ź RoHS Colors green/grey X X X patch cord length (m); available lengths: 0.5m; 1m; 1.5m; 2m; 3m; 5m; 7.5m; 10m. Colors green/grey X X X patch cord length (m); available lengths: 0.5m; 1m; 1.5m; 2m; 3m; 5m; 7.5m; 10m. 49

52 Class system F, BKT NL, shielded ccesories (sockets, organizers, insert) : : BKT Flat Plate 1 x RJ45 Socket ź The socket allows mounting telecom jacks in 45 x 45 mm standard ź To be mounted together with socket frames with support or directly in cable trays ź nti-dust cover for RJ45 jack ź Large label field ź Positive locking ź The socket allows mounting keystone RJ45 modules by the most of the manufacturers on the market ź Size (width x height): 22.5 x 45 mm ź Color: white BKT Flat Plate 2 x RJ45 Socket ź The socket allows mounting telecom jacks in 45 x 45 mm standard; ź To be mounted together with socket frames with support or directly in cable trays; ź nti-dust cover for RJ45 jack; ź Large label field; ź Positive locking; ź The socket allows mounting keystone RJ45 modules produced by the most of the manufacturers on the market; ź Size (width x height): 45 x 45 mm; ź Color: white. : : BKT NL Faceplate with Metal Support for 2 x MMC 4P or 2 x RJ45 Faceplate with metal support for electrical system equipment in 50x50 mm standard. It allows mounting modules in BKT NL standard. To be mounted in boxes and cable trays using 50x50 mm frame. The faceplate has a label field. ź llows mounting telecom jacks ź To be mounted with 50x50 mm frames ź The faceplate structure allows mounting up to two BKT.NL MMC 4P or BKT NL RJ45 modules ź nti-dust covers for BKT NL sockets ź Large label field ź Size (width x height): 50 x 50 mm ź Color: white RL 9010 BKT Horizontal cable management 19'' ź Universal horizontal cable organizer 19 with a height of 1U for use inside of telecommunications cabinets. ź 5 universal brackets support the organization of cables, and provide appropriate route for horizontal structural cabling. ź The possibility to lead the cable through both the top as well as the right and left sides of the organizer. ź The possibility of installing cable organizer in both the front and rear of the cabinet. ź Ensure proper bend radius for management cables. ź Black color RL

53 Class system F, BKT NL, shielded : : : BKT Plastic horizontal cable organizer with heightened flexibility 19" ź llows for clear organization of cabling ź Holders can be mounted horizontally as well as vertically ź Holes between holders allow for leading cables through the back of the organizer ź dditional side holders mounted at the side of the organizer allow for vertical organization of cabling ź Material - highly flexible plastic ź Standard: 19 ź Height: 1U ź Holder quantity: 5 ps. BKT Plastic cable organizer with heightened flexibility ź llows for clear organization of cabling ź Mounted on the side of the horizontal cable organizer ( ) without the use of tools ź Mountable on the side of mounting rails through the use of standard cage nuts ź Material - highly flexible plastic ź Type: - 1U 40x80mm - 1U 80x80mm : Indeks: BKT NL Dummy Plug for MMC 6P Modular Patch Panels BKT.NL dummy plug for covering unused inputs in MMC 6P patch panels. ź llows covering unused inputs in sockets and patch panels ź Quick mounting by pressing-in ź Color: white BKT NL Dummy Plug for MMC 6P Modular Patch Panels BKT.NL dummy plug for covering unused inputs in MMC 6P patch panels. ź llows covering unused inputs in sockets and patch panels ź Quick mounting by pressing-in ź Color: black : : BKT NL Faceplate for Mounting BKT.NL MMC 4P/RJ45 Modules in MMC 6P Modular Patch Panels BKT NL Faceplate for Mounting BKT.NL MMC 4P/RJ45 Modules in MMC 6P Modular Patch Panels Faceplate for mounting BKT NL MMC 4P or BKT NL RJ45 modules in BKT NL 6P modular patch panels and sockets. ź For mounting BKT NL MMC 4P or BKT NL RJ45 modules in BKT NL MMC 6P sockets and panels ź nti-dust cover ź Color: white Faceplate for mounting BKT NL MMC 4P or BKT NL RJ45 modules in BKT NL 6P modular patch panels and sockets. ź For mounting BKT NL MMC 4P or BKT NL RJ45 modules in BKT NL MMC 6P sockets and panels ź nti-dust cover ź Color: black 51

54 Class system F, BKT NL, (permanent link) Floor distribution point Installation cable Subscriber socket : BKT NL adapter for mountig socket modules in keystone standard Inde x: BKT Flat Plate 1 x RJ45 Socket (22,5/45) : BKT NL adapter for mountig socket modules in keystone standard Inde x: BKT Flat Plate 2 x RJ45 Socket (44/45) BKT 1000 S/FTP cat. 7 : BKT NL Faceplate with Metal Support for 2xMMC 4P or 2xRJ45 (20/20) : BKT NL MMC 4P cat. 8.2 Module, toolless : : BKT 1200 S/FTP cat.7 : BKT.NL MMC 4P cat. 8.2 Module, toolless BKT NL Faceplate for Mounting BKT.NL MMC 4P/RJ45 Modules in MMC 6P Modular Patch Panels, white : BKT NL Faceplate for Mounting BKT.NL MMC 4P/RJ45 Modules in MMC 6P Modular Patch Panels, black : Patch Panel Modular 19'' BKT 24 x RJ45 : Patch Panel modular 19'' BKT 24 x RJ45 shifted slots : Patch Panel Modular 19'' BKT 24xRJ45 ngle Slots : PBKT NL 19 Modular Patch Panel 16 x BKT NL MMC 6P :

55 Class system F BKT NL 53

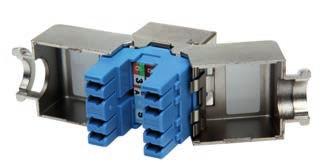

56 Class system F, BKT NL, shielded Module cat. 8.2 BKT NL MMC 4P Shielded Module for telecom and computer installations. Made entirely of metal, its single-piece structure provides complete 360 shielding. The module fulfills the requirements of Category 8.2. : : BKT NL MMC 4P Cat 8.2 Module, toolless ź 2 x Faston 2.8 mm Connectors ź cceptable Conductor Gauge: WG ź 4-Pair Socket ź Easy identification of colored pairs ź Quick and easy mounting ź The conductors are terminated in connectors by pressing the casing ź Compliance with the requirements of EMC ź Complete 360 shielding BKT NL MMC 6P Cat 8.2 Module, toolless ź 2 x Faston 2.8 mm Connectors ź cceptable Conductor Gauge: WG ź 6-Pair Socket ź Easy identification of colored pairs ź Quick and easy mounting ź The conductors are terminated in connectors by pressing the casing ź Compliance with the requirements of EMC ź Complete 360 shielding Patch Panel cat. 7 Patch Panel serve as terminals for wire cables laid vertically or horizontally and function as a connecting point for active equipment working within a network. ll elements feature high quality transmission and mechanical parameters. : : BKT NL adapter for mountig socket modules in keystone standard ź dapter for installaton BKT NL 4P and BKT NL RJ45 socket modules in modular patch panels in keystone standard ź Installaton with the use of the latch ź Size (width x height x depth): 14 x 17 x 16 mm ź Color: silver : Patch Panel Modular 19'' BKT 24 x RJ45 Patch panel modular 19'' designed for tool and tool free Keystone BKT modules. ź Modular patch panel 19'' with a height of 1U for mounting tool and tool free Keystone BKT modules ź Possibility of mounting up to 24 shielded and unshielded Keystone BKT modules ź Integrated cable organizer for holding cables using cable ties ź Metal construction ensuring galvanized connection with module shielding ź Earthing cable ź Black color RL 9005 Patch Panel modular 19'' BKT 24 x RJ45 shifted slots Patch panel modular 19'' with shifted slots are designed specially for system cat. 6. ź Modular patch panel 19'' with a height of 1U for mounting tool and tool free Keystone BKT modules ź Possibility of mounting up to 24 shielded and unshielded Keystone BKT modules ź Integrated cable organizer for holding cables using cable ties ź Metal construction ensuring galvanized connection with module shielding ź Earthing cable ź Black color RL

57 Class system F, BKT NL, shielded : : Patch Panel Modular 19'' BKT 24xRJ45 ngle Slots Patch panel modular 19'' is specifically designed to eliminate the horizontal organization of cables in the teleinformation rack. rrangement of patch cords to the sides of rack 19'' enables to use full teleinformation rack capacity. ź Modular patch panel 19'' with a height of 1U for mounting tool and tool free Keystone BKT modules ź Possibility of mounting up to 24 shielded and unshielded Keystone BKT modules ź Integrated cable organizer for holding cables using cable ties ź Metal construction ensuring galvanized connection with module shielding ź Earthing cable ź Black color RL 9005 BKT NL 19 Modular Patch Panel 16 x BKT NL MMC 6P Modular 16 Port Patch Panel for mounting up to 16 BKT NL MMC 6P modules. Universal 19 panel for BKT NL MMC 6P modules; Possibility of mounting BKT NL MMC 4P or BKT NL RJ45 through adapter; Integrated cable tray for fixing a cable; Metal structure providing a galvanic connection with the shields of the modules; Earthing contact; Color: black (RL 9005); Size: 1U (482.6 x 44 mm). 55

58 Class system F, BKT.NL, shielded Installation cable cat. 7 BKT 1200 cat.7 S/FTP LSHF installation cable pplication: ź Primary (Campus), Secondary(Riser), Tertiary (Horizontal) ź IEEE 802.3: 10Base-T; 100Base-T; 1000Base-T; 10GBase-T IEEE ź ISDN; TPDDI; TM, CTV, Broadband Video ź IEC ź EN Flame resistance: ź LSHF(LSOH, LSZH) :IEC ; IEC ; IEC Construction: Mechanical properties: Conductor Insulation Twisting Pair screen Cable lay up Screen Sheath Bare copper wire, Ø 0.58 mm (WG23) Polyethylene, Ø 1.4 mm 2 cores to the pair l - laminated aluminium foil 4 pairs (PiMF) to the core Copper braid, tinned LSHF, LSHF-FR, melon yellow RL 1028 Bending radius Temperature range installation installed during operation during installation 35 mm 70 mm -20 C to +60 C 0 C to +50 C Technical data: Product name BKT 1200 cat. 7 S/FTP 4P LSHF Cable type J-02YSCH 4 x 2 x 0.56 PiMF Outer diameter (mm) 7.8 Fire load MJ/km Weight (kg/km) Tensile Force (N) Nominal velocity of propagation NVP (%) 76 Product code BKT NL 1500 TV/ST cat. 7 S/FTP MULTIMEDI LSHF-FR Installation Cable pplication: ź Computer, campus, vertical and horizontal cabling and multimedia connections. ź IEEE 802.3: 10Base-T; 100Base-T; 1000Base-T; 10GBase-T; ź IEEE 802.5; ISDN; TPDDI; TM; CTV; Broadband Video; SOHO Cabling ź EN ; EN ; ; ź IEC ; IEC ź PoE: IEEE 802.3af; IEEE 802.3at; IEEE 802.3bt Flame resistance: ź LSHF-FR, FRNC, LSZH; IEC ; IEC /2; IEC /2; ROHS 2002/95 EG Construction: Conductor Insulation Twisting Pair screen Cable lay up Screen Sheath Homogenous copper conductor Ø 0.64 (22 WG) + copper TV conductor Ø 0.7 PE Sheath Ø 1,6 mm Two pair-twisted conductors Laminated aluminum foil for each pair Three pairs (PiMF) and TV pair in additional braid, all sheathed with wire mesh Zinc plated copper braid LSHF-FR, FRNC, LSZH, turquoise green RL 6016 Mechanical properties: Bending installation radius installed Temperature during operation range during installation 40 mm 80 mm -20 C to +60 C 0 C to +50 C Technical data: Product name Cable type Outer diameter (mm) Fire load (MJ/m) Weight (kg/km) Copper Content (kg/km) Tensile Force (N) Nominal velocity of propagation NVP (%) Product code BKT.NL 1500 TV/ST S/FTP cat 7 4P LSHF-FR 3 x 2 x WG22/1 +1 x 2 x 0,7 11,5 x 7,7 0, TV

59 Class system F, BKT.NL, shielded BKT 1500 cat. 7 S/FTP LSHF installation cable pplication: ź Primary (Campus), Secondary(Riser), Tertiary (Horizontal) ź IEEE 802.3: 10Base-T; 100Base-T; 1000Base-T; 10GBase-T IEEE ź ISDN; TPDDI; TM, CTV, Broadband Video ź IEC ź EN Flame resistance: ź LSHF(LSOH, LSZH) :IEC ; IEC ; IEC Construction: Mechanical properties: Conductor Insulation Twisting Pair screen Cable lay up Screen Sheath Bare copper wire, Ø 0.62 mm (WG22) Polyethylene, Ø 1.5 mm 2 cores to the pair l - laminated aluminium foil each pair 4 pairs (PiMF) to the core Copper braid, tinned LSHF,LSHF-FR, melon yellow RL 1028 Bending radius Temperature range installation installed during operation during installation 35 mm 70 mm -20 C to +60 C 0 C to +50 C Technical data: Product name BKT 1500 cat. 7 S/FTP 4P LSHF Cable type J-02YSCH 4 x 2 x 0.62 PiMF Outer diameter (mm) 8.3 Fire load MJ/km Weight (kg/km) Tensile force (N) Nominal velocity of propagation NVP (%) 79 Product code BKT NL P cat. 7 S/FTP MULTIMEDI LSHF-FR Installation Cable pplication: ź Computer, campus, vertical and horizontal cabling and multimedia connections ź IEEE 802.3: 10Base-T; 100Base-T; 1000Base-T; 10GBase-T; ź IEEE 802.5; ISDN; TPDDI; TM; Okablowanie-SOHO ź EN ; EN ; ; ź IEC ; IEC ź PoE: IEEE 802.3af; IEEE 802.3at; IEEE 802.3bt Flame resistance: ź LSHF-FR, FRNC, LSZH; IEC ; IEC /2; IEC /2; ROHS 2002/95 EG Construction: Mechanical properties: Conductor Insulation Twisting Pair screen Cable lay up Screen Sheath Homogeneous copper conductor Ø 0.64 (22 WG) PE Sheath Ø 1,6 mm Two insulated pair-twisted conductors Laminated aluminum foil for each pair Six pairs (PiMF) sheathed with wire mesh Zinc plated copper braid LSHF-FR, FRNC, LSZH, blue RL 5015 Bending radius Temperature range installation installed during operation during installation 40 mm 80 mm -20 C to +60 C 0 C to +50 C Technical data: Product name BKT.NL P S/FTP kat. 7 6P LSHF-FR Cable type Outer diameter (mm) Fire load (MJ/m) Weight (kg/km) Copper Content (kg/km) Tensile Force (N) Nominal velocity of propagation NVP (%) Product code 6 x 2 x WG22/1 12,5 x 7,7 1,

60 Class system F, BKT NL, shielded Patchcords Crossover/patch cable used for connections in distribution cabinets or for connecting devices to subscriber s outlets. Shielded. Terminated in MMC 4P connector at both ends. BKT NL MMC 4P / MMC 4P Patch Cord, S/FTP 10GbE, LSHF BKT NL MMC 4P / RJ45 Patch Cord, S/FTP 10GbE, LSHF ź Connector 1: BKT NL MMC 4P ź Connector 2: BKT NL MMC 4P ź Connector 1 Form Standard: MMC 4P ź Connector 2 Form Standard: MMC 4P ź Cable: S/FTP ź Transmission: 10 GbE ź Cable Color: grey / yellow ź Connector Sheath Color: grey / yellow ź PN-EN ź NSI/TI-568 ź RoHS ź Connector 1: BKT NL MMC 4P ź Connector 2: RJ45 HQ ź Connector 1 Form Standard: MMC 4P ź Connector 2 Form Standard: 568B ź Cable: S/FTP ź Transmission: 10 GbE ź Cable Color: yellow/grey ź Connector Sheath Color: yellow ź PN-EN ź NSI/TI-568 ź RoHS Colors grey/grey yellow/yellow X X X X patch cord length (m); available lengths: 0.5m; 1m; 1.5m; 2m; 3m; 5m; 7.5m; 10m. Colors yellow/grey yellow/yellow X X X X patch cord length (m); available lengths: 0.5m; 1m; 1.5m; 2m; 3m; 5m; 7.5m; 10m. BKT NL MMC 2P / MMC 2P Patch Cord, SF/UTP 100MbE, LSHF BKT NL MMC 2P / RJ45 Patch Cord, SF/UTP 100MbE, LSHF ź Connector 1: BKT NL MMC 2P ź Connector 2: BKT NL MMC 2P ź Connector 1 Form Standard: MMC 2P ź Connector 2 Form Standard: MMC 2P ź Cable: SF/UTP ź Transmission: 100 MbE ź Cable Color: grey / yellow ź Connector Sheath Color: grey / yellow ź PN-EN ź NSI/TI-568 ź RoHS ź Connector 1: BKT NL MMC 2P ź Connector 2: RJ45 ź Connector 1 Form Standard: MMC 2P ź Connector 2 Form Standard: 568B ź Cable: SF/UTP ź Transmission: 100 MbE ź Cable Color: yellow/grey ź Connector Sheath Color: yellow ź PN-EN ź NSI/TI-568 ź RoHS Colors grey/grey yellow/yellow X X X X patch cord length (m); available lengths: 0.5m; 1m; 1.5m; 2m; 3m; 5m; 7.5m; 10m. Colors yellow/grey yellow/yellow X X X X patch cord length (m); available lengths: 0.5m; 1m; 1.5m; 2m; 3m; 5m; 7.5m; 10m. 58

61 Class system F, BKT NL, shielded BKT NL MMC 1P / MMC 1P Patch Cord, UTP TEL BKT NL MMC 1P / RJ45 Patch Cord, UTP TEL ź Connector 1: BKT NL MMC 1P ź Connector 2: BKT NL MMC 1P ź Connector 1 Form Standard: MMC 1P ź Connector 2 Form Standard: MMC 1P ź Cable: UTP ź Transmission: TEL ź Cable Color: grey ź PN-EN ź NSI/TI-568 ź RoHS ź Connector 1: BKT NL MMC 1P ź Connector 2: RJ45 ź Connector 1 Form Standard: MMC 1P ź Connector 2 Form Standard: 4-5 ź Cable: UTP ź Transmission: TEL ź Cable Color: grey ź Connector Sheath Color: green ź PN-EN ź NSI/TI-568 ź RoHS Colors green/grey X X X patch cord length (m); available lengths: 0.5m; 1m; 1.5m; 2m; 3m; 5m; 7.5m; 10m. Colors green/grey X X X patch cord length (m); available lengths: 0.5m; 1m; 1.5m; 2m; 3m; 5m; 7.5m; 10m. BKT NL MMC 2P / MMC 2P Patch Cord, UTP ISDN BKT NL MMC 2P / RJ45 Patch Cord, UTP ISDN ź Connector 1: BKT NL MMC 2P ź Connector 2: BKT NL MMC 2P ź Connector 1 Form Standard: MMC 2P ź Connector 2 Form Standard: MMC 2P ź Cable: UTP ź Transmission: ISDN ź Cable Color: grey ź Connector Sheath Color: green ź PN-EN ź NSI/TI-568 ź RoHS ź Connector 1: BKT NL MMC 2P ź Connector 2: RJ45 ź Connector 1 Form Standard: MMC 2P ź Connector 2 Form Standard: 3-6, 4-5 ź Cable: UTP ź Transmission: TEL ź Cable Color: grey ź Connector Sheath Color: green ź PN-EN ź NSI/TI-568 ź RoHS Colors green/grey X X X patch cord length (m); available lengths: 0.5m; 1m; 1.5m; 2m; 3m; 5m; 7.5m; 10m. Colors green/grey X X X patch cord length (m); available lengths: 0.5m; 1m; 1.5m; 2m; 3m; 5m; 7.5m; 10m. BKT NL MMC 1P / RJ11 (6/4) Patch Cord, UTP TEL BKT NL MMC 2P / RJ11 (6/4) Patch Cord, UTP ISDN ź Connector 1: BKT NL MMC 1P ź Connector 2: RJ11 (6/4) ź Connector 1 Form Standard: MMC 1P ź Connector 2 Form Standard: 3-4 ź Cable: UTP ź Transmission: TEL ź Cable Color: grey ź Connector Sheath Color: green ź PN-EN ź NSI/TI-568 ź RoHS ź Connector 1: BKT NL MMC 2P ź Connector 2: RJ11 (6/4) ź Connector 1 Form Standard: MMC 2P ź Connector 2 Form Standard: 2-5, 3-4 ź Cable: UTP ź Transmission: TEL ź Cable Color: grey ź PN-EN ź NSI/TI-568 ź RoHS Colors green/grey X X X patch cord length (m); available lengths: 0.5m; 1m; 1.5m; 2m; 3m; 5m; 7.5m; 10m. Colors green/grey X X X patch cord length (m); available lengths: 0.5m; 1m; 1.5m; 2m; 3m; 5m; 7.5m; 10m. 59

62 Class system F, BKT NL, shielded ccesories (sockets, organizers, insert) : : BKT Flat Plate 1 x RJ45 Socket ź The socket allows mounting telecom jacks in 45 x 45 mm standard ź To be mounted together with socket frames with support or directly in cable trays ź nti-dust cover for RJ45 jack ź Large label field ź Positive locking ź The socket allows mounting keystone RJ45 modules by the most of the manufacturers on the market ź Size (width x height): 22.5 x 45 mm ź Color: white BKT Flat Plate 2 x RJ45 Socket ź The socket allows mounting telecom jacks in 45 x 45 mm standard; ź To be mounted together with socket frames with support or directly in cable trays; ź nti-dust cover for RJ45 jack; ź Large label field; ź Positive locking; ź The socket allows mounting keystone RJ45 modules produced by the most of the manufacturers on the market; ź Size (width x height): 45 x 45 mm; ź Color: white. : : BKT NL Faceplate with Metal Support for 2 x MMC 6P BKT NL Faceplate with Metal Support for 2 x MMC 4P or 2xRJ45 Faceplate with metal support for electrical system equipment in 50x50 mm standard. It allows mounting modules in BKT NL standard. To be mounted in boxes and cable trays using 50x50 mm frame. The faceplate has a label field. ź llows mounting telecom jacks ź To be mounted with 50x50 mm frames ź The faceplate structure allows mounting up to two BKT NL MMC 4P or BKT NL RJ45 modules ź nti-dust covers for BKT NL sockets ź Large label field ź Size (width x height): 50 x 50 mm ź Color: white RL 9010 Faceplate with metal support for electrical system equipment in 50x50 mm standard. It allows mounting modules in BKT NL standard. To be mounted in boxes and cable trays using 50x50 mm frame llows mounting telecom jacks To be mounted with 50x50 mm frames The faceplate structure allows mounting up to two BKT NL MMC 6P modules Size (width x height): 50 x 50 mm Color: white RL 9010 : BKT Horizontal cable management 19'' ź Universal horizontal cable organizer 19 with a height of 1U for use inside of telecommunications cabinets. ź 5 universal brackets support the organization of cables, and provide appropriate route for horizontal structural cabling. ź The possibility to lead the cable through both the top as well as the right and left sides of the organizer. ź The possibility of installing cable organizer in both the front and rear of the cabinet. ź Ensure proper bend radius for management cables. ź Black color RL

63 Class system F, BKT NL, shielded : : : BKT Plastic horizontal cable organizer with heightened flexibility 19" ź llows for clear organization of cabling ź Holders can be mounted horizontally as well as vertically ź Holes between holders allow for leading cables through the back of the organizer ź dditional side holders mounted at the side of the organizer allow for vertical organization of cabling ź Material - highly flexible plastic ź Standard: 19 ź Height: 1U ź Holder quantity: 5 ps. BKT Plastic cable organizer with heightened flexibility ź llows for clear organization of cabling ź Mounted on the side of the horizontal cable organizer ( ) without the use of tools ź Mountable on the side of mounting rails through the use of standard cage nuts ź Material - highly flexible plastic ź Type: - 1U 40x80mm - 2U 80x80mm : Indeks: BKT NL Dummy Plug for MMC 6P Modular Patch Panels BKT.NL dummy plug for covering unused inputs in MMC 6P patch panels. ź llows covering unused inputs in sockets and patch panels ź Quick mounting by pressing-in ź Color: white BKT NL Dummy Plug for MMC 6P Modular Patch Panels BKT.NL dummy plug for covering unused inputs in MMC 6P patch panels. ź llows covering unused inputs in sockets and patch panels ź Quick mounting by pressing-in ź Color: black : : BKT NL Faceplate for Mounting BKT NL MMC 4P/RJ45 Modules in MMC 6P Modular Patch Panels BKT NL Faceplate for Mounting BKT.NL MMC 4P/RJ45 Modules in MMC 6P Modular Patch Panels Faceplate for mounting BKT NL MMC 4P or BKT NL RJ45 modules in BKT NL 6P modular patch panels and sockets. ź For mounting BKT NL MMC 4P or BKT NL RJ45 modules in BKT NL MMC 6P sockets and panels ź nti-dust cover ź Color: white Faceplate for mounting BKT NL MMC 4P or BKT.NL RJ45 modules in BKT NL 6P modular patch panels and sockets. ź For mounting BKT NL MMC 4P or BKT NL RJ45 modules in BKT NL MMC 6P sockets and panels ź nti-dust cover ź Color: black 61

64 Class system F, BKT NL, (permanent link) Floor distribution point Installation cable Subscriber socket BKT Flat Plate 1 x RJ45 Socket (22,5/45) : KT NL adapter for mountig socket modules in keystone standard : BKT 1200 cat. 7 S/FTP LSHF BKT NL 1500 TV/ST cat. 7 S/FTP MULTIMEDI LSHF-FR Indeks: : Indeks: : B Indeks: : B BKT NL adapter for mountig socket modules in keystone standard : BKT Flat Plate 2 x RJ45 Socket (44/45) : BKT NL MMC 4P cat. 8.2 Module, toolless : BKT NL MMC 4P cat. 8.2 Module, toolless : BKT.NL Faceplate for Mounting BKT NL MMC 4P/RJ45 Modules in MMC 6P Modular Patch Panels, white : BKT NL Faceplate with Metal Support for 2xMMC 4P or 2xRJ45 (20/20) : BKT 1500 cat. 7 S/FTP LSHF BKT.NL Faceplate for Mounting BKT NL MMC 4P/RJ45 Modules in MMC 6P Modular Patch Panels, black : BKT.NL Faceplate with Metal Support for 2xMMC 6P : BKT NL MMC 6P Cat 8.2 Module, toolless : BKT.NL P cat. 7 S/FTP MULTIMEDI LSHF-FR : BKT NL MMC 6P cat. 8.2 Module, toolless : Patch Panel Modular 19'' BKT 24 x RJ45 : Patch Panel modular 19'' BKT 24 x RJ45 shifted slots : Patch Panel Modular 19'' BKT 24xRJ45 ngle Slots : BKT NL 19 Modular Patch Panel 16 x BKT NL MMC 6P :

65 Class system II BKT NL 63

66 Class system II, BKT NL, shielded Module cat. 8.2 BKT NL MMC 4P Shielded Module for telecom and computer installations. Made entirely of metal, its single-piece structure provides complete 360 shielding. The module fulfills the requirements of Category 8.2. Indeks: BKT NL MMC 4P cat. 8.2 Module, toolless ź 2 x Faston 2.8 mm Connectors ź cceptable Conductor Gauge: WG ź 4-Pair Socket ź Easy identification of colored pairs ź Quick and easy mounting ź The conductors are terminated in connectors by pressing the casing ź Compliance with the requirements of EMC ź Complete 360 shielding ź Size: 36 x 14 x 17 mm Patch Panel cat. 8.2 Patch Panel serve as terminals for wire cables laid vertically or horizontally and function as a connecting point for active equipment working within a network. ll elements feature high quality transmission and mechanical parameters. : : BKT NL adapter for mountig socket modules in keystone standard ź dapter for installaton BKT NL 4P and BKT NL RJ45 socket modules in modular patch panels in keystone standard ź Installaton with the use of the latch ź Size (width x height x depth): 14 x 17 x 16 mm ź Color: silver : Patch Panel Modular 19'' BKT 24 x RJ45 Patch panel modular 19'' designed for tool and tool free Keystone BKT modules. ź Modular patch panel 19'' with a height of 1U for mounting tool and tool free Keystone BKT modules ź Possibility of mounting up to 24 shielded and unshielded Keystone BKT modules ź Integrated cable organizer for holding cables using cable ties ź Metal construction ensuring galvanized connection with module shielding ź Earthing cable ź Black color RL 9005 Patch Panel modular 19'' BKT 24 x RJ45 shifted slots Patch panel modular 19'' with shifted slots are designed specially for system cat. 6. ź Modular patch panel 19'' with a height of 1U for mounting tool and tool free Keystone BKT modules ź Possibility of mounting up to 24 shielded and unshielded Keystone BKT modules ź Integrated cable organizer for holding cables using cable ties ź Metal construction ensuring galvanized connection with module shielding ź Earthing cable ź Black color RL

67 Class system II, BKT NL, shielded : : Patch Panel Modular 19'' BKT 24 x RJ45 ngle Slots Patch panel modular 19'' is specifically designed to eliminate the horizontal organization of cables in the teleinformation rack. rrangement of patch cords to the sides of rack 19'' enables to use full teleinformation rack capacity. ź Modular patch panel 19'' with a height of 1U for mounting tool and tool free Keystone BKT modules ź Possibility of mounting up to 24 shielded and unshielded Keystone BKT modules ź Integrated cable organizer for holding cables using cable ties ź Metal construction ensuring galvanized connection with module shielding ź Earthing cable ź Black color RL 9005 BKT NL 19 Modular Patch Panel 16 x BKT NL MMC 6P Modular 16 Port Patch Panel for mounting up to 16 BKT NL MMC 6P modules. Universal 19 panel for BKT NL MMC 6P modules; Possibility of mounting BKT NL MMC 4P or BKT NL RJ45 through adapter; Integrated cable tray for fixing a cable; Metal structure providing a galvanic connection with the shields of the modules; Earthing contact; Color: black (RL 9005); Size: 1U (482.6 x 44 mm). Installation cable cat. 8.2 BKT NL 2000 S/FTP cat. 8.2 Installation Cable pplication: ź Computer, campus, vertical and horizontal cabling connections ź IEEE 802.3: 10Base-T; 100Base-T; 1000Base-T; 10GBase-T; 40GBase-T ź ISDN; TPDDI; TM; CTV; szerokopasmowe Video; Okablowanie-SOHO ź EN ; EN ; ; ź IEC ; IEC (46C/989/CD) ź PoE: IEEE 802.3af; IEEE 802.3at; IEEE 802.3bt Flame resistance: ź LSHF-FR, FRNC, LSZH; IEC ; IEC ; IEC 61034; IEC Construction: Mechanical properties: Conductor Insulation Twisting Pair screen Cable lay up Screen Sheath Homogeneous copper conductor Ø 0,64 (WG 22) PE sheath Ø 1,6 mm Two pair-twisted conductors Laminated aluminum foil for each pair Four pairs (PiMF) sheathed with wire mesh Zinc plated copper braid LSHF-FR, FRNC, LSZH, yellow RL 1021 Bending radius Temperature range installation installed during operation during installation 40 mm 80 mm -20 C to +60 C 0 C to +50 C Technical data: Product name BKT.NL 2000 S/FTP cat 8.2 4P LSHF-FR Cable type J-02YSCH 4 x 2 x 0,64 PiMF Outer diameter (mm) Fire load (MJ/m) Weight (kg/km) Copper Content (kg/km) Tensile Force (N) Nominal velocity of propagation NVP (%) Product code 8, B

68 Class system II, BKT NL, shielded Patchcords Crossover/patch cable used for connections in distribution cabinets or for connecting devices to subscriber s outlets. Shielded. Terminated in MMC 4P connector at both ends. BKT NL MMC 4P / MMC 4P Patch Cord, S/FTP 40GbE, LSHF BKT NL MMC 4P / RJ45 Patch Cord, S/FTP 40GbE, LSHF ź Connector 1: BKT NL MMC 4P ź Connector 2: BKT NL MMC 4P ź Connector 1 Form Standard: MMC 4P ź Connector 2 Form Standard: MMC 4P ź Cable: S/FTP ź Transmission: 10 GbE ź Cable Color: grey / yellow ź Connector Sheath Color: grey / yellow ź PN-EN ź NSI/TI-568 ź RoHS ź Connector 1: BKT NL MMC 4P ź Connector 2: RJ45 HQ ź Connector 1 Form Standard: MMC 4P ź Connector 2 Form Standard: 568B ź Cable: S/FTP ź Transmission: 10 GbE ź Cable Color: yellow/grey ź Connector Sheath Color: yellow ź PN-EN ź NSI/TI-568 ź RoHS Colors grey/grey yellow/yellow X X X X patch cord length (m); available lengths: 0.5m; 1m; 1.5m; 2m; 3m; 5m; 7.5m; 10m. Colors yellow/grey yellow/yellow X X X X patch cord length (m); available lengths: 0.5m; 1m; 1.5m; 2m; 3m; 5m; 7.5m; 10m. BKT NL MMC 4P / MMC 4P Patch Cord, S/FTP 10GbE, LSHF BKT NL MMC 4P / RJ45 Patch Cord, S/FTP 10GbE, LSHF ź Connector 1: BKT NL MMC 4P ź Connector 2: BKT NL MMC 4P ź Connector 1 Form Standard: MMC 4P ź Connector 2 Form Standard: MMC 4P ź Cable: S/FTP ź Transmission: 10 GbE ź Cable Color: grey / yellow ź Connector Sheath Color: grey / yellow ź PN-EN ź NSI/TI-568 ź RoHS ź Connector 1: BKT NL MMC 4P ź Connector 2: RJ45 HQ ź Connector 1 Form Standard: MMC 4P ź Connector 2 Form Standard: 568B ź Cable: S/FTP ź Transmission: 10 GbE ź Cable Color: yellow/grey ź Connector Sheath Color: yellow ź PN-EN ź NSI/TI-568 ź RoHS Colors grey/grey yellow/yellow X X X X patch cord length (m); available lengths: 0.5m; 1m; 1.5m; 2m; 3m; 5m; 7.5m; 10m. Colors yellow/grey yellow/yellow X X X X patch cord length (m); available lengths: 0.5m; 1m; 1.5m; 2m; 3m; 5m; 7.5m; 10m. BKT NL MMC 2P / MMC 2P Patch Cord, SF/UTP 100MbE, LSHF BKT NL MMC 2P / RJ45 Patch Cord, SF/UTP 100MbE, LSHF ź Connector 1: BKT NL MMC 2P ź Connector 2: BKT NL MMC 2P ź Connector 1 Form Standard: MMC 2P ź Connector 2 Form Standard: MMC 2P ź Cable: SF/UTP ź Transmission: 100 MbE ź Cable Color: grey / yellow ź Connector Sheath Color: grey / yellow ź PN-EN ź NSI/TI-568 ź RoHS ź Connector 1: BKT NL MMC 2P ź Connector 2: RJ45 ź Connector 1 Form Standard: MMC 2P ź Connector 2 Form Standard: 568B ź Cable: SF/UTP ź Transmission: 100 MbE ź Cable Color: yellow/grey ź Connector Sheath Color: yellow ź PN-EN ź NSI/TI-568 ź RoHS Colors grey/grey yellow/yellow X X X X patch cord length (m); available lengths: 0.5m; 1m; 1.5m; 2m; 3m; 5m; 7.5m; 10m. Colors yellow/grey yellow/yellow X X X X patch cord length (m); available lengths: 0.5m; 1m; 1.5m; 2m; 3m; 5m; 7.5m; 10m. 66

69 Class system II, BKT.NL, shielded BKT NL MMC 1P / MMC 1P Patch Cord, UTP TEL BKT NL MMC 1P / RJ45 Patch Cord, UTP TEL ź Connector 1: BKT NL MMC 1P ź Connector 2: BKT NL MMC 1P ź Connector 1 Form Standard: MMC 1P ź Connector 2 Form Standard: MMC 1P ź Cable: UTP ź Transmission: TEL ź Cable Color: grey ź PN-EN ź NSI/TI-568 ź RoHS ź Connector 1: BKT NL MMC 1P ź Connector 2: RJ45 ź Connector 1 Form Standard: MMC 1P ź Connector 2 Form Standard: 4-5 ź Cable: UTP ź Transmission: TEL ź Cable Color: grey ź Connector Sheath Color: green ź PN-EN ź NSI/TI-568 ź RoHS Colors green/grey X X X patch cord length (m); available lengths: 0.5m; 1m; 1.5m; 2m; 3m; 5m; 7.5m; 10m. Colors green/grey X X X patch cord length (m); available lengths: 0.5m; 1m; 1.5m; 2m; 3m; 5m; 7.5m; 10m. BKT NL MMC 2P / MMC 2P Patch Cord, UTP ISDN BKT NL MMC 2P / RJ45 Patch Cord, UTP ISDN ź Connector 1: BKT NL MMC 2P ź Connector 2: BKT NL MMC 2P ź Connector 1 Form Standard: MMC 2P ź Connector 2 Form Standard: MMC 2P ź Cable: UTP ź Transmission: ISDN ź Cable Color: grey ź Connector Sheath Color: green ź PN-EN ź NSI/TI-568 ź RoHS ź Connector 1: BKT NL MMC 2P ź Connector 2: RJ45 ź Connector 1 Form Standard: MMC 2P ź Connector 2 Form Standard: 3-6, 4-5 ź Cable: UTP ź Transmission: TEL ź Cable Color: grey ź Connector Sheath Color: green ź PN-EN ź NSI/TI-568 ź RoHS Colors green/grey X X X patch cord length (m); available lengths: 0.5m; 1m; 1.5m; 2m; 3m; 5m; 7.5m; 10m. Colors green/grey X X X patch cord length (m); available lengths: 0.5m; 1m; 1.5m; 2m; 3m; 5m; 7.5m; 10m. BKT NL MMC 1P / RJ11 (6/4) Patch Cord, UTP TEL BKT NL MMC 2P / RJ11 (6/4) Patch Cord, UTP ISDN ź Connector 1: BKT NL MMC 1P ź Connector 2: RJ11 (6/4) ź Connector 1 Form Standard: MMC 1P ź Connector 2 Form Standard: 3-4 ź Cable: UTP ź Transmission: TEL ź Cable Color: grey ź Connector Sheath Color: green ź PN-EN ź NSI/TI-568 ź RoHS ź Connector 1: BKT NL MMC 2P ź Connector 2: RJ11 (6/4) ź Connector 1 Form Standard: MMC 2P ź Connector 2 Form Standard: 2-5, 3-4 ź Cable: UTP ź Transmission: TEL ź Cable Color: grey ź PN-EN ź NSI/TI-568 ź RoHS Colors green/grey X X X patch cord length (m); available lengths: 0.5m; 1m; 1.5m; 2m; 3m; 5m; 7.5m; 10m. Colors green/grey X X X patch cord length (m); available lengths: 0.5m; 1m; 1.5m; 2m; 3m; 5m; 7.5m; 10m. 67

70 Class system II, BKT NL, shielded ccesories (sockets, organizers, insert) : : BKT Flat Plate 1 x RJ45 Socket ź The socket allows mounting telecom jacks in 45 x 45 mm standard ź To be mounted together with socket frames with support or directly in cable trays ź nti-dust cover for RJ45 jack ź Large label field ź Positive locking ź The socket allows mounting keystone RJ45 modules by the most of the manufacturers on the market ź Size (width x height): 22.5 x 45 mm ź Color: white BKT Flat Plate 2 x RJ45 Socket ź The socket allows mounting telecom jacks in 45 x 45 mm standard; ź To be mounted together with socket frames with support or directly in cable trays; ź nti-dust cover for RJ45 jack; ź Large label field; ź Positive locking; ź The socket allows mounting keystone RJ45 modules produced by the most of the manufacturers on the market; ź Size (width x height): 45 x 45 mm; ź Color: white. : : BKT NL Faceplate with Metal Support for 2 x MMC 4P or 2 x RJ45 Faceplate with metal support for electrical system equipment in 50x50 mm standard. It allows mounting modules in BKT.NL standard. To be mounted in boxes and cable trays using 50x50 mm frame. The faceplate has a label field. ź llows mounting telecom jacks ź To be mounted with 50x50 mm frames ź The faceplate structure allows mounting up to two BKT.NL MMC 4P or BKT.NL RJ45 modules ź nti-dust covers for BKT.NL sockets ź Large label field ź Size (width x height): 50 x 50 mm ź Color: white RL 9010 BKT Horizontal cable management 19'' ź Universal horizontal cable organizer 19 with a height of 1U for use inside of telecommunications cabinets. ź 5 universal brackets support the organization of cables, and provide appropriate route for horizontal structural cabling. ź The possibility to lead the cable through both the top as well as the right and left sides of the organizer. ź The possibility of installing cable organizer in both the front and rear of the cabinet. ź Ensure proper bend radius for management cables. ź Black color RL

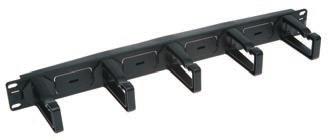

71 Class system II, BKT NL, shielded : : : BKT Plastic horizontal cable organizer with heightened flexibility 19" ź llows for clear organization of cabling ź Holders can be mounted horizontally as well as vertically ź Holes between holders allow for leading cables through the back of the organizer ź dditional side holders mounted at the side of the organizer allow for vertical organization of cabling ź Material - highly flexible plastic ź Standard: 19 ź Height: 1U ź Holder quantity: 5 ps. BKT Plastic cable organizer with heightened flexibility ź llows for clear organization of cabling ź Mounted on the side of the horizontal cable organizer ( ) without the use of tools ź Mountable on the side of mounting rails through the use of standard cage nuts ź Material - highly flexible plastic ź Type: - 1U 40x80mm - 2U 80x80mm : Indeks: BKT NL Dummy Plug for MMC 6P Modular Patch Panels BKT NL dummy plug for covering unused inputs in MMC 6P patch panels. ź llows covering unused inputs in sockets and patch panels ź Quick mounting by pressing-in ź Color: white BKT NL Dummy Plug for MMC 6P Modular Patch Panels BKT NL dummy plug for covering unused inputs in MMC 6P patch panels. ź llows covering unused inputs in sockets and patch panels ź Quick mounting by pressing-in ź Color: black : : BKT NL Faceplate for Mounting BKT NL MMC 4P/RJ45 Modules in MMC 6P Modular Patch Panels BKT NL Faceplate for Mounting BKT.NL MMC 4P/RJ45 Modules in MMC 6P Modular Patch Panels Faceplate for mounting BKT NL MMC 4P or BKT NL RJ45 modules in BKT NL 6P modular patch panels and sockets. ź For mounting BKT NL MMC 4P or BKT NL RJ45 modules in BKT NL MMC 6P sockets and panels ź nti-dust cover ź Color: white Faceplate for mounting BKT NL MMC 4P or BKT.NL RJ45 modules in BKT NL 6P modular patch panels and sockets. ź For mounting BKT NL MMC 4P or BKT NL RJ45 modules in BKT NL MMC 6P sockets and panels ź nti-dust cover ź Color: black 69

72 Class system II, BKT NL, (permanent link) Floor distribution point Installation cable Subscriber socket : BKT NL adapter for mountig socket modules in keystone standard Inde x: BKT Flat Plate 1 x RJ45 Socket (22,5/45) : BKT NL adapter for mountig socket modules in keystone standard Inde x: BKT Flat Plate 2 x RJ45 Socket (44/45) BKT NL Faceplate with Metal Support for 2xMMC 4P or 2xRJ45 (20/20) : BKT NL MMC 4P cat. 8.2 Module, toolless : BKT.NL 2000 S/FTP cat. 8.2 Installation Cable : 1015B BKT NL MMC 4P cat. 8.2 Module, toolless : BKT NL Faceplate for Mounting BKT.NL MMC 4P/RJ45 Modules in MMC 6P Modular Patch Panels, white : BKT NL Faceplate for Mounting BKT.NL MMC 4P/RJ45 Modules in MMC 6P Modular Patch Panels, black : Patch Panel Modular 19'' BKT 24 x RJ45 : Patch Panel modular 19'' BKT 24 x RJ45 shifted slots : Patch Panel Modular 19'' BKT 24xRJ45 ngle Slots : PBKT.NL 19 Modular Patch Panel 16 x BKT NL MMC 6P :

73 Class system C,ISDN, LS 71

74 Class system C, ISDN, LS Patch Panel cat 3 (ISDN) patch panels are used for transmitting analog and digital signals. Every RJ45 port allows for termination of 2 pairs (4 cores) of wire or telecommunications cable. : : " Patch Panel, ISDN, 25 x RJ45 ź Patch panels designed in 19 standard with a height of 1U ź Integrated cabling shelf for securing cables using cable ties ź 25 unshielded RJ45 ports ź Slot connection IDC LS for cables with WG 26 - WG 22 ź Color-coded terminals according to T568 and T568B schemes 19" Patch Panel, ISDN, 50 x RJ45 ź Patch panels designed in 19 standard with a height of 1U ź Integrated cabling shelf for securing cables using cable ties ź 50 unshielded RJ45 ports ź Slot connection IDC LS for cables with WG 26 - WG 22 ź Color-coded terminals according to T568 and T568B schemes Installation cable cat 3 BKT MULTIPR U/UTP cat.3 25 x 2 x 0.5, installation cable pplication: These cables are used as riser cable in structured cabling networks, most often between distribution frames. ź IEC /1995 ź TI/EI 568- Flame resistance: PVC IEC , FRNC, LSHF, LSOH IEC ; IEC ; IEC Construction: Mechanical properties: Conductor Insulation Stranding Solid bare copper wire, diameter 0.5 mm Solid PE (2Y) 5 or 10 pairs stranded to sub units. Cables with 100 pairs are built up with 1st layer: 3 basic units, 2nd layer: 7 basic units Minimum bending radius Temperature without load with load during operation during installation 4 x D 8 x D -20 C to +60 C 0 C to +50 C Identification Pair 1-5: a-core wt; b-core bl, or, gn, br, gr Pair 6-10: a-core rd; b-core bl, or, gn, br, gr Sub units 1-10: color of binding tapes acc. to IEC 60304: bl, or, gn, br, gr, wt, rd, bk, ye, vi Wrapping Plastic foils Sheath PVC (Y) or FRNC (H), LSHF, LSOH grey, RL 7035 Technical data: Product name Cable UTP cat.3 25 x 2 x 0,5 LSOH (J-2YH) Cable type Outer diameter (mm) Weight (kg/km) Copper content (kg/km) Tensile force (N) J-2YH Product code

75 Class system C, ISDN, LS BKT MULTIPR U/UTP cat 3 50 x 2 x 0.5, installation cable pplication: These cables are used as riser cable in structured cabling networks, most often between distribution frames. ź IEC /1995 ź TI/EI 568- Flame resistance: PVC IEC , FRNC, LSHF, LSOH IEC ; IEC ; IEC Construction: Mechanical properties: Conductor Insulation Stranding Solid bare copper wire, diameter 0.5 mm Solid PE (2Y) 5 or 10 pairs stranded to sub units. Cables with 100 pairs are built up with 1st layer: 3 basic units, 2nd layer: 7 basic units Minimum bending radius Temperature without load with load during operation during installation 4 x D 8 x D -20 C to +60 C 0 C to +50 C Identification Pair 1-5: a-core wt; b-core bl, or, gn, br, gr Pair 6-10: a-core rd; b-core bl, or, gn, br, gr Sub units 1-10: color of binding tapes acc. to IEC 60304: bl, or, gn, br, gr, wt, rd, bk, ye, vi Wrapping Plastic foils Sheath PVC (Y) or FRNC (H), LSHF, LSOH grey, RL 7035 Technical data: Product name Cable UTP cat.3 50 x 2 x 0,5 LSOH (J-2YH) Cable type Outer diameter (mm) Weight (kg/km) Copper content (kg/km) Tensile force (N) Product code J-2YH BKT MULTIPR U/UTP cat x 2 x 0.5, installation cable pplication: These cables are used as riser cable in structured cabling networks, most often between distribution frames. ź IEC /1995 ź TI/EI 568- Flame resistance: PVC IEC , FRNC, LSHF, LSOH IEC ; IEC ; IEC Construction: Mechanical properties: Conductor Insulation Stranding Solid bare copper wire, diameter 0.5 mm Solid PE (2Y) 5 or 10 pairs stranded to sub units. Cables with 100 pairs are built up with 1st layer: 3 basic units, 2nd layer: 7 basic units Minimum bending radius Temperature without load with load during operation during installation 4 x D 8 x D -20 C to +60 C 0 C to +50 C Identification Pair 1-5: a-core wt; b-core bl, or, gn, br, gr Pair 6-10: a-core rd; b-core bl, or, gn, br, gr Sub units 1-10: color of binding tapes acc. to IEC 60304: bl, or, gn, br, gr, wt, rd, bk, ye, vi Wrapping Plastic foils Sheath PVC (Y) or FRNC (H), LSHF, LSOH grey, RL 7035 Technical data: Product name Cable UTP cat x 2 x 0,5 LSOH (J-2YH) Cable type Outer diameter (mm) Weight (kg/km) Copper content (kg/km) Tensile force (N) Product code J-2YH

76 Class system C, ISDN, LS BKT MULTIPR F/UTP cat x 2 x 0.5, installation cable pplication: These cables are used as riser cable in structured cabling networks, most often between distribution frames. ź IEC /1995 ź TI/EI 568- Flame resistance: PVC IEC FRNC, LSHF, LSOH IEC ; IEC ; IEC Construction: Mechanical properties: Conductor Insulation Stranding Solid bare copper wire, diameter 0.5 mm Solid PE (2Y) 5 or 10 pairs stranded to sub units. Cables with 100 pairs are built up with 1st layer: 3 basic units, 2nd layer: 7 basic units Minimum bending radius Temperature without load with load during operation during installation 4 x D 8 x D -20 C to +60 C 0 C to +50 C Identification Screen Wrapping Technical data: Pair 1-5: a-core wt; b-core bl, or, gn, br, gr Pair 6-10: a-core rd; b-core bl, or, gn, br, gr Sub units 1-10: color of binding tapes acc. to IEC 60304: bl, or, gn, br, gr, wt, rd, bk, ye, vi luminium laminated plastic foil, drain wire WG24 tinned Plastic foils Sheath PVC (Y) or FRNC(H), LSHF, LSOH grey, RL 7035 Product name Cable FTP cat 3 25 x 2 x 0,5 LSOH J-2Y(St)H Cable type Outer diameter (mm) Weight (kg/km) Copper content (kg/km) Tensile force (N) J-2Y (St) Product code BKT MULTIPR F/UTP cat x 2 x 0.5, installation cable pplication: These cables are used as riser cable in structured cabling networks, most often between distribution frames. ź IEC /1995 ź TI/EI 568- Flame resistance: PVC IEC FRNC, LSHF, LSOH IEC ; IEC ; IEC Construction: Mechanical properties: Conductor Insulation Stranding Solid bare copper wire, diameter 0.5 mm Solid PE (2Y) 5 or 10 pairs stranded to sub units. Cables with 100 pairs are built up with 1st layer: 3 basic units, 2nd layer: 7 basic units Minimum bending radius Temperature without load with load during operation during installation 4 x D 8 x D -20 C to +60 C 0 C to +50 C Identification Screen Wrapping Technical data: Pair 1-5: a-core wt; b-core bl, or, gn, br, gr Pair 6-10: a-core rd; b-core bl, or, gn, br, gr Sub units 1-10: color of binding tapes acc. to IEC 60304: bl, or, gn, br, gr, wt, rd, bk, ye, vi luminium laminated plastic foil, drain wire WG24 tinned Plastic foils Sheath PVC (Y) or FRNC(H), LSHF, LSOH grey, RL 7035 Product name Cable FTP cat.3 50 x 2 x 0,5 LSOH J-2Y(St)H Cable type Outer diameter (mm) Weight (kg/km) Copper content (kg/km) Tensile force (N) Product code J-2Y (St)

77 Class system C, ISDN, LS BKT MULTIPR F/UTP cat x 2 x 0.5, installation cable pplication: These cables are used as riser cable in structured cabling networks, most often between distribution frames. ź IEC /1995 ź TI/EI 568- Flame resistance: PVC IEC FRNC, LSHF, LSOH IEC ; IEC ; IEC Construction: Mechanical properties: Conductor Insulation Stranding Solid bare copper wire, diameter 0.5 mm Solid PE (2Y) 5 or 10 pairs stranded to sub units. Cables with 100 pairs are built up with 1st layer: 3 basic units, 2nd layer: 7 basic units Minimum bending radius Temperature without load with load during operation during installation 4 x D 8 x D -20 C to +60 C 0 C to +50 C Identification Screen Wrapping Technical data: Pair 1-5: a-core wt; b-core bl, or, gn, br, gr Pair 6-10: a-core rd; b-core bl, or, gn, br, gr Sub units 1-10: color of binding tapes acc. to IEC 60304: bl, or, gn, br, gr, wt, rd, bk, ye, vi luminium laminated plastic foil, drain wire WG24 tinned Plastic foils Sheath PVC (Y) or FRNC(H), LSHF, LSOH grey, RL 7035 Product name Cable FTP cat x 2 x 0,5 LSOH J-2Y(St)H Cable type Outer diameter (mm) Weight (kg/km) Copper content (kg/km) Tensile force (N) Product code J-2Y (St)

78 Components LS : Indeks: BKT 10-Pair LS Connection Module connection module for terminating multi-pair copper cables. It can terminate up to ten pairs. Connectors of the transmission path made in compliance with the LS standard. The structure of the electrically conductive element without possibility of disconnecting. ssembly elements allow mounting the connection module to the backmount frame or profile rods. IDC LS Connector Diameter of a Single Cable Core: mm Diameter of a Single Cable Core with Insulation: mm Insulation Resistance: minimum 105 mω Contact Resistance: maximum 7mΩ Connector Resistance: maximum 3mΩ Insulation Resistance: minimum 2kV Electrically Conductive Material: silver-coated phosphor bronze Non-conductive Material: PBT Color: grey : BKT 10-Pair LS Disconnection Module disconnection module for terminating multi-pair copper cables. It can terminate up to ten pairs. Connectors of the transmission path made in compliance with the LS standard. The structure of the electrically conductive element allows disconnecting a trunk side from a line side. ssembly elements allow mounting the disconnection module to the backmount frame or profile rods. IDC LS Connector Diameter of a Single Cable Core: mm Diameter of a Single Cable Core with Insulation: mm Insulation Resistance: minimum 105 mω Contact Resistance: maximum 7mΩ Connector Resistance: maximum 3mΩ Insulation Resistance: minimum 2kV Electrically Conductive Material: silver-coated phosphor bronze Non-conductive Material: PBT Color: white : BKT Openable Descriptive Front Panel (to be mounted to an LS connection module) panel used for making permanent labels on 10-pair connection modules. Mounted directly to the connection module. It provides an easy access to the connectors of the connection module. ź To be mounted directly to a connection module ź Two-sided descriptive field ź Material: BS : BKT 3P Surge rrester Magazine for 10-Pair Connection Module magazine for mounting 3-pole surge arresters. It allows mounting up to ten surge arresters. Mounted directly to a 10-pair connection module. ź For basic protection of telecom and computer equipment against surge ź Mounted directly to a LS connection module ź Possibility of using surge arresters with or without thermal protection : BKT 3P Surge rrester (to be inserted into a magazine) 3-pole surge arrester used for protecting telecommunication lines against overvoltage (mostly caused by atmospheric discharges). Note that the value of earthing resistance at the point where the arrester is used should be maximum 5 Ω. ź DC Sparkover Voltage: 230 V ± 20% ź Maximum Impulse Sparkover Voltage: 800 V ź Impulse Discharge Current: 10 k (8/20µs; 10 hits) ź Impulse Discharge Current: 100 (10/100µs; 300 hits) ź Size: ф 8 x10 mm BKT 19" Holder, 6 x LS panel for mounting LS connection modules in 19 cabinets and racks. The panel includes cable carriers and grommets that allow routing cables from beneath the connection modules. It also consists of encased backmount frame that allows mounting up to six 10-pair LS connection modules Size (width x height x depth): 480 x 45 (1U) x 45 mm Weight: ca. 0.4 kg Color: black RL 7021 Backmount frame made of stainless steel 76

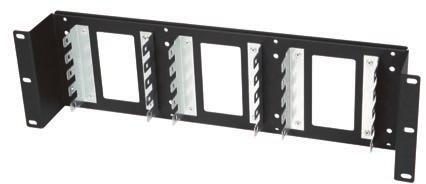

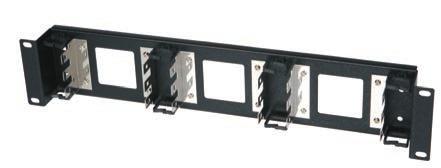

79 Components LS : : BKT 19" Holder, 9 x LS panel for mounting LS connection modules in 19 cabinets and racks. The panel includes cable carriers and grommets that allow routing cables from beneath the connection modules. It also consists of encased backmount frame that allows mounting up to nine 10-pair LS connection modules. Size (width x height x depth): 480 x 88 (2U) x 45 mm Weight: ca. 0.7 kg Color: black RL 7021 Backmount frame made of stainless steel BKT 19" Holder, 15 x LS panel for mounting LS connection modules in 19 cabinets and racks. The panel includes cable carriers and grommets that allow routing cables from beneath the connection modules. It also consists of encased backmount frame that allows mounting up to pair LS connection modules. Size (width x height x depth): 480 x 129 (3U) x 45 mm Weight: ca. 1.0 kg Color: black RL 7021 Backmount frame made of stainless steel : : BKT 19" Holder, 18 x LS panel for mounting LS connection modules in 19 cabinets and racks. The panel includes cable carriers and grommets that allow routing cables from beneath the connection modules. It also consists of encased backmount frame that allows mounting up to pair LS connection modules. Size (width x height x depth): 480 x 176 (4U) x 45 mm Weight: ca. 1.2 kg Color: black RL 7021 Backmount frame made of stainless steel BKT External 30-Pair Connection Box, IP54 External casing for mounting LS connection modules. It includes cable carriers and grommets that allow routing cables from beneath the box. It has a built-in backmount frame that allows mounting up to three 10-pair LS connection modules. The box is closed with a screw. ź Size (width x height x depth): 138 x 200 x 85 mm ź Weight: ca. 0.4 kg ź Protection Rating: IP54 : : BKT External 50-Pair Connection Box, IP54 External casing for mounting LS connection modules. It includes cable carriers and grommets that allow routing cables from beneath the box. It has a built-in backmount frame that allows mounting up to five 10-pair LS connection modules. The box is closed with a screw. ź Size (width x height x depth): 195 x 200 x 85 mm ź Weight: ca. 0.6 kg ź Protection Rating: IP 54 BKT External 100-Pair Connection Box, IP54 External casing for mounting LS connection modules. It includes cable carriers and grommets that allow routing cables from beneath the box. It has a built-in backmount frame that allows mounting up to ten 10-pair LS connection modules. The box is closed with a screw. ź Size (width x height x depth): 190 x 360 x 100 mm ź Weight: ca. 1.0 kg ź Protection Rating: IP54 77

80 Components LS Internal 30-Pair Connection Box with a Lock Internal 30-Pair Connection Box with a Latch Depth Extending Frame Masking Frame Internal casing for mounting LS connection modules. It includes cable carriers and grommets that allow routing cables from the sides of the box. It has a built-in backmount frame that allows mounting up to three 10-pair LS connection modules. The box is closed with a latch. Possible to equip with a frame that allows flush-mounting Possible to equip with a frame extending the box depth Size (width x height x depth): 140 x 170 x 100 mm Weight: ca. 0.5 kg Protection Rating: IP 30 Name BKT Internal 30-Pair Connection Box with a Latch BKT Internal 30-Pair Connection Box with a Lock BKT Depth Extending Frame for Internal 30-Pair Connection Box BKT Masking Frame for Internal 30-Pair Connection Box Internal 50-Pair Connection Box with a Lock Internal 50-Pair Connection Box with a Latch Depth Extending Frame Masking Frame Internal casing for mounting LS connection modules. It includes cable carriers and grommets that allow routing cables from the sides of the box. It has a built-in backmount frame that allows mounting up to five 10-pair LS connection modules. The box can be locked. Possible to equip with a frame that allows flush-mounting Possible to equip with a frame extending the box depth Size (width x height x depth): 215 x 215 x 100 mm Weight: ca. 0.9 kg Protection Rating: IP 30 Name BKT Internal 50-Pair Connection Box with a Latch BKT Internal 50-Pair Connection Box with a Lock BKT Depth Extending Frame for Internal 50-Pair Connection Box BKT Masking Frame for Internal 50-Pair Connection Box Internal 100-Pair Connection Box with a Lock Internal 100-Pair Connection Box with a Latch Depth Extending Frame Masking Frame Internal casing for mounting LS connection modules. It includes cable carriers and grommets that allow routing cables from the sides of the box. It has a built-in backmount frame that allows mounting up to ten 10-pair LS connection modules. The box can be locked. Possible to equip with a frame that allows flush-mounting Possible to equip with a frame extending the box depth Size (width x height x depth): 215 x 320 x 100 mm Weight: ca. 1.5 kg Protection Rating: IP30 Name BKT Internal 100-Pair Connection Box with a Latch BKT Internal 100-Pair Connection Box with a Lock BKT Depth Extending Frame for Internal 100-Pair Connection Box BKT Masking Frame for Internal 100-Pair Connection Box

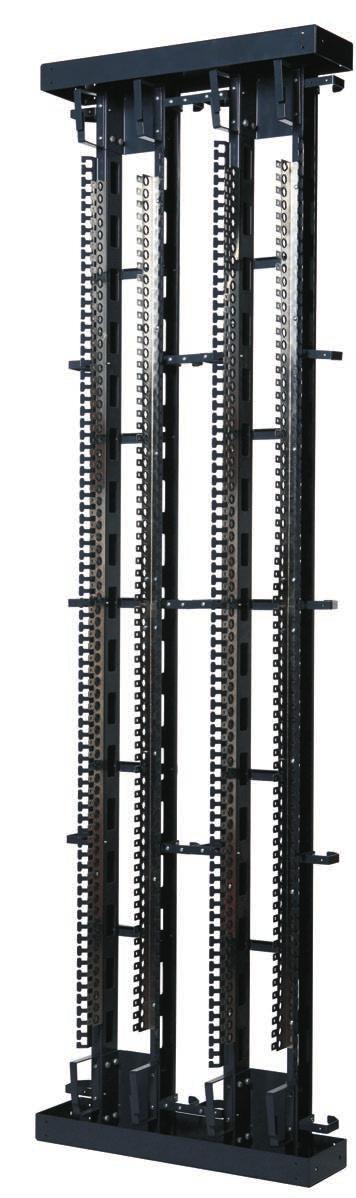

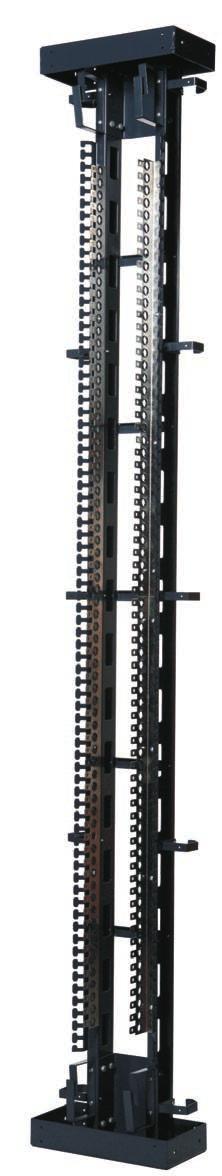

81 Components LS : : BKT Single MDF Rack for 700 Pairs Dual MDF Rack BKT, for 1400 Pairs distribution rack that allows mounting up to pair LS connection modules in two rows. It can be fixed to the floor or wall. It is also possible to join two racks by screwing their backs together and make it a one free-standing rack. ź durable structure made of powder-coated steel ź Backmount frame made of stainless steel ź Vertical and horizontal cable organizers built in the rack s structure ź Ready for a connection of earthing system distribution rack that allows mounting up to pair LS connection modules in two rows. It can be fixed to the floor or wall. It is also possible to join two racks by screwing their backs together and make it a one free-standing rack. ź durable structure made of powder-coated steel ź Backmount frame made of stainless steel ź Vertical and horizontal cable organizers built in the rack s structure ź Ready for a connection of earthing system 79

82 BKT Openable Descriptive Front Panel (to be mounted to an LS connection module) BKT 3P Surge rrester Magazine for 10-Pair Connection Module BKT 3P Surge rrester (to be inserted into a magazine) Class system C, ISDN, LS : : : Floor distribution point Installation cable Subscriber socket BKT MULTIPR U/UTP cat 3 25 x 2 x 0.5, installation cable : BKT 10-Pair LS C onnection Module : : BKT Single MDF Rack for 700 Pairs : : BKT MULTIPR U/UTP cat 3 50 x 2 x 0.5, installation cable : BKT Openable Descriptive Front Panel (to be mounted to an LS connection module) BKT 10-Pair LS connection Module BKT 10-Pair LS Disconnection Module : Panel 19" Patch krosujący Panel, 19" BKT ISDN, DRKOM, 25 x 24xRJ45, nieekranowany Panel 19" Patch krosujący Panel, 19" BKT ISDN, DRKOM, 50 x 24xRJ45, nieekranowany Panel BKT 19" krosujący Holder, 19" BKT 6 x DRKOM, LS 24xRJ45, nieekranowany Panel BKT 19" krosujący Holder, 19" BKT 9 x DRKOM, LS 24xRJ45, nieekranowany Panel BKT 19" krosujący Holder, 19" BKT 15 DRKOM, x LS 24xRJ45, nieekranowany PBKT 19" Holder, 18 x LS : BKT MULTIPR U/UTP cat x 2 x 0.5, installation cable : BKT 3P Surge rrester Magazine for 10-Pair Connection Module : BKT 10-Pair LS Disconnection Module : Dual MDF Rack BKTfor 1400 Pairs BKT 3P Surge rrester (to be inserted into a magazine) : : : : : : :

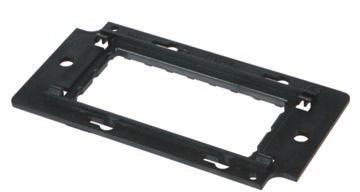

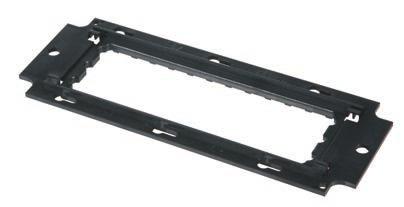

83 Socket frame, flush box, socket 230V System of socket frames with support, surface-mounted boxes, flush boxes, sockets, dummy plugs and electrical sockets is applied in dedicated power installations in 45 x 45 mm standard. This solution allows putting together complete logical access points starting from dedicated power supply through LN and optical fiber connection. : J BKT 2 MOD Socket Frame with Support, in 45x45 mm Standard ź Used for fixing one 45x45mm element or two 22,5x45 mm elements; ź The frames allow mounting telecom jacks and electrical sockets; ź Mounting up to two telecom jacks or one electrical socket; ź The frame serves as a concealing and fixing element; ź To be mounted with surface-mounted and flush boxes; ź Fixing support included; ź Quick mounting by pressing-in; ź Size (width x height x depth): 81 x 81 x 9 mm; ź Color: white. : J BKT 4 MOD Socket Frame with Support, in 45x45 mm Standard ź Used for fixing two 45x45mm elements or four 22,5x45 mm elements; ź The frames allow mounting telecom jacks and electrical sockets; ź Mounting up to four telecom jacks or two electrical socket; ź The frame serves as a concealing and fixing element; ź To be mounted with surface-mounted and flush boxes; ź Fixing support included; ź Quick mounting by pressing-in; ź Size (width x height x depth): 148 x 81 x 9 mm ź Color: white : J BKT 6 MOD Socket Frame with Support, in 45x45 mm Standard ź Used for fixing three 45x45mm elements or six 22,5x45 mm elements; ź The frames allow mounting telecom jacks and electrical sockets; ź Mounting up to six telecom jacks or three electrical socket; ź The frame serves as a concealing and fixing element; ź To be mounted with surface-mounted and flush boxes; ź Fixing support included; ź Quick mounting by pressing-in; ź Size (width x height x depth): 203 x 81 x 9 mm ; ź Color: white. 81

84 Socket frame, flush box, socket 230V : : BKT 1 MOD Dummy Plug ź For concealing unused slots in the assembly of telecom jacks; ź To be mounted together with socket frames with support or directly in cable trays; ź Positive locking; ź Size (width x height): 22,5 x 45 mm; ź Color: white. BKT 2 MOD Dummy Plug ź For concealing unused slots in the assembly of telecom jacks; ź To be mounted together with socket frames with support or directly in cable trays; ź Positive locking; ź Size (width x height): 45 x 45 mm; ź Color: white. : J : J BKT 2 MOD Surface-mounted Box BKT 4 MOD Surface-mounted Box ź The boxes allow mounting telecom jacks and electrical sockets; ź Mounting up to two telecom jacks or one electrical socket; ź To be mounted together with BKT 2 MOD Socket Frames with Support; ź Supplied with screws for fixing the frame and support; ź dditional holes for inserting a cable; ź Size (width x height x depth): 81 x 81 x 40 mm; ź Color: white. ź The boxes allow mounting telecom jacks and electrical sockets; ź Mounting up to four telecom jacks or two electrical socket; ź To be mounted together with BKT 4 MOD Socket Frames with Support; ź Supplied with screws for fixing the frame and support; ź dditional holes for inserting a cable; ź Size (width x height x depth): 148 x 81 x 40 mm; ź Color: white. : J : BKT 6 MOD Surface-mounted Box BKT 2 MOD Flush Box for Hollow Walls ź The boxes allow mounting telecom jacks and electrical sockets; ź Mounting up to six telecom jacks or three electrical socket; ź To be mounted together with BKT 6 MOD Socket Frames with Support; ź Supplied with screws for fixing the frame and support; ź dditional holes for inserting a cable; ź Size (width x height x depth): 203 x 81 x 40 mm; ź Color: white. ź The boxes allow mounting telecom jacks and electrical sockets in drywalls; ź Mounting up to two telecom jacks or one electrical socket; ź To be mounted together with BKT 2 MOD Socket Frames with Support; ź Supplied with screws for fixing the frame and support; ź dditional holes for inserting a cable; ź Size (width x height x depth): 68 x 65 x 40 mm; ź Color: yellow. 82

85 Socket frame, flush box, socket 230V : : BKT 4 MOD Flush Box for Hollow Walls BKT 6 MOD Flush Box for Hollow Walls ź The boxes allow mounting telecom jacks and electrical sockets in drywalls; ź Mounting up to four telecom jacks or two electrical socket; ź To be mounted together with BKT 4 MOD Socket Frames with Support; ź Supplied with screws for fixing the frame and support; ź dditional holes for inserting a cable; ź Size (width x height x depth): 124 x 65 x 40 mm; ź Color: yellow. ź The boxes allow mounting telecom jacks and electrical sockets in drywalls; ź Mounting up to six telecom jacks or three electrical socket; ź To be mounted together with BKT 6 MOD Socket Frames with Support; ź Supplied with screws for fixing the frame and support; ź dditional holes for inserting a cable; ź Size (width x height x depth): 184 x 65 x 40 mm; ź Color: yellow. : : BKT 2 MOD DT Socket - white ź The sockets allow the assembly of an integrated electrical and logical access point; ź 250V 50Hz 16 with earthing contact; ź To be mounted together with socket frames with support; ź Positive locking; ź Size (width x height): 45 x 45 mm; ź Color: white. BKT 4 MOD DT Socket - white ź The sockets allow the assembly of an integrated electrical and logical access point; ź 250V 50Hz 16 with earthing contact; ź To be mounted together with socket frames with support; ź Positive locking; ź Size (width x height): 90 x 45 mm; ź Color: white. : : BKT 6 MOD DT Socket - white ź The sockets allow the assembly of an integrated electrical and logical access point; ź 250V 50Hz 16 with earthing contact; ź To be mounted together with socket frames with support; ź Positive locking; ź Size (width x height): 135 x 45 mm; ź Color: white. BKT 2 MOD DT Socket - red ź The sockets allow the assembly of an integrated electrical and logical access point; ź 250V 50Hz 16 with earthing contact; ź Protection against connecting not permitted receivers; ź To be mounted together with socket frames with support; ź Positive locking; ź Size (width x height): 45 x 45 mm; ź Color: red. 83

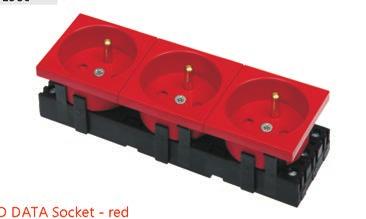

86 Socket frame, flush box, socket 230V : : BKT 4 MOD DT Socket - red ź The sockets allow the assembly of an integrated electrical and logical access point; ź 250V 50Hz 16 with earthing contact; ź Protection against connecting not permitted receivers; ź To be mounted together with socket frames with support; ź Positive locking; ź Size (width x height): 90 x 45 mm; ź Color: red. BKT 6 MOD DT Socket - red ź The sockets allow the assembly of an integrated electrical and logical access point; ź 250V 50Hz 16 with earthing contact; ź Protection against connecting not permitted receivers; ź To be mounted together with socket frames with support; ź Positive locking; ź Size (width x height): 135 x 45 mm; ź Color: red. : Key releasing the protection of DT sockets Installation tools : : BKT ONE Cable Stripper ź Precise cable stripper for removing insulation from UTP/STRP cables and RG59/6 coaxial cables ź Cutting of insulation by turning the tool around the cable axis a few times ź Removable inserts for twisted-pair and coaxial cables ź Removable inserts within the tool body ź Insert for twisted-pair cables designed for removing external insulation and a cable sheath ź Insert for twisted-pair cables with an indicator of a distance from the blade ź Insert for coaxial cables for removing external insulation and cutting to the core at the same time ź Very sharp ground blades ź Integrated comb for straightening conductors twisted in a pair ź Ergonomic design ź Bright yellow colour ensuring visibility at a workplace BKT CU Precise Cutters ź Precise stainless steel cutters for exceptionally precise cutting of twisted-pair cable conductors ź Very sharp ground cutting edges for flat cutting 2 ź Designed for cutting copper cables of max conductor diameter ø 1.3 mm or WG 16 ź Not suitable for cutting steel cables ź Blades induction hardened separately ź Hinge with a stainless steel rivet ź Opening and closing spring ź Bright yellow colour ensuring visibility at a workplace 84

87 Installation tools : : Cable Comb - Cable Dresser, Bundler, and Organizing Tool ź Lifetime warranty included by manufacturer (no additional "protection plan" necessary) ź Fit and organize up to 48 cat. 5 cables ź Zytel nylon resin which provides durability, lower friction, and strength. ź Bright yellow outer color for visibility in the work place. ź Comfortable ergonomic concave finger pull to help with combing the cables. Indeks: : BKT HT tools for terminating installation cables on modules Specially dedicated tool for terminating BKT installation cables on BKT tooled and tool-free modules. ź Ergonomical and easy to use tool for terminating with exchangeable heads ź Head 18 dedicated for tooled modules ź Head 28 dedicated for tool-free modules ź llows for terminating installation cables while at the same time allowing for automatic cutting off of the cable wire ends ź Set contains handle, two heads and etui Pair-forming Plate for BKT NL MMC 4P / 6P Modules Indeks: : Plate facilitating termination of system cables in BKT NL 4P or BKT NL 6P connectors. It allows proper arrangement of conductors and cutting them to the proper length. ź Preparing system cables for termination ź llows conductors arrangement proper for BKT NL 4P or BKT NL 6P connectors ź llows cutting conductors to the proper length ź Color: white (transparent) : Pair-forming Plate for BKT NL RJ45 Modules Plate facilitating termination of system cables in BKT NL RJ45 connectors. It allows proper arrangement of conductors and cutting them to the proper length. ź Preparing system cables for termination ź llows conductors arrangement proper for BKT NL RJ45 connectors ź llows cutting conductors to the proper length ź Color: white (transparent) Tool for Opening BKT NL RJ45 Modules Tool used for opening terminated BKT NL RJ45 modules. ź llows easy opening of crimped connectors ź Color: violet 85
