1 AT-x900 Výkonné, modulární L3+ přepínače Marek Bražina

2 x900-24x Flexibilní platforma 2 x 30Gbps sloty pro možnosti dalšího rozšíření x900-24xt x900-24xs XEM-1XP XEM-12T XEM-STK XEM-12S

3 x900-12xt/s x900-12xt/s XEM-1XP XEM-12T XEM-STK XEM-12S

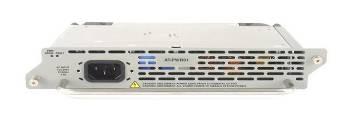

4 x900-48fs & x900-48fe x900-48fs x900-48fe Pohled na zadní stranu - PS a FUNs AT-PWR01 AT-FAN01

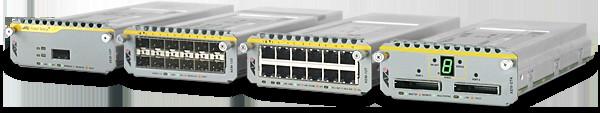

5 x900-12xt/s & x900-24x: Flexibilita Stejné XEM moduly pro x900-24x, -12XT/S, a nový SwitchBlade x908 XEM-1XP 1 x 10GbE Kapacita XEM-12S 12 x SFP XEM-12T 12 x 10/100/1000T XEM-STK Stacking Module Flexibilita Rozšiřitelnost Spolehlivost + XEM moduly jsou hot-swap + v přípravě XEM modul 2 x 10GbE w Ne

6 x900: Spolehlivost» Dual hot-swap AC nebo DC PSUs Single PSU supplies enough power for switch 2 PSUs give redundant power and, where required, feed redundancy» Hot swappable XEM modules» Link aggregation LACP for simple configuration Up to 8 ports in a trunk group Link aggregation across stacked devices Resilient core solution using stacking and link aggregation» EPSR Sub 50ms failover in the event of a break in connectivity

7 x900-24x: 10 GbE 2 x 30Gbps rozšiřující sloty podporující 10G rozhraní:» Rozšiřitelnost podle potřeby růstu sítě» Ochrana investice» Vysoký výkon Non-blocking

8 x900 s 10GbE: Enterprise Campus aplikace Ten gigabit uplinks for maximum throughput Gigabit to the desktop (power users such as graphics and design) Network attached storage and server farm aggregation 10/100 1 Gigabit 10 Gigabit

9 Enterprise Critical Server Application Application Highlights Redundant 10GbE link to core switch Redundant GbE server connectivity Front to back cooling Jumbo frames for iscsi Interface flexibility 1RU with redundant power High-Density Server Rack 1 Gigabit 10 Gigabit

10 x900 Flexibilita: Virtual Chassis Stacking Stacking do osmi x900-24x nebo x900-12xt/s pomocí XEM-STK w e N» Každý propoj má kapacitu» 15Gbps Možnost rozšiřování sítě podle růstu s minimalizací administrace a investic

11 x900 Flexibilita: Enterprise Aplikace x900 - used in an Aggregation and Access / Edge scenario Up to 48 GbE ports, copper or fiber Gigabit or 10 GbE uplinks 10/100 1 Gigabit 10 Gigabit

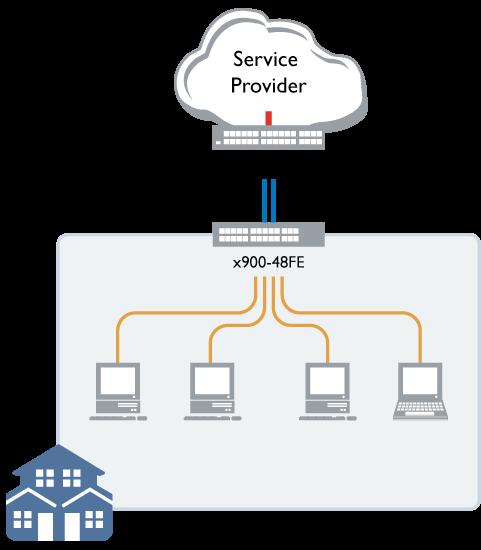

12 x900-48fs: ideální pro FTTH High port density, low cost per port SFPs: 100FX or 100BX, easy to replace, hotswappable Powerful: Best-in-class QoS, rich feature set Reliable: Dual PSUs, EPSR, 50ºC operating temp, etc. Future-proof: IPv6 in HW

13 x900-48fs: ideální pro FTTD Security: Fiber upstream and downstream High port density, low cost per port Future-proof: IPv6 in HW SFPs: 100FX or 100BX, easy to replace, hotswappable Powerful: Best-in-class QoS, rich feature set Reliable: Dual PSUs, 50ºC operating temp, etc.

14 Powerful QoS: Service Provider Application QoS used on x900 to prioritize delivery of voice, video and data» Ability to monitor and manage SLA conformance 10/100 1 Gigabit 10 Gigabit

15 Powerful: Security 802.1x support, MAC-based port security» Restricts network access to known users» Provides an authentication framework for wireless LANs» Provides a higher level of security than a standard logon Wirespeed ACLs» Controls use of the network resources» Restrict access to specified servers and applications More efficient use of the network» Options include IP, MAC, Port, etc

16 Powerful: VLANs VLAN double tagging» Enables Service Providers to implement Virtual Private line» services for customers The customer can employ a single network across multiple physical locations Private VLANs» Blocks communication across ports within the same VLAN» Provides secure network access for users connecting to the same switch in a hotel or multi tenant unit

17 Powerful: Management Out of band Ethernet and Asynchronous management ports» Memory card» Store software releases and config files for backup CLI (Telnet, console) with SSH, SNMPv3» Secure management of the network Providing a range of secure remote management options Virtual Cable Tester» Accurately identify a fault s location without disconnecting any cables

18 Spolehlivost LACP (Link Aggregation Control Protocol)» Detects multiple links between devices and aggregates them» Automates link aggregation of multiple ports» Provides higher bandwidth and redundancy in the event of link failure VRRP (Virtual Router Redundancy Protocol)» Provides dynamic fail-over to a backup default gateway» Users are guaranteed access to online resources with high network availability should the default gateway fail ECMP (Equal Cost Multi-Path) routing» Resilience and load sharing across multiple hops and multiple paths

19 Resilient: EPSR Ethernet Protection Switched Rings (EPSR)» Prevents loops in ring-based Ethernet networks» Minimizes the impact of failure by diverting traffic around the failure point (sub 50 ms)» Interoperates with standard Ethernet functions including: QoS, IGMP, VLAN Double Tagging, Filtering» imap interoperability Provides high availability for mission critical traffic, preventing loss of voice, video or data in the event of failure

20 Service Provider Application - EPSR 10GbE EPSR Transport ring A break in the transport ring does not interrupt delivery of services QoS on the x900 switches prioritizes the delivery of voice, video and data 10/100 1 Gigabit 10 Gigabit

21 x900-24x Competitive Information

22 x900-12xt/s Competitive Information

23 x900-48fe Competitive Information

24 x900-48fs Competitive Information
