1 Huawei Networking Tomáš Zloch HUAWEI TECHNOLOGIES CO., LTD.

2 Agenda Enterprise solution Switches Sx7 switches Routers ARG3 NE40E-X3 GPON HUAWEI TECHNOLOGIES CO., LTD. Huawei Confidential

3 Switches HUAWEI TECHNOLOGIES CO., LTD. Huawei Confidential Page 3

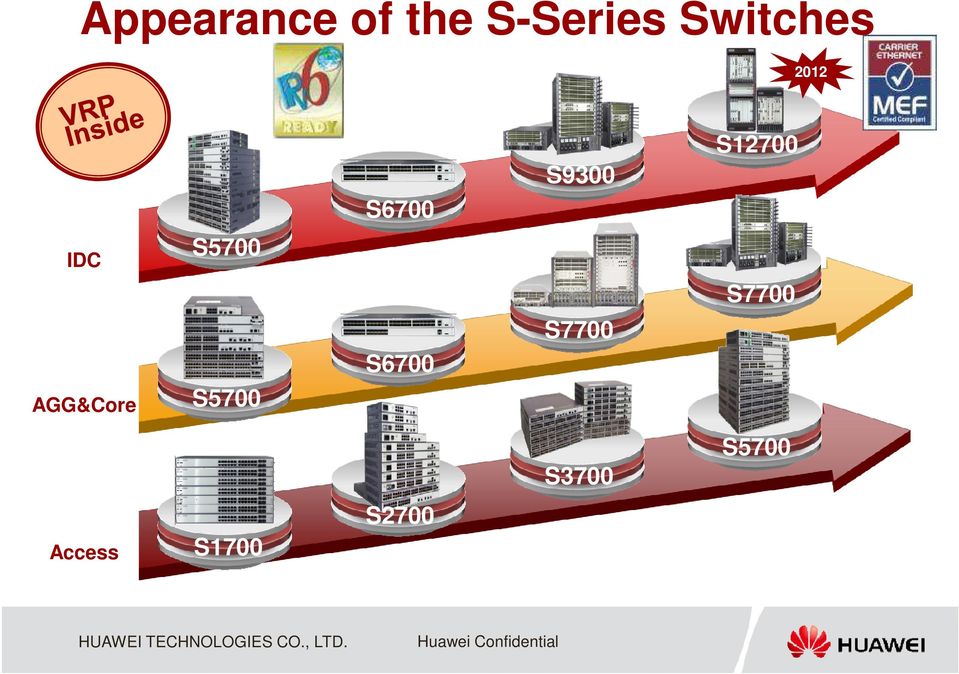

4 35pt Appearance of the S-Series Switches 2012 S12700 S9300 S6700 IDC S5700 S7700 S7700 S6700 AGG&Core S5700 S5700 S3700 S2700 Access S1700 HUAWEI TECHNOLOGIES CO., LTD. Huawei Confidential

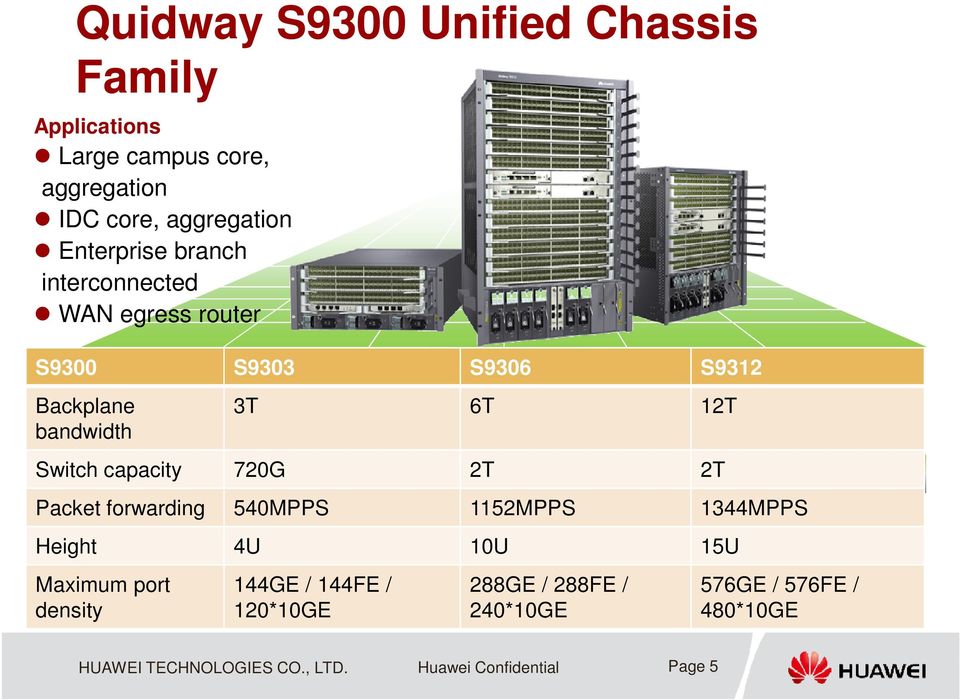

5 Quidway S9300 Unified Chassis Family Applications Large campus core, aggregation IDC core, aggregation Enterprise branch interconnected WAN egress router S9300 S9303 S9306 S9312 Backplane bandwidth 3T 6T 12T Switch capacity 720G 2T 2T Packet forwarding 540MPPS 1152MPPS 1344MPPS Height 4U 10U 15U Maximum port density 144GE / 144FE / 120*10GE 288GE / 288FE / 240*10GE 576GE / 576FE / 480*10GE HUAWEI TECHNOLOGIES CO., LTD. Huawei Confidential Page 5

6 S *10GE Line Card High density 10G port Customer investment Protection Advanced 10GE port density meet the demand in IDC/large enterprise,max 480 /chassis 40*10G GE/10GE auto adaptive Optics & Electricity port all in one Multi-function Green design Support MPLS/Netstream/128K MAC 4W/10G,50% less in industry HUAWEI TECHNOLOGIES CO., LTD. Huawei Confidential Page 6

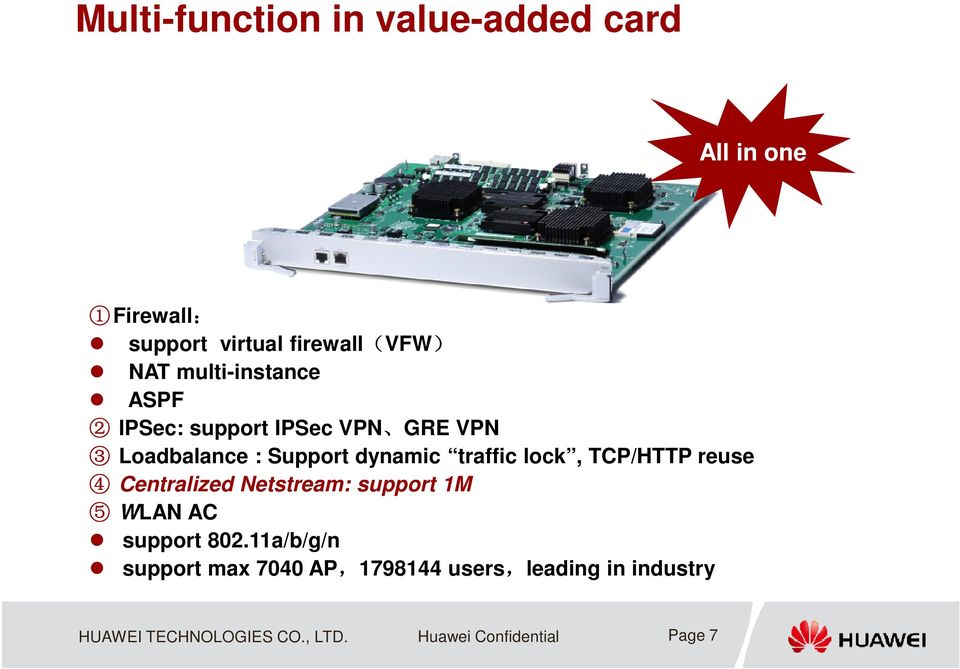

7 Multi-function in value-added card All in one 1 Firewall: support virtual firewall(vfw) NAT multi-instance ASPF 2 IPSec: support IPSec VPN GRE VPN 3 Loadbalance : Support dynamic traffic lock, TCP/HTTP reuse 4 Centralized Netstream: support 1M 5 WLAN AC support a/b/g/n support max 7040 AP, users,leading in industry HUAWEI TECHNOLOGIES CO., LTD. Huawei Confidential Page 7

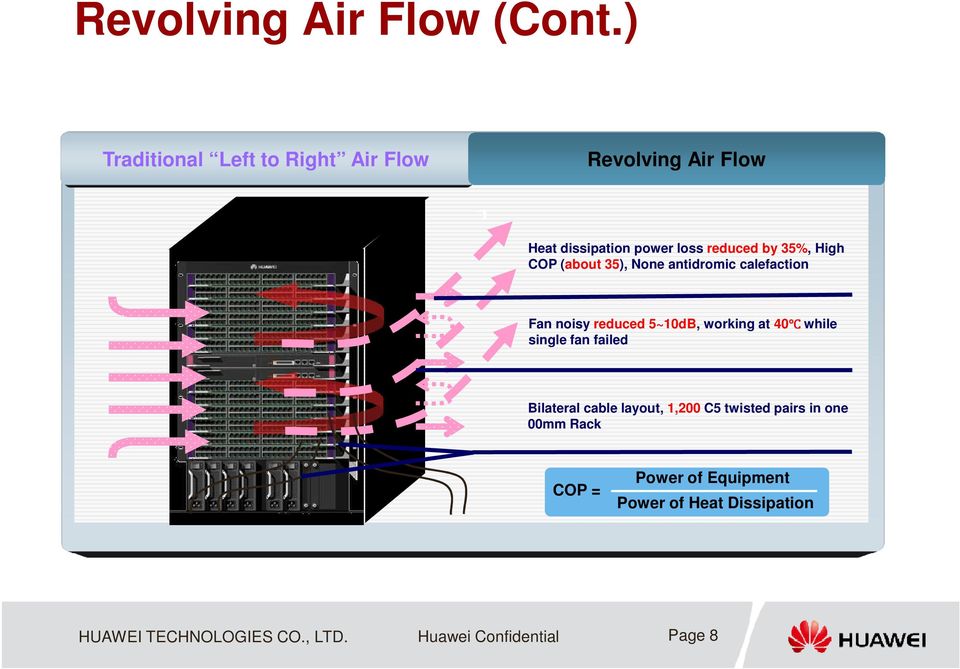

8 Revolving Air Flow (Cont.) Traditional Left to Right Air Flow Revolving Air Flow Heat dissipation power loss reduced by 35%, High COP (about 35), None antidromic calefaction Fan noisy reduced 5~10dB, working at 40 while single fan failed Bilateral cable layout, 1,200 C5 twisted pairs in one 00mm Rack COP = Power of Equipment Power of Heat Dissipation HUAWEI TECHNOLOGIES CO., LTD. Huawei Confidential Page 8

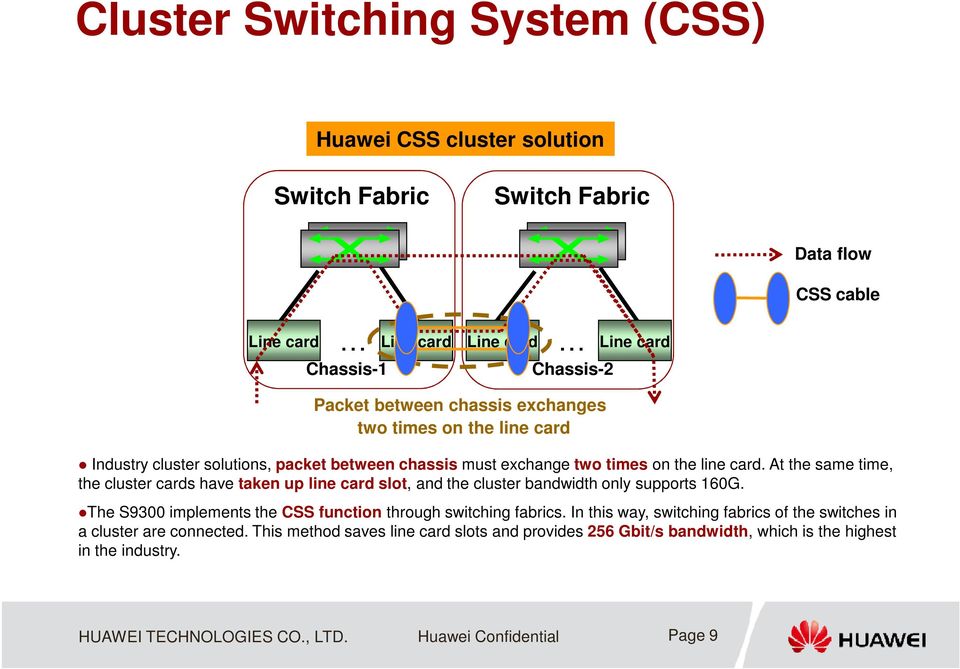

9 Cluster Switching System (CSS) Industry cluster solution Huawei CSS cluster solution Switch Fabric Switch Fabric Data flow CSS cable Line card Line card Line card Line card Chassis-1 Chassis-2 Packet between chassis exchanges two times on the line card Industry cluster solutions, packet between chassis must exchange two times on the line card. At the same time, the cluster cards have taken up line card slot, and the cluster bandwidth only supports 160G. The S9300 implements the CSS function through switching fabrics. In this way, switching fabrics of the switches in a cluster are connected. This method saves line card slots and provides 256 Gbit/s bandwidth, which is the highest in the industry. HUAWEI TECHNOLOGIES CO., LTD. Huawei Confidential Page 9

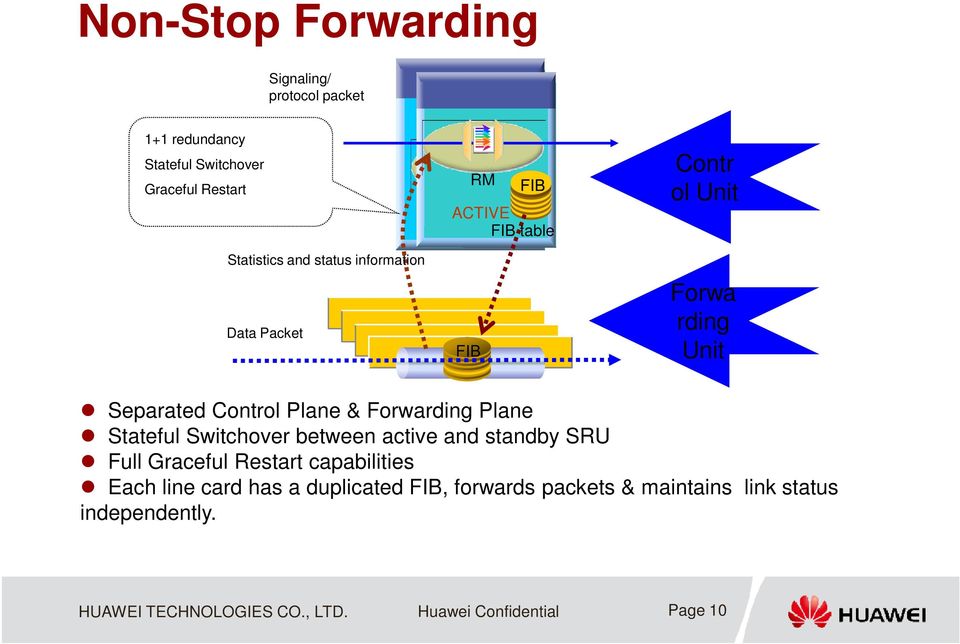

10 Non-Stop Forwarding Signaling/ protocol packet 1+1 redundancy Stateful Switchover Graceful Restart Statistics and status information RM RM FIB BACKUP ACTIVE FIB table Contr ol Unit Data Packet FIB Forwa rding Unit Separated Control Plane & Forwarding Plane Stateful Switchover between active and standby SRU Full Graceful Restart capabilities Each line card has a duplicated FIB, forwards packets & maintains link status independently. HUAWEI TECHNOLOGIES CO., LTD. Huawei Confidential Page 10

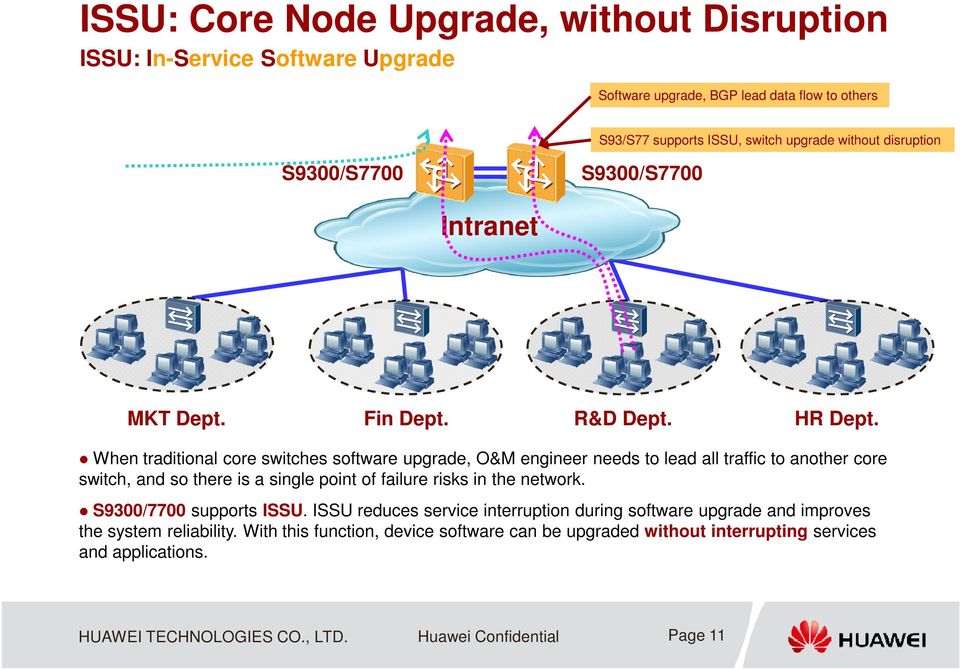

11 ISSU: Core Node Upgrade, without Disruption ISSU: In-Service Software Upgrade Software upgrade, BGP lead data flow to others S93/S77 supports ISSU, switch upgrade without disruption S9300/S7700 S9300/S7700 Intranet MKT Dept. Fin Dept. R&D Dept. HR Dept. When traditional core switches software upgrade, O&M engineer needs to lead all traffic to another core switch, and so there is a single point of failure risks in the network. S9300/7700 supports ISSU. ISSU reduces service interruption during software upgrade and improves the system reliability. With this function, device software can be upgraded without interrupting services and applications. HUAWEI TECHNOLOGIES CO., LTD. Huawei Confidential Page 11

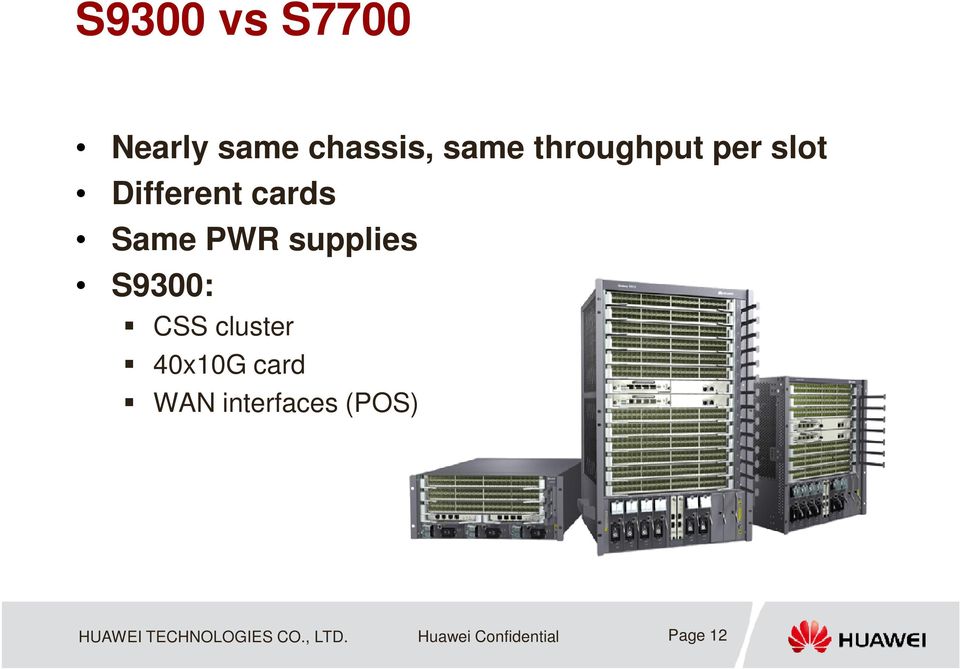

12 S9300 vs S7700 Nearly same chassis, same throughput per slot Different cards Same PWR supplies S9300: CSS cluster 40x10G card WAN interfaces (POS) HUAWEI TECHNOLOGIES CO., LTD. Huawei Confidential Page 12

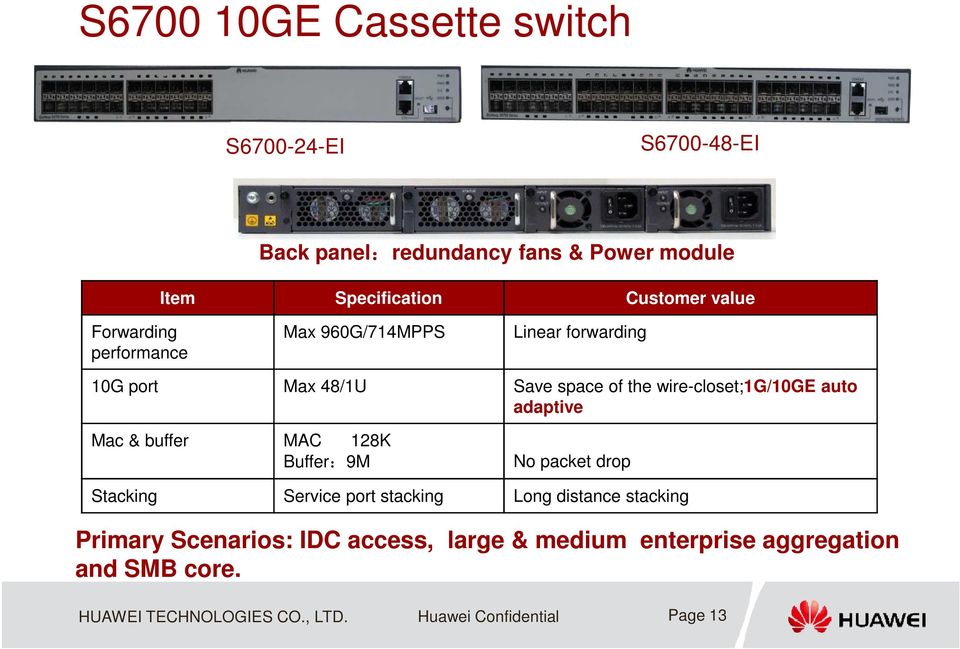

13 S GE Cassette switch S EI S EI Back panel:redundancy fans & Power module Item Specification Customer value Forwarding performance Max 960G/714MPPS Linear forwarding 10G port Max 48/1U Save space of the wire-closet;1g/10ge auto adaptive Mac & buffer MAC 128K Buffer:9M No packet drop Stacking Service port stacking Long distance stacking Primary Scenarios: IDC access, large & medium enterprise aggregation and SMB core. HUAWEI TECHNOLOGIES CO., LTD. Huawei Confidential Page 13

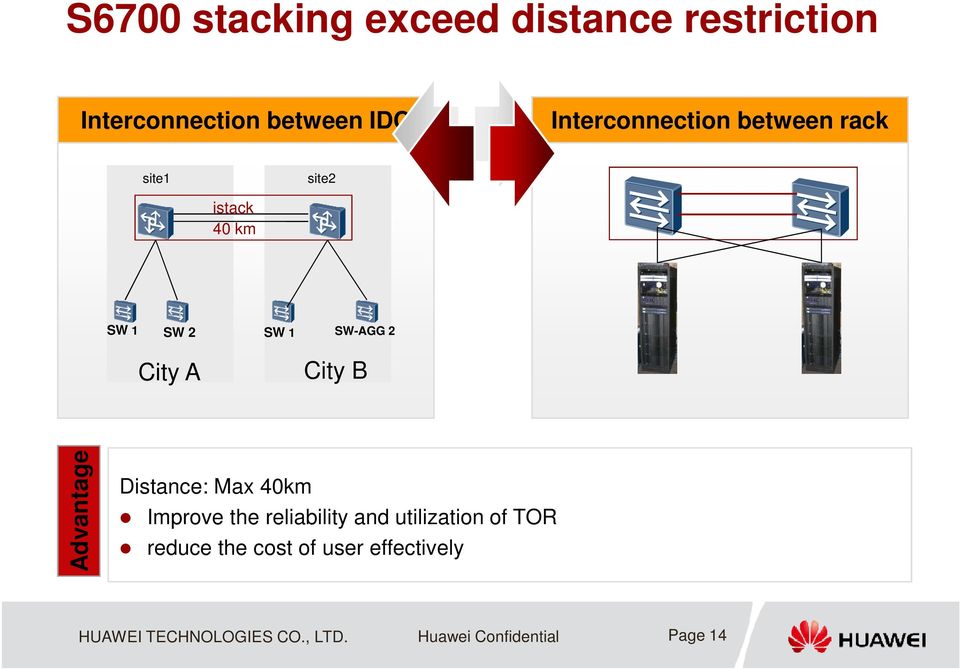

14 S6700 stacking exceed distance restriction Interconnection between IDC Interconnection between rack site1 site2 istack 40 km SW 1 SW 2 SW 1 SW-AGG 2 City A City B Advantage Distance: Max 40km Improve the reliability and utilization of TOR reduce the cost of user effectively HUAWEI TECHNOLOGIES CO., LTD. Huawei Confidential Page 14

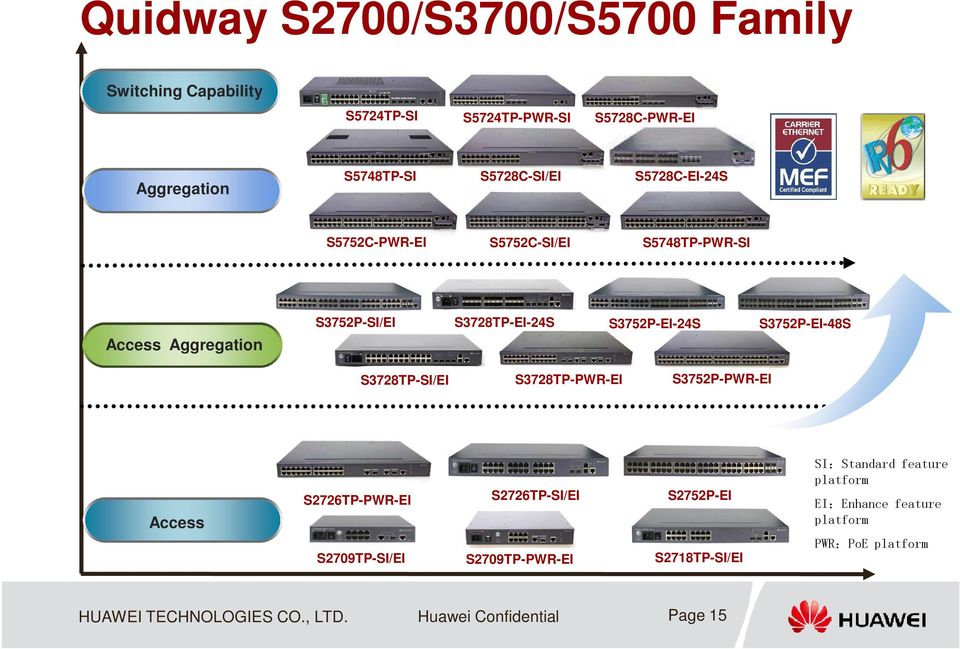

15 Quidway S2700/S3700/S5700 Family Switching Capability S5724TP-SI S5724TP-PWR-SI S5728C-PWR-EI Aggregation S5748TP-SI S5728C-SI/EI S5728C-EI-24S S5752C-PWR-EI S5752C-SI/EI S5748TP-PWR-SI Access Aggregation S3752P-SI/EI S3728TP-EI-24S S3752P-EI-24S S3752P-EI-48S S3728TP-SI/EI S3728TP-PWR-EI S3752P-PWR-EI Access S2726TP-PWR-EI S2709TP-SI/EI S2726TP-SI/EI S2709TP-PWR-EI S2752P-EI S2718TP-SI/EI SI:Standard feature platform EI:Enhance feature platform PWR:PoE platform HUAWEI TECHNOLOGIES CO., LTD. Huawei Confidential Page 15

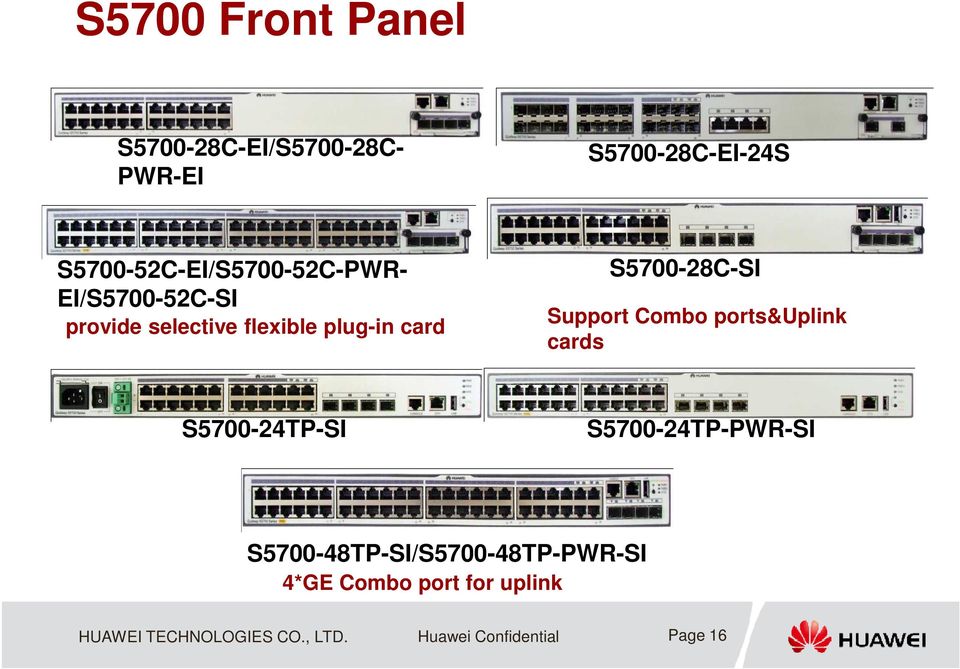

16 S5700 Front Panel S C-EI/S C- PWR-EI S C-EI-24S S C-EI/S C-PWR- EI/S C-SI provide selective flexible plug-in card S C-SI Support Combo ports&uplink cards S TP-SI S TP-PWR-SI S TP-SI/S TP-PWR-SI 4*GE Combo port for uplink HUAWEI TECHNOLOGIES CO., LTD. Huawei Confidential Page 16

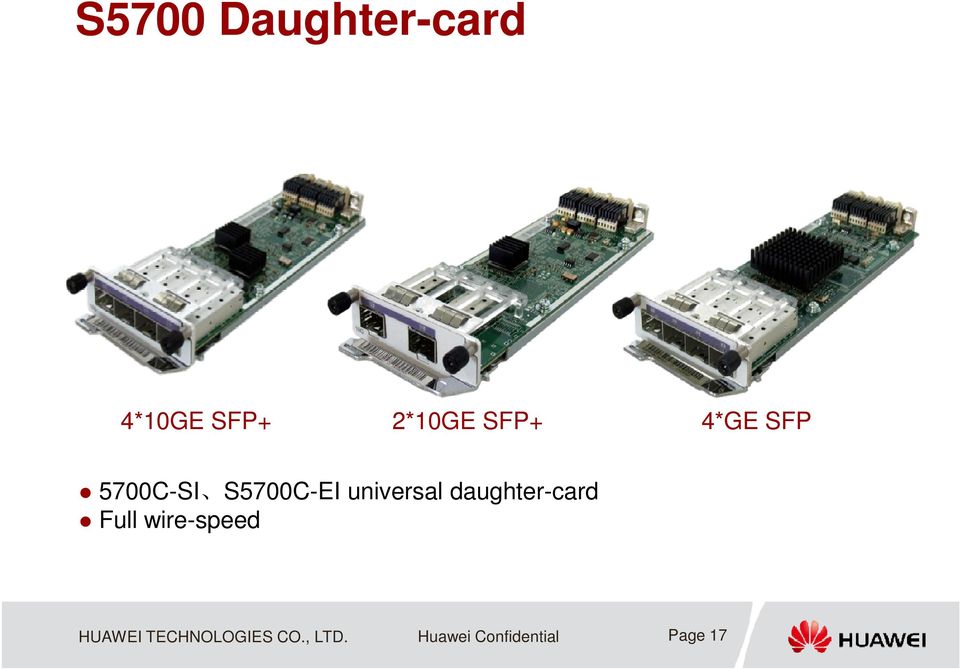

17 S5700 Daughter-card 4*10GE SFP+ 2*10GE SFP+ 4*GE SFP 5700C-SI S5700C-EI universal daughter-card Full wire-speed HUAWEI TECHNOLOGIES CO., LTD. Huawei Confidential Page 17

18 Intelligent stack 57 Series 37 Series 27 Series Topology Chain & Ring Chain & Ring Chain Stack capacity 48Gbps 10Gbps 4Gbps Maximum Stack switches Stack port individual stack Uplink GE Port Uplink GE port port Benefits: Simplify the network, simplify the management Stack cable individual stack cable of S57 Individual stack cable of S37 Normal cable or optical fiber Low-cost expansion of the port density and bandwidth, high reliability, to protect user investments. Compare with the chassis switch which has the same port density, stacking system occupied less room space, less power consumption, overall at least 50% investment will be reduced. HUAWEI TECHNOLOGIES CO., LTD. Huawei Confidential Page 18

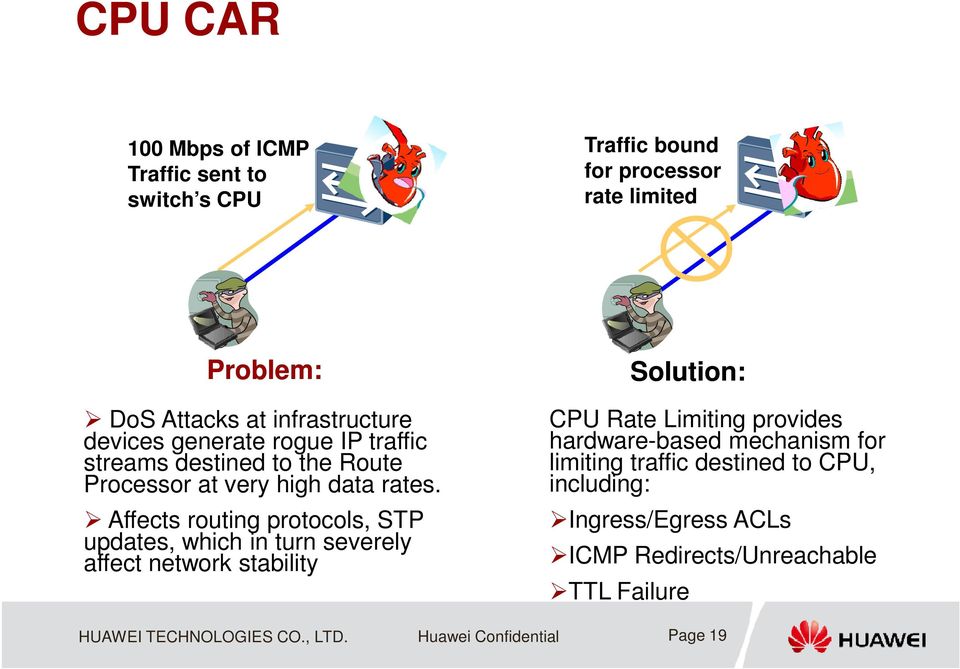

19 CPU CAR 100 Mbps of ICMP Traffic sent to switch s CPU Traffic bound for processor rate limited Problem: DoS Attacks at infrastructure devices generate rogue IP traffic streams destined to the Route Processor at very high data rates. Affects routing protocols, STP updates, which in turn severely affect network stability Solution: CPU Rate Limiting provides hardware-based mechanism for limiting traffic destined to CPU, including: Ingress/Egress ACLs ICMP Redirects/Unreachable TTL Failure HUAWEI TECHNOLOGIES CO., LTD. Huawei Confidential Page 19

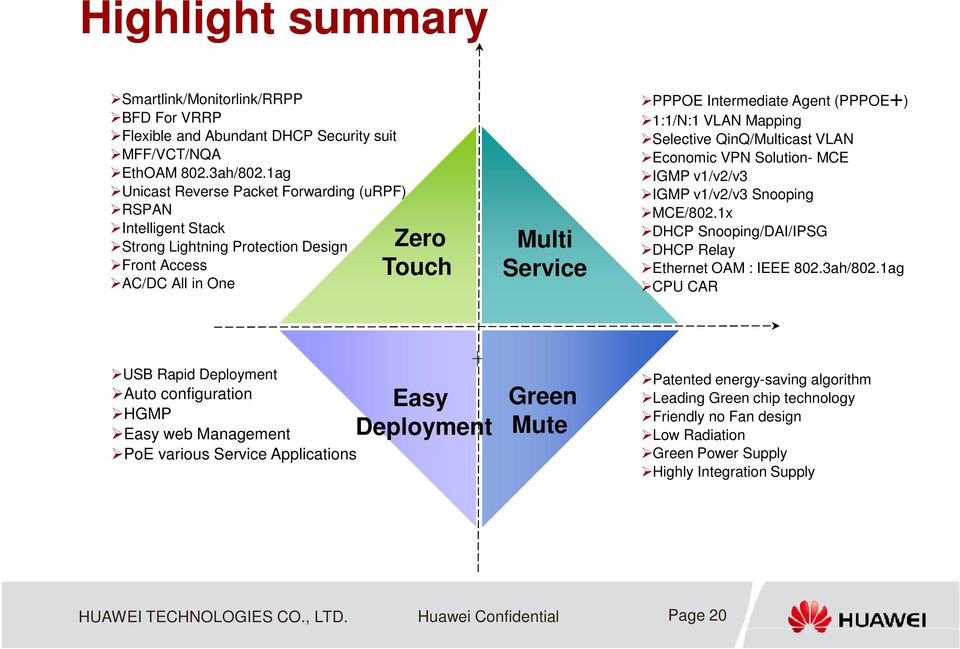

20 Highlight summary Smartlink/Monitorlink/RRPP BFD For VRRP Flexible and Abundant DHCP Security suit MFF/VCT/NQA EthOAM 802.3ah/802.1ag Unicast Reverse Packet Forwarding (urpf) RSPAN Intelligent Stack Strong Lightning Protection Design Front Access AC/DC All in One Zero Touch Multi Service PPPOE Intermediate Agent (PPPOE+) 1:1/N:1 VLAN Mapping Selective QinQ/Multicast VLAN Economic VPN Solution- MCE IGMP v1/v2/v3 IGMP v1/v2/v3 Snooping MCE/802.1x DHCP Snooping/DAI/IPSG DHCP Relay Ethernet OAM : IEEE 802.3ah/802.1ag CPU CAR USB Rapid Deployment Auto configuration HGMP Easy web Management PoE various Service Applications + Easy Deployment Green Mute Patented energy-saving algorithm Leading Green chip technology Friendly no Fan design Low Radiation Green Power Supply Highly Integration Supply HUAWEI TECHNOLOGIES CO., LTD. Huawei Confidential Page 20

21 Questions? HUAWEI TECHNOLOGIES CO., LTD. Huawei Confidential Page 21

22 Routers ARG3 and NE40E-X3 HUAWEI TECHNOLOGIES CO., LTD. Huawei Confidential Page 22

23 AR G3 Routers Portfolio AR3200 Series AR3260 Headquarter (150~500 Users) AR2200 Series AR2220 AR2240 Medium Branch (50~150 Users) AR1200 Series AR1220/1220V AR1220W Small Branch (10~50 Users) (V2R1C01) AR200 Series SOHO (3~10 Users) (V2R2) HUAWEI TECHNOLOGIES CO., LTD. Huawei Confidential

24 AR 1200 Series 2 SIC Slots Fixed 2GE InterfacesFixed 8FE Interfaces AR1220 Rear View Fixed 2GE Interfaces 2 SIC Slots Fixed 8FE Interfaces AR1220V Rear View AR1220W/AR1220VW Rear View (V2R1C01) POE Power Interface Specification Forwarding Performance Service Performance Switch Capacity AR1220/1220V/ AR1220W/AR1220VW 350Kpps/ 200Mbps(64byte) 10 user devices NAT / 50 ACLs / 50 QoS (CBWFQ) / 64 bytes 25Mbps 8Gbps SIC Slots 2 Fixed WAN Fixed LAN DSP Slots WiFi Memory FLASH 2GE 8FE AR1220V/1220VW support 32 DSP b/g/n (AR1220W/1220VW) 512M 256M USB 2 WLAN Antenna, support b/g/n HUAWEI TECHNOLOGIES CO., LTD. WLAN Antenna POE Power Interface Huawei Confidential Dimensions (mm)(w x D x H) 390 mm x 220 mm x 44.5 mm

25 AR2220 Front View AR2220 Rear view AR 2200 Series 2 WSIC Slots 3GE(1 GE Combo) 4 SIC Slots Specificatio n Forwarding Performance Service Performance Switch Capacity AR2220 1Mpps/ 500Mbps(64byt e) 100 user devices NAT / 100 ACLs / 100 QoS (CBWFQ) / 64 bytes 75Mbps 32Gbps AR2240 2Mpps/ 1333Mbps(64 byte) 200 user devices NAT / 200 ACLs / 200 QoS (CBWFQ) / 64 bytes 150Mbps 80Gbps SIC Slots 4 4 AR2240 Front View WSIC Slots 2 2 XSIC Slots 0 2 3GE(2 GE Combo) Fixed WAN 3GE(1 COMBO) 3GE(2 COMBO) 2 WSIC Slots 4 SIC Slots DSP Slots 1 3 Memory 2G 2G AR2240 Rear view 2 XSIC Slots FLASH 16M 16M SD Card (Default/Max) 2G/4G 2G/4G USB 2 2 Dimensions (mm)(w x D x H) 442 mm x 420 mm x 44.5 mm 442 mm x 470 mm x 88.2 mm HUAWEI TECHNOLOGIES CO., LTD. Huawei Confidential

26 AR 3200 Series Specification AR3260 Forwarding Performance Service Performance 3.5Mpps (SRU80) / 2000Mbps(64byte) 500 user devices NAT / 500 ACLs / 500 QoS (CBWFQ) / 64 bytes 1000Mbps Switch Capacity 160Gbps SIC Slots 4 2 WSIC Slots SRU80 high performance Control Unit, Do not support Dual SRU in V2R1 AR3260 Front View 4 SIC Slots WSIC Slots 2 XSIC Slots 4 Fixed WAN 3GE(2 COMBO) DSP Slots 3 Memory 2G FLASH 16M 4 XSIC Slots AR3260 Rear View HUAWEI TECHNOLOGIES CO., LTD. Huawei Confidential SD Card (Default/Max) 2G/4G USB 2 Dimensions (mm) (W x D x H) 442 mm x 470 mm x mm

27 AG G3 highlights 3G backup over USB stick L2 cards 24x1G with PoE support Redundant SRU and PWR supply (AR 3260) Voice support SIP PBX ADSL annex B (TO2 compatible) Something missing? HUAWEI TECHNOLOGIES CO., LTD. Huawei Confidential Page 27

28 The Appearance of NE40E-X3 AC Chassis Dual MPUs 5U 3 Service Slots Power Supply 1+1 Backup FAN 1+1 Backup (In one cabinet) MPUs, LPUs and Power supplies are front-access servicing, FANs are rear-access servicing. HUAWEI TECHNOLOGIES CO., LTD. Huawei Confidential Page 28

29 NE40E 100G Series Line cards LPUF-100 Mother Card 4 sub-slots slots 5*10GE Daughter-card 48*GE Daughter-card 24*GE Daughter-card LPUF-100 1*40G POS Daughter-card LPUI-100 1*100GE LPUI *10GE LPUI *10GE LPUI-100 type Daughter-card type remark LPUF Port 10GBase LAN/WAN-XFP XFP-A (1588v2) 48-Port 100/1000Base-X-CSFP 24-Port 100/1000Base-X-SFP 1-Port OC-768c/STM 768c/STM-256c POS-2KM 2KM-LC LPUI Port 100GBase-CFP 10-Port 10GBase LAN/WAN-XFP 1588v2 16-Port 10GBase LAN-SFP+ Occupy two sub-slots slots Medium-Queue Linecards HUAWEI TECHNOLOGIES CO., LTD. Huawei Confidential Page 29

30 NE40E 40G Series New Line cards Type Description Features Remark Photo LPUF-40 4-Port 10GBase LAN/WAN-XFP 20-Port 10/100/1000Base-RJ45 P40 daughter cards 2-Port 10GBase LAN/WAN-XFP-E 20-Port 1000Base-SFP-E P40-E daughter cards, Supporting BRAS, Enhanced QoS and 1588v2 2-Port 10GBase LAN/WAN-XFP-V P40-V daughter cards, Supporting DPI LPUI-41 8-Port 10GBase LAN/WAN-XFP Medium-Queue Linecards 4-Port 10GBase LAN/WAN-XFP 48-Port 100/1000Base-X-SFP 2-Port 10GBase LAN/WAN-XFP+24-Port 100/1000Base-X-SFP LPUS-41 4-Port 10GBase LAN/WAN-XFP 1588v2 40-Port 100/1000Base-X-SFP 1588v2 2-Port 10GBase LAN/WAN-XFP+20-Port 100/1000Base-X-SFP 1588v2 8-Port 10GBase LAN/WAN-XFP 4-Port 10GBase LAN/WAN-XFP 48-Port 100/1000Base-X-SFP Medium-Queue Linecards Supporting 1588v2 Low-Queue Linecards HUAWEI TECHNOLOGIES CO., LTD. Huawei Confidential Page 30

31 Flexible Interface Types LPUF-10 All In One flexible cards: ATM155 STM-1 E1 GE CPOS E3 STM-4 GE Based on 10G platform STM-64 GE GE STM-16 T1 STM-4 GE LPUF-20 All In One flexible cards: 10G LAN 12*GE 10G POS 12*GE Based on 20G platform LPUF-40 LPUF-40 Based on 40G platform 2*10GE 2*10GE 20*GE 20*GE The flexibility improves investment preservation and leverage to further reduce TCO. HUAWEI TECHNOLOGIES CO., LTD. Huawei Confidential Page 31

32 NE40E-X3 highlights FULL BGP core router 6M/3M RIB Support for HQoS ISSU NonStop Forwarding NonStop Routing BFD for several protocols MPLS/VPLS, GRE Something missing? HUAWEI TECHNOLOGIES CO., LTD. Huawei Confidential Page 32

33 Security Eudemon E200E/E1000E HUAWEI TECHNOLOGIES CO., LTD. Huawei Confidential Page 33

34 Eudemon 200E -X Family Kpps Eudemon 200E-X Eudemon 200E-X6 600 Eudemon 200E-X3 Eudemon 200E-X5 Headquarters/Branches of large and medium-sized enterprises 200 Eudemon 200E-X1 Eudemon 200E-X2 100 Headquarters/Branches of small and medium-sized enterprises SOHO and remote offices/small enterprises/small and medium-sized branches HUAWEI TECHNOLOGIES CO., LTD. Huawei Confidential Page 34

35 Eudemon 1000E-X Family Eudemon 1000E-X3 Throughput: 6 Gbit/s New connections per second: 100,000 Concurrent connections: 2,000,000 Throughput: 15 Gbi/s New connections per second: 200,000 Concurrent connections: 4,000,000 Throughput: 10 Gbit/s New connections per second: 150,000 Concurrent connections: 3,000,000 Eudemon 1000E-X5 Eudemon 1000E-X6 HUAWEI TECHNOLOGIES CO., LTD. Huawei Confidential Page 35

36 Rich Routing&Switching Features Server VRP-based routing platform Firewall AP R&S Switch Server Router Static routing and dynamic routing Static/RIPv2/OSPFv2/BGPv4/IS-IS IPv6 Flexible configuration management Routing policy/routing iteration/routing management Policy-based routing implemented through session flows Realizing interface-level load balancing through the interworking of policy-based routing and security features (such as NAT and ASPF): when a link fails, traffic automatically switches to other normal links. Multicast IGMPv1/v2/V3 PIM-DM/PIM-SM MSDP Fast Layer-2 switching Built-in fast Layer-2 forwarding chip to ensure fast Layer-2 switching capability Eudemon 200E-X2 supporting up to 17FE+2GE interfaces Eudemon 200E-X3/X5 supporting up to 26GE+16FE interfaces Eudemon 200E-X6 supporting up to 68GE+16FE interfaces Eudemon 200E-X7 supporting up to 108GE+16FE interfaces Appliance Storage HUAWEI TECHNOLOGIES CO., LTD. Huawei Confidential

37 Versatile Access Modes-- Interfaces Mobile office Branch Partner 3G ISP Customer Wifi FE Remote maintenan ce Scalable hardware module FE ADSL E1 GE 3G E1 ISP 2 Benefits ISP 1 With hardware interface modules, the Eudemon 200E-X supports LAN/WLAN/WAN/WWAN interfaces. Extensive interfaces enable flexible service expansion LAN: FE/GE WLAN: a/b/g/n WAN: FE/GE/DSL/E1/CE1/SA Various 3G technologies ensure the smooth link fault recovery WWAN: WCDMA/CDMA2000/TD- SCDMA, 2*SIM HUAWEI TECHNOLOGIES CO., LTD. Huawei Confidential

38 Versatile Access Modes-- VPNs Partner Headquarters L2TP VPN IPSec over GRE GRE over IPSec L2TP over IPSec VPN L2TP VPN Internet MPLS VPN Regional office IPSec VPN over L2TP Branch SSL VPN Remote site VPNs L2TP / IP Sec VPN/ SSL VPN GRE / MPLS VPN HUAWEI TECHNOLOGIES CO., LTD. Huawei Confidential

39 Unified Security GW--IPS Basic principle: Just like a lock can only be opened by a special key, a vulnerability can only be attacked by the worm with special "features". Step 1: Analyze the feature of a new vulnerability. Step 2: Scan network traffic according to this feature, and block the traffic that matches this feature. All new worms that make use of this vulnerability are immediately blocked without knowing the features of the worms. HUAWEI TECHNOLOGIES CO., LTD. Huawei Confidential Page 39

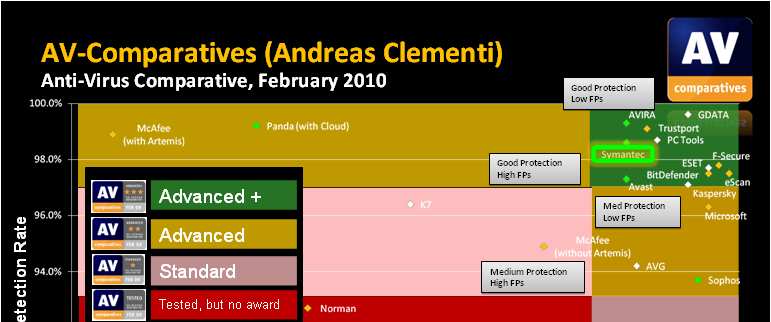

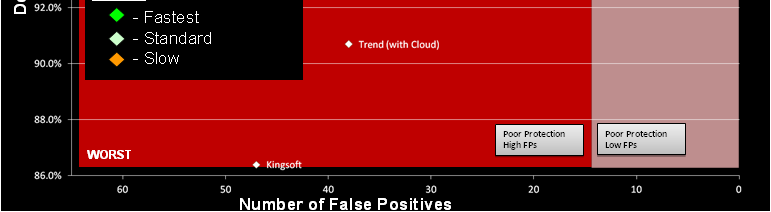

40 Unified Security GW--AV Symantec virus databases are applied to over 150 million systems globally. Removes over five million viruses. Downloaded over 2.8 million times every day. Authenticated by multiple authorities. Updates rapidly. HUAWEI TECHNOLOGIES CO., LTD. Huawei Confidential Page 40

41 Unified Security GW--AS Supports blacklist and whitelist of spammers that are maintained by a third-party. Real-time anti-spam purifies enterprises' mail systems, protecting employees from spam. Real Black List (RBL) server Internet e! e e! HUAWEI TECHNOLOGIES CO., LTD. Huawei Confidential Page 41

42 Unified Security GW P2P & IM Interne t Visible pipe identification P2P Upload P2P Download VoIP WebTV Video Conferencing Gaming UTM+ report Protocol 800+ Complete coverage of mainstream application protocols Support encryption P2P protocol Number of porotocol Customized demand quick responsiveness HUAWEI TECHNOLOGIES CO., LTD. Huawei Confidential Page

43 Unified Security GW-- URL Filtering 1 4 Number of suppo1ted languages: 11 Number of categorized Web sites: > 65 million URL categories 2 Accuracy > 96% Number of categories > Customize category solutions and freely combine the categories as required. Effectively control online behaviors and block unhealthy information. HUAWEI TECHNOLOGIES CO., LTD. Huawei Confidential Page 43 Page 43

44 Unified Security GW-- Library Update Eudemon-X series has the fast rapid and real-time update capabilities Both update quantity and frequency lead the industry to Virus library update frequency Huaweisymantec offer update every4 hours HUAWEI TECHNOLOGIES CO., LTD. Huawei Confidential Page 44

45 Brilliant QoS Rich QoS features: QoS processing of a packet Traffic policing Port LR Congestion management FIFO queuing PQ CQ WFQ CBQ SPQ WRR SPQ+WRR Priority mapping Receiving packet Classification and tagging Congestion management Queue scheduling and traffic shaping Fair QoS Valid SLA High customer satisfaction Higher bandwidths for valued services Forwarding valuable packet HUAWEI TECHNOLOGIES CO., LTD. Huawei Confidential

46 Questions? HUAWEI TECHNOLOGIES CO., LTD. Huawei Confidential

47 GPON HUAWEI TECHNOLOGIES CO., LTD. Huawei Confidential Page 47

48 GPON základy Pasivní optická síť Aktivní prvek pouze v centru sítě Žádné přístupové/agregační switche Šířka pásma 2,5Gbps směrem k uživateli 1,25Gbps směrem od uživatele Datová efektivita cca 93% Dosah až 20km Maximální split 1:128 (v budoucnu 1:256) HUAWEI TECHNOLOGIES CO., LTD. Huawei Confidential Page 48

49 GPON a Multicast Single-copy alá Multicast v P2P sítí Multicast je posílán nezašifrovaný všem ONT Výběr/limitace kanálu je pouze na STB Multi-copy Každé ONT má svoji kopii, stream posílán zašifrovaně HUAWEI TECHNOLOGIES CO., LTD. Huawei Confidential Page 49

50 MA560xT představení produktů MA5600T Vysokokapacitní OLT Výška 10U Popdpora GE/10GE uplink 21 /19 rack, 300mm hloubka 2 *SCU sloty, 16/14*Servisních slotů, 2*GIU slot Venkovní kabinet MA5603T OLT střední kapacity Výška 6U Podpora GPON/GE/10GE uplink 19 rack, 300mm hloubka 2*SCU sloty, 6*Servisní slot, 2*GIU slot D500+MA5600T H W D (mm): mm S300+MA5603T H W D (mm): mm Kompatibilita servisních karet MA5600T/MA5603T Neblokující architektura (10G na slot) Rozšiřitelnost uplink modulů (max 4x10G) HUAWEI TECHNOLOGIES CO., LTD. Huawei Confidential

51 MA5603T OLT střední kapacity Popis produktu Maximálně 6144 GPON uživatelů Maximálně 288 1G P2P uživatelů Až 4x10G uplink Kapacita 10G na slot Klíčové vlastnosti 32 L3 interfaces, 32x VRF OSPF, RIP, BGP (5K routes) ECMP, routing policies DHCP relay/proxy IPv6 static route, MP-BGP DHCPv6, ACLv6 Multicast IGMP, IGMP snooping, PIM SSM MA5603T HUAWEI TECHNOLOGIES CO., LTD. Huawei Confidential Page 51

52 GPON s MA5603T vs aktivní FTTx Spotřeba 512 uživatelů :max 170W 6144 uživatelů: max 850W Jednoduchý management Pouze jeden centrální aktivní prvek Žádné přístupové switche Není co ukradnout Nemusí se nic servisovat CPE (ONT) pod vaším dohledem Dostatečná šířka pásma 2,5G/1,25G, 10G/2,5G a 10G/10G na port HUAWEI TECHNOLOGIES CO., LTD. Huawei Confidential Page 52

53 GPON karta s 8 porty a SFP třídy C+ (1:128) 8 PON per slot SFP C+ class: Vysílací výkon: 3-7 dbm Citlivost: -30 dbm Maximálně uživatelů 128 uživatelů na jeden GPON port 8 GPON portů na jedné kartě 6/16 slotů v jednom OLT Maximální kapacita OLT: 128*8*16 =16384 GPON MAC každý port má vyhrazený HUAWEI ASIC, plná kompatibilita s G.984.x, Item Shaping Quantity New card (H805 GPBD) H802 GPBD 4K queue / Počet skupin 512, based on ONU ID Počet front 8 / Metoda odbavování Kapacita na frontu Celkem SP+WRR / 16 packet buffer 128MB/64K buffers / / CAR only, 8MB HUAWEI TECHNOLOGIES CO., LTD. Huawei Confidential Page 53

54 Ochrana na třech vrstvách pro maximální dostupnost LAG(LACP):200ms protection MSTP Ring: 1s; RRPP Ring: 50ms VRRP Dual homing 100ms Síťová vrstva LAG RRPP MSTP X VRRP VRRP X OLT OLT OLT OLT OLT OLT Normal Type B: 50ms Type B+ DUAL OLT Type C E2E záloha OLT Přístupová vrstva 50m s Active path Backup path OLT OLT 50m s Splitter Fyzická vrstva Dvě napájeci karty Plně redundantní OLT Dvě řidící karty SCUN Dvě uplink karty HUAWEI TECHNOLOGIES CO., LTD. Huawei Confidential

55 Ochrana TypeB 50ms na přepnutí TypeB scenář Obdoba kruhu v aktivních sítích Většina poruch mezi OLT splitrem 2-20km cca x větší vzdálenost, nepřátelské prostředí Záloha do jedné či různých karet v rámci OLT Automatické/Statické přepnutí Ochrana před poškozením kabelu či servisní karty OLT Aktivní cesta Záložní cesta Splitter ONU 50ms 2 to 20 km less 200m HUAWEI TECHNOLOGIES CO., LTD. Huawei Confidential Page 55

56 Bezpečnost ochrana uživatele a služeb Uživatelská bezpečnost Autorizace uživatelů SN+PW Podpora DHCP option 82 Podpora 802.1x Billing System PORTAL App Server IP core network IN Bezpečnost služby Izolace uživatelů na L2 ACL access control filtrování MAC adres Přiřazování MAC a IP Bezpečnostní hranice Zabezpečení linky šifrování dat pomcí AES-128 Vzdálená správa ONT OLT ONT OLT ONT Síťová bezpečnost Anti MAC spoofing Anti IP spoofing Anti DOS attack Anti ICMP/IP attack Anti Eavesdropping HUAWEI TECHNOLOGIES CO., LTD. Huawei Confidential Page 56

57 Jednoduchá správa: ISSU a OSS NBI In Service Software Upgrading nepřetržitý běh systému Software upgrading 5 NB-rozhraní - Alarm, Test, Výkon, Služby a Inventář Alarm CORBA, SNMP Successfully interconnected with 100+operators. Test MML Five NBI performance FTP Service TL1, XML Inventory TL1, XML HUAWEI TECHNOLOGIES CO., LTD. Huawei Confidential Page 57

58 GPON: ONT + CATF analogová televize Internet IP CORE OLT WDM Coupler CATV ONT with RF HSI CATV broadcast network Coupler Optical transmitter OLT Splitter Home gateway VOIP STB IPTV CATV signál sloučen s GPON signálem CATV: 1550nm GPON: 1490nm DOWN GPON: 1310nm UP Snadná migrace z CATV na IPTV Možnost nabídky základní nabídky TV bez nutnosti STB ONT má již zabudovaný RF port HUAWEI TECHNOLOGIES CO., LTD. Huawei Confidential Page 58

59 Agregační OLT 48x1G P2P karta VoIP RG GE P2P GE MA5600T 4*10GE IP Network IPTV HSI LAG xdsl modem DSLAM DSLAM STP/RSTP/ MSTP MSAN HSI VoIP IPTV DSLAM 48x1G karta: FE/GE kompatibilní, jedno/dvě vlákna 768 GE v jednom chassis (MA5600T) OLT funguje s funkcí agregačního switche HUAWEI TECHNOLOGIES CO., LTD. Huawei Confidential

60 Nabídka ONT pro rok 2011 Data SFU HG GE L2 zařízení Voice SFU HGU HG POTS 4 GE HG POTS 1 GE HG POTS 4 GE 1 USB WIFI(11b/g/n) 4 SSID L3 zařízení NAT + IGMP HG POTS 4 GE 1 RF HG POTS 4 GE 1 USB WIFI(11b/g/n) 1 RF HG POTS 4 GE 1 USB WIFI(11b/g/n) 1 RF HUAWEI TECHNOLOGIES CO., LTD. Huawei Confidential Page 60

61 NOVINKY PRO ROK 2012 HUAWEI TECHNOLOGIES CO., LTD. Huawei Confidential Page 61

62 Migrace z GPON na 10GPON Rychlá a jednoduchá migrace z GPON na NG-PON OLT GPON 1490nm ONT ONT OLT GPON ONT ONT Now GPON ONT ONT ONT 10G GPON card Future WDM1r 10G GPON ONT ONT 10 GPON ONT Stejné OLT Stejná ODN síť Stávající ONT Stávající EMS G P O N 10 G P O N OLT WDM 1r OLT GPON 10G GPON ONT ONT ONT WBF WBF GPON ONT 10G GPON ONT OLT GPON ONT ONT ONT Chassis je 10GPON ready Použití WDM slučovače Stejná síť, žádné změný 1 GPON ONT blokují 10GPON a naopak ONT 10 GPON ONT Stávající EMS s NBI Huawei 10G GPON sytém je kompatibilní s ITU-T G.987 a 988 HUAWEI TECHNOLOGIES CO., LTD. Huawei Confidential Page 62 Page 62

63 Nová řídící karta a 16x GPON karta 20G SPUA SPU 20G A SPUA UPLINK CARD SPUA UPLINK CARD Item SCUN SCUH CPU 1 Core Multi-Core 2*10GE Link AGG Main Control Load Share. 2*20GE Link AGG SCUH SCUH 2*20GE Link AGG Propustnost(bps) 240G 480G Propustnost(bps) na slot 10G 20G Rozhranní 4*1GE(SFP) 4*10GE/1GE(SF P+/SFP) Maximum ONT 8K 16K 16p PON 16p PON ACCESS CARD ACCESS CARD ARP 8K 16K Compatibilita s Výhody předchozími kartami Yes Yes Vyšší výkon až 16K ONT na jednu řídící kartu Rozšíření L3 funkcí a zvýšení L3/L2 výkonu Přídání 10G uplink přímo na kartu není nutné používat uplink karty HUAWEI TECHNOLOGIES CO., LTD. Huawei Confidential Page 63

64 Nové modely ONT v roce 2012 Data SFU HG GE Voice SFU HG8240B 2 POTS 4 GE HG8240S 2 POTS 4 GE Outdoor HG8240J 2 POTS 4 GE Just in-side HGU HG8245T 2 POTS 4 GE 1 USB WIFI(11b/g/n) HG8247T 2 POTS 4 GE 1 USB WIFI(11b/g/n) 1 RF HUAWEI TECHNOLOGIES CO., LTD. Huawei Confidential Page 64

65 Thank you Copyright 2008 Huawei Technologies Co., Ltd. All Rights Reserved. The information contained in this document is for reference purpose only, and is subject to change or withdrawal according to specific customer requirements and conditions.
